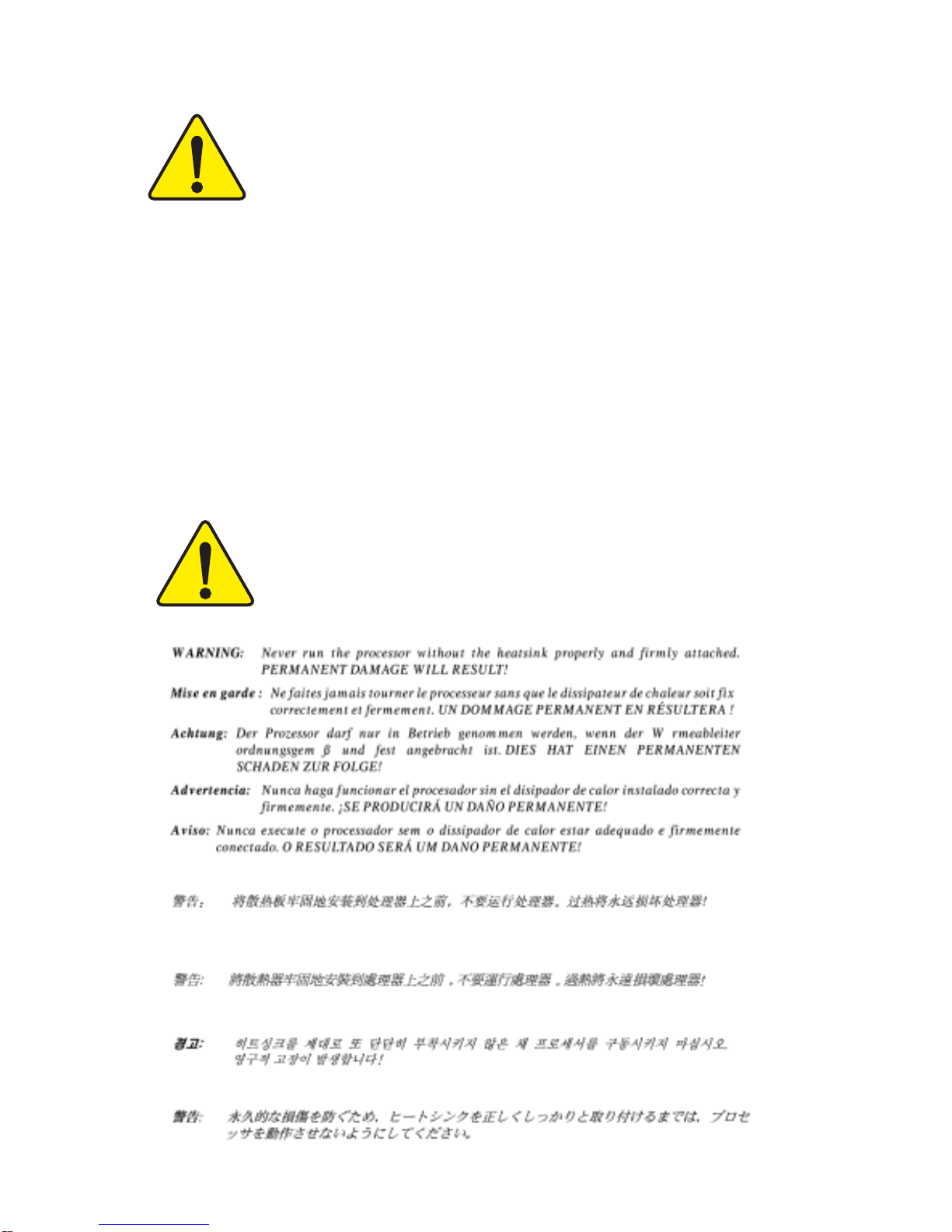

When you installingAGP card, please make sure the following

notice is fully understood and practiced. If yourAGPcard has

"AGP 4X/8X(1.5V) notch"(show below), please make sure yourAGP

card is AGP 4X/8X(1.5V).

Caution:AGP 2X(3.3V) card is not supported by VIA®KT600.You

might experience system unable to boot up normally. Please insert

an AGP 4X/8X(1.5V) card

Example 1: Diamond Vipper V770 golden finger is compatible with

2X/4X modeAGP slot. It can be switched betweenAGP2X(3.3V) or 4X

(1.5V) mode by adjusting the jumper. The factory default for this card is

2X(3.3V).

TheGA-7VT600(-L)(or anyAGP4X only)motherboardsmight not

function properly, if you install this card without switching the jumper to

4X(1.5V) mode in it.

Example 2: SomeATi Rage 128 Pro graphics cards made by "Power

Color", the graphics card manufacturer & some SiS 305 cards, their

golden finger is compatible with 2X(3.3V)/4X(1.5V) modeAGP slot, but

they support 2X(3.3V) only. The GA-7VT600(-L) (or anyAGP4X only)

motherboards might not function properly, If you install thiscard in it.

Note :Although Gigabyte'sAG32S(G) graphics card is based on

ATi Rage 128 Pro chip, the design ofAG32S(G) is compliance

withAGP 4X(1.5V) specification.Therefore,AG32S (G)will work

fine with VIA®KT600 based motherboards.

AGP 4X/8X notch

0The author assumes no responsibility for any errors or

omissions that may appear in this document nor does the

author make a commitment to update the information contained

herein.

0Third-party brands and names are the property of their

respective owners.

0Please do not remove any labels on motherboard, thismay void

the warranty of this motherboard.

0Due to rapid change in technology, some of the specifications

might be out of date before publication of this booklet.

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirments for

uninterruptible power systems (UPS)

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Trading GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-7VT600

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2 Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Harmonics"



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment "Voltage fluctuations"



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date :Jan. 12, 2004

7EN 60555-3

Timmy Huang



EN 50091-1

Timmy Huang

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible PartName:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person's Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-7VT600

Date:

ERIC LU

Jan.12,2004

USER'S MANUAL

GA-7VT600(-L)

AMD SocketAProcessor Motherboard

AMDAthlon™/Athlon™XP/Duron™SocketAProcessorMotherboard

Rev.2001

12ME-7VT600-2001

- 2 -GA-7VT600(-L) Motherboard

English

Table of Contents

Item Checklist .........................................................................................4

WARNING!...............................................................................................4

Chapter 1 Introduction............................................................................5

Features Summary......................................................................................5

GA-7VT600(-L) Motherboard Layout .......................................................... 7

Block Diagram.............................................................................................8

Chapter 2 Hardware Installation Process............................................. 11

Step 1: Set System Jumper (JP1)..............................................................12

Step 2: Install the Central Processing Unit (CPU).....................................13

Step 2-1: CPU Installation............................................................................................... 13

Step 2-2: CPU Cooling Fan Installation......................................................................... 14

Step 3: Install Memory Modules................................................................15

Step 4: Install Expansion Cards ................................................................17

Step 5: Connect Ribbon Cables, Cabinet Wires and Power Supply ........18

Step 5-1 : I/O Back Panel Introduction .......................................................................... 18

Step 5-2 : Connectors Introduction................................................................................. 20

Chapter 3 BIOS Setup .........................................................................31

The Main Menu (For example: BIOS Ver. : F4c)......................................32

Standard CMOS Features.........................................................................34

Advanced BIOS Features ..........................................................................37

Integrated Peripherals ..............................................................................39

Power Management Setup .......................................................................43

PnP/PCI Configurations.............................................................................46

Table of Content

English

- 3 -

PC Health Status........................................................................................47

Frequency/Voltage Control........................................................................49

Load Fail-Safe Defaults.............................................................................51

Load Optimized Defaults...........................................................................52

Set Supervisor/User Password..................................................................53

Save & Exit Setup.......................................................................................54

Exit Without Saving ....................................................................................55

Chapter 4 Technical Reference ...........................................................57

@BIOS™Introduction.................................................................................57

EasyTune™4 Introduction .........................................................................58

Flash BIOS Method Introduction...............................................................59

2- / 4- / 6-ChannelAudio Function Introduction ........................................74

Jack-Sensing Introduction.........................................................................80

Xpress Recovery Introduction ...................................................................82

Chapter 5 Appendix.............................................................................85

- 4 -GA-7VT600(-L) Motherboard

English

TheGA-7VT600(-L) motherboard

CDfor motherboarddriver &utility (DriverCD)

TheGA-7VT600(-L)user'smanual

QuickPCinstallationguide

RAIDmanual

IDE cable x 2 / Floppy cable x 1

2 Port USB cable x 1

Item Checklist

Computermotherboards andexpansion cardscontain very delicate Integrated Circuit (IC) chips.To

protectthemagainstdamagefromstaticelectricity,youshouldfollowsomeprecautionswheneveryou

workonyourcomputer.

1. Unplugyourcomputerwhenworkingontheinside.

2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothave

one,touchbothofyourhandstoasafelygroundedobjectortoametalobject,suchas

the powersupplycase.

3. HoldcomponentsbytheedgesandtrynottouchtheICchips,leadsorconnectors,or

othercomponents.

4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe

componentswheneverthecomponentsareseparatedfromthesystem.

5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATX

powerconnectoronthemotherboard.

Ifthemotherboardhasmountingholes,buttheydon’tlineupwiththeholesonthebaseandthereare

noslotstoattachthespacers,donotbecomealarmedyoucanstillattachthespacerstothemounting

holes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,sobecareful

ofyourhands).Inthiswayyoucanstillattachthemotherboardtothebasewithoutworryingaboutshort

circuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthemotherboard

PCBsurface,becausethecircuitwiremaybenearbythehole.Becareful,don’tletthescrewcontact

anyprintedcircuitwriteorpartsonthePCBthatarenearthefixinghole,otherwiseitmaydamagethe

boardorcauseboardmalfunctioning.

Installing the motherboard to the chassis…

WARNING!

4 Port USB cable x 1

Audio combo kit x 1

IEEE 1394 cable x 1

SerialATAcable x 2

SerialATApowercable x1

I/O shield

Motherboardsettingslabel

Introduction

English

- 5 -

FormFactor y30.5cm x 20.0cmATX size form factor, 4 layers PCB.

CPU ySocket Aprocessor

AMDAthlonTM/AthlonTM XP/ DuronTM (K7)

128KL1 &512K/256K/64K L2cache on die

200/266/333/400MHzFSB

ySupports1.4GHzandfaster

Chipset yVIAKT600 Memory/AGP Controller (PAC)

yVIAVT8235IntegratedPeripheralController(PSIPC)

Memory y3184-pinDDRsockets

ySupports DDR DRAM PC2100/PC2700/PC3200

ySupports up to 3.0GB DDR (Max)

ySupports only 2.5V DDR DIMM

I/O Control yIT8705

Slots y1AGPslotsupports 8X/4X mode(1.5V)&AGP3.0compliant

y5 PCI slots supports 33MHz & PCI 2.2 compliant

On-BoardIDE y2 IDE controllers provides IDE HDD/CD-ROM (IDE1, IDE2)

withPIO, Bus Master (Ultra DMA33/ATA66/ATA100/ATA133)

operationmode

On-BoardPeripherals y1Floppy portsupports 2 FDDwith 360K, 720K,1.2M,1.44M

and 2.88M bytes

y1Parallel portsupports Normal/EPP/ECP mode

y2 Serial port (COMA & COMB)

y6 x USB 2.0/1.1 (4 by cable)

HardwareMonitor yCPU/System FanRevolution detect

yCPU/Systemtemperaturedetect

ySystemvoltagedetect

yCPU/System fan fail warning

yThermalshutdownfunction

On-BoardSound yRealtekALC655 CODEC

ySupportsJackSensingfunction

yLineOut/2frontspeaker

yLine In / 2 rear speaker(by s/w switch)

yMic In / center & subwoofer(by s/w switch)

ySPDIF Out /SPDIF In

yCD In /AUX In / Game connector

Chapter 1 Introduction

Features Summary

tobecontinued......

- 6 -GA-7VT600(-L) Motherboard

English

PleasesettheCPUhostfrequencyinaccordancewithyourprocessor'sspecifications.

We don't recommend you to set the system bus frequency over the CPU's specification

becausethesespecificbusfrequenciesarenotthestandardspecificationsforCPU,chipsetand

mostoftheperipherals. Whether yoursystemcanrununder thesespecificbusfrequencies

properlywilldependonyourhardwareconfigurations, includingCPU,Memory,Cards…etc.

On-Board USB 2.0 yBuiltinVIAVT8235Chipset

On-Board LAN * yVIAVT6103L

y1RJ45port

PS/2Connector yPS/2KeyboardinterfaceandPS/2Mouse interface

BIOS yLicensedAward BIOS

ySupportsQ-Flash

AdditionalFeatures yPS/2 Keyboard power on by password,

yPS/2 Mouse power on by double click

yExternal Modem wake up

ySTR(Suspend-To-RAM)

yAC Recovery

yPolyfuseforkeyboardover-currentprotection

yUSB KB/Mouse wake up from S3

ySupports@BIOS

ySupportsEasyTune4

Overclocking yOver Voltage (CPU/AGP/DDR/PCI) by BIOS

yOver Clock (CPU/AGP/DDR/PCI) by BIOS

" * " For GA-7VT600-L only.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte X570SI AORUS PRO AX Manuale utente

Gigabyte

Gigabyte GA-F2A88XM-DS2 Manuale utente

Gigabyte

Gigabyte GA-X58A-UD9 Manuale utente

Gigabyte

Gigabyte GA-Z97X-Gaming 3 Manuale utente

Gigabyte

Gigabyte GA-7VM Manuale utente

Gigabyte

Gigabyte GA-K8NE-RH Manuale utente

Gigabyte

Gigabyte Xeon Processor Motherboard GA-5YXS-RH Manuale utente

Gigabyte

Gigabyte B550 AORUS ELITE V2 Manuale utente

Gigabyte

Gigabyte Z490M Manuale utente

Gigabyte

Gigabyte 6WMM Series Manuale utente

Gigabyte

Gigabyte GA-P43-ES3G Manuale utente

Gigabyte

Gigabyte G-MAX Micro ATX Series Manuale utente

Gigabyte

Gigabyte GA-870A-UD3 Manuale utente

Gigabyte

Gigabyte Z790 AORUS PRO X Manuale utente

Gigabyte

Gigabyte H410M DS2V V3 Manuale utente

Gigabyte

Gigabyte B760M D2HX SI DDR4 Manuale utente

Gigabyte

Gigabyte GA-6OXM7 Manuale utente

Gigabyte

Gigabyte GA-M52LT-D3P Manuale utente

Gigabyte

Gigabyte B460 HD3 Manuale utente

Gigabyte

Gigabyte GA-X48T-DQ6 Manuale utente

Gigabyte

Gigabyte GA-Z97P-D3 Manuale utente

Gigabyte

Gigabyte GA-7IXEH Manuale utente

Gigabyte

Gigabyte GA-586MS Manuale utente

Gigabyte

Gigabyte GA-MA78G-DS3H Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
