Gigabyte GA-B75M-D2V Manuale utente
GA-B75M-D2V
User's Manual
Rev. 1001
12ME-B75MD2V-1001R
Declaration of Conformity
We, Manufacturer/Importer,
G.B.T. Technology Trading GMbH
Address: Bullenkoppel 16, 22047 Hamburg, Germany
Declare that the product
Product Type:
Product Name:
conforms with the essential requirements of the following directives:
2004/108/EC EMC Directive:
Conduction & Radiated Emissions: EN55022:2006+A1:2007
Immunity:EN55024:1998+A1:2001+A2:2003
Power-line harmonics: EN61000-3-2:2006
Power-line flicker: EN61000-3-3:2008
2006/95/EC LVD Directive
Safety:EN60950-1:2006+A11:2009
2011/65/EU RoHS Directive
Restriction of use of certain
substances in electronic equipment:
This product does not contain any of the restricted
substances listed in Annex II, in concentrations
and applications banned by the directive.
CE marking
(EC conformity marking)
Signature:
(Stamp) Date: Name:
Timmy Huang
Timmy Huang
Motherboard
GA-B75M-D2V
Oct. 31, 2012
Oct. 31, 2012
Motherboard
GA-B75M-D2V
Copyright
©2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmit-
ted, or published in any form or by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: http://www.gigabyte.com

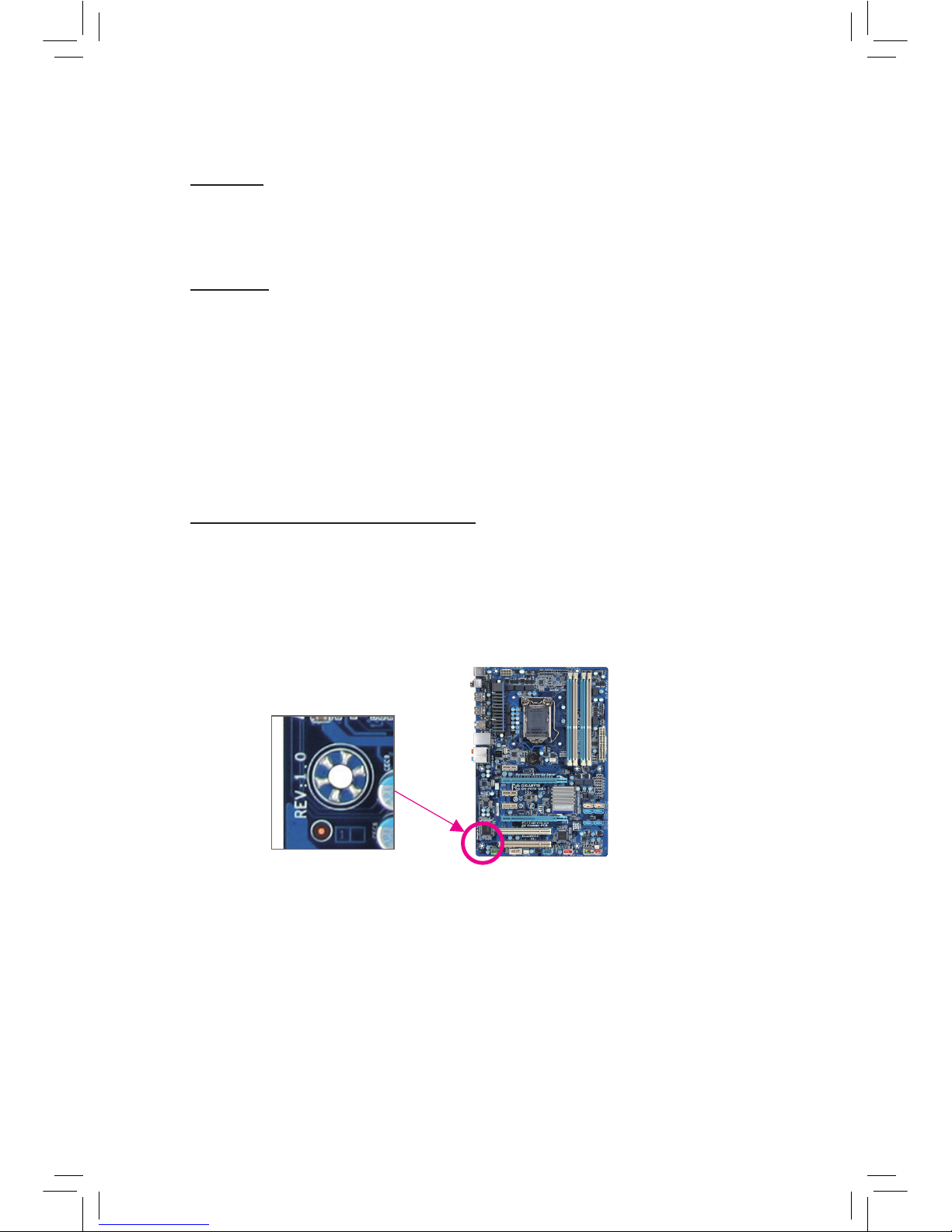

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
GA-B75M-D2V Motherboard Layout...............................................................................5
GA-B75M-D2V Motherboard Block Diagram..................................................................6
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions ................................................................................... 7
1-2 ProductSpecications..................................................................................... 8
1-3 Installing the CPU .......................................................................................... 10
1-4 Installing the Memory .....................................................................................11
1-5 Installing an Expansion Card..........................................................................11
1-6 Back Panel Connectors ................................................................................. 12
1-7 Internal Connectors ....................................................................................... 13
Chapter 2 BIOS Setup..................................................................................................20
2-1 Startup Screen............................................................................................... 20
2-2 The Main Menu.............................................................................................. 21
2-3 M.I.T. .............................................................................................................. 22
2-4 System ........................................................................................................... 30
2-5 BIOS Features ............................................................................................... 31
2-6 Peripherals..................................................................................................... 34
2-7 Power Management....................................................................................... 37
2-8 Save & Exit .................................................................................................... 39
Chapter 3 Drivers Installation .......................................................................................40
Regulatory Statements............................................................................................. 41
- 5 -

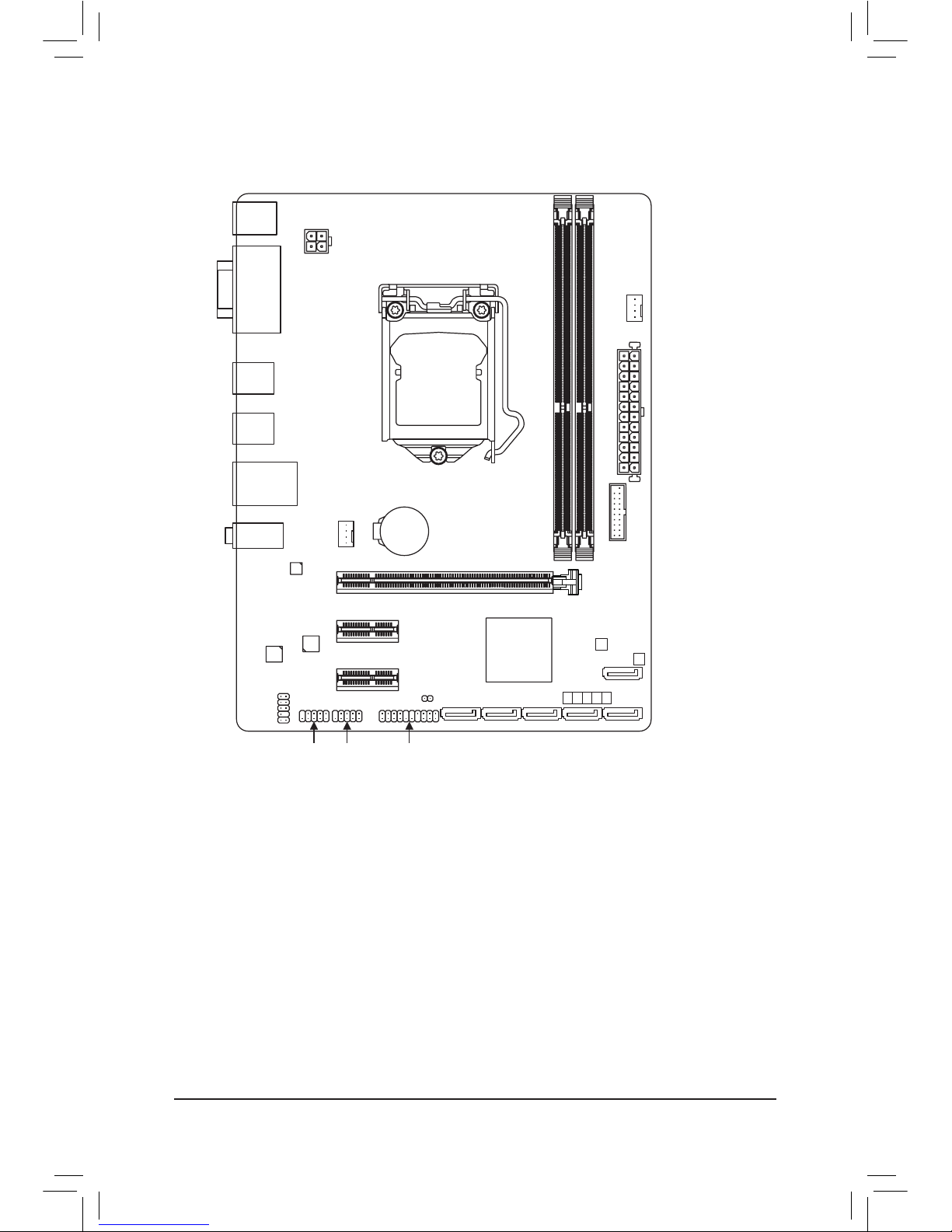

GA-B75M-D2V Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Box Contents
5GA-B75M-D2V motherboard
5Motherboard driver disk
5Two SATA 6Gb/s cables
5User's Manual
5I/O Shield
KB_MS
CPU_FAN
SYS_FAN
LGA1155
ATX
GA-B75M-D2V
F_AUDIO
AUDIO
DDR3_1
DDR3_2
BAT
ATX_12V
Intel®B75
SATA2
R_USB
R_USB30
CODEC
CLR_CMOS
F_USB30
BIOS
DVI
VGA
USB_LAN
PCIEX16
PCIEX1_1
PCIEX1_2
iTE
Super I/O
Realtek
GbE LAN
F_USB2 F_USB1 F_PANEL
54321
SATA3 0
- 6 -

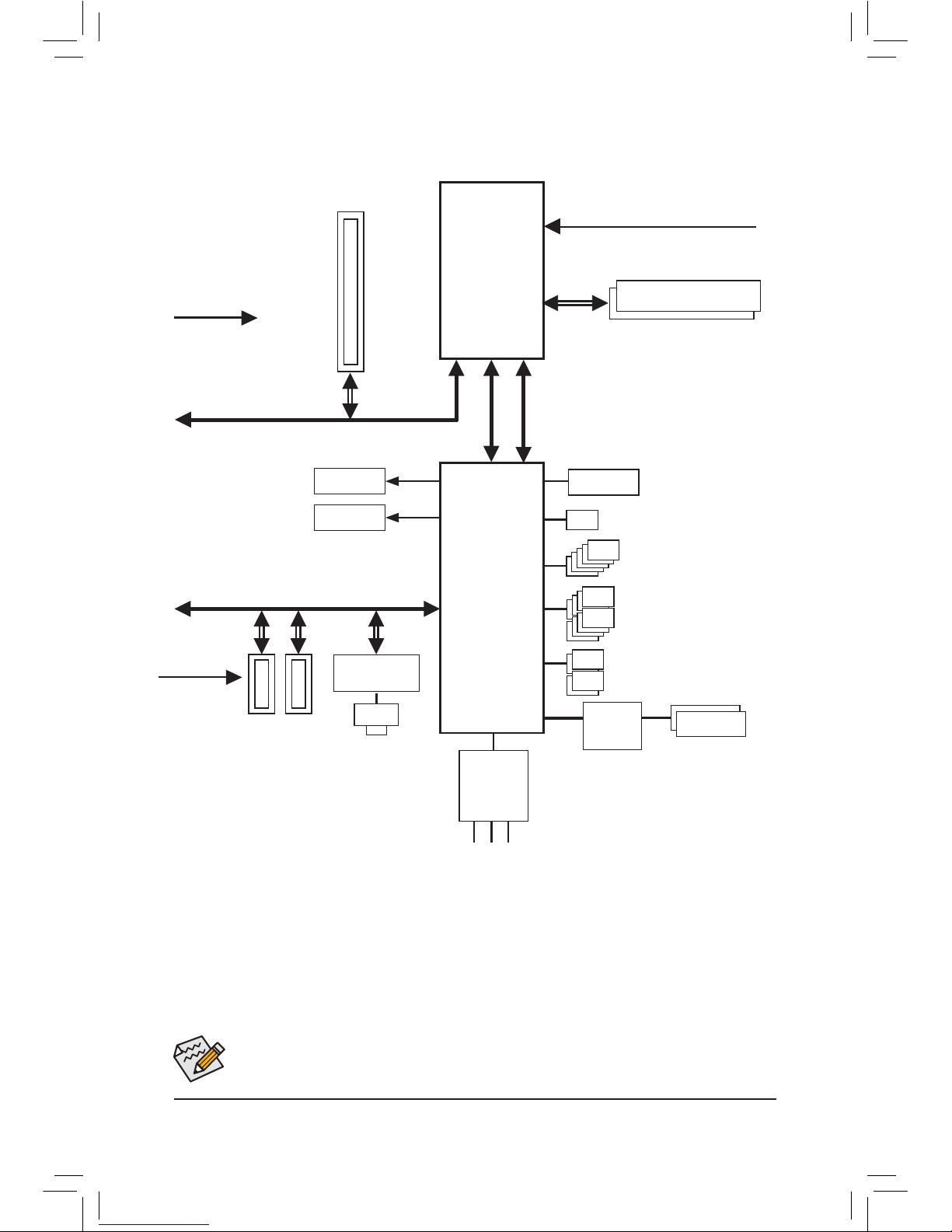

GA-B75M-D2V Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
iTE
Super I/O
PS/2 KB/Mouse
LGA1155
CPU
Intel®B75
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (100 MHz)
1 PCI Express x16
BIOS
8 USB 2.0/1.1
4 USB 3.0/2.0
DDR3 1600/1333/1066 MHz
PCI Express Bus
PCIe CLK
(100 MHz)
2 PCI Express x1
5 SATA 3Gb/s
D-Sub
DVI-D 1 SATA 6Gb/s
DMI 2.0
FDI
x16
Dual Channel Memory
x1 x1 x1
LAN
RJ45
Realtek
GbE LAN
LPC
Bus
Line Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
CODEC
- 7 -
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep
yourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
- 8 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®B75 Express Chipset
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of
physical memory is installed, the actual memory size displayed will be less than the
size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
Support for non-ECC memory modules
SupportforExtremeMemoryProle(XMP)memorymodules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated Graphics Processor:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Audio Realtek ALC887 codec
HighDenitionAudio
2/4/5.1/7.1-channel
* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule
and enable the multi-channel audio feature through the audio driver.
LAN Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compat-
ibility.
2 x PCI Express x1 slots
(All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface Chipset:
- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
- 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
USB Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)
- 9 -
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1xClearCMOSjumper
Back Panel
Connectors
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3xaudiojacks(LineIn/LineOut/Microphone)
I/O Controller iTE I/O Controller Chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the
CPU/system cooler you install.
BIOS 1x64Mbitash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Easy Tune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for EZ Setup
- 10 -

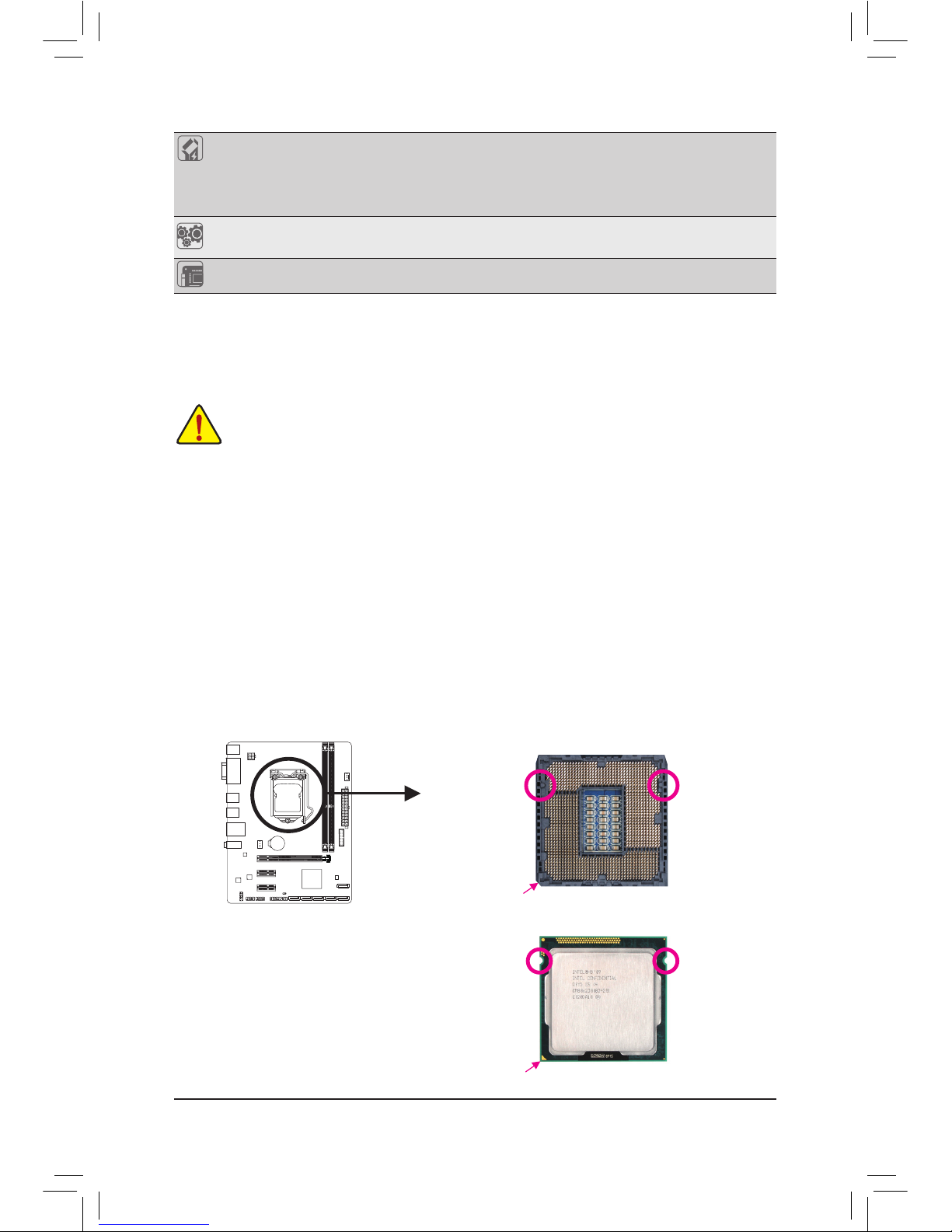

1-3 Installing the CPU
Installing the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Bundled
Software
Norton Internet Security (OEM version)
Intel®Rapid Start Technology
Intel®Smart Connect Technology
Intel®Small Business Advantage
Operating
System Support for Microsoft®Windows 8/7/XP
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)
for the software listed in the "Unique Features" and "Bundled Software" columns.
Alignment Key
Alignment Key
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Notch
Notch
LGA1155 CPU
Triangle Pin One Marking on the CPU
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate
the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•SettheCPU hostfrequencyinaccordance withtheCPU specications.Itisnot recommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.
Indice
Altri manuali Gigabyte Scheda madre
Gigabyte
Gigabyte GA-Z170X-Gaming 7 Manuale utente
Gigabyte
Gigabyte GS-R22PFL Manuale utente
Gigabyte
Gigabyte GA-B150M-Gaming Manuale utente
Gigabyte
Gigabyte Z690 AORUS XTREME WB Manuale utente
Gigabyte
Gigabyte GA-8IE2004P Manuale utente
Gigabyte
Gigabyte B650 A ELITE AX ICE Manuale utente
Gigabyte
Gigabyte G1.Sniper M7 Manuale utente
Gigabyte
Gigabyte GA-B75-D3V Manuale utente
Gigabyte
Gigabyte Z490I AORUS ULTRA Manuale utente
Gigabyte
Gigabyte GA-X38-DS4 Manuale utente
Gigabyte
Gigabyte B760M D3H DDR4 Manuale utente
Gigabyte
Gigabyte H510M K Manuale utente
Gigabyte
Gigabyte GA-PICO3455 Manuale utente
Gigabyte
Gigabyte 686DLX Manuale utente
Gigabyte
Gigabyte GA-8I915G Duo Manuale utente
Gigabyte
Gigabyte 6BXC Manuale utente
Gigabyte
Gigabyte GA-Z270-Gaming 3 Manuale utente
Gigabyte
Gigabyte MD72-HB2 Manuale utente
Gigabyte
Gigabyte GA-Z87M-D3H Manuale utente
Gigabyte
Gigabyte GA-Z97M-D3HP Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
