Gigabyte GA-BX2000 Manuale utente

BIOS Configuration

4-1

4.BIOS CONFIGURATION

Award's BIOS ROM has a built-in Setup program that allows users to modify

the basic system configuration. This type of information is stored in battery-

backed CMOS SRAM so that it retains the Setup information when the power

is turned off.

4.1. ENTERING SETUP

Power ON the computer and press <Del> immediately will allow you to enter

Setup. If the message disappears before you respond and you still wish to

enter Setup, restart the system to try again by turning it OFF then ON or

pressing the "RESET" bottom on the system case. You may also restart by

simultaneously press <Ctrl>, <Alt>, and <Del> keys.

4.2. CONTROL KEYS

Up arrow Move to previous item

Down arrow Move to next item

Left arrow Move to the item in the left hand

Right arrow Move to the item in the right hand

Esc key Main Menu - Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu -

Exit current page and return to Main Menu

PgUp key Increase the numeric value or make changes

PgDn key Decrease the numeric value or make changes

F1 key General help, only for Status Page Setup Menu and

Option Page Setup Menu

F2 key Change color from total 16 colors

F3 key Reserved

F4 key Reserved

F5 key Restore the previous CMOS value from CMOS, only for

Option Page Setup Menu

F6 key Load the default CMOS value from BIOS default table,

only for Option Page Setup Menu

F7 key Load the default

F8 key Reserved

F9 key Reserved

F10 key Save all the CMOS changes, only for Main Menu

BX2000

4-2

4.3. GETTING HELP

4.3.1. Main Menu

The on-line description of the highlighted setup function is displayed at the

bottom of the screen.

4.3.2. Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys

to use and the possible selections for the highlighted item. To exit the Help

Window press <Esc>.

4.4. THE MAIN MENU

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 4.1)

will appear on the screen. The Main Menu allows you to select from nine

setup functions and two exit choices. Use arrow keys to select among the

items and press <Enter> to accept or enter the sub-menu.

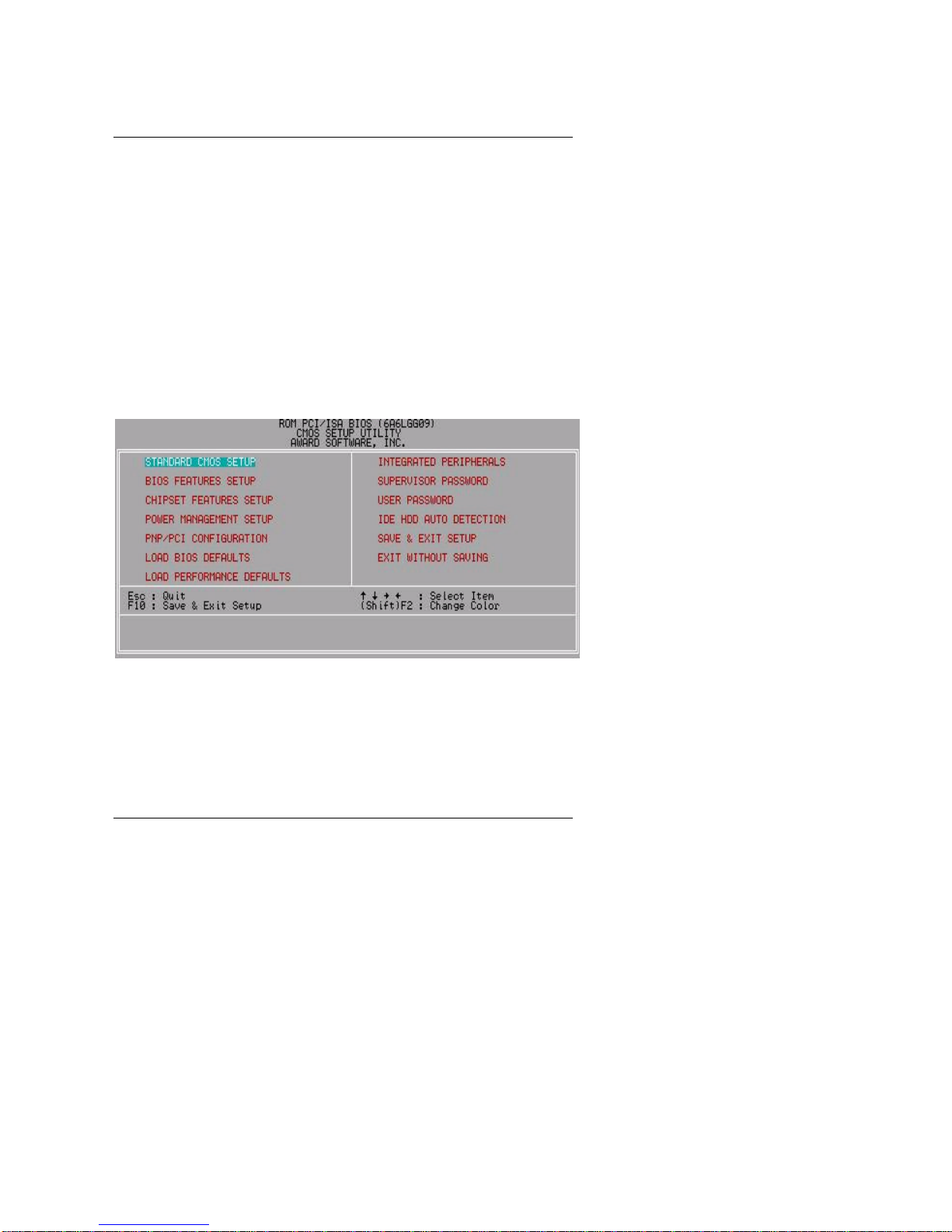

Figure 4.1: Main Menu

•Standard CMOS setup

This setup page includes all the items in standard compatible BIOS.

•BIOS features setup

This setup page includes all the items of Award special enhanced

features.

BIOS Configuration

4-3

•Chipset features setup

This setup page includes all the items of chipset special features.

•Power management setup

This setup page includes all the items of Green function features.

•PNP/PCI configuration

This setup page includes all the configurations of PCI & PnP ISA

resources.

•Load BIOS defaults

BIOS Defaults indicates the most appropriate value of the system

parameters that the system would be in safe configuration.

•Load Performance defaults

Performance Defaults indicates the value of the system parameters that

the system would be in the best performance configuration.

•Integrated peripherals

This setup page includes all onboard peripherals.

•Supervisor password

Change, set, or disable password. It allows you to limit access to the

system and Setup, or just to Setup.

•User password

Change, set, or disable password. It allows you to limit access to the

system.

•IDE HDD auto detection

Automatically configure hard disk parameters.

•Save & exit setup

Save CMOS value settings to CMOS and exit setup.

•Exit without saving

Abandon all CMOS value changes and exit setup.

BX2000

4-4

4.5. STANDARD CMOS SETUP MENU

The items in Standard CMOS Setup Menu (Figure 4.2) are divided into 9

categories. Each category includes no, one or more than one setup items.

Use the arrows to highlight the item and then use the <PgUp> or <PgDn>

keys to select the value you want in each item.

Figure 4.2: Standard CMOS Setup Menu

•Date

The date format is <day>, <month> <date> <year>.

day The day, from Sun to Sat, determined by the BIOS and is

display-only

month The month, Jan. through Dec.

date The date, from 1 to 31 (or the maximum allowed in the

month)

year The year, from 1994 through 2079

•Time

The times format in <hour> <minute> <second>. The time is calculated

base on the 24-hour military-time clock. For example, 1 p.m. is

13:00:00.

BIOS Configuration

4-5

•Primary HDDs / Secondary HDDs

The category identifies the types of hard disk from drive C to F that has

been installed in the computer. There are two types: auto type, and user

definable type. User type is user-definable; Auto type which will

automatically detect HDD type.

Note that the specifications of your drive must match with the drive

table. The hard disk will not work properly if you enter improper

information for this category.

If you select User Type, related information will be asked to enter to the

following items. Enter the information directly from the keyboard and

press <Enter>. Such information should be provided in the

documentation form your hard disk vendor or the system manufacturer.

CYLS. Number of cylinders

HEADS number of heads

PRECOMP write precomp

LANDZONE Landing zone

SECTORS number of sectors

If a hard disk has not been installed select NONE and press <Enter>.

•Drive A type / Drive B type

The category identifies the types of floppy disk drive A or drive B that

has been installed in the computer.

None No floppy drive installed

360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte

capacity.

1.2M, 5.25 in. 5.25 inch AT-type high-density drive; 1.2M byte

capacity (3.5 inch when 3 Mode is Enabled).

720K, 3.5 in. 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.

BX2000

4-6

•Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive.

Drive A Drive A is 3 mode Floppy Drive.

Drive B Drive B is 3 mode Floppy Drive.

Both Drive A & B are 3 mode Floppy Drives.

•Video

The category detects the type of adapter used for the primary system

monitor that must match your video display card and monitor. Although

secondary monitors are supported, you do not have to select the type in

setup.

EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For

EGA, VGA, SVGA, or PGA monitor adapters

CGA 40 Color Graphics Adapter, power up in 40 column mode

CGA 80 Color Graphics Adapter, power up in 80 column mode

MONO Monochrome adapter, includes high resolution

monochrome adapters

•Halt on

The category determines whether the computer will stop if an error is

detected during power up.

NO Errors The system boot will not stop for any error that

may be detected

All Errors Whenever the BIOS detects a non-fatal error the

system will be stopped and you will be prompted

All, But Keyboard The system boot will not stop for a keyboard

error; it will stop for all other errors

All, But Diskette The system boot will not stop for a disk error; it

will stop for all other errors

BIOS Configuration

4-7

All, But Disk/Key The system boot will not stop for a keyboard or

disk error; it will stop for all other errors

•Memory

The category is display-only which is determined by POST (Power On

Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or

conventional) memory installed in the system.

The value of the base memory is typically 512 K for systems

with 512 K memory installed on the motherboard, or 640 K for

systems with 640 K or more memory installed on the

motherboard.

Extended Memory

The BIOS determines how much extended memory is present

during the POST.

This is the amount of memory located above 1 MB in the CPU's

memory address map.

Expanded Memory

Expanded Memory in memory defined by the

Lotus/Intel/Microsoft (LIM) standard as EMS.

Many standard DOS applications can not utilize memory above

640 K; the Expanded Memory Specification (EMS) swaps

memory, which not utilized by DOS with a section, or frame, so

these applications, can access all of the system memory.

Memory can be swapped by EMS is usually 64 K within 1 MB or

memory above 1 MB, depends on the chipset design.

Expanded memory device driver is required to use memory as

Expanded Memory.

Other Memory

This refers to the memory located in the 640 K to 1024 K

BX2000

4-8

address space. This is memory that can be used for different

applications.

DOS uses this area to load device drivers to keep as much

base memory free for application programs. Most use for this

area is Shadow RAM.

BIOS Configuration

4-9

4.6. BIOS FEATURES SETUP

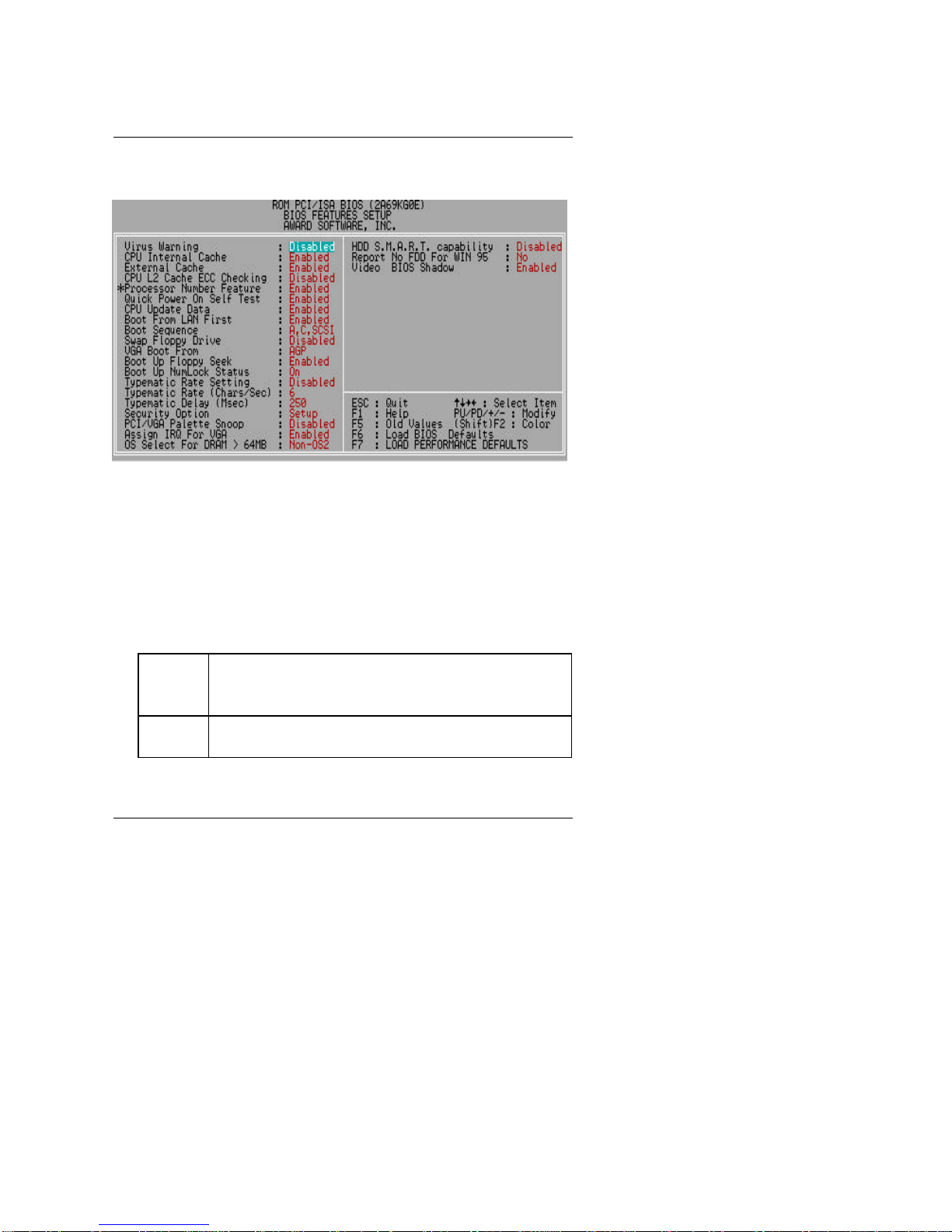

Figure 4.3: BIOS Features Setup

RSystem will detect automatically and show up when you install the Pentium

III processor.

•Virus Warning

If it is set to enable, the category will flash on the screen when there is

any attempt to write to the boot sector or partition table of the hard disk

drive. The system will halt and the warning message will appear in the

mean time. You can run anti-virus program to locate the problem.

Default value is Disabled.

Enabled Activate automatically when the system boots up causing

a warning message to appear when anything attempts to

access the boot sector or hard disk partition table

Disabled No warning message to appear when anything attempts to

access the boot sector or hard disk partition table

BX2000

4-10

•CPU Internal Cache / External Cache

These two categories speed up memory access. However, it depends on

CPU / chipset design. The default value is Enabled.

Enabled Enable cache

Disabled Disable cache

•CPU L2 Cache ECC Checking

The default value is Disabled.

Enabled Enable CPU L2 Cache ECC Checking

Disabled Disable CPU L2 Cache ECC Checking

•Processor Number Feature

This item will show up when you install the Pentium III processor.

The default value is Enabled.

Enabled Pentium III Processor Number Feature.

Disabled Disable this function

•Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power on

the computer. If it is set to Enable, BIOS will shorten or skip some check

items during POST.

The default value is Enabled.

Enabled Enable quick POST

Disabled Normal POST

•CPU Update Data

The default value is Enabled.

Enabled Enable CPU Update Data

Disabled Normal CPU Update Data

Indice

Altri manuali Gigabyte Scheda madre

Gigabyte

Gigabyte 686LX3 Manuale utente

Gigabyte

Gigabyte GA-EP45-UD3LR Manuale utente

Gigabyte

Gigabyte GA-MA790GP-DS4H Manuale utente

Gigabyte

Gigabyte B760 AORUS ELITE AX Manuale utente

Gigabyte

Gigabyte GA-8EGXR+ Series Manuale utente

Gigabyte

Gigabyte GA-7N400 Pro2 Manuale utente

Gigabyte

Gigabyte B650M GAMING X AX Manuale utente

Gigabyte

Gigabyte GA-880GM-D2H Manuale utente

Gigabyte

Gigabyte GA-8I875 Manuale utente

Gigabyte

Gigabyte GA-880G-UD3H Manuale utente

Gigabyte

Gigabyte GA-6OXET Manuale utente

Gigabyte

Gigabyte MZ72-HB0 Manuale utente

Gigabyte

Gigabyte GA-B75M-D3V Manuale utente

Gigabyte

Gigabyte 8I845GE-RZ Manuale utente

Gigabyte

Gigabyte GA-HA65M-UD3H-B3 Manuale utente

Gigabyte

Gigabyte GA-8PENXP Manuale utente

Gigabyte

Gigabyte GA-H110M-H DDR3 Manuale utente

Gigabyte

Gigabyte GA-7S748 Manuale utente

Gigabyte

Gigabyte GA-Z77N-WIFI Manuale utente

Gigabyte

Gigabyte 6CX Manuale utente

Gigabyte

Gigabyte GA-Z170-Gaming K3 Manuale utente

Gigabyte

Gigabyte GA-WRX80-SU8-IPMI Manuale utente

Gigabyte

Gigabyte B365M GAMING HD Manuale utente

Gigabyte

Gigabyte GA-8S648 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
