Gigabyte GS-SR101 Guida utente

System Installation Guide

1-i

GS-SR101

1U Rack Mount Server

SYSTEM INSTALLATION GUIDE

System Installation Guide

1-ii

INDEX

1. INTRODUCTION 1-1

1.1. PREFACE 1-1

1.2. FEATURES 1-1

2. HARDWARE INVENTORY 2-1

3. SYSTEM INSTALLATION 3-1

3.1. CHASSIS COVER REMOVAL 3-1

3.2. PROCESSOR INSTALLATION 3-2

3.3. FAN+HEATSINK INSTALLATION 3-2

3.4. SYSTEM RAM INSTALLATION 3-3

3.5. INSTALLING HANDLE 3-4

3.6. REINSTALL TOP COVER 3-4

3.7. HARD DISK DRIVE INSTALLATION 3-5

3.8. FRONT SIDE 3-8

3.9. LED INDICATORS 3-8

3.10. BACK SIDE 3-9

3.11. CONNECTOR ICONS 3-10

System Installation Guide

1-1

1. INTRODUCTION

1.1. Preface

Using this manual will help you get the most from your Rack Mount Server.

Keeping the manual with your Rack Mount Server to refer when you want

information and help.

In order to get the optimal usage out of your Rack Mount Server and you should

Remember the following:

 Read through all the instruction for your Rack Mount Server .

 Keep the area free of static electricity and magnetic fields. These can

damage the Server.

 When cleaning the server or its components, apply the proper cleaning

solution or sprays only on the cloth ,not to the server or its components .

1.2. Features

Our Rack Mount Server use 1U Chassis and support the following features:

Processor Support

 Dual Socket 370 for Intel FC-PGA Pentium III or other compatible

processor

 Up to 1 GHz and above

 Optimal CPU Keep Out Zone for Type C Heat-sink

 100/133MHz FSB

 AUTO detect CPU voltage

BIOS

 Support Dual BIOS technology ; 2M bit flash ROM

 IDE#0~#3 ,LS120 ,ZIP & CD-ROOM bootable

 AC recovery ON/OFF control

 AMI BIOS with enhanced ACPI feature for PC99/Win98/Win2000

compliance

 Green ,PnP ,DMI ,INT 13(>8.4GB) & Anti-Virus functions

 Auto-detect & report system health status

System Installation Guide

1-2

Chipset

 VIA Apollo Pro Family AGP set ( VT82C694X ,VT82C686A ) Chipset

 ATI Rage XL VGA Chip with 8MB Video Memory

 PROMISE PDC20265

 Intel 82559 Dual LAN chip

Memory Support

 4 168-pin 25 degree slant DIMM sockets

 Supports PC-100/PC-133 Error Checking and Correction (ECC) either

un-buffered or registered memory and VCM SDRAM

 Supports up to 4.0GB SDRAM

 Supports only 3.3V SDRAM DIMM

Storage Controller

 Max 4 IDE ATA channels (2 x ATA-66 and 2 x ATA-100 for IDE RAID 0

or 1)

 Support front-accessible 2 hot-swap drives featuring IDE ATA-100

transferring rate

 44MB Floppy Disk Drive (Slim type)

 High Speed IDE CD-ROM Drive (Slim type)

Networking

 On board dual LAN , Ethernet 10/100 WOL ( Wake On LAN )

 Adaptive fail over feature

 Load balance feature

I/O Expansion Slot

 PCI raisers , 1 slot ,support 33MHz & PCI 2.2 compliant

Build-in I/O ports

 1 x PS/2 Keyboard port

 1 x PS/2 Mouse port

 1 x COM port

 1 x LPT port

 2 x RJ-45 ports

 2 x USB ports

System Installation Guide

1-3

Power

 Total output power 250 W

 Input : Rating switch full range 90V~250V 47~63 Hz

Operating Temperature

 5 to 40 degree C

Thermal Solution

 Special-designed Heat-sink and hi-efficiency chassis fans for dual 1 GHz

plus processor thermal solution

Other Features

 Support Wake On LAN ( WOL )

 Support External Modem Ring On

 Optional DOC solution for embedded Internet/Networking Applications

O/S Support

 Windows NT ,Windows 2000 ,Linux ( RED HAT 6.2 ,Xlinux

1.5 ) ,Netware 5.0 ,SCO open server

Chassis Dimensions

 Height 44.45 mm ( 1.75 In. )

 Width 482.6 mm ( 19.0 In. )

 Depth 609.6 mm ( 24.0 In. )

 System weight 11.8 Kg ( 26 lbs )

System Installation Guide

2. Hardware Inventory

When you unpack your GS-SR100 Rack Mount Server ,Check that all the items that

you ordered are present in good condition. Review the inventory checklist below to be

sure that the components and optional components that you ordered are included. If

anything is missed or damaged , contact your retailer as soon as possible .

 Chassis

 Power Supply ( Installed )

 Motherboard GA-6VXDR7 ( Installed )

 Power Cord x1

 Manual (M/B User’s Manual & System Installation)

 Hard Disk Drive Tray x 2

 Flat Screw # 6-32 * 5L x 12 ( For HDD )

 Fan + Heat sink x 2

 Case Handle x 2

 Flat Screw M4*10L x 4 ( For Handle )

 Support CD x1

 Support Floppy Disk x 2

System Installation Guide

3-1

3. System Installation

Note: Please remove the protection plastic cover from top side first. If not, the system

heat could not spread from top side .

3.1. Chassis Cover Removal

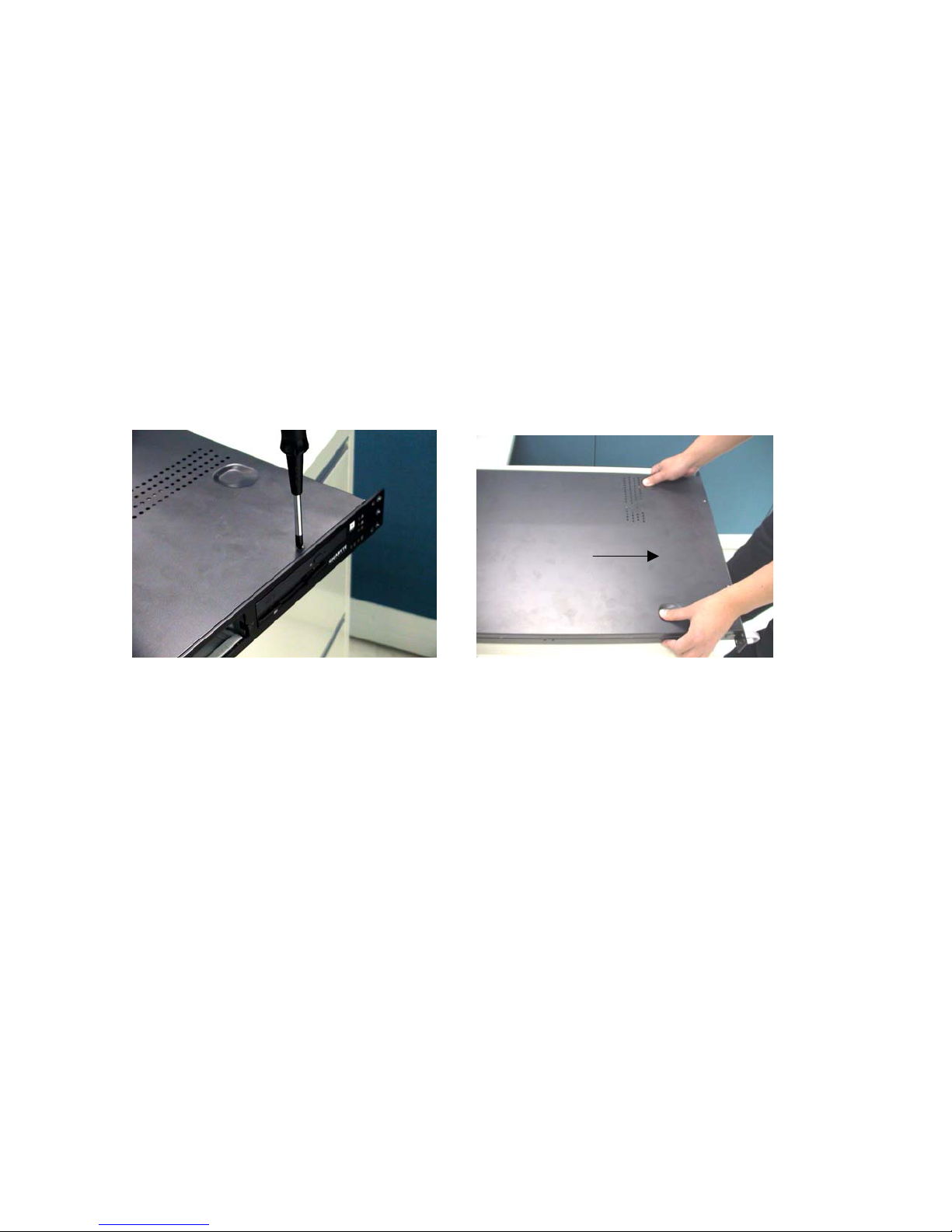

Use screwdriver to remove the two screws on the chassis top cover .( Fig 1 ) And then

slide the top cover out of the system .( Fig 2 )

Fig-1 Fig-2

System Installation Guide

3-2

3.2. Processor Installation

To install Socket 370 CPU ,lifts up bar located next to the Socket .And then

insert Socket

370 CPU inside Socket ,and push the lever bar back into original position .

( Fig-3 & Fig-4 )

Fig-3 Fig-4

3.3. Fan+Heatsink Installation

Click Fan+Heatsink to CPU socket 370 and plug the Fan power cable to the

each CPU cooling Fan connector on the motherboard . ( Fig-5 )

Make sure the Fan wire is click on the HeatSink .( Fig-6 )

Fig-5 Fig-6

CPU-1 CPU-2

System Installation Guide

3-3

For CPU1 ,Fan power cable connect to J13 ( CPU1 FAN) connector and for

CPU2 ,

Fan power cable connect to J15 ( CPU2 Fan ) Connector .Note to make sure the

connector is plugged

into the header in the correct and click well. ( Fig-7 )

Fig-7

3.4. System RAM Installation

The motherboard has 4 Dual Inline Memory Module ( DIMM ) sockets. The

BIOS

will automatically detect memory type and size. To install the memory module ,

just push it

into the DIMM slot. ( Fig-8 )

Fig-8

J13-CPU1 Fan Connector J15-CPU2 Fan Connector

System Installation Guide

3-4

3.5. Installing Handle

Get Handle and screw from the accessories box. And then mount the handle on the

front panel .( Fig-9 & Fig-10 )

Fig-9 Fig-10

3.6. Reinstall Top Cover

After the above steps ( 3.1 to 3.5 ) were finished then slide a top cover to a

chassis (Fig-11 )and use screwdriver to reinstall the 2 screws on the top

cover .( Fig-12 )

Fig-11 Fig-12
