Greenlee 93-808 Guida

OPERATION, SERVICE AND PARTS

INSTRUCTION MANUAL

Read and understand this material before operating

or servicing this meter. Failure to understand how to

safely operate this meter could result in an accident

causing serious injury or death. This meter should

only be operated by qualified personnel.

TRUE RMS

CLAMP-ON METER

93-808

Español; pág. 13

Français; p. 25

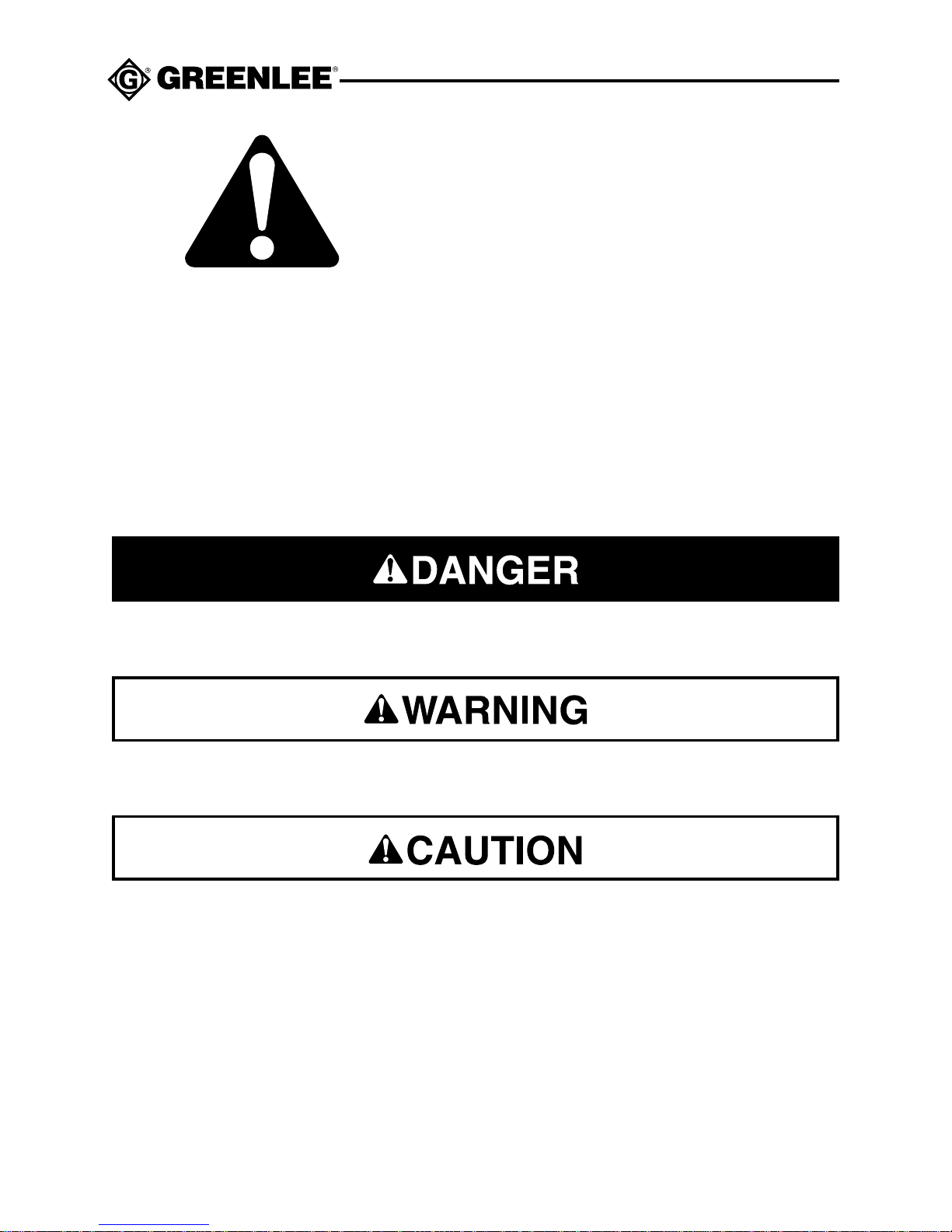

The symbol above is used to call your attention to instruc-

tions concerning your personal safety. Watch for this

symbol. It points out important safety precautions. It means

“ATTENTION! Become alert! Your personal safety is

involved!” Read the message that follows and be alert to

the possibility of personal injury or death.

Hazards or unsafe practices which, if not avoided, COULD result in minor

personal injury or property damage.

Hazards or unsafe practices which, if not avoided, COULD result in severe

personal injury or death.

Immediate hazards which, if not avoided, WILL result in severe personal injury

or death.

SAFETY ALERT

SYMBOL

93-808 True RMS Clamp-On Meter

Safety Information

Follow operating instructions carefully.

Electrical Shock Hazard.

Contact with live circuits will result in severe injury

or death.

A person who has not read and does not understand all

operating instructions is not qualified to operate this

tool.

Failure to read and understand safety instructions may

result in severe injury or death.

• Do not use meter if it is wet or damaged. Electric shock or damage to meter

may result.

• Do not perform any service or maintenance other than that described in

these instructions. Electric shock or damage to meter may result.

• Do not touch probe ends. Electric shock may result.

• Do not attempt to measure uninsulated conductors having a voltage greater

than 600V AC/DC. Electric shock or damage to the meter may result.

• Do not connect a source of voltage with the Range Selector Switch in the Ω

(ohms) position. Personal injury or damage to meter may result.

• Turn meter OFF and remove it from the item being tested before replacing

battery. Do not use meter until the back is in place and fastened securely.

Failure to observe these warnings may result in severe injury or death.

• Replace a weak or discharged battery as soon as it is detected. Incorrect

results may occur.

• Do not use or store this instrument in a high temperature or high humidity

environment. (Operating range: 0°~ 45°C, less than 75% R.H.)

• Do not store the meter in direct sunlight.

• Remove battery before storing meter.

Failure to observe these precautions could result in injury or property

damage.

93-808 True RMS Clamp-On Meter

Description

The Greenlee 93-808 offers a versatile true RMS clamp-on meter that can

measure AC current, voltage, resistance and continuity. The built-in auto-ranging

function offers up-to-date capability as well as data hold and voltage readings.

Packing List

The following items should be packed with the clamp-on meter:

1 999 2188.0 Instruction Manual IM 1281

2 500 2280.6 Carrying Case

3 500 2096.0 Test Lead Set

4 — 9V Battery

Features (Figure 1)

(1) Digital Display — The digital display has a 3-3/4 digit LCD readout

(maximum reading 3999) plus auto polarity, decimal point, over-range

indication (“OL”), low battery indication, AC and unit icons.

(2) Input Terminals — The black test lead is always connected to the “COM”

input terminal and red test lead is always connected to the “V - Ω” input

terminal when measuring ACV and OHMS.

(3) Drop-Proof Wrist Strap — Prevents the meter from slipping off the hand

while in use.

(4) Function Switch — Slide switch to turn on meter and select V, A or

Ω, function.

(5) Data Hold Switch — Used to hold measured value for all functions.

(6) Trigger — Press the lever to open the jaws. When the pressure on the lever

is released, the jaws will close again.

(7) Jaws — Senses

the current

flowing through

the conductor

under test.

(8) Hand Guard —

Designed to

protect user.

Fig. 1

~ ~

Operation

AC Current Measurement

Electrical Shock Hazard.

Contact with live circuits will result in severe injury

or death.

1. Set the slide switch to the “A” position.

2. Press the trigger to open the jaws. Clamp around one conductor only.

Make sure that the jaws are firmly closed around the conductor.

3. Read the value from the digital display.

AC Voltage Measurement

Electrical Shock Hazard.

Contact with live circuits will result in severe injury

or death.

1. Set the slide switch to the “V” position.

2. Connect the black test lead to the COM terminal and the red test lead to the

V - Ωterminal.

3. Connect the test leads across the source load being measured.

4. Read the value from the digital display.

93-808 True RMS Clamp-On Meter

Resistance Measurement

Never connect a source of voltage with the Range Selector Switch in the

Ω(ohms) position. Personal injury or damage to the tester may result.

Failure to observe this warning can result in severe injury or death.

1. Turn off device to be tested. Discharge any capacitors. Voltage should not

present.

2. Slide switch to the Ωposition.

3. Connect the black test lead to the COM terminal and to red test lead to the

V - Ωterminal.

4. Connect test leads across the resistance being measured. The resistance value

will appear on the display.

Note: Resistance reading should always be taken in parallel with the circuit.

The built-in buzzer sounds if the resistance of the tested circuit is less than 100Ω.

Electrical Specifications

Accuracy is ±(%reading + number of digits) at 23˚C ±5˚C, with less than 75% R.H.

(1) AC Voltage: Auto-ranging

600V rms

Overload

Range Resolution Accuracy* Protection

* AC Conversion Type: AC Conversions are ac-coupled, true rms responding,

calibrated to the rms valve sine wave input, the basic accuracy is for sine wave at

full scale, for non-sine wave accuracy reference to * * .

** Crest Factor: 1.4 to 2.0, add 0.6% to Accuracy.

2.0 to 2.5, add 2.0% to Accuracy.

Input impedance: 10M Ω// less than 100 PF.

(2) AC Current: Auto-ranging

400A 0.1A ±(1.9%rdg + 5dgt) 50/60 Hz

600A 1A ±(2.9%rdg + 5dgt) 50/60 Hz 800V

Overload

Range Resolution Accuracy* Protection

* AC Conversion Type: AC Conversions are ac-coupled, true rms responding,

calibrated to the rms value sine wave input, the basic accuracy is for sine wave at

full scale, for non-sine wave accuracy refer to * * .

** Crest Factor: 1.4 to 2.0, add 1.0% to Accuracy.

2.0 to 2.5, add 2.5% to Accuracy.

(3) Resistance: Auto-ranging

Ω

40K

Ω

Max. Open Overload

Range Resolution Accuracy* Circuit Voltage Protection

±(2.0%rdg + 9dgt) 1V 600V rms

±(1.2%rdg + 5dgt)

40 Hz ~ 500Hz

400V 100mV

600V 1V

93-808 True RMS Clamp-On Meter

(4) Instant Continuity Description: Built-in buzzer sounds when

resistance is less than 100 Ω.

(5) Data Hold: Hold display reading for all functions and ranges.

Specifications

Measuring Rate: 4 times per second, nominal

Auto Power OFF: Approximately 30 minutes after function changes

Installation Category: IEC 1010 600V Cat II

Pollution Degree: Level II

Operating Temperature: 0˚C to 45˚C, < 75% R.H.

Storage Temperature: -20˚C to 60˚C, < 80% R.H. (with battery removed)

Temperature Coefficient: 0.2 x (Spec. Acc’y) / ˚C, < 18˚C or > 28˚C

Power Requirement: Single 9V battery (NEDA 1604 or IEC 6LF22)

Battery Life: 200 hours (Alkaline)

Shock Proof: 4 foot drops

Maximum Jaw Opening: 1.65 in. (42mm)

Maximum Conductor Size: 1.57 in. diameter (40mm)

Size: 3.46 x 8.46 x 1.42 in. (88 x 215 x 36 mm)

Weight: 11.29 oz. (320 gms), including battery

Maintenance

General

• Keep unit clean and dry.

• Wipe clean with a damp cloth. Let dry completely before using.

Battery Condition

• Battery level is low when appears on display.

Turn meter OFF and remove it from the item being tested before replacing

battery. Do not use meter until the back is in place and fastened securely.

Failure to observe warning may result in severe injury or death.

Battery Replacement (Fig. 2)

1. Disconnect the meter from item being tested. Turn the meter OFF. Unplug

leads from the front terminals.

2. Position the meter face down on a clean, flat surface. Remove two screws

from case back.

3. Gently lift the bottom end of the case back until it unsnaps from the case front.

4. Lift the battery from the case front and carefully unsnap the battery from the

connector leads.
