H3C NSQ1TGS32SF0 Manuale utente

Manual version: 6PW105-20190725 BOM:3123A0R9

H3C NSQ1TGS32SF0 interface module

1 Module view

Figure 1 NSQ1TGS32SF0 interface module

2 Specifications

Figure 2 Front panel

Table 1 Module specifications

Item S

ecification

Dimensions (H × W × D) 40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)

Power consumption 126 W to 170 W

Weight 3.45 kg (7.61 lb)

Hot swapping Supported

Connector type LC

Interfaces 32 10-GE-SFP+ ports

Interface transmission rate 10/1 Gbps

Ambient temperature

•Operating: 0°C to 45°C (32°F to 113°F)

•Storage: –40°C to +70°C (–40°F to +158°F)

Ambient humidity

•Operating: 10% RH to 95% RH, noncondensing

•Storage: 5% RH to 95% RH, noncondensing

Manual version: 6PW105-20190725 BOM:3123A0R9

Item S

ecification

Compatible device models

and slots

•M9006 gateway (slot 2 to slot 5)

•M9010 gateway (slot 0 to slot 3 and slot 6 to slot 9)

•M9014 gateway (slot 0 to slot 5 and slot 8 to slot 13)

•T9006 IPS (slot 2 to slot 5)

•T9010 IPS (slot 0 to slot 3 and slot 6 to slot 9)

•T9014 IPS (slot 0 to slot 5 and slot 8 to slot 13)

Table 2 describes the SFP+ transceiver modules available for the SFP+ ports on the module.

Table 2 SFP+ transceiver modules available for the SFP+ ports on the module

Optional

SFP+

module

Central

wavelength

(nm)

Connector

type Fiber diameter

Modal

bandwidth

(MHz*km)

Maximum

transmission

distance

SFP-XG-SX-M

M850-A 850 LC

50/125 μm MMF

2000 300 m (984.26 ft)

500 82 m (269.03 ft)

400 66 m (216.54 ft)

62.5/125 μm MMF

200 33 m (108.27 ft)

160 26 m (85.30 ft)

SFP-XG-LX22

0-MM1310 1310 LC

62.5/125 μm MMF

500 220 m (721.78 ft)

50/125 μm MMF 500 220 m (721.78 ft)

400 100 m (328.08 ft)

SFP-XG-LX-S

M1310 1310 LC 9/125 μm SMF N/A 10 km (6.21 miles)

SFP-XG-LH40

-SM1550 1550 LC 9/125 μm SMF N/A 40 km (24.86 miles)

3 LEDs

The module provides a LED for each SFP+ port to indicate their operating status.

Table 3 SFP+ port LED description

LED Status Descri

tion

SFP+ port status LED

Flashing The SFP+ port is sending or receiving data.

On A link is present on the SFP+ port.

Off No link is present on the SFP+ port.

Manual version: 6PW105-20190725 BOM:3123A0R9

iii

4 Installing and removing the module

CAUTION:

•Wear a reliably-grounded ESD wrist strap when installing or removing the module.

•Do not touch the components on the module.

4.1 Installing the module

1. Face the front panel of the device.

2. Identify the slot to install the module, and remove the filler panel from the slot.

This manual uses slot 3 as an example.

3. Place the module on a flat surface with the components facing up. Open the ejector levers on the

module.

4. Gently push the module into the slot along the guide rails. (See callout 1 in Figure 3 .)

5. Close the ejector levers and make sure the module is in close contact with the backplane. (See

callout 2 in Figure 3 .)

6. Use a Phillips screwdriver to fasten the captive screws on the module. (See callout 3 in Figure 3 .)

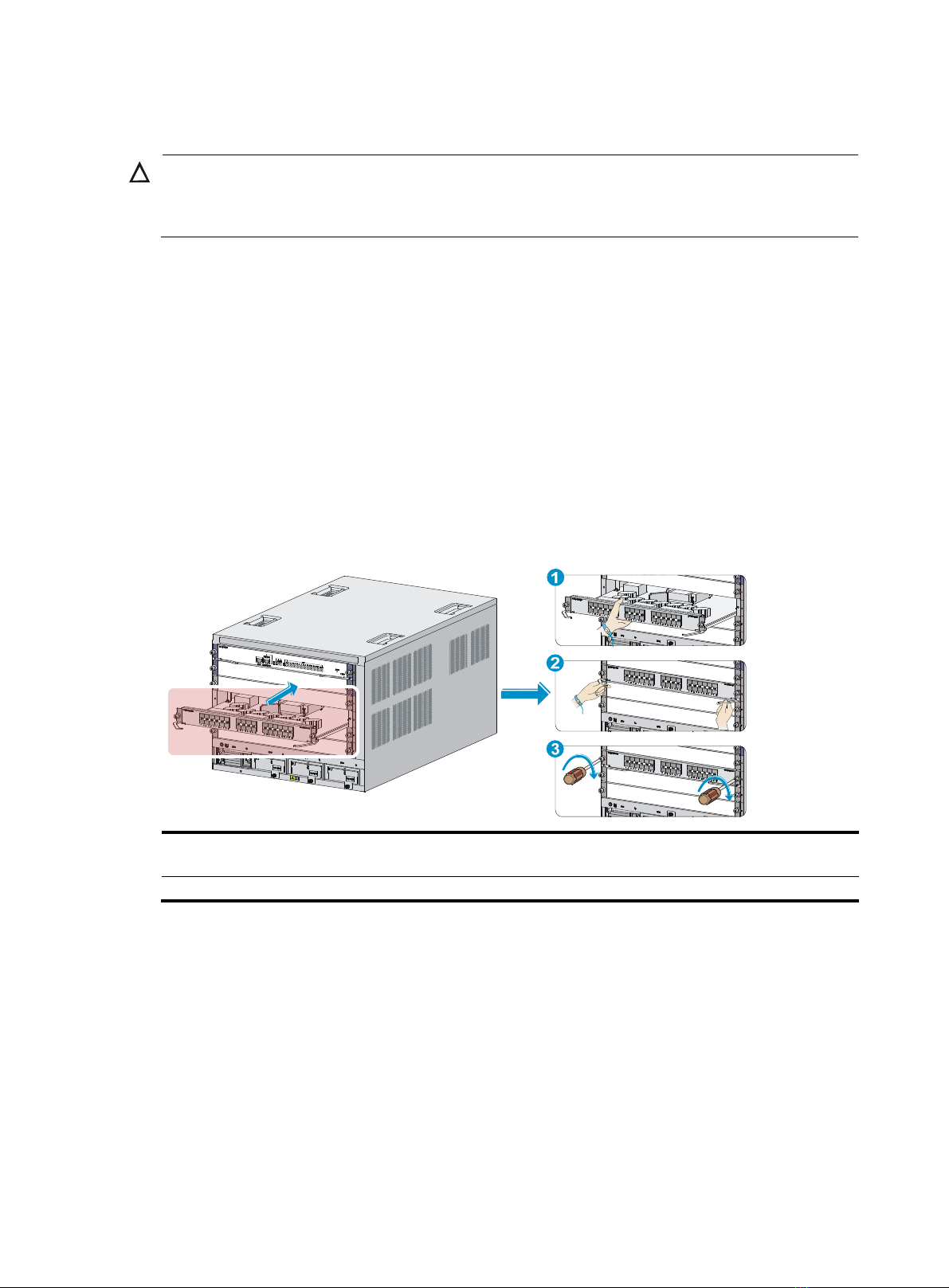

Figure 3 Installing the module

(1) Gently push the module into the slot along the guide rails until the module is in close contact with the

backplane

(2) Close the ejector levers (3) Use a Phillips

screwdriver to fasten the captive screws

Manual version: 6PW105-20190725 BOM:3123A0R9

4.2 Removing the module

1. Use a Phillips screwdriver to loosen the captive screws on the module until all pressure is released.

2. Simultaneously open the ejector levers of the module to separate the module from the backplane,

and pull the module slowly out of the chassis along the guide rails.

3. Place the module on an anti-static workbench or put it in an anti-static bag, with the components

side facing up.

4. If you are not to install a new module, install a filler panel in the slot to prevent dust and ensure

good ventilation in the device.

The information in this document is subject to change without notice.
