H3C S9500E LSR1FW2A1 Manuale utente

Manual version: 6PW102-20150210 BOM: 3123A0A5

H3C S9500E LSR1FW2A1 Card Manual

1 Card identifier

The card identifier LSR1FW2A1 is at the upper right corner of the front panel.

2 Introduction

The LSR1FW2A1 card provides one console port, one CF card interface, two USB interfaces, two

10/100/1000BASE-T Ethernet copper interfaces, and two Gigabit Combo interfaces.

You can use a GE port or combo interface to provide the following functions:

•In-band management.

•Outgoing interface for log messages.

•Failover interface for stateful failover.

3 Specifications

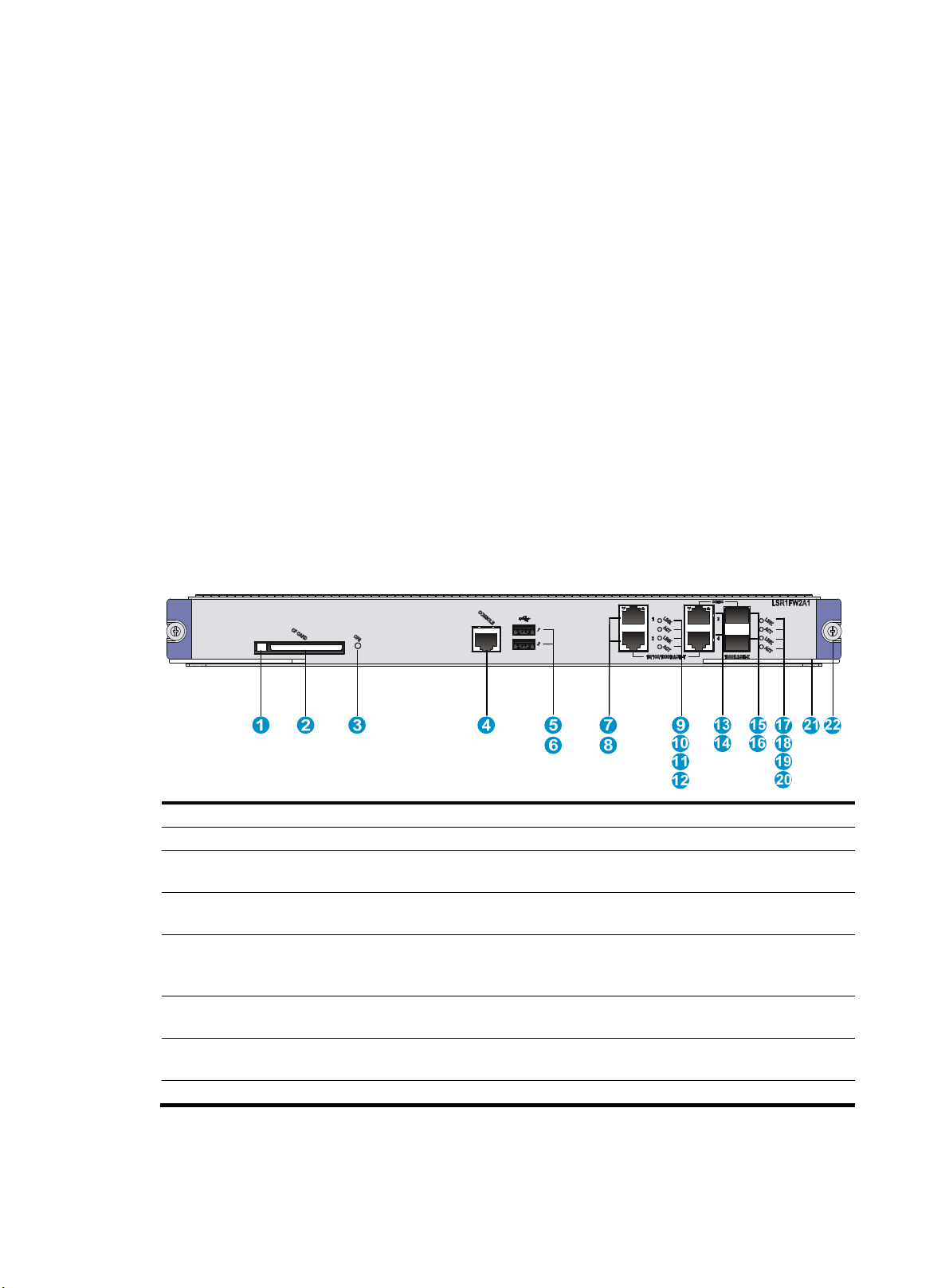

Figure 1 Front panel

(1) CF card eject button (2)

CF card slot

(CF CARD)

(3) CF LED (CFS)

(4) Console port (CONSOLE) (5)

USB interface

(reserved)

(6) USB interface 2 (reserved)

(7) Management Ethernet interface 1

(10/100/1000BASE-T)

(8) Management Ethernet interface

(10/100/1000BASE-T)

(9) Management Ethernet

interface 1 LED (LINK)

(10) Management Ethernet interface 1

LED (ACT)

(11) Management Ethernet interface

LED (LINK)

(12) Management Ethernet

interface 2 LED (ACT)

(13) Management interface 3

(Electrical port of combo interface

10/100/1000BASE-T)

(14) Management interface 4

(Electrical port of combo interface

10/100/1000BASE-T)

(15) Management interface 3

(Optical port of combo

interface 1000BASE-X)

(16) Management interface 4 (Optical

port of combo interface 1000BASE-X)

(17) Management interface 3 LED

(LINK)

(18) Management interface 3

LED (ACT)

(19) Management interface 4 LED

(LINK)

(20) Management interface 4 LED

(ACT)

(21) Ejector lever

(22) Captive screw

Manual version: 6PW102-20150210 BOM: 3123A0A5

Table 1 Card specifications

Item S

ecification

CF card One CF card slot, 256MB by default for the external CF card

256 MB, 512 MB, or 1 GB for an optional external CF card

Dimensions (H × W × D) 40.1 × 400 × 380 mm (1.58 × 15.74 × 14.96 in)

Power consumption 85 W to 104 W

Weight 3.6 kg (7.94 lb)

Hot swapping Supported

Ports

•1 console port

•2 USB ports (reserved for future use)

•2 pairs of combo ports, each pair containing the following ports:

{1 x 10/100/1000BASE-T copper port

{1 x 1000BASE-X SFP fiber port

You can use the combo enable { copper | fiber } command to activate either of

the ports in a pair. By default, the copper combo port is activated.

Ambient temperature

•Operating: 0°C to 45°C (32°F to 113°F)

•Not operating: –40°C to +70°C (–40°F to +158°F)

Ambient relative humidity

•Operating: 10% to 95%, noncondensing

•Non-operating: 5% to 95%, noncondensing

Compatible device models H3C S9500E series switches

System software version See the release notes that come with the card.

Table 2 Console port specifications

Item S

ecification

Connector RJ-45

Interface standard RS-232

Transmission baud rate 9600 bps (default) to 115200 bps

Transmission medium Asynchronous serial cable

Transmission distance ≤15 m (49.21 ft)

Services

•Provides connection to an ASCII terminal.

•Provides connection to the serial port of a local or remote PC (through a

pair of modems) that is running a terminal emulation program.

•Supports command line interface (CLI).

Table 3 10/100/1000BASE-T copper port specifications

Item S

ecification

Connector RJ-45

Interface standard 802.3, 802.3u, and 802.3ab

Interface type MDI/MDIX autosensing

Supported cable Category-5 (or above) twisted pair cable

Manual version: 6PW102-20150210 BOM: 3123A0A5

iii

Item S

ecification

Transmission distance 100 m (328.08 ft)

Operating mode

•10 Mbps, half/full duplex

•100 Mbps, half/full duplex

•1000 Mbps, full duplex

Table 4 1000BASE-X fiber port specifications

Item S

ecification

Transceiver module SFP

Connector LC

Interface standard 802.3, 802.3u, and 802.3ab

Operating mode 1000 Mbps, full duplex

Table 5 1000BASE-X SFP port specifications

Gigabit SFP module Central

wavelength

Connector

Cable specifications

Maximum

transmission

distance

SFP-GE-SX-MM850-A 850 nm LC 62.5/125μm

multi-mode optical fiber 0.55 km (0.34 miles)

SFP-GE-LX-SM1310-A 1310 nm LC 9/125 μm single-mode

optical fiber 10 km (6.21 miles)

SFP-GE-LH40-SM1310 1310 nm LC 9/125 μm single-mode

optical fiber 40 km (24.86 miles)

SFP-GE-LH40-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 40 km (24.86 miles)

SFP-GE-LH70-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 70 km (43.5 miles)

SFP-GE-LH100-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 100 km (62.14 miles)

4 LEDs

The card provides LEDs to show the operating status of the card and interfaces.

Table 6 LED description

LED Status Descri

tion

CF card(CFS)

Off The CF card is not present or cannot be identified.

Steady green The CF card is present and has passed the power on self test

(POST).

Flashing green The system is reading the CF card data. Do not unplug the CF

card.

Manual version: 6PW102-20150210 BOM: 3123A0A5

LED Status Descri

tion

GE/Combo copper

port

(LINK/ACT)

Off No link is present on the port.

Steady green A link is present on the port.

Flashing yellow The port is sending or receiving data.

5 Installing and removing the card

CAUTION:

•Wear a well-grounded ESD wrist strap or ESD gloves before you install or remove the card.

•Do not touch the components on the PCB.

5.1 Installing the card

1. Locate the slot where you will install the LSR1FW2A1, and remove the blank panel from the

position. This manual describes installing the LSR1FW2A1 to slot 2.

2. Push the module with the components facing upward into the slot along the guide rails until the

positioning hole of the module is seated onto the positioning pin on the backplane. Push the ejector

levers inward to lock the module in place.

3. Fasten the captive screws on the module with a Philips screwdriver.

Manual version: 6PW102-20150210 BOM: 3123A0A5

Figure 2 Installing the card

5.2 Removing the card

1. Use a Phillips screwdriver to loosen the captive screws at both sides of the card.

2. Pull the ejector levers at both sides of the card outward to separate it from the backplane, and then

pull the card along the guide rails to remove it from the chassis.

3. Place the card on an anti-static workbench with the surface-mounted components up. You can also

put it in an anti-static bag.

4. If you are not going to install a new card, install a filler panel to prevent dust and ensure good

ventilation in the switch.

6 Logging in to the card

The card uses an independent operating system. Before you can configure the card, you must log in to

the card by using one of the following methods:

•Log in from the switch's CLI through the oap connect command.

•Log in through the card's Web interface, console port, Telnet, or SSH.

H3C recommends that you log in to the card from the switch's CLI the first time you access the card. This

section includes a procedure for logging in from the switch's CLI. For more information about other login

methods, see H3C SecBlade II Firewall Cards Configuration Guide.

Manual version: 6PW102-20150210 BOM: 3123A0A5

To log in to the card from the switch's CLI, perform the following task in user view:

Task Command

Remarks

•In standalone mode:

oap connect slot slot-number

•In IRF mode:

oap connect chassis

chassis-number slot slot-number

To return to the CLI interface of the

switch, press Ctrl+K.

7 Software upgrade

The card uses independent BootWare and system software images. You must upgrade the card software

separately from the switch software. To ensure a successful card upgrade, H3C recommends that you

upgrade the card through the card's console port or management Ethernet port. For more information

about software upgrade of the card, see the release notes that come with the card.

8 Obtaining documentation

To access the most up-to-date H3C product documentation on the World Wide Web

at http://www.h3c.com:

1. Go to http://www.h3c.com/Technical_Documents, or click Technical Support & Documents >

Technical Documents on the top navigation bar at http://www.h3c.com.

2. Click Security Products > H3C SecBlade Module to choose the desired product category and

model.

The information in this document is subject to change without notice.
