Haier XPB60-DS Manuale utente

XPB60-DS

Air Bubble Twin-tub Washing Machine

with Pump

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

User's manual

Trouble-shooting*

Answers to question.....................15

Specification...............the back cover

Packing list ......................................17

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Before Using

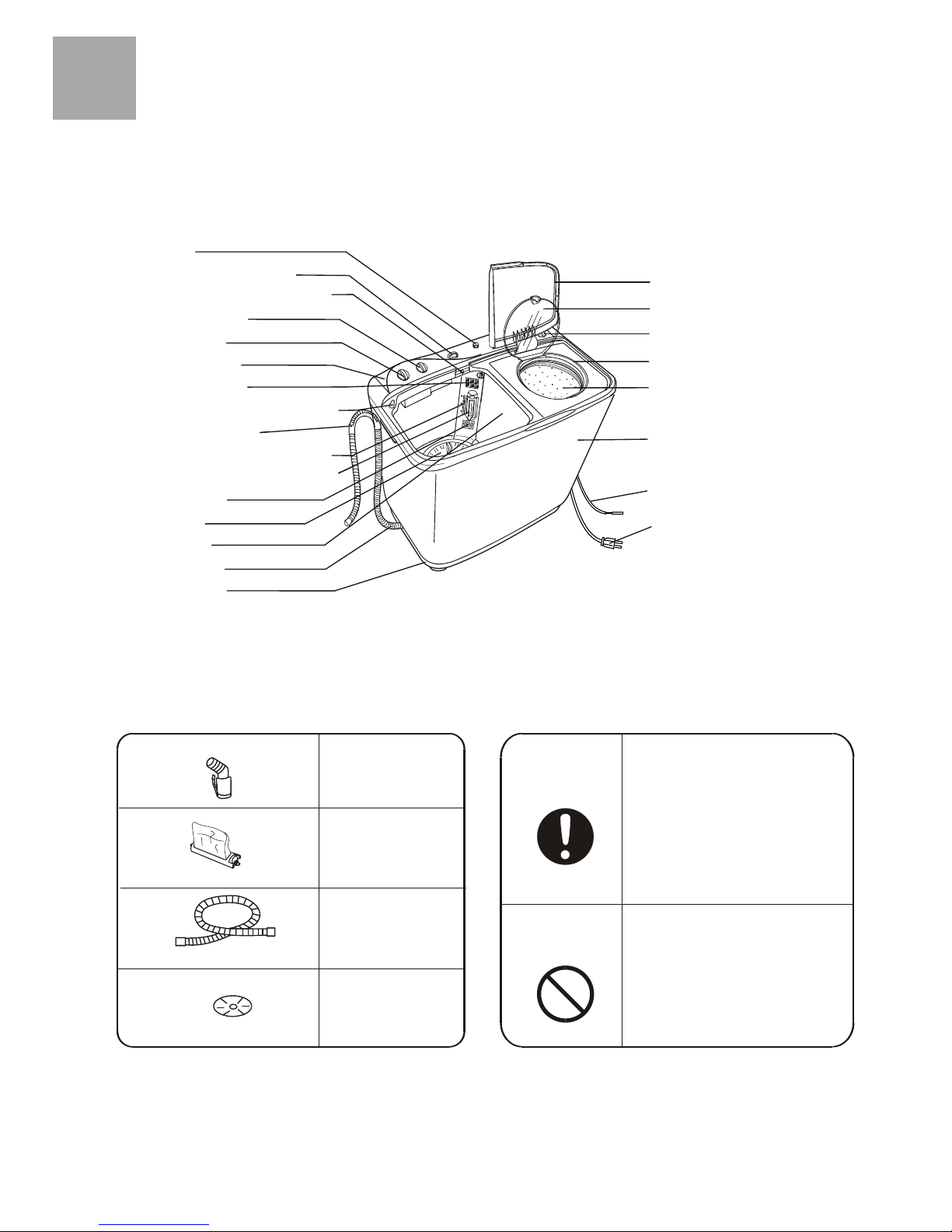

Names of the parts

Buzzer

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Drain hose hook

Water level adjusting lever

Lint filter(Installed by user)

Valve cover

Pulsator

Wash tub

Drain hose

Base frame

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Earthing cord

Power cord

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water-filling jointer

(one piece)

Water inlet hose

(one piece)

Gland

(one piece)

Lint filter

(one piece)

Before Using

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Do not put the machine at damp place

like the bathroom . Never wash it with

water.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Be sure to pull the plug off when there's

power failure, or the machine is being

moved, cleaned or when it is idle.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase two pins receptacle.

The earthing terminal must be earthed

reliably.If possible,please adopt electric

leakage protector.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Before Using

Installation and adjustment

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 1.2m , or the drainage will

not be smooth enough and cause incomplete drainage.

2.Do not step on or press the drain hose.

<1.2m

Lint filter

Overflow filter

Install the lint filter

After opening the package,please take out the

lint filter from the document bag,install it

to the overflow filter of the cabinet.

See to the figure

Extend the drain hose from the rear side

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Install the water inlet hose; Select the water level

Figure 1

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Page8

Back

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Before Using

Water inlet hose

Water inlet jointer

Control handle

Push

Water inlet

Maximum Max

about 43L

about 36L

about 30L

Minimum Min

Medium Med

Water level

indicator

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Take out the drain hose from the fixing groove. Extend it from

the rear side as per the direction of the arrow. (When the drain

hose is extended from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Front

Insert the water inlet hose into the water-filling

entrance on the control panel, then push the

water-filling jointer into the entrance on the

control panel. (To dismantle the water inlet pipe,

just push the control handle as indicated in the

figure and pull it out)

Using process

Introduction of the major function

Use the foam-removing spinning to

remove the extra detergent liquid. It

can both shorten the washing time

and save the water consumption.

Foam-removing

spinning

Remove most of

the foam extra

detergent liquid.

Remove the detergent

liquid remained

The effect is best when the

laundries quantity is below

80% of the rated value.

Spin

Fill water for

about 1 minutes Spin for about

1~2 minutes

Quick water-filling entrance

Foam-removing spinning during high-efficiency rinsing

If you do not need spraying spin, you can

fill water into the wash tub directly through

this entrance. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water-filling entrance

The machine has good comprehensive performance, and nice appearance.

In the respect of increasing the clean rate, it creates the air suction washing method.

The spinning of the pulsator automatically produces large quantity of bubbles, which can

strengthen the activity of the detergent remarkablly. And the rising and exploding of the

bubbles produce the effects of absorption and bombardment on the dirt particles in the

fibre of clothes that is difficult to remove by common washing methods.

It adopts complete enclosed base frame and low-noise motor, and thus reduces the

working noise significantly. We can guarantee that the purchase of this machine will bring

you a clean world without disturbing your quiet life.

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put the drain hose up to the suitable position.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The largest capacity of this machine is

6.0 kg.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Maximum " water level

for laundries less than 2.4kg, so as to

avoid splashing of water.

Blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Laundries

quantity

Laundries

quantity

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

3.6kg~6.0kg

2.4kg~6.0kg

2.0kg~3.6kg

Below2.0kg

Below2.4kg

Maximum (about43L)

Maxmum (about43L)

Strong

Minimum(about30L)

Minimum (about30L)

Standard

Medium (about36L)

36g

30g

25g

43g

36g

30g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

Indice

Altri manuali Haier Rondella

Haier

Haier LAV Manuale utente

Haier

Haier HSW-50S5 Manuale utente

Haier

Haier HWM200-B1678S Manuale utente

Haier

Haier HLP21E - Pulsator Wash With Tub Manuale utente

Haier

Haier HWM100-113S Manuale utente

Haier

Haier HW-C1050TVE Manuale utente

Haier

Haier GWT460BW Manuale utente

Haier

Haier XQBM22-C Manuale utente

Haier

Haier HW-D1050TVE Manuale utente

Haier

Haier HT1206TXVE Manuale utente

Haier

Haier SAW-9105 Manuale utente

Haier

Haier HW100-B14636N Manuale utente

Haier

Haier HW80-DM14876TNZP Manuale utente

Haier

Haier XQG50-QF800 Manuale utente

Haier

Haier HWM85-0713S Manuale utente

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo Manuale utente

Haier

Haier HW80-B16939S8 Manuale utente

Haier

Haier HW90-1482 Manuale utente

Haier

Haier HA1000TE Manuale utente

Haier

Haier HW60-1479 Manuale utente

Haier

Haier HWM100-0626S Manuale utente

Haier

Haier HWM80-187S Manuale utente

Haier

Haier XPB70-113S Manuale utente

Haier

Haier HK1000TXVE/ME Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
