Instruction Manual

HI 9142

Portable Waterproof

Dissolved Oxygen Meter

www.hannainst.com

PRELIMINARY EXAMINATION

Removetheinstrumentfromthepackingmaterial

and examine it to make sure that no damage

has occurred during shipping. If there is any

damage,notifyyourDealer.

The meter is supplied complete with:

• HI 76407/4 DO probe with 4 m cable

•2sparemembraneswithO-rings

• HI 7041S electrolyte solution (30 mL)

•Calibrationscrewdriver

•Batteries (4 x 1.5V AA)

•Instructionmanual

•Ruggedcarryingcase

Note: Save all packing material until you are sure

that the instrument functions correctly. All

defective items must be returned to us in the

original packaging with the supplied

accessories.

GENERAL DESCRIPTION

HI 9142 is a rugged, waterproof meter that

solvesthecommonproblemsoffielduse,such

ascold, rain, snowand dust, thatcan damage

a meter, rapidly deteriorating its performance

andlife.

Itisverysimpletouse:calibrationisperformed

withHI7040zerooxygensolution,while100%

calibration is done in air.

The polarographic probe (HI 76407/4) is pro-

vided with a membrane covering the sensors

and a built-in thermistor for temperature mea-

surementandcompensation.Thethinperme-

able membrane isolates the sensor elements

from the testing solution, but allows oxygen to

enter. When a voltage is applied across the

sensor, oxygen that has passed through the

membranereactscausingcurrenttoflow,allow-

ingthedeterminationofoxygen.

DearCustomer,

Thank you for choosing a Hanna Instruments

Product.

Please read this instruction manual carefully

beforeusingtheinstrument.

Thismanualwillprovideyouwithalltheneces-

sary information for the correct use of the

instrument.

Ifyouneedadditionaltechnicalinformation,do

not hesitate to e-mail us at

[email protected]

This instrument is in compliance with the CE

directives.

TABLE OF CONTENTS

PreliminaryExamination ............................. 3

GeneralDescription..................................... 3

ProbeFunctionalDescription ...................... 4

MeterFunctionalDescription....................... 5

Specifications ............................................. 6

ProbeInitialPreparation .............................. 7

CalibrationProcedure .................................. 8

TakingMeasurements ............................... 10

AltitudeandSalinityCompensation ........... 11

Probe&MembraneMaintenance .............. 13

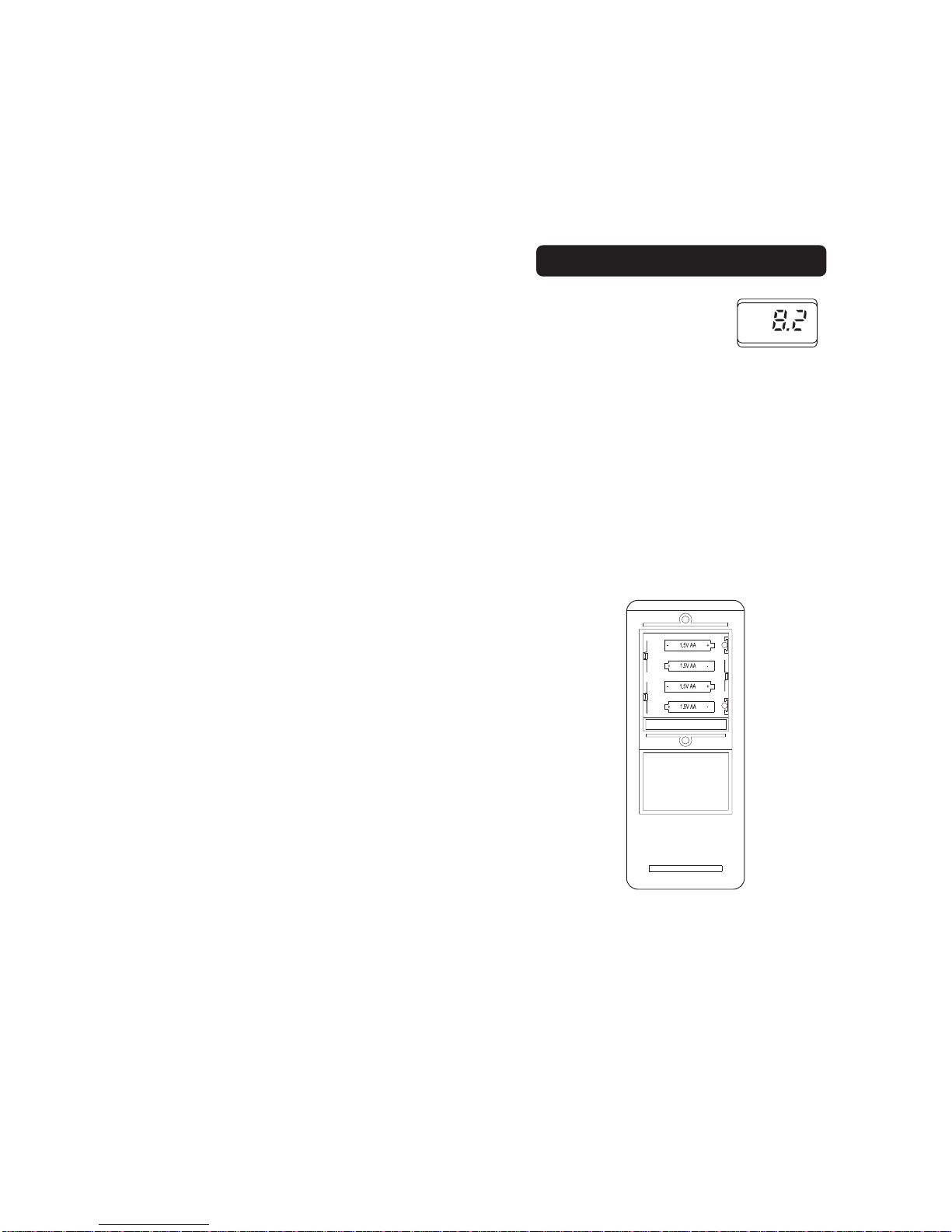

BatteryReplacement ................................ 15

Accessories.............................................. 16

Warranty ................................................... 17

CEDeclarationofConformity .................... 18

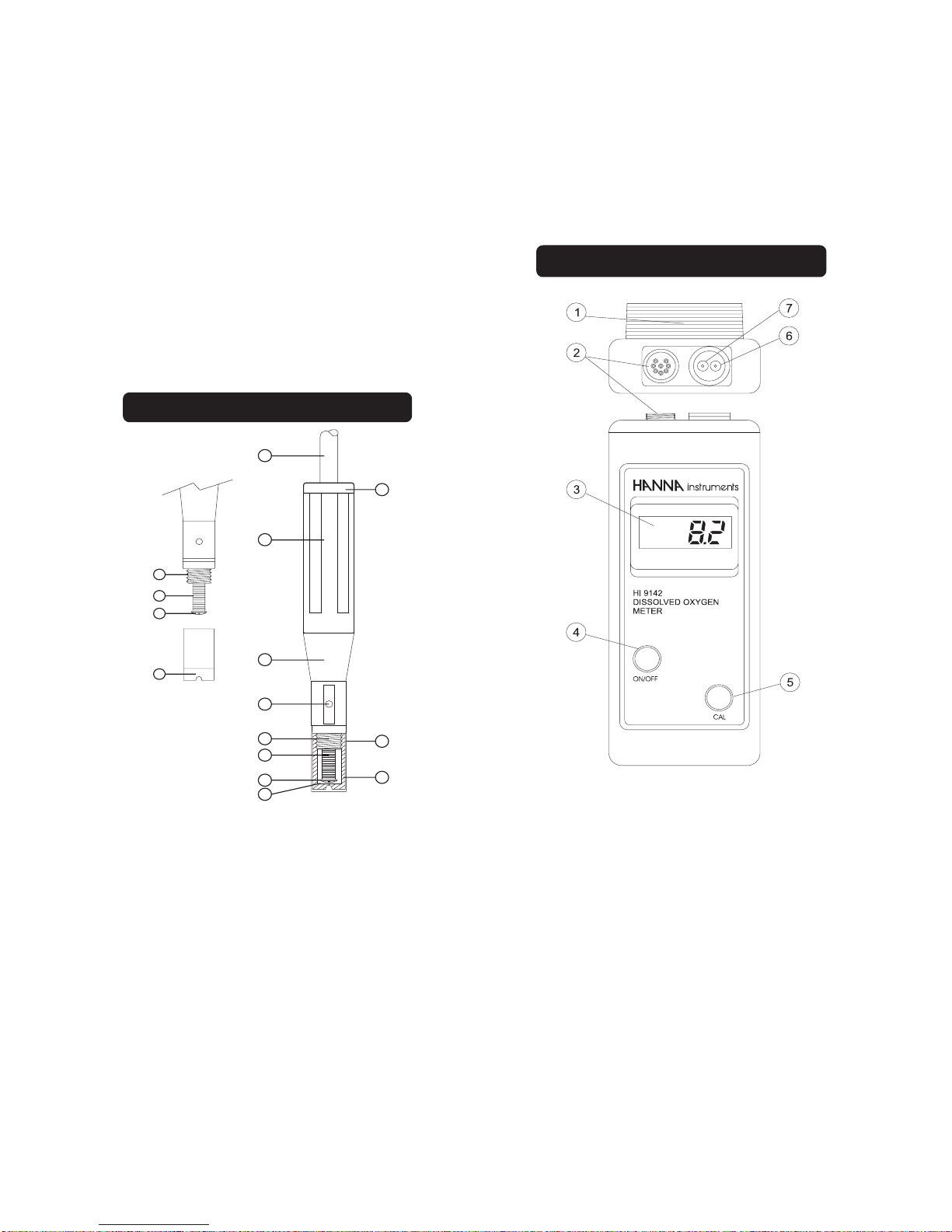

METERFUNCTIONAL DESCRIPTION

1. Batterycompartment

2. Probeconnector

3. LiquidCrystalDisplay

4. ON/OFFbutton

5. Calibrationbutton

6. Slopecalibrationtrimmer

7. Zerooxygencalibrationtrimmer

1. D.O.probe

2. Protectivecap

3. Shieldedcable

4. Polypropyleneprobebody

5. Temperaturesensor

6. O-Ringseal

7. Silverchloride(AgCl)anode

8. Platinumcathode(sensor)

9. Oxygenpermeablemembrane

10.Membranecap

PROBEFUNCTIONAL DESCRIPTION

The probe included with the meter is supplied

witha4m(13')cablethatallowsmeasurements

tobetakeneven in even hardtoreach

places. For applications that require longer

probecables,theHI76407/10andHI76407/20

probeswitha10m(33')or20m(67')cableare

available.

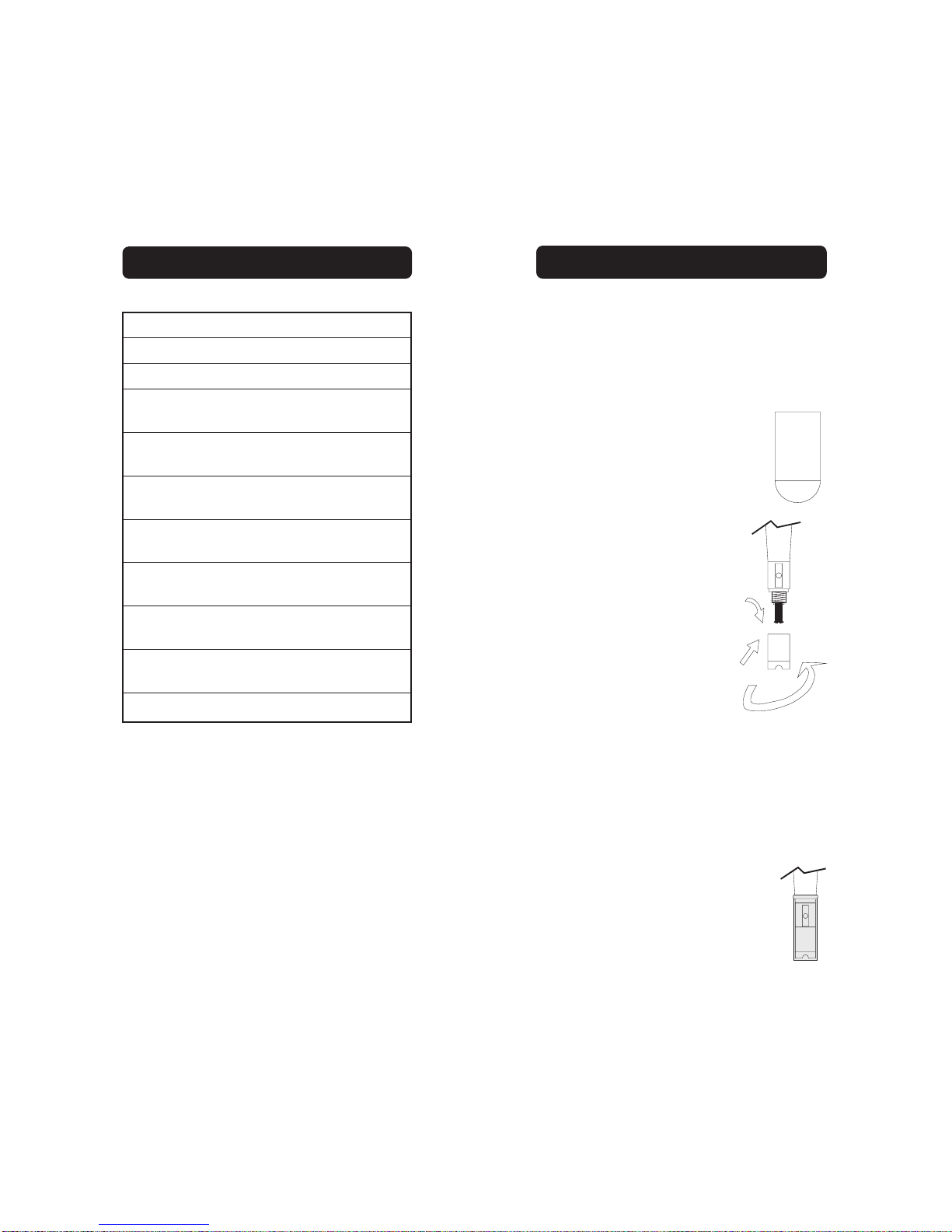

PROBE INITIAL PREPARATION

Probe Preparation

All D.O. probes from Hanna Instrument are

shipped dry. To hydrate the probe and pre-

pare it for use, connect it to the meter and

proceed as follows.

1. Remove the red & black plastic

cap. This cap is used for ship-

ping purposes only and can be

thrown away.

2. Wet the sensor by soaking the

bottom (2.5 cm/1") of the probe

in HI 7041S electrolyte solution

for 5 minutes.

3. Rinse the membrane

(HI 76407A supplied

with the meter) with

some electrolyte

while shaking it gen-

tly. Refill with clean

electrolyte.

4. Gently tap the sides

of the membrane

with your finger to

ensure that no air

bubbles remain

trapped inside.

To avoid damaging the membrane, do not

tap the membrane directly on the bottom.

5. Place the rubber O-Ring properly inside

the membrane cap.

6. With the sensor facing down, screw the

cap clockwise. Some electrolyte will over-

flow.

When not in use and during polar-

ization, protect the membrane with

the supplied cap.

Shipping

cap

black

red

THEN SCREW

BACK ON

THEN TAP

FILL FIRST

SPECIFICATIONS

Range 0.0 to 19.9 mg/L (ppm)

Resolution 0.1mg/L

Accuracy ±1.5% FS

TypicalEMC ±0.8mg/L

Deviation with 4 m cable probe

Calibration Manual, 1 or 2 point

(zeroandslope)

Temperature Automatic, 0 to 30°C

Compensation (32to86°F)

Probe HI76407/4,polarographic,

with4m(13') cable (included)

Battery Type 4 x 1.5V AA

Life approx.500hoursofuse

Environment 0 to 50°C (32 to 122°F);

RHmax 100%

Dimensions 196 x 80 x 60 mm

(7.7 x 3.1 x 2.4")

Weight 500 g (1.1 lb.)

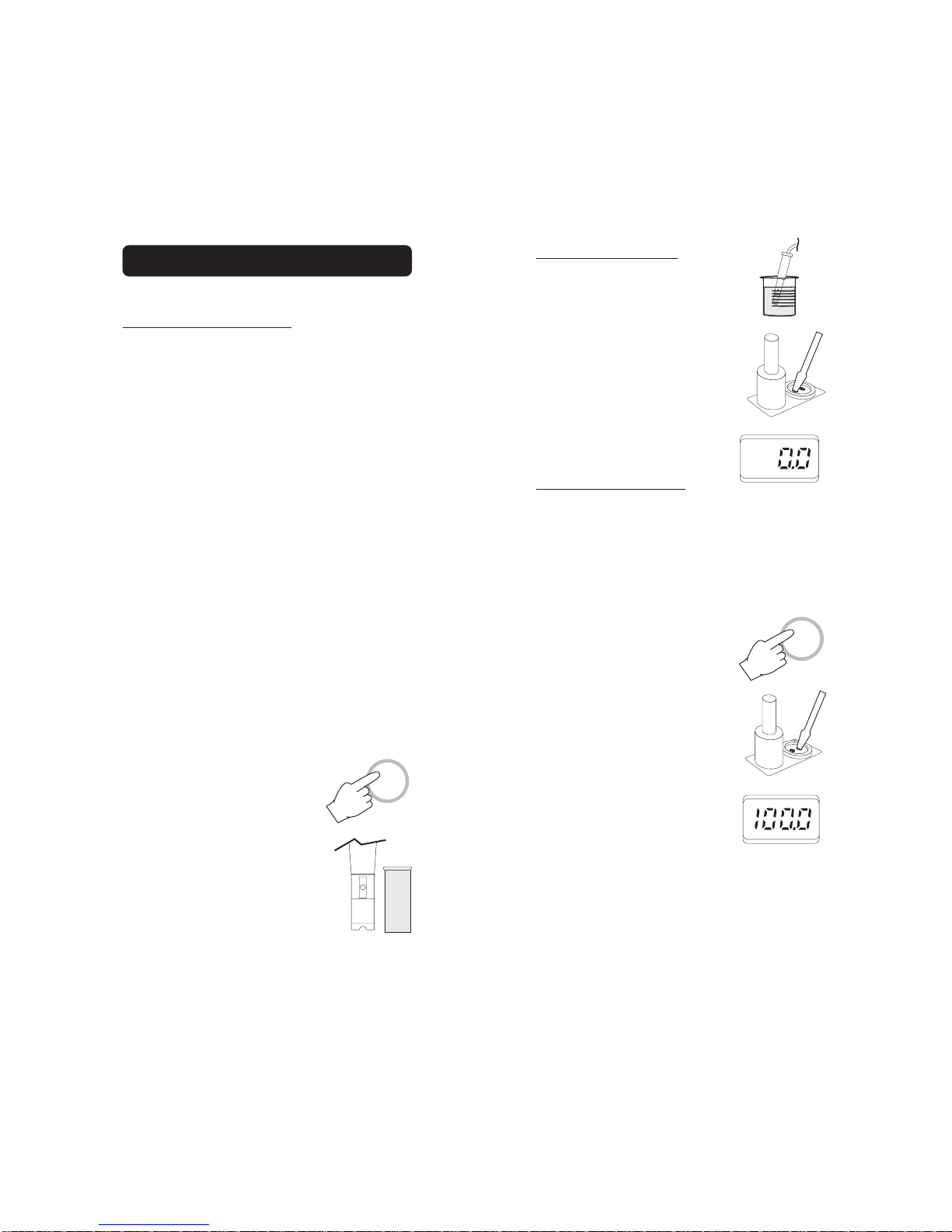

ZEROCALIBRATION

•DiptheprobeintoHI7040zero

oxygensolutionandstirgen-

tly for 2-3 minutes.

• Allow 2 minutes for the LCD

readout to stabilize.

• Adjust the zero D.O. calibra-

tion trimmer until the display

reads "0.0".

Note Thezerocalibrationscrew

is located close to the probe

connector.

SLOPECALIBRATION

Itissuggestedtoperformtheslopecalibration

insatured air.

• Rinse the probe in a large amount of clean

water to remove any residual zero oxygen

solution.

• Dry the probe tip and allow a few minutes for

the LCD readout to stabilize.

• Press and hold the CAL key.

• Adjust the slope trimmer on

the top of the meter to read

"100%"ontheLCD(whilestill

holdingtheCALbutton).

NoteTheslopecalibrationscrew

is located farthest from the

probeconnection.

• Release the CAL key and the

LCD will display the value in

ppmofoxygen.

The zero calibration of the HI 9142 is very

stable, therefore this procedure needs only to

be performed whenever the probe is re-

placed.

However, because the slope calibration is

more critical, it is recommended to perform

this procedure every week.

CAL

CALIBRATION PROCEDURE

PROBE POLARIZATION

The probe is under polarization with a fixed

voltageofapproximately800mV.

Probepolarization isessential forstable mea-

surements with the same recurring degree of

accuracy.

With the probe properly polarized, oxygen is

continually"consumed"bypassingthroughthe

sensitivediaphragmanddissolvingintheelec-

trolyte solution contained in the probe.

If this operation is interrupted, the electrolyte

solution continues to be enriched with oxygen

untilitreachesanequilibriumwiththesurround-

ingsolution.

Whenevermeasurementsaretakenwithanon-

polarized probe, the oxygen level revealed is

both that of the tested solution as well as that

presentintheelectrolytesolution.Thisreading

is incorrect

Thecalibration isvery simpleand fast.

• Make sure the probe is ready for measure-

ments(seeinitialpreparation at page7),i.e.

themembraneisfilledwithelectrolyteandthe

probe is connected to the meter.

• Switch the meter on by

pressing the ON/OFF key

• Foranaccuratecalibration,

itisrecommendedthatyou

wait at least 15 minutes to

ensure precise condition-

ingoftheprobe.

• Removetheprotectivecap

fromtheD.O.probe.

ON/OFF

10 11

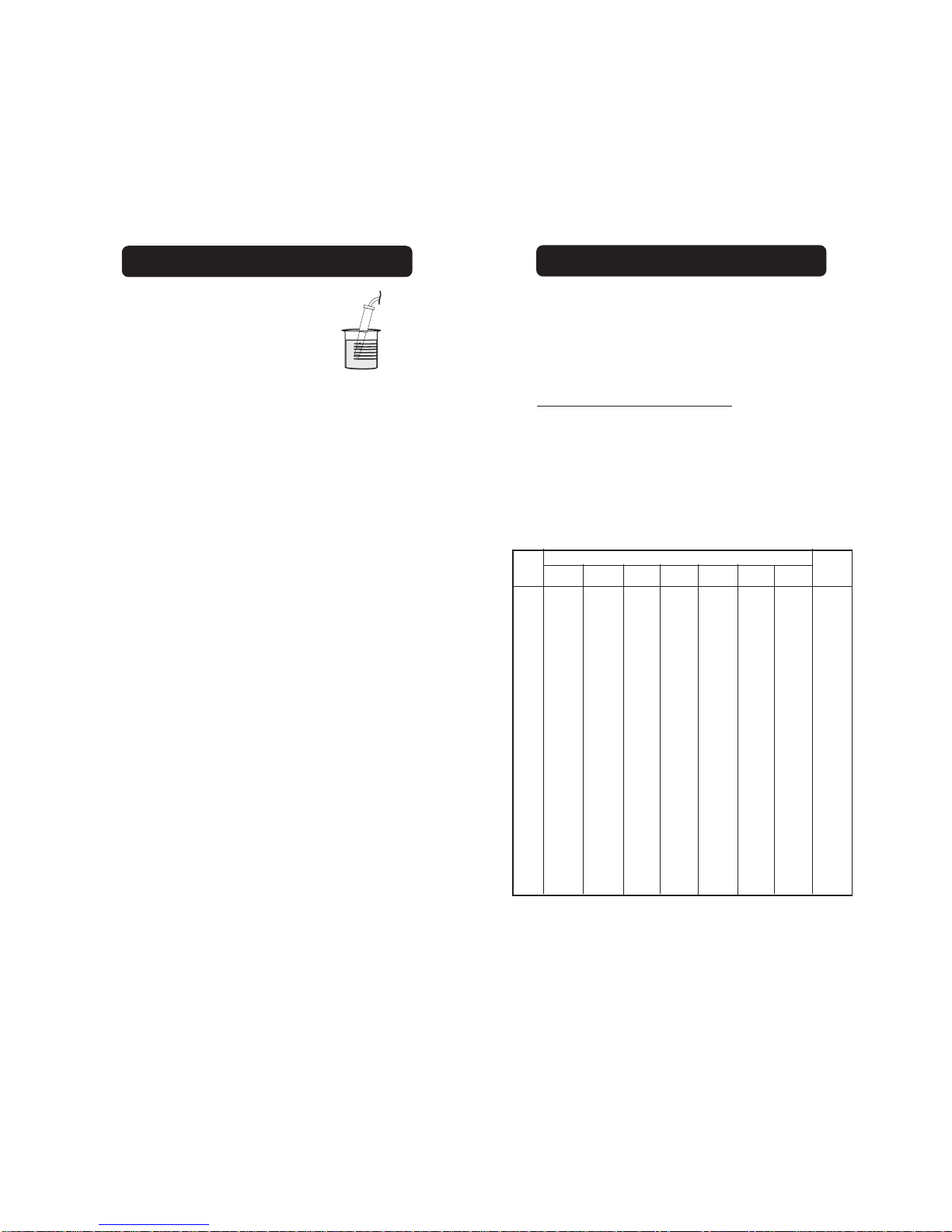

ALTITUDE & SALINITY COMPENSATION

If the sample contains salts or if you are

performing the measurements at a different

altitudethansealevel,thereadoutvaluesmust

be corrected, taking into account the lower

degreeofoxygensolubility.

ALTITUDE COMPENSATION

Allthereadouts are referredatsealevel, thus

the displayed measurements are higher than

theactualvalues. Infact,altitude affects D.O.

concentrationdecreasingitsvalue.Thefollow-

ingtablereportstheoxygensolubilityatvarious

temperaturesandaltitudes,basedonsealevel

barometricpressureof760 mmHg.

This gives an idea of the error that can be

introducedatdifferentaltitudesandallowsyou

to calculate the quantity to be subtracted to

correctyourreading.

TAKING MEASUREMENTS

Makesurethemeterhasbeen

calibrated and the protective

cap has been removed. Im-

mersethetipoftheprobeinthe

sample to be tested.

Make sure the temperature sensor is also

immersed.

Foraccuratedissolvedoxygenmeasurements

awatermovementof0.3m/secisrequiredata

minimum. This is to ensure that the oxygen-

depleted membrane surface is constantly re-

plenished. A moving stream will provide ad-

equatecirculation.Toquicklycheckifthewater

speedissufficient,waitforthereadingtostabi-

lizeandthenmovetheD.O.probe.Ifthereading

is still stable, the measurement conditions are

right, while if the reading increases the water

movementisnotadequate.

Duringfieldmeasurements,thisconditionmay

bemet bymanually agitatingthe probe. Accu-

ratereadingsarenotpossiblewhiletheliquidis

at rest.

Duringlaboratorymeasurements,theuseof a

magnetic stirrer to ensure a certain velocity in

the fluid is recommended. In this way, errors

duetothediffusionoftheoxygenpresentinthe

air in the solution are reduced to a minimum.

Atalltimes,timenecessaryforthermalequilib-

riumtooccurbetweentheprobeandthesample

mustbeallowed(afewminutesfortemperature

differenceofseveraldegrees).

°C

0 m

14.6

13.8

13.1

12.4

11.8

11.3

10.8

10.3

9.9

9.5

9.1

8.7

8.4

8.1

7.8

7.5

7.3

7.1

6.8

6.6

6.4

300 m

14.1

13.3

12.7

12.0

11.4

10.9

10.4

9.9

9.7

9.2

8.8

8.4

8.1

7.8

7.5

7.2

7.1

6.9

6.6

6.4

6.2

600 m

13.6

12.9

12.2

11.6

11.0

10.5

10.1

9.6

9.2

8.7

8.5

8.1

7.8

7.5

7.3

7.0

6.8

6.6

6.3

6.2

6.0

1200 m

12.7

12.0

11.4

10.8

10.3

9.8

9.4

9.0

8.6

8.3

7.9

7.7

7.3

7.0

6.8

6.5

6.4

6.2

5.9

5.7

5.6

1500m

12.3

11.6

11.0

10.4

9.9

9.5

9.1

8.7

8.3

8.0

7.7

7.3

7.1

6.8

6.6

6.3

6.1

6.0

5.7

5.6

5.4

1800m

11.8

11.2

10.6

10.1

9.6

9.2

8.8

8.3

8.0

7.7

7.4

7.1

6.8

6.6

6.3

6.1

5.9

5.8

5.5

5.4

5.2

900 m

13.2

12.4

11.9

11.2

10.6

10.2

9.7

9.3

8.9

8.6

8.2

7.8

7.5

7.3

7.0

6.8

6.6

6.4

6.1

5.9

5.8

Altitude, Meters above Sea Level °F

32.0

35.6

39.2

42.8

46.4

50.0

53.6

57.2

60.8

64.4

68.0

71.6

75.2

78.8

82.4

86.0

89.6

93.2

96.8

100.4

104.4

12 13

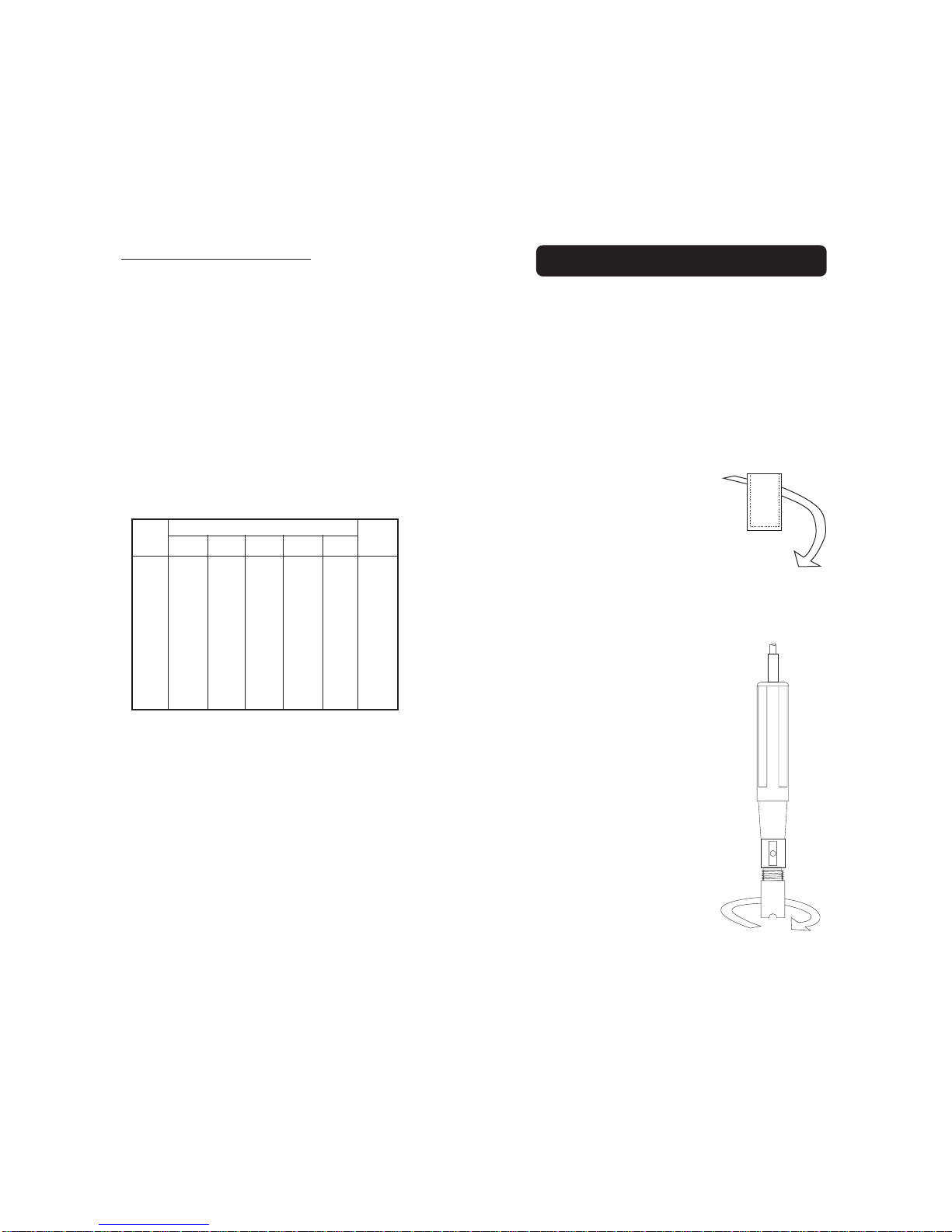

PROBE & MEMBRANE MAINTENANCE

The oxygen probe body is made of reinforced

plastic for maximum durability.

Athermistortemperaturesensorprovidestem-

peraturemeasurementandcompensation.When

notinuse,itisalwaysrecommendedtoprotect

the probe against damage and dirt using the

suppliedcap.

To replace the membrane or refill with elec-

trolyte,proceed asfollows:

• Removetheprotectivecap

bygentlytwistingandpull-

ing it off (see fig. 1).

• Unscrew the membrane

by turning it counter-

clock-wise (see fig. 2)

• Wet the sensor by soak-

ingthebottom(2.5cm)of

the probe in HI 7041S

electrolyte solution for 5

minutes.

• Rinsethenewmembrane

(HI76407Asuppliedwith

themeter)withsomeelec-

trolyte while shaking it

gently. Refill with clean

electrolyte.

• Gently tap the sides of

the membrane with your

fingertoensurethatnoair

bubbles remain trapped

inside.Do no directlytap

the bottom as this will

damagethemembrane.

• Makesurethattherubber

O-ringisseatedproperly

insidethemembranecap.

TWIST

AND

PULL

fig. 1

UNSCREW

fig. 2

SALINITY COMPENSATION

The table below shows the influence of salt in

themeasurementofoxygen.

In HI 9142 allthereadoutsarereferredto0g/l

of salinity value. In fact, salinity affects D.O.

concentrationdecreasingitsvalue.

Foryourreferencethetablebelowreportsthe

oxygensolubilityat varioustemperaturesand

salinity. From the table you can calculate the

quantitytobesubtractedtocorrectyourread-

ing.

35 g/l

9.0

8.6

8.3

8.0

7.6

7.4

7.1

6.9

6.6

6.4

30 g/l

9.3

8.9

8.6

8.2

7.9

7.6

7.3

7.1

6.8

6.6

°C

0 g/l

11.3

10.8

10.3

9.9

9.5

9.1

8.7

8.4

8.1

7.8

10 g/l

10.6

10.1

9.7

9.3

8.9

8.5

8.2

7.9

7.6

7.4

20 g/l

9.9

9.5

9.1

8.7

8.4

8.0

7.8

7.5

7.2

7.0

°F

50.0

53.6

57.2

60.8

64.4

68.0

71.6

75.2

78.8

82.4

Salinity (g/l) at Sea Level

14 15

BATTERY REPLACEMENT

Whenthebatterylevelislow,

"V" is displayed on the LCD

towarntheuserthatthebat-

tery needs to be replaced.

The meter will still work for approximately 4

hours,thenthedisplaywillbeshut-off to avoid

erroneousreadings.

Battery replacement must only take place in a

safe area and using alkaline 1.5V AA type

batteries.

Inordertoreplacethebatteries,simplyremove

the two screws on the rear cover of the instru-

ment and replace all four batteries with new

ones, while paying attention to the correct

polarity.

• With the sensor facing down, screw the

membrane cap clock-wise. Some electro-

lytewilloverflow.

The Platinum cathode (#8 in the Functional

Descriptionatpage4)shouldalwaysbebright

and untarnished. If it is tarnished or stained,

which could be due to contact with certain

gasesorextendedusewithalooseordamaged

membrane, the cathode should be cleaned.

Use a lint-free cardboard or cloth and rub the

cathodeverygentlysidetoside4-5times.This

willbeenoughtopolish andremoveanystains

withoutdamagingtheplatinumtip.Afterwards,

rinsetheprobewithdeionizedordistilledwater

and install a new membrane cap using fresh

electrolyte.Recalibratetheinstrument.

Important:Inordertohaveaccurateandstable

measurements,itisimportantthatthe surface

of the membrane is in perfect condition. This

semi-permeablemembraneisolatesthesensor

elementsfromtheenvironmentbutallowsoxy-

gen to enter. If any dirt is observed on the

membrane,rinsecarefullywithdistilledordeion-

izedwater.Ifanyimperfectionstillexists,orany

damageisevident (such aswrinklesor tears),

themembraneshouldbereplaced.Makesure

thattheO-Ring isproperlyseatedinthemem-

branecap.

16 17

WARRANTY

AllHannaInstrumentsmeters are warranted

fortwoyearsagainstdefectsinworkmanship

and materials when used for their intended

purpose and maintained according to the in-

structions. The probes are warranted for a

period of six months.

Damagesduetoaccidents,misuse,tampering

orlackofprescribedmaintenancearenotcov-

ered. This warranty is limited to repair or re-

placementfreeofcharge.

If service is required, contact the dealer from

whom you purchased the instrument. If under

warranty, report the model number, date of

purchase, serial number and the nature of the

failure. If the repair is not covered by the war-

ranty,youwillbenotifiedofthechargeforrepair

or replacement. If the instrument is to be re-

turned to Hanna Instruments, obtain a Return

Goods Authorization from the Customer Ser-

vice Department first and then send it with

shipment cost prepaid. When shipping any

instrument, make sure it is properly packaged

forcompleteprotection.

Allrightsarereserved.Reproductioninwholeor

inpartisprohibitedwithoutthewrittenconsent

ofthecopyrightowner.

HannaInstrumentsreservestherightto

modifythedesign,constructionandappear-

anceof itsproducts withoutadvance notice.

ACCESSORIES

HI7040M Zerooxygensolution,230 mL

HI7040L Zerooxygensolution,500 mL

HI7041S Refillingelectrolytesolution,

30 mL

HI76407/4 D.O. probe with 4 m (13')

cable

HI76407/10 D.O. probe with 10 m (33')

cable

HI76407/20 D.O. probe with 20 m (66')

cable

HI76407A/P D.O. membrane (5 pcs)

18 19

CE DECLARATION OF CONFORMITY

RecommendationsforUsers

Before using this product, make sure that it is entirely suitable for the environment in

which it is used.

Operation of this instrument in residential area could cause unacceptable interfer-

ences to radio and TV equipments, requiring the operator to take all necessary steps

to correct interferences.

Any variation introduced by the user to the supplied equipment may degrade the

instrument's EMC performance.

To avoid electrical shock, do not use this instrument when voltages at the measure-

ment surface exceed 24 Vac or 60 Vdc.

To avoid damages or burns, do not perform any measurement in microwave ovens.

In particular cases the meter could turn off. In these cases it can be turned on by

pressing the ON/OFF key.

Altri manuali per HI 9142

Indice

Altri manuali Hanna Instruments Strumento di misura

Hanna Instruments

Hanna Instruments HI 991003 Manuale utente

Hanna Instruments

Hanna Instruments HALO 2 HI9810372 Manuale utente

Hanna Instruments

Hanna Instruments HI 83741 Manuale utente

Hanna Instruments

Hanna Instruments HI 83141 Manuale utente

Hanna Instruments

Hanna Instruments HI 99121 Manuale utente

Hanna Instruments

Hanna Instruments Checker HI717 Manuale utente

Hanna Instruments

Hanna Instruments HI739 Manuale utente

Hanna Instruments

Hanna Instruments HI 99301 Manuale utente

Hanna Instruments

Hanna Instruments HI97731 Manuale utente

Hanna Instruments

Hanna Instruments HI 9033 Manuale utente

Hanna Instruments

Hanna Instruments HI 93711 Manuale utente

Hanna Instruments

Hanna Instruments HI708 Manuale utente

Hanna Instruments

Hanna Instruments HI 749 Manuale utente

Hanna Instruments

Hanna Instruments HI 98188 Manuale utente

Hanna Instruments

Hanna Instruments HI781 Manuale utente

Hanna Instruments

Hanna Instruments HI 93722 Manuale utente

Hanna Instruments

Hanna Instruments HI 2400 Manuale utente

Hanna Instruments

Hanna Instruments HI96700C Manuale utente

Hanna Instruments

Hanna Instruments HI97717 Manuale utente

Hanna Instruments

Hanna Instruments HI 83208 Manuale utente

Hanna Instruments

Hanna Instruments HI 83200 Manuale utente

Hanna Instruments

Hanna Instruments HI6321 Manuale utente

Hanna Instruments

Hanna Instruments HI 8033 Manuale utente

Hanna Instruments

Hanna Instruments HI 98240 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
