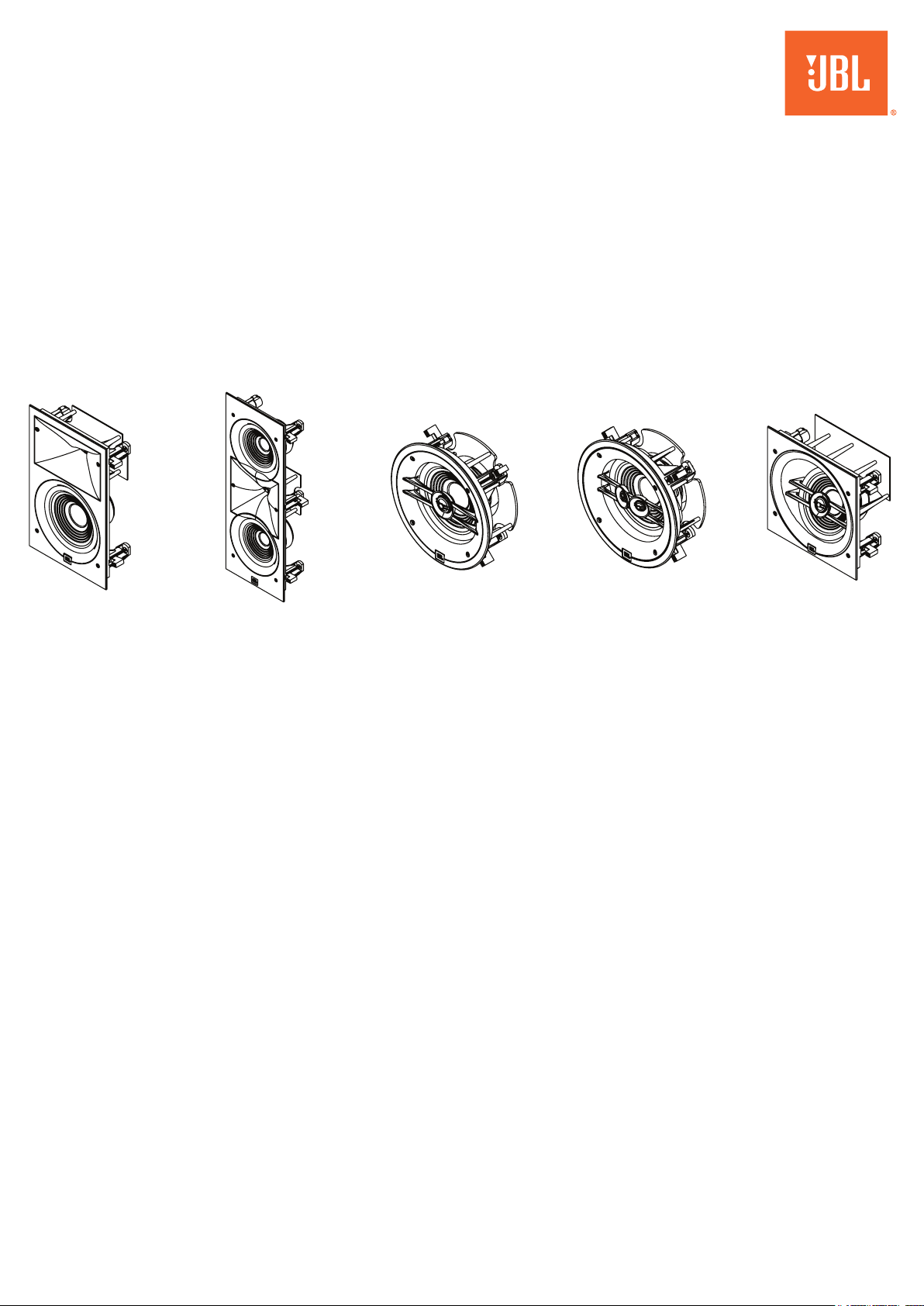

Harman JBL Stage 2 Series Manuale utente

Stage 2 Architectural Loudspeakers

Installation Guide

1.1 | 20220829

Overview

Supported Products

The following products are supported within this document.

In-Wall Models

Stage 250WL 2-way Dual 5.25" In-Wall

Stage 260W 2-way 6.25" In-Wall

Stage 280W 2-way 8" In-Wall

In-Ceiling Models

Stage 260C 2-way 6.25" In-Ceiling

Stage 260CDT 2-way 6.25" Dual Tweeter In-Ceiling

Stage 260CSA 2-way 6.25" Angled In-Ceiling

Stage 280C 2-way 8" In-Ceiling

Stage 280CSA 2-way 8" Angled In-Ceiling

Associated Accessories

There are several accessories available for new construction

installations as well as square grille kits to change the

appearance of the in-ceiling speakers.

Preconstruction Brackets

WB81 Pre-Construction Bracket for 8" In-Wall

WB61 Pre-Construction Bracket for 6" In-Wall

CB6SA Pre-Construction Bracket for 6"

Angled In-Ceiling

CB8SA Pre-Construction Bracket for 8"

Angled In-Ceiling

Square Grille Kits

SGK6 Square Grille Kit for 6" In-Ceiling

SGK8 Square Grille Kit for 8" In-Ceiling

Box Contents

1x Stage Architectural Loudspeaker

1x Zero Bezel Grille

1x Cutout Template

1x Quick Start Guide (This Document)

Safety Warnings

IMPORTANT! HARMAN International assumes no

responsibility for improper installation of hardware or for

any personal injuries or product damages resulting from

improper installation or a fallen loudspeaker.

Read through this document in its entirety and heed all

warning before proceeding with the installation of these

product(s).

IMPORTANT! Installation Precautions

Due to the nature of this product, there are several

precautions to follow before installation can begin.

1. Allowsufcientclearancebetweenthespeakerandany

insulation that may be in the wall cavity to avoid ignition

should overheating occur.

1" (26mm) for Non-Flammable Materials

3" (78mm) for Flammable Materials

2. Ensure that all wire run inside of walls and ceiling meets

orexceedslocalrecodesforhiddenwiring.

3. Determine wire lengths and select the proper gauge

speaker wire to use based on the table under Wire Gauge

by Distance.

4. Do

NOT overtighten the dog legs when securing the

speaker to surfaces as this may cause the speaker to

come loose. If using a power screwdriver set it to the

lowest settings.

5. Do

NOTconnectthespeakerstoanamplierrated

abovetherecommendedamplierpower.Overdrivingthe

speaker can cause an overheating condition increasing

the risk of injury.

6. Do

NOTconnecttheamplierendofthewireuntilall

speakers are wired and installed.

7. Determine and purchase any accessories such as pre-

construction brackets before beginning the installation

process. Refer to Associated Accessories for a list of

available brackets.

8. Ensure that wall and ceiling board material is between ½"

(13mm) and 2" (51mm) thick and capable of supporting

the weight of the speaker.

Installation

Before proceeding with the installation be sure and read

through these instructions carefully and in full to ensure that

the installation will be complete and accurate. Should at any

time these instructions seem unclear, contact your dealer or

customer support for assistance.

Preinstallation Preparations

While these architectural speakers have been designed

to perform in a variety of environments, there are some

guidelines to follow to ensure that you will be getting the best

out of the speakers.

1. Read through the IMPORTANT!InstallationPrecautions

before proceeding to ensure that all safety precautions

have been met.

2. Determine a location for the speakers within the room and

position on the wall and/or ceiling. Note that positioning

them near boundaries such as other walls, ceilings, or

oorswithincreasereectionthatmayhaveanadverse

affect on the sound.

3. Determine wire lengths and select the proper gauge

speaker wire to use based on the table under Wire Gauge

by Distance.

4. Runallwiresfromtheamplierlocationtothespeaker

location so that they are available when the speaker

is installed. Ensure that wires are not connected at the

amplieratthistime.

5. For new construction ensure that all brackets are on hand

and installed in the walls before installing the speakers.

Install Pre-Construction brackets per instructions included

with the brackets.

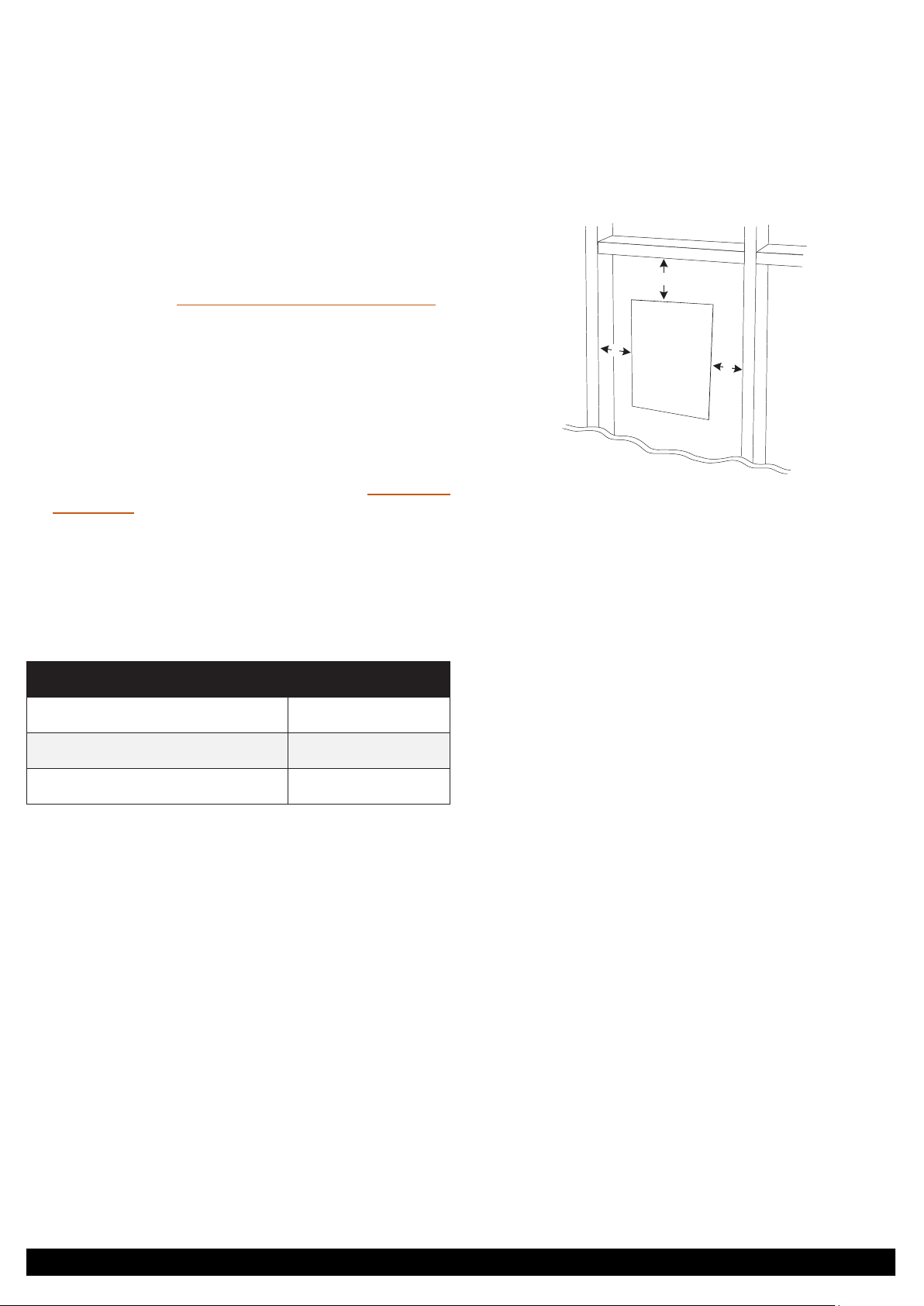

6. For existing walls and ceilings position the included cutout

template onto the wall or ceiling and trace an outline onto

the wall. Ensure that the template is equal distance from

studs to allow for the XL-2 legs to fully extend. Use a stud

nderifneeded.

A - ¾" (19 mm) minimum

Cutout for

Speaker

7. Using a Drywall saw, cutout a section of the wall/ceiling in

theconnesofthetraceforthecutout.

Wire Gauge by Distance

Distance/Length Wire Gauge

< 50ft (15m) 16-gauge

50ft (15m) ~ 100ft (30m) 12-gauge

> 100ft (30m) 10-gauge

Installing the Speakers

1. Follow the steps under Preinstallation Preparations that

apply to the installation.

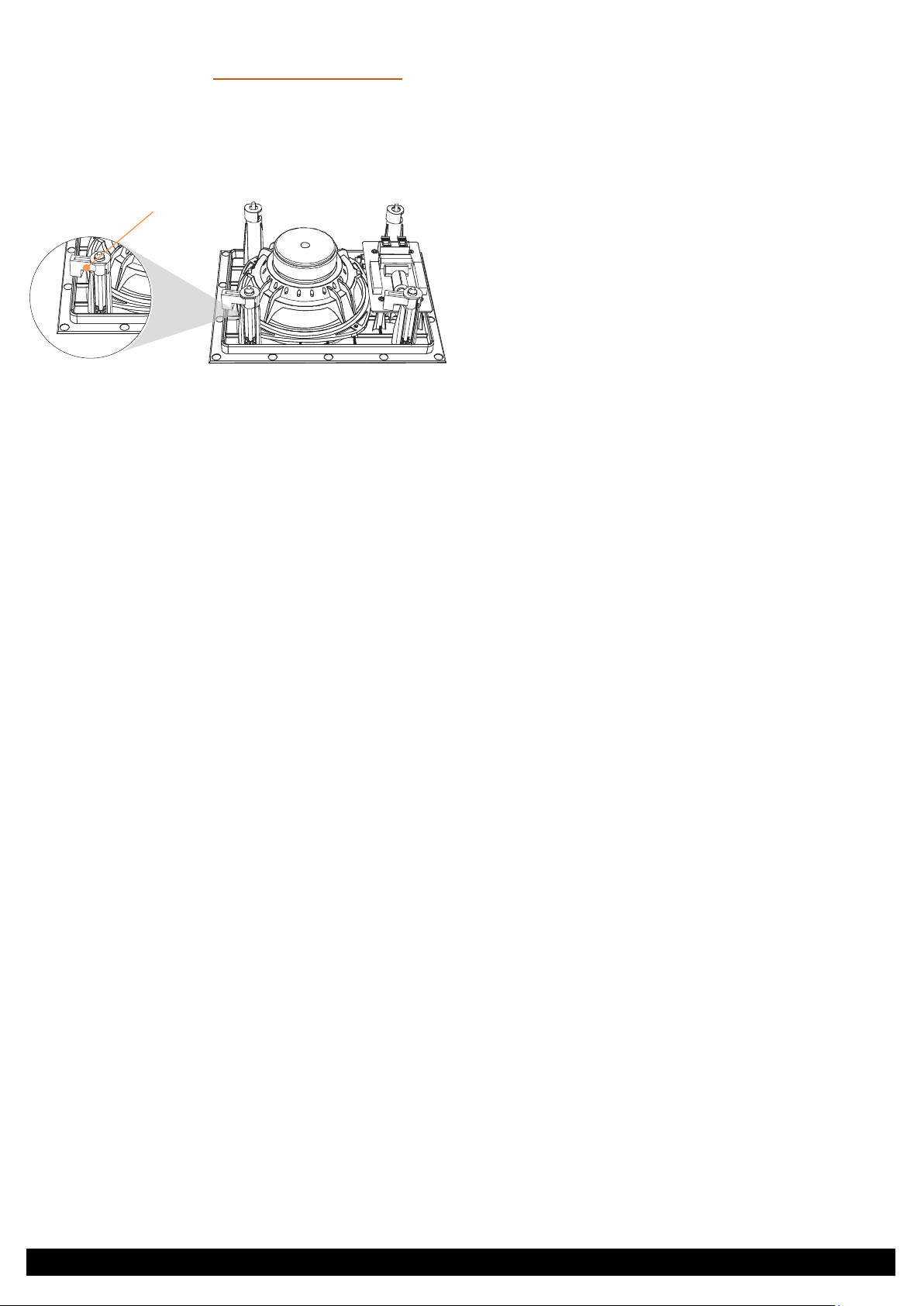

2. Set the XL-2 legs on the speaker to the installation

position. Must be inside the frame of the speaker in order

to install speaker into cutout.

XL-2 Leg inside

frame of speaker

3. Attach the included safety wire to a stud inside the wall/

ceiling near the side of the speaker with the safety ring

eyelet.

4. Pull wire through pre-construction bracket or hole in wall/

ceiling.

5. Strip ¼" (6.5mm) of insulation off each wire.

6. Starting with the negative terminal (black), gently press

down on each terminal, insert the wire, and release.

Repeat for the positive (red) terminal.

7. Installthespeakerintothecutout/bracket,holdrmlyto

wall, and tighten the screws for the XL-2 legs.

CAUTION! Do NOT over tighten the screws as this can

strip the legs and cause the speaker to come

loose from the wall/ceiling.

8. Install the grille onto the speaker by gently placing it over

the speaker until the magnets click and pull the grille onto

speaker.

Specications

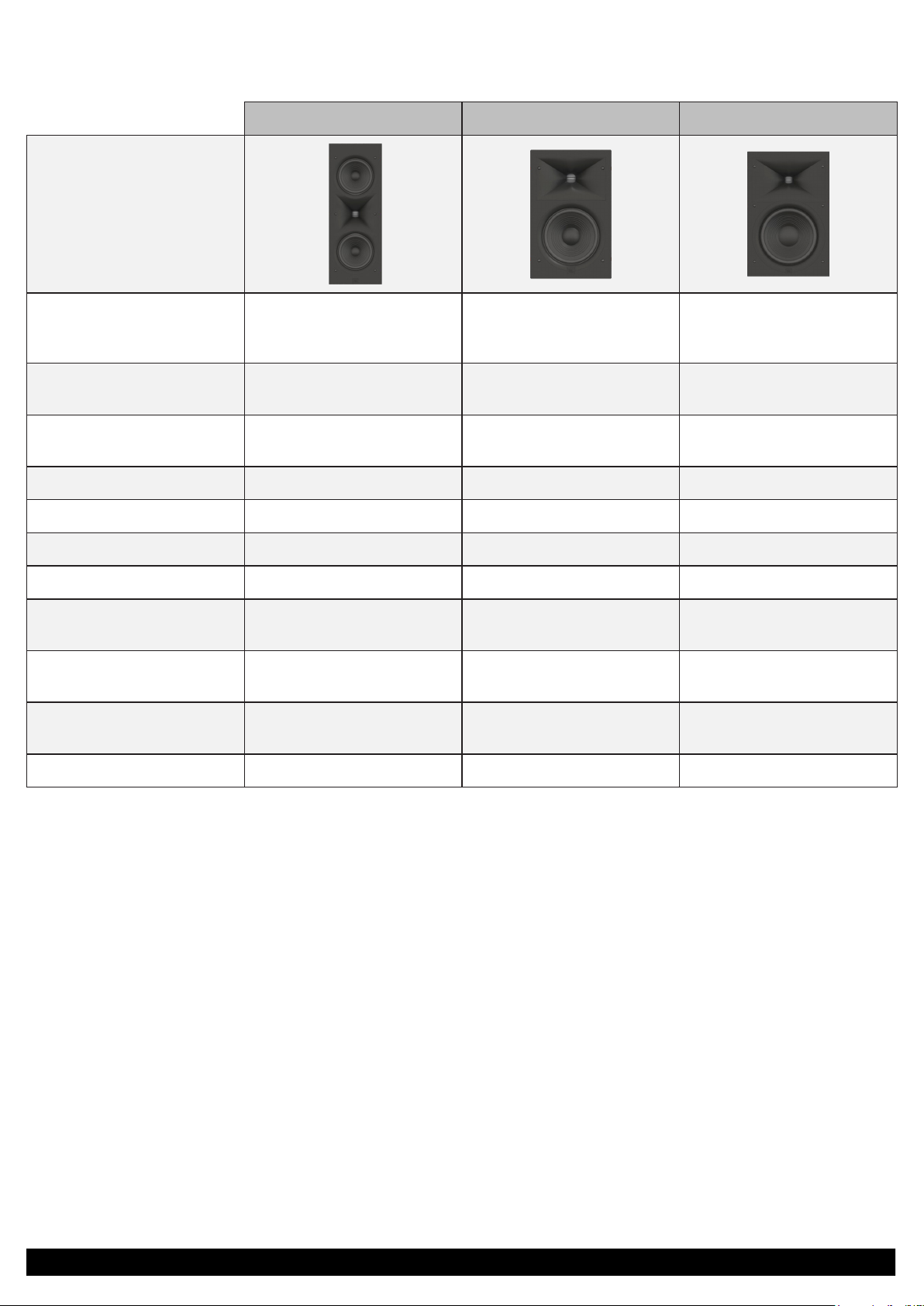

In-Walls

Stage 250WL Stage 260W Stage 280W

High Frequency Transducer

1" (25mm) Aluminum dome

withHigh-DenitionImaging

(HDI™) horn

1" (25mm) Aluminum dome

withHigh-DenitionImaging

(HDI™) horn

1" (25mm) Aluminum dome

withHigh-DenitionImaging

(HDI™) horn

Low Frequency Transducer Dual 5.25" (130mm)

Polycellulose cone woofer

6.5" (165mm) Polycellulose

cone woofer

8" (200mm) Polycellulose

cone woofer

Recommended Amplier

Power 20-120W RMS 20-100W RMS 20-120W RMS

Frequency Response 52Hz-25kHz (-6dB on-axis) 50Hz-25kHz (-6dB on-axis) 42Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m) 90dB 87dB 90dB

Nominal Impedance 8ohm 8ohm 8ohm

Crossover Frequency 2100Hz 1900Hz 1700Hz

Inputs Nickel-plated spring-loaded

connectors

Nickel-plated spring-loaded

connectors

Nickel-plated spring-loaded

connectors

Grille Dimensions H: 19.5in (496mm) x W 7.6in

(194mm)

H: 13.3in (339mm) x W 8.5in

(217mm)

H: 15.7in (400mm) x W 10.5in

(266mm)

Cutout Dimensions H: 18.1in (460mm) x W: 6.4in

(162mm)

H: 12.2in (311mm) x W: 7.2in

(184mm)

H: 14.6in (372mm) x W: 9.4in

(238mm)

Mounting Depth 3.8in (96mm) 3.6in (92mm) 3.9in (98mm)

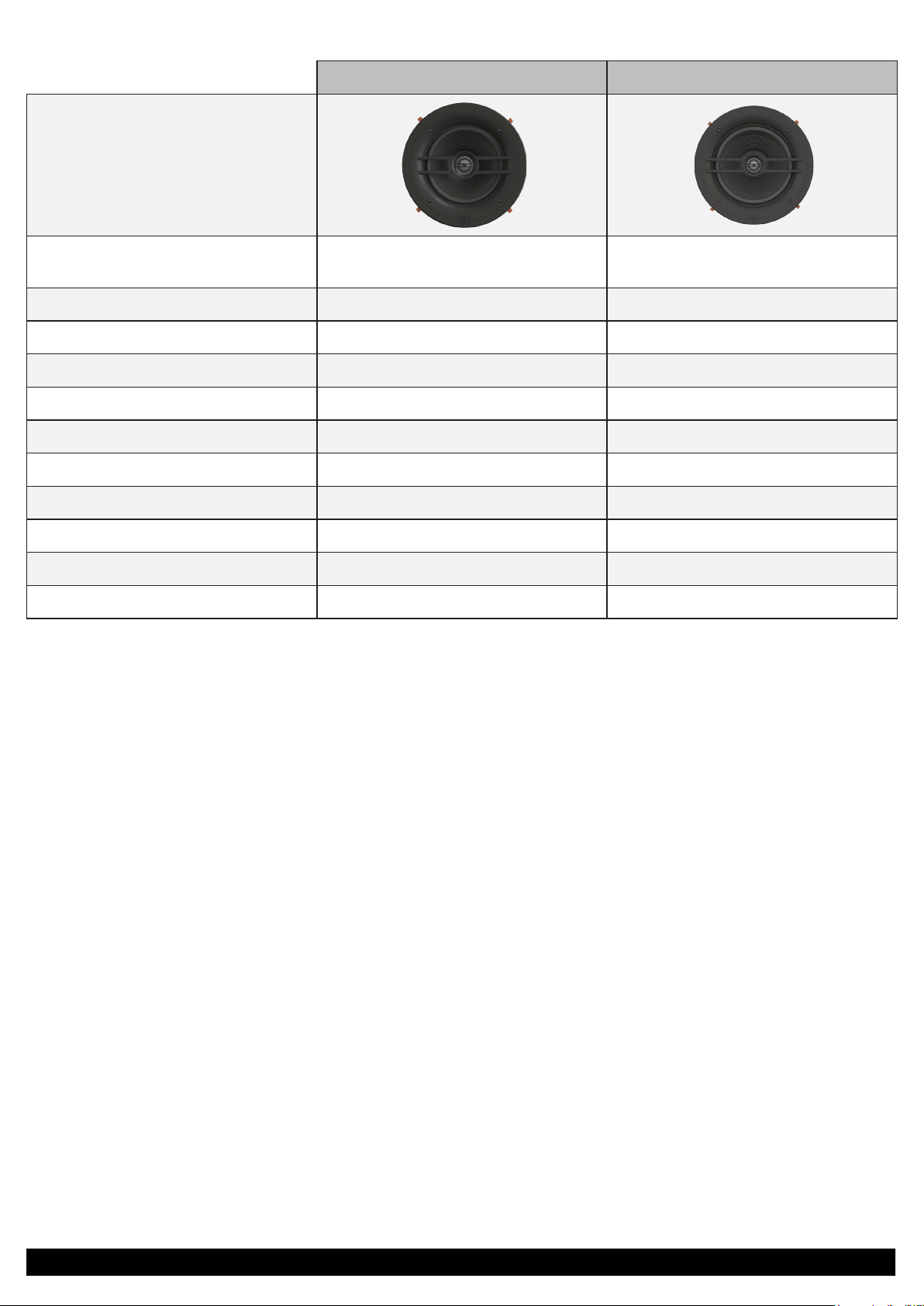

In-Ceiling (Standard)

Stage 260C Stage 280C

High Frequency Transducer 1" (25mm) Aluminum dome with

Acoustic Lens

1" (25mm) Aluminum dome with

Acoustic Lens

Low Frequency Transducer 6.5" (165mm) Polycellulose cone woofer 8" (200mm) Polycellulose cone woofer

Recommended Amplier Power 20-100W RMS 20-120W RMS

Frequency Response 50Hz-25kHz (-6dB on-axis) 42Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m) 87dB 90dB

Nominal Impedance 8ohm 8ohm

Crossover Frequency 3000Hz 3400Hz

Inputs Nickel-plated spring-loaded connectors Nickel-plated spring-loaded connectors

Grille Dimensions Dia: 9.2in (233mm) Dia: 10.8in (275mm)

Cutout Dimensions Dia: 8in (203mm) Dia: 9.6in (244mm)

Mounting Depth 3.9in (100mm) 4.3in (108mm)

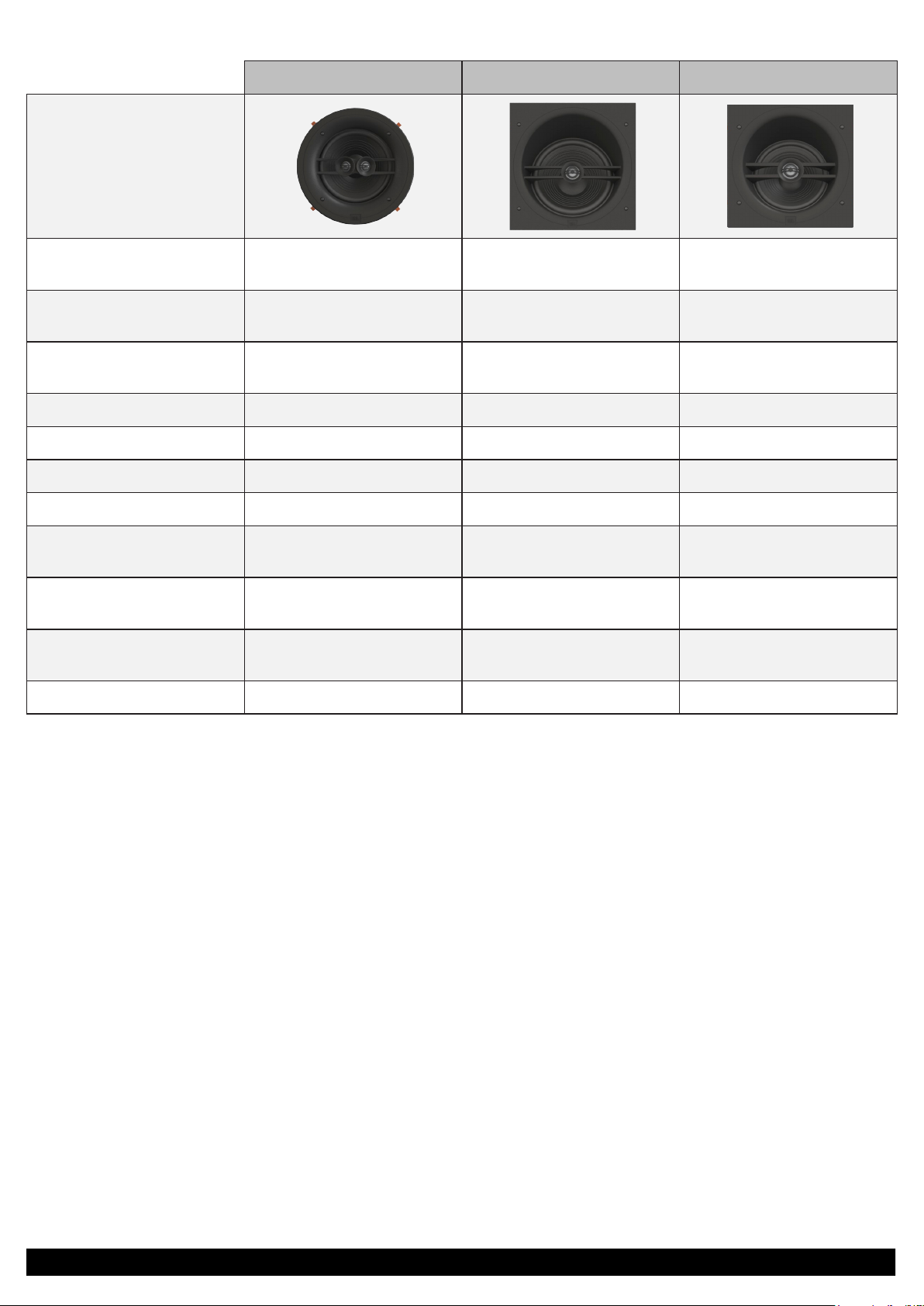

In-Ceiling (Special Use)

Stage 260CDT Stage 280CSA Stage 250CSA

High Frequency Transducer Dual 3/4" (20mm) Aluminum

dome with Acoustic Lens

1" (25mm) Aluminum dome

with Acoustic Lens

1" (25mm) Aluminum dome

with Acoustic Lens

Low Frequency Transducer Dual VC 6.5" (165mm)

Polycellulose cone woofer

6.5" (165mm) Polycellulose

cone woofer

8" (200mm) Polycellulose

cone woofer

Recommended Amplier

Power 20-75W RMS 20-100W RMS 20-120W RMS

Frequency Response 50Hz-25kHz (-6dB on-axis) 50Hz-25kHz (-6dB on-axis) 42Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m) 90dB 87dB 90dB

Nominal Impedance 8ohm 8ohm 8ohm

Crossover Frequency 2900Hz 2800Hz 2900Hz

Inputs Nickel-plated spring-loaded

connectors

Nickel-plated spring-loaded

connectors

Nickel-plated spring-loaded

connectors

Grille Dimensions Dia: 9.2in (233mm) H: 9.8in (248mm) x W 9.8in

(248mm)

H: 11.4in (289mm) x W 11.4in

(289mm)

Cutout Dimensions Dia: 8in (203mm) H: 8.6in (219mm) x W: 8.6in

(219mm)

H: 10.2in (260mm) x W:

10.2in (260mm)

Mounting Depth 4.2in (106mm) 5in (127mm) 5.4in (138mm)

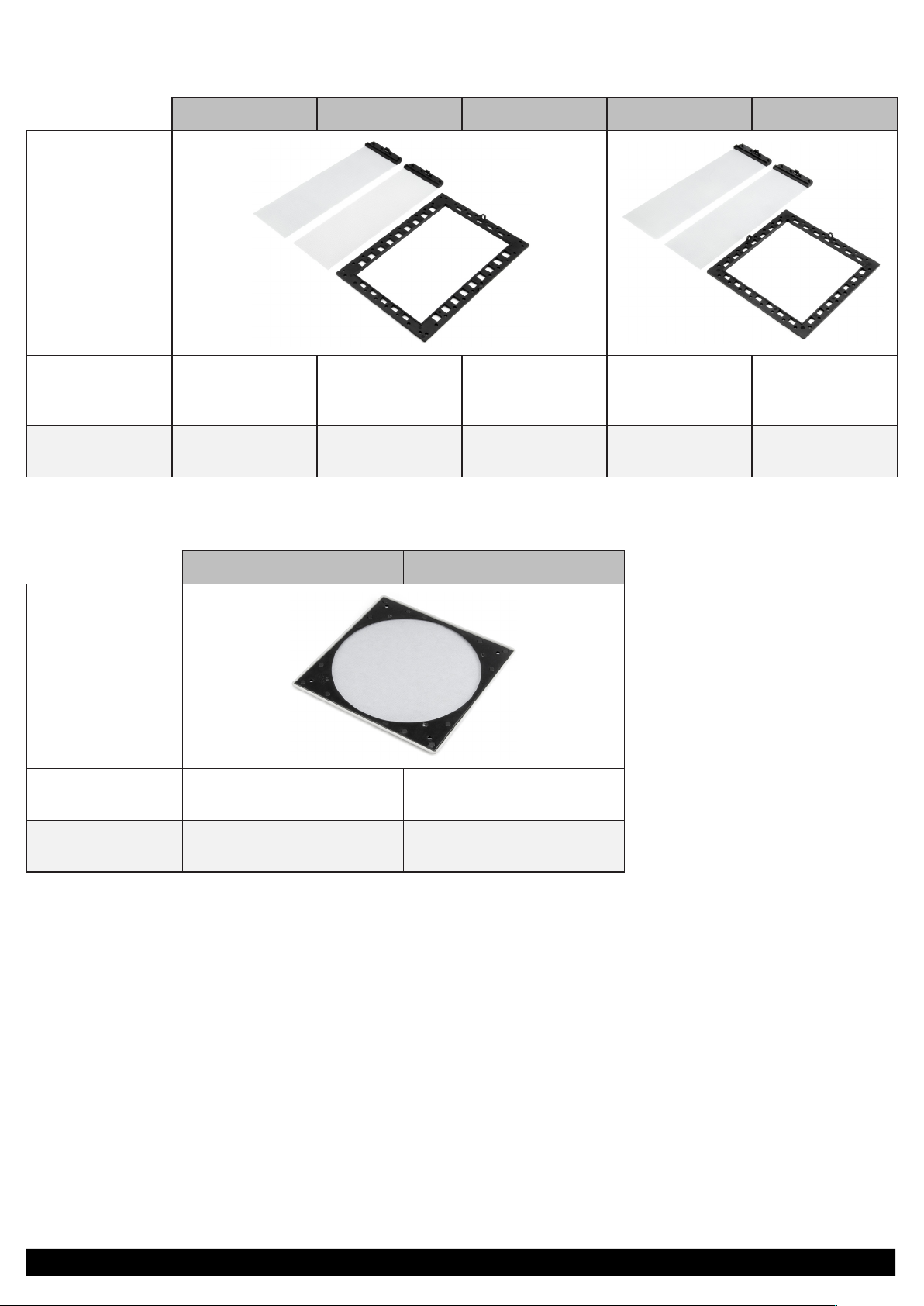

Installation Tools

Pre-Construction Brackets

JBLWB52 JBLWB61 (New) JBLWB81 (New) JBLCB6SA JBLCB8SA

Description Rough-In Bracket

for 5" In-Wall

Rough-In Bracket

for 6" In-Wall

Rough-In Bracket

for 8" In-Wall

Rough-In Bracket

for Angled 6" In-

Ceiling

Rough-In Bracket

for Angled 8" In-

Ceiling

Products

Supported 250WL 260W 280W 260CSA 280CSA

Square Grille Kits

JBLSGK6 JBLSGK8

Description Square White Paintable Grille

for 6" In-Ceiling

Square White Paintable Grille

for 8" In-Ceiling

Products

Supported 260C / 260CDT 280C

Harman International Industries, Incorporated.

8500 Balboa Blvd, Northridge CA 91329 United States.

European Representative: Harman International Industries, Incorporated.

EMEALiaisonOfce,Danzigerkade16G,1013APAmsterdam,TheNetherlands.

UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead,

Hertfordshire, HP3 9TD, United Kingdom.

JBL is a trademark of Harman International Industries, Incorporated registered in the United

States and other countries.

Features,Specications,andAppearancesubjecttochangewithoutnotice.

Part No. 950-0618-001

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Harman Altoparlanti

Harman

Harman JBL 4309 Manuale utente

Harman

Harman JBL PLAYLIST Manuale utente

Harman

Harman revel concerta 2 Manuale utente

Harman

Harman JBL Professional EON700 Series Manuale utente

Harman

Harman JBL simply cinema SCS125 Manuale utente

Harman

Harman Kardon ONYX STUDIO 6 Manuale utente

Harman

Harman JBL GT0949 LIMITED EDITION Manuale utente

Harman

Harman REVEL C363XC Manuale utente

Harman

Harman JBL BoomBox 3 maskirni Manuale utente

Harman

Harman axys ABF-260 Manuale utente

Harman

Harman JBL Home Theater Series Manuale utente

Harman

Harman JBL Performance Series Manuale utente

Harman

Harman JBL CINEMA SB160 Manuale utente

Harman

Harman TUN-570285 Manuale utente

Harman

Harman JBL PULSE Manuale utente

Harman

Harman JBL DD65000 Manuale utente

Harman

Harman JBL Intellivox ADC-V90 Manuale utente

Harman

Harman JBL FLIP 5 Manuale utente

Harman

Harman JBL PartyBox Ultimate Manuale utente

Harman

Harman SOUNDSTICKS 4 Manuale utente

Harman

Harman JBL EON600 Series Manuale utente

Harman

Harman JBL AUTHENTICS 300 Manuale utente

Harman

Harman PRX908 Manuale utente

Harman

Harman JBL CINEMA SB160 Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
