HealTech Electronics Advanced Rider Assistant Manuale utente

Advanced Rider Assistant

Supplementary Manual

Aprilia Dorsoduro 750 non-ABS Factory 2008-2015 (ARA-1 + ARA-K2F + ARA-DD11)

www.healtech-electronics.com 1/4

Secure the bike on a stand.

Remove the seat.

Remove the side fairings from the fuel

tank.

Remove the fuel tank.

Plug the ARA connectors in-line with the

ignition coil connectors.

Advanced Rider Assistant

Supplementary Manual

Aprilia Dorsoduro 750 non-ABS Factory 2008-2015 (ARA-1 + ARA-K2F + ARA-DD11)

www.healtech-electronics.com 2/4

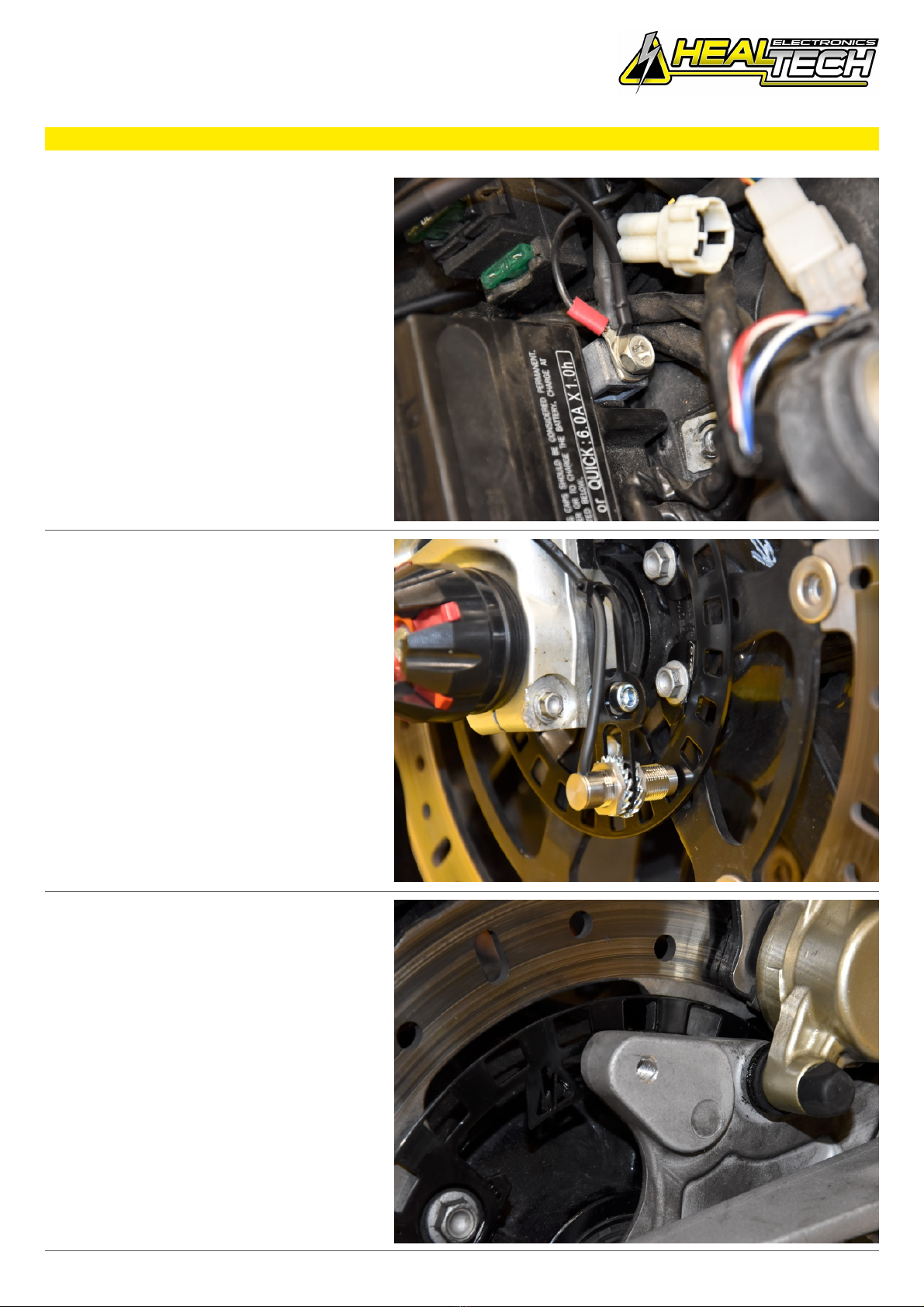

Connect the ARA Black wire terminal to

the battery negative terminal.

Mount the supplied disk and wheel speed

sensor at the front wheel.

(For the disk mounting see the Front Disc

Mounting all bikes without ABS

supplementary manual.Reinstall the brake

disk as per the bike's service manual. For

safety, you may use threadlocker to make

sure the nut or bolt won't get loose due to

vibrations. Adjust and tighten the sensor so

that the sensor's tip will be in the centerline

of the targets. The air-gap should be about

1mm.)

Drill a thread for the rear wheel speed

sensor.

Advanced Rider Assistant

Supplementary Manual

Aprilia Dorsoduro 750 non-ABS Factory 2008-2015 (ARA-1 + ARA-K2F + ARA-DD11)

www.healtech-electronics.com 3/4

Mount the supplied disk and wheel speed

sensor at the rear wheel.

(For the disk mounting see the Rear Disc

Mounting all bikes without ABS

supplementary manual. Adjust and tighten

the sensor so that the sensor's tip will be in

the centerline of the targets. The air-gap

should be about 1mm.)

Connect the 3-pole rear wheel speed

sensor connector to the ARA wiring.

Connect the free terminals of the front

and rear speed connectors.

Connect the two Green wire.

Optional:

Connect the ARA Pink wire to the

Brown/Purple wire of the Clutch switch.

While the connector is connected, turn

ignition on. Measure the voltage (DC 20V

setting) on the wires, at the back side of the

plug. You need to use the wire where the

voltage value changes while you pull the

clutch lever. Alternatively check the clutch

switch indication in the ARA application on

your phone.

Advanced Rider Assistant

Supplementary Manual

Aprilia Dorsoduro 750 non-ABS Factory 2008-2015 (ARA-1 + ARA-K2F + ARA-DD11)

www.healtech-electronics.com 4/4

Mount the switch onto the handlebar.

Mount the LED indicator on the

dashboard.

Typical position for the ARA module.

Secure the unit properly.
