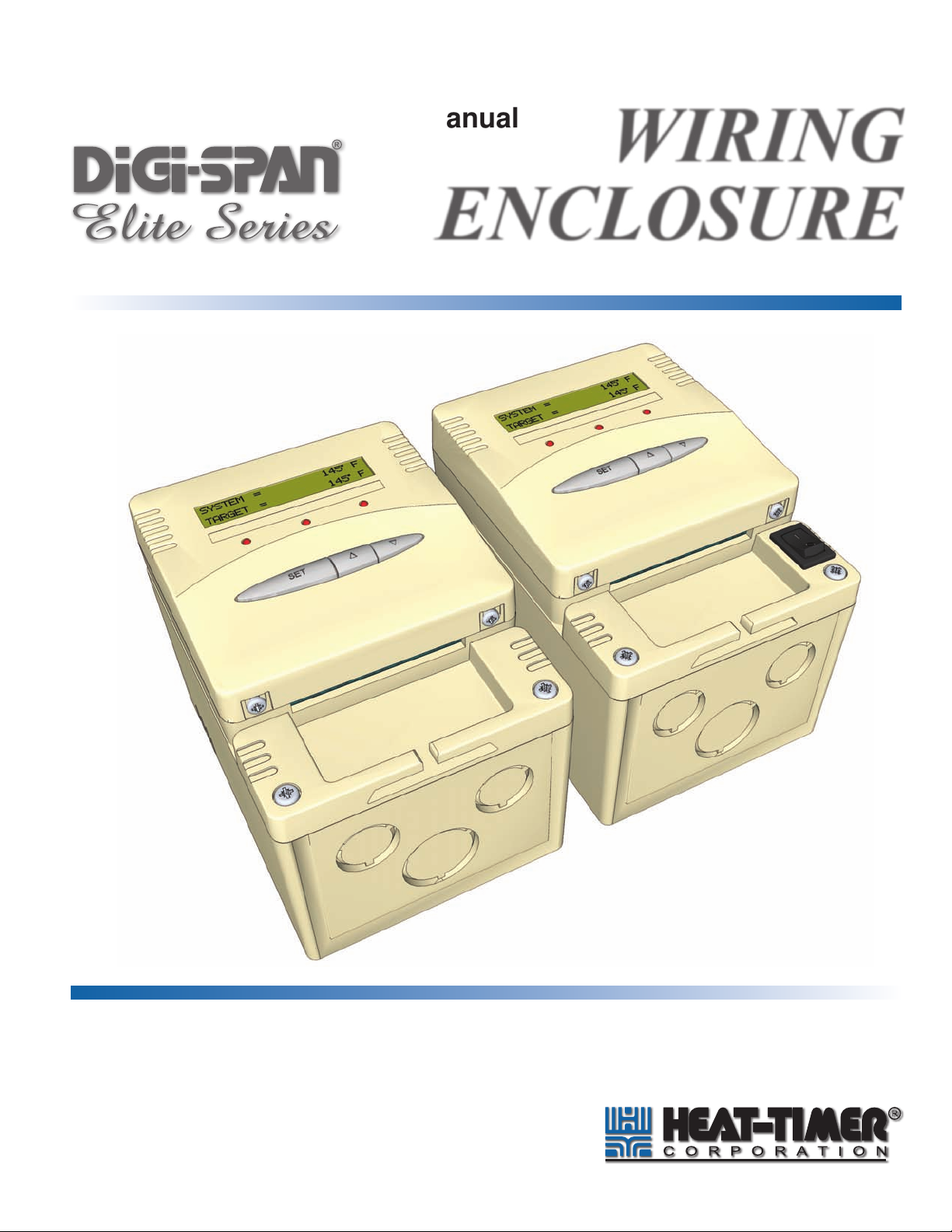

Heat-timer DiGi-SPAN Elite Series Manuale utente

Installation and Operation Manual WIRING

ENCLOSURE

HTC# 929135-00

with Switch

HTC# 929137-00

without Switch

Overview

The Wiring Enclosure makes it easy to install a Digi-Elite on a wall or any at surface. It replaces a 1900 box function.

It comes in two types, with a Switch (HTC# 929135-00) and without a Switch (HTC# 929135-00). The model with a

switch offers the capability of turning off the Digi-Elite.

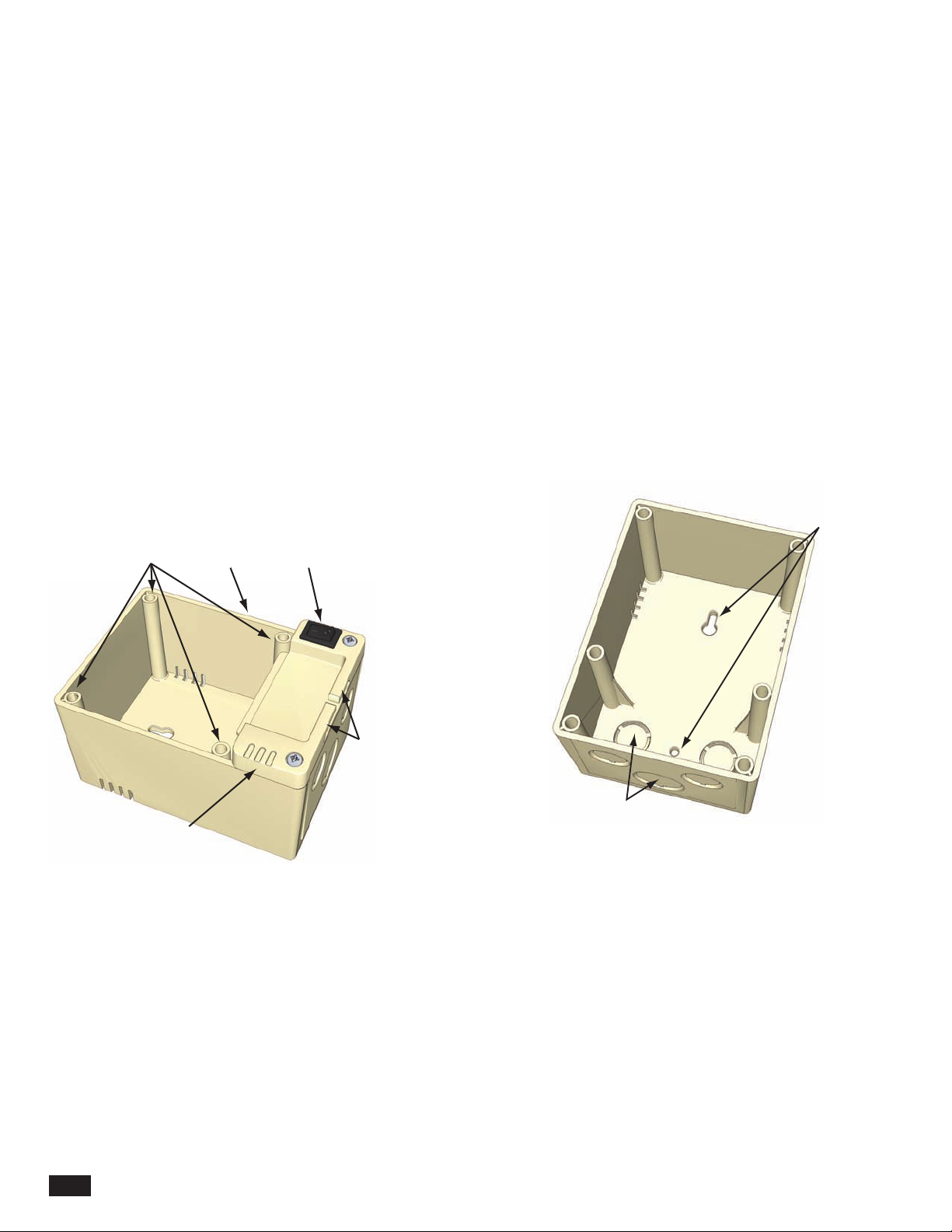

Components

The Wiring Enclosure consists of two components, a Base and a Wiring Cover.

• The Base mounts to the wall and holds the Digi-Elite and the Wiring Cover. It is offers enough room for the output

and input wiring.

• The Wiring Cover hides all rear wiring. One type has a switch that can be used to shutdown the Digi-Elite (example:

during off-season, shutdown, and maintenance periods), to turn on the boiler and bypass the Digi-Elite operation, or to

turn the power to the Digi-Elite off.

Base

Wiring

Cover

Shutdown

Switch

Digi Base

mounting

Input Wire

Holder

Wall mounting

knockouts

Mounting

• Two screws (not provided) can be used to fasten the Base to a wall or any suitable at surface. The surface must be

strong enough to hold all the components including the Digi-Elite.

• The Digi-Elite Base section can be mounted to the Wiring Enclosure Base using the four screws provided.

Wiring the Switch

All the Digi-Elite input wiring must pass through the Input Wire Holder in the Wiring Cover.

WARNING

• DONOTcreateadditionalholesintheenclosureasthismayvoidtheDigi-EliteandWiringEnclosurewarranties.

• AllwiringinsidetheWiringEnclosuremustberatedfor120VAC.

The Wiring Cover may be equipped with a switch that can be used in many ways. The following is a list of options to

wire the switch. The switch is rated 2 Amp at 120VAC.

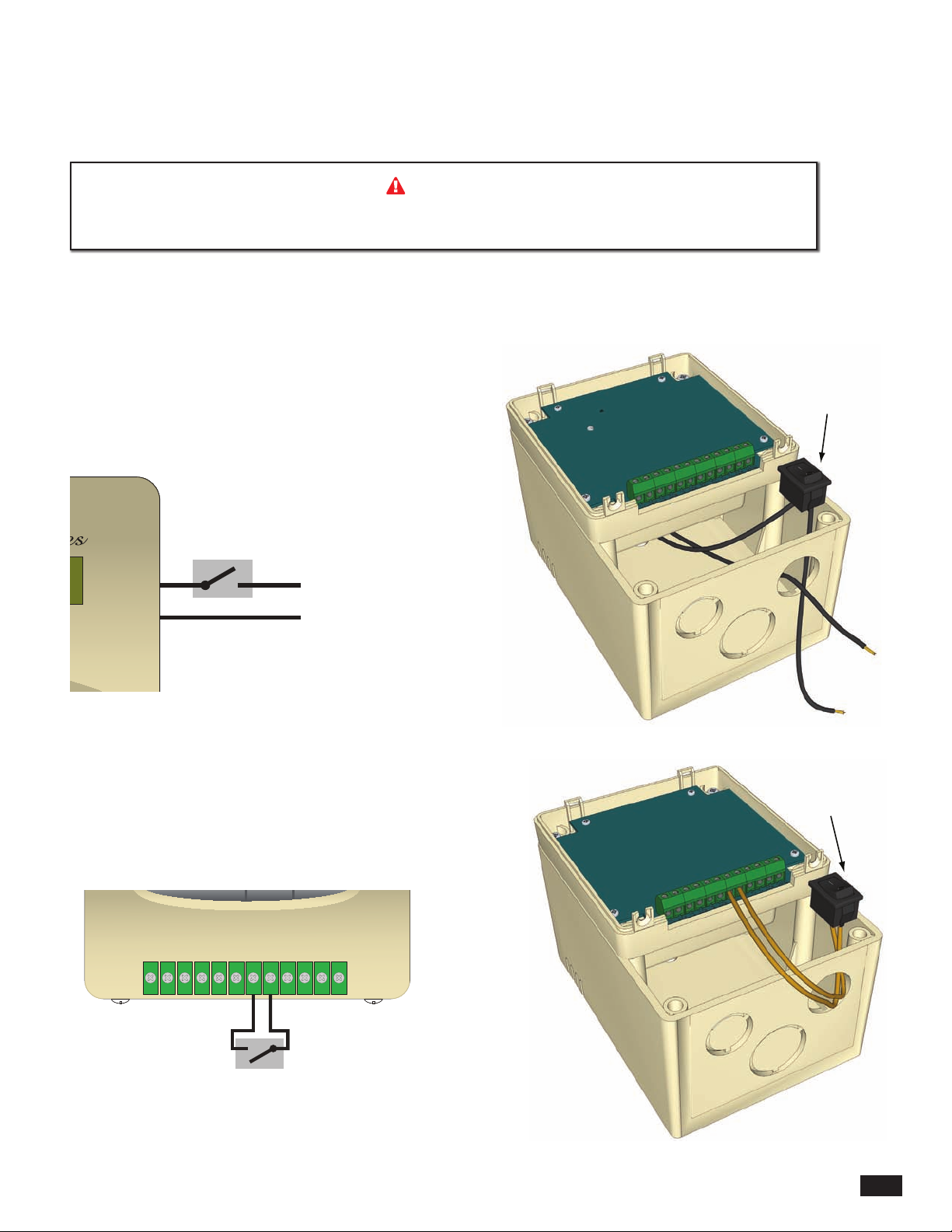

Power Switch

This option allows the user to turn the power to the

Digi-Elite on or off. In this scenario, the switch must be

wired to break the 120VAC Line wire.\

Wire Enclosure

Switch to 120V

120V

SET

120V

Power

Black Wires

Digi-Elite

Enclosure

Switch

Summer/Winter Switch

This option allows the user to switch the Digi-Elite

functionality on or off using the EXT+ and EXT- input

terminals. This is useful when used during the off-season.

Wire Encosure

Switch to EXT±

SET

COM

T3+

T3-

EXT+

EXT-

P+

P-

COM

24VAC

Encosure Switch

20NewDutchLane,Faireld,NJ07004

 Ph:(973)575-4004 • Fax:(973)575-4052

http://www.heat-timer.com

HT#059068-00-A

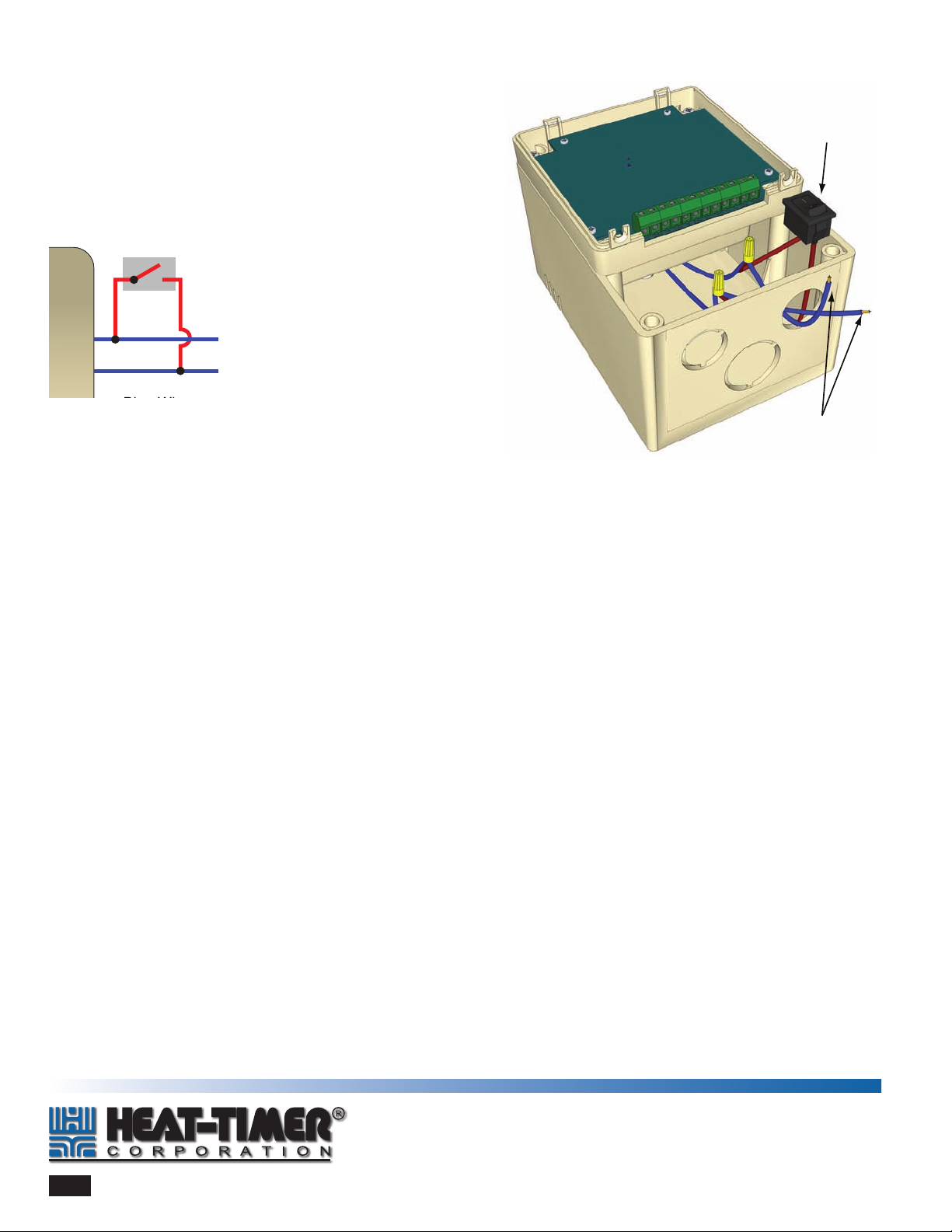

Boiler Bypass Switch

This option allows the user to switch the boiler On

regardless of the Digi-Elite boiler relay status. It is useful

when servicing the boiler or in emergency situations.

Connect to Boiler

TT terminals

Wire Enclosure

Switch in parallel

to boiler

SET

To Boiler TT

Terminals

Boiler

Blue Wires

Digi-Elite

Enclosure

Switch

Specications

Switch Rating (Available on some models only) . . . . . . . . . . . . . . SPST maximum 2 Amp at 120 VAC/60 Hz

Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4” x 5-½” x 3-½”

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Pound
