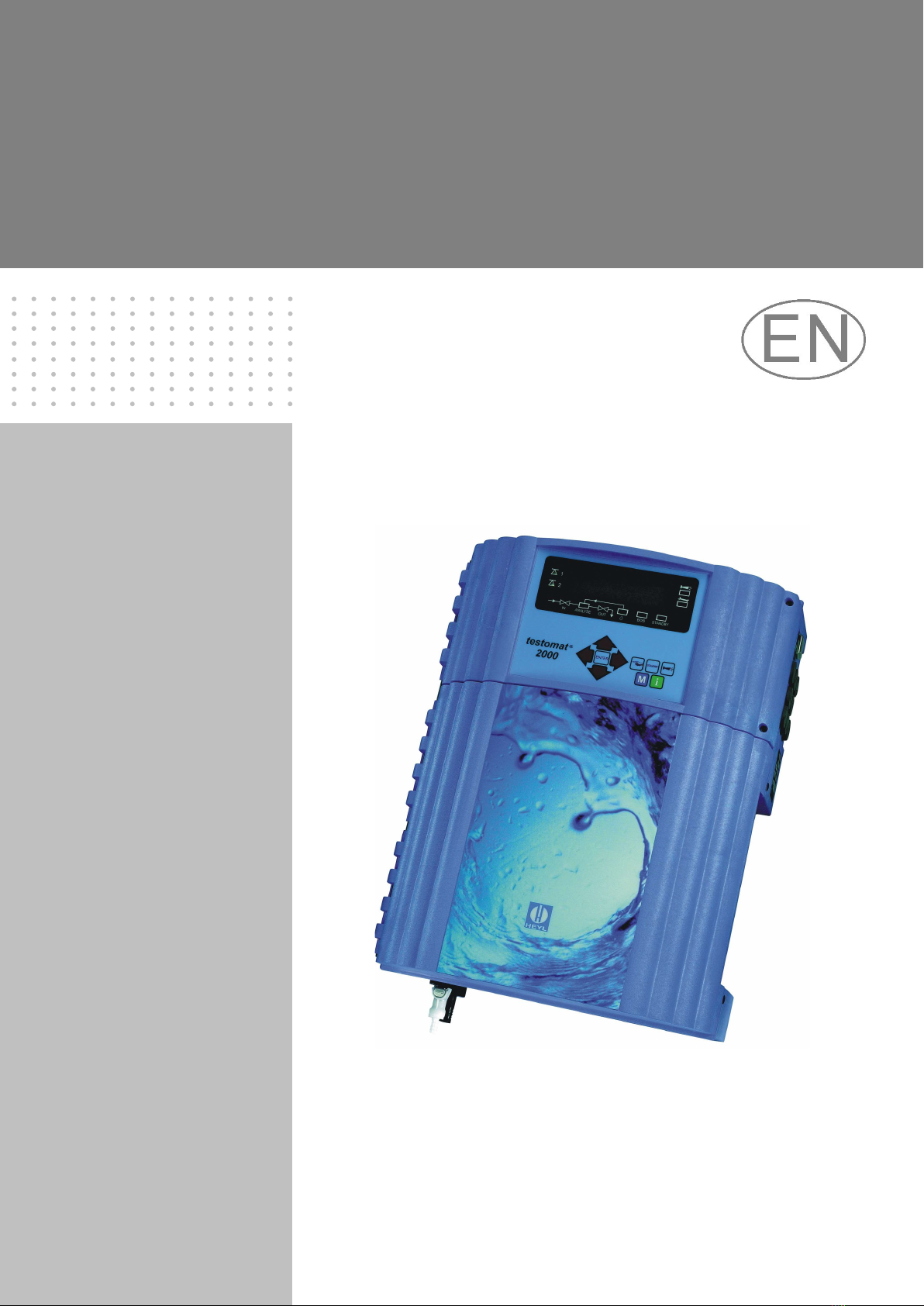

Heyl Testomat 2000 THCL Manuale utente
Combined process photometer for
total chlorine 0 – 2.5 ppm
and process titrator for water hard-
ness 4.47 – 44.7 ppm CaCO3
Testomat 2000
®
THCL
Operating Instructions
Contents
2
Contents
Contents ............................................................................................... 2
Important safety information ............................................................. 4
Intended use ......................................................................................... 4
Qualification of the staff ........................................................................ 4
Warning notices in these instructions ................................................... 5
Further documents ................................................................................ 5
Pay particular attention to ..................................................................... 5
General instructions .............................................................................. 5
Installation ............................................................................................. 6
Operation .............................................................................................. 6
After switch-off and longer downtime .................................................... 6
Cleaning ................................................................................................ 6
De-installation ....................................................................................... 6
Disposal ................................................................................................ 6
Scope of delivery ................................................................................ 7
Performance specifications ............................................................... 7
Indicators/Reagents for Testomat 2000®-THCL ................................... 8
Application instructions ..................................................................... 9
Installation ......................................................................................... 10
Operating Testomat 2000® THCL in the pressure range of 0.3 to 1
bar ....................................................................................................... 10
Installing Testomat 2000® THCL ......................................................... 10
Connecting the water inlet and outlet ................................................. 11
Water inlet ........................................................................................... 11
Water outlet ......................................................................................... 11
Connecting the power supply and devices ......................................... 12
Block diagram Testomat 2000® THCL ................................................ 12
Internal design Testomat 2000® THCL ............................................... 13
Connecting the mains voltage............................................................. 14
Connecting the plant components ...................................................... 15
Connecting the inputs and outputs ..................................................... 16
Commissioning ................................................................................. 17
Inserting indicator bottles .................................................................... 17
Extracting indicators ............................................................................ 17
Opening the water inlet ....................................................................... 18
Instrument settings and data input ...................................................... 18
Functions of the operating and display elements ......................... 18
Switching Testomat 2000® THCL on/off .............................................. 18
Display functions ................................................................................. 19
Operating elements and function keys ............................................... 20
Operating system ................................................................................ 21
Password protection and basic program ....................................... 22
Entering basic program data ............................................................... 22
Selecting the display units .................................................................. 22
Selecting the operating mode ............................................................. 23
Entering further basic program data .............................................. 25
Internal flushing ................................................................................... 25
External flushing ................................................................................. 25
Interval pause ..................................................................................... 26
Contents
3
Limit value monitoring ......................................................................... 26
Hysteresis ........................................................................................... 27
Switch functions of the limit value outputs LV1 and LV2 .................... 28
Switch function 0, duration .................................................................. 28
Switch function 1, impulse .................................................................. 28
Switch function 2, interval ................................................................... 28
Function IN1 ........................................................................................ 28
Water meter ........................................................................................ 29
Alarm / Message ................................................................................. 29
Function AUX ...................................................................................... 30
Service II ............................................................................................. 30
Reset operating time ........................................................................... 30
Maintenance interval ........................................................................... 31
Description of the signal inputs/outputs ........................................ 32
Interfaces (optional) ............................................................................ 34
Installing the interface cards SK910/RS910 ....................................... 34
Monitoring the measuring points ......................................................... 34
Calculating the output currents ........................................................... 35
Serial interface RS232 ........................................................................ 35
SD card data logger ............................................................................ 36
Description of the relay outputs ...................................................... 36
Flushing (external flush valve) ............................................................ 36
LV1 and LV2 limit value outputs ......................................................... 36
Measuring points 1 or 2 (measuring point switch-over) ...................... 37
AUX (programmable function output) ................................................. 37
Alarm (fault message output) .............................................................. 38
Maintenance (output for maintenance message) ............................... 38
Information menu "i" ........................................................................ 39
Program menu "M" ........................................................................... 40
Structure of the basic program............................................................ 42
Error messages / Troubleshooting ................................................. 43
Further information .............................................................................. 44
Maintenance ...................................................................................... 45
Description of maintenance work ........................................................ 45
Service instructions ............................................................................. 46
Testomat 2000® THCL spare parts and accessories ..................... 47
Accessories ......................................................................................... 48
Technical data ................................................................................... 49
Conformity Declaration ....................................................................... 50
Check List Testomat 2000® THCL ...................................................... 51
Product overview Testomat 2000® instruments ............................ 53
Important safety information
4
Important safety information
Please read these operating instructions carefully and completely
prior to working with the instrument.
Ensure that these operating instructions are always available for all
users.
These operating instructions must always be passed on to the new
owner should Testomat 2000® THCL change hands.
Always adhere to hazard warnings and safety tips when using
reagents, chemicals and cleaning agents. Please adhere to the re-
spective safety data sheet! Download the safety data sheets for
the supplied reagents at http://www.heylanalysis.de.
Intended use
Testomat 2000® THCL is used for the automatic determination and
monitoring of residual total hardness (water hardness from 0.25 to
2.5 °dH) and the determination of total chlorine content from 0 to 2.5
mg/ltr (ppm) in water. The feed water must be clear, colourless and
free of undissolved particles.
Always adhere to the performance limits stated in the section enti-
tled “Technical data”.
Always observe the application areas/application limits of the indi-
cators and the requirements of the medium being measured.
To ensure correct and intended usage, always read and understand
these instructions, especially the section entitled “Important safety
information”, prior to use.
The instrument is not used as intended if
it is used in areas not specified in these instructions.
it is used in areas which do not correspond to the ones described
in these instructions.
Qualification of the staff
Assembly and commissioning require fundamental electrical and
process engineering knowledge as well as knowledge of the respec-
tive technical terms. Assembly and commissioning should therefore
only be carried out by a specialist or by an authorised individual su-
pervised by a specialist.
A specialist is someone who due to his/her technical training, know-
how and experience as well as knowledge of relevant regulations can
assess assigned tasks, recognise potential hazards and ensure ap-
propriate safety measures. A specialist should always adhere to the
relevant technical regulations.
Important safety information
5
Warning notices in these instructions
The warning notices in these instructions warn the user about poten-
tial dangers to individuals and property resulting from incorrect han-
dling of the instrument. The warning notices are structured as follows:
Description of the type or source of danger
Description of the consequences resulting from non-observance
Preventive measures. Always adhere to these preventive
measures.
“DANGER” indicates an immediate hazardous situation which, if not
avoided, will result in death or serious injury.
“WARNING” indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
“CAUTION” indicates a potentially hazardous situation which, if not
avoided, could result in minor or moderate injuries or property dam-
age.
“NOTE” indicates important information. If this information is not ob-
served, it may result in an undesirable result or state.
Further documents
Testomat 2000® THCL is a plant component. Therefore, always ob-
serve the maintenance manual of Testomat 2000® / ECO® and the
documentation of the plant manufacturer.
Pay particular attention to
General instructions
Please adhere to health and safety regulations, electrical equip-
ment safety regulations, and environmental protection regulations
valid in the country of use and at the installation site.
Adhere to national and local regulations during installation and
commissioning.
Always protect the instrument against moisture and humidity. It
should never come into contact with condensation or splash water.
Do not carry out any changes or actions at the instrument which
are not described in these instructions
;
failure to adhere to these
instructions will negatively affect any warranty claims that you
make thereafter.
SIGNAL WORD
WARNING
!
NOTE
CAUTION
!
WARNING
!
DANGER
!
Important safety information
6
Installation
Always completely disconnect the relevant plant part before in-
stalling the instrument or connecting/disconnecting it to/from the
power supply. Secure the plant against reconnection.
Only connect the instrument to the mains voltage specified on the
rating plate.
Always observe technical data and ambient parameters.
Testomat 2000® THCL requires an interference free and stable
power supply. If necessary, use a mains filter to protect Testomat
2000® THCL against interference voltages caused, e.g., by sole-
noid valves or large motors. Never lay connecting cables parallel to
power cables.
Operation
Ensure that the maximum electrical load capacity of the relay out-
puts is never exceeded.
Immediately switch off Testomat 2000® THCL and contact service
staff if malfunctioning occurs. The warranty will be void if you tam-
per with or attempt to repair Testomat 2000® THCL. Repairs must
be carried out by authorised service staff.
After switch-off and longer downtime
Ventilate the indicator leads as described in the start-up, because
longer downtimes (more than 6 hours) can cause the indicator in
the leads to retract.
Do not switch off the appliance for longer periods (e.g. over the
weekend) via the start/stop output. The indicator can retract from
the leads. This results in measurement errors after the appliance is
switched on.
Cleaning
Only use a dry, lint-free cloth for cleaning.
De-installation
Prior to de-installing a defective instrument, always write down a
description of the error (failure effect). It is only possible to repair a
defective instrument (irrespective of the warranty period) if it has
been de-installed and returned to us with a description of the error.
Disposal
Dispose of the instrument in accordance with national regulations.
WARNING
!
NOTE
Scope of delivery
7
Scope of delivery
1x Testomat 2000® THCL
1x plastic bag with screw caps with a hole and an insert for the
screw caps of the indicator bottles
1x operating instructions
Performance specifications
Testomat 2000® THCL is used for the automatic determination and
monitoring of residual total hardness (water hardness from 0.25 to
2.5 °dH) via titration and the determination of total chlorine content
from 0 to 2.5 mg/ltr (ppm) in water. The analysis of total chlorine is
carried out by adding three reagents; the analysis result is displayed
after a reaction time of approx. 1 minute (without flushing times).
Simple, menu-driven operating and programming via a plain
text display
Measurement via titration of residual hardness and photo-
metric determination of the total chlorine content
Freely selectable hardness units in °dH, °f, ppm CaCO3 or
mmol/l and chlorine units in mg/l or ppm
High measuring accuracy provided by a precise piston-
dosing pump
Analysis initiation:
- Automatic interval operation
(interval pause justable from 0 to 99 minutes)
- External control
- Volume controlled (water meter)
One limit value with hysteresis (1, 2 or 3 bad analyses) for
residual hardness (LV1) and total chlorine (LV2) and settable
switch functions
Monitoring of both measuring points (change-over via exter-
nal solenoid valves)
Internal error documentation
Programmable service address
Programmable maintenance interval for a maintenance re-
quest
Extended operating periods due to 500 ml indicator storage
bottle
optional
Interface card (0/4-20 mA or 0/2-10 V)
Interface RS 232 (for a protocol printer)
SD Card datalogger
Performance specifications
8
Indicators/Reagents for Testomat 2000®-THCL
Water hardness
Indicator type TH 2025
Unit
°dH
(Resolution)
0.25 – 2.50
(0.05)
°f
(Resolution)
0.45 – 4.48
(0.1)
ppm
CaCO3
(Resolution)
4.47 – 44.7
(0.9)
mmol/l
(Resolution)
0.04 – 0.45
(0.01)
Total chlorine
Reagent CL2250A, CL2250B, CL2250C
Unit
mg/l (ppm)
(Resolution)
0.0 – 2.5
(0.1)
Application instructions
9
Application instructions
Wait at least 5 seconds before switching the instrument on and
then off again at the main switch.
In order for Testomat 2000® THCL to operate reliably, use Heyl
Testomat 2000® indicators. Operate in the pH-range 4 – 10.5,
when determining the total hardness!
With Testomat® instruments for water hardness monitoring, larger
quantities of heavy metal ions in the softened water might influ-
ence the colour reaction, especially iron above 0.5 mg/I, copper
above 0.1 mg/I and aluminium above 0.1 mg/l (brownish-red col-
our display).
If the measuring water contains more than 20 mg/I CO2 (carbonic
acid), incorrect evaluations cannot be excluded.
The concentration of influencing contents can be determined by
using our colourimetric TESTOVAL® test kit.
Careful handling of the instrument increases both its operational
reliability and service life! Therefore, carry out a visual inspection
at regular intervals as described below:
- Has the use-by date of the indicator expired?
- Are the hose connections of the dosing pump free of leaks?
- Is there air inside the dosing hoses?
- Are all the water connections free of leaks?
- Are the doors of the instrument closed properly?
- Is the instrument heavily soiled?
- Are the measuring chamber and the drain duct/drain hose
clean?
Trouble-free operation is only possible when maintenance is car-
ried out on a regular basis (For maintenance and service instruc-
tions, please refer to the section entitled Maintenance and the
"Maintenance manual of Testomat 2000® / ECO®")
If problems occur, please refer to the section entitled Error mes-
sages/Troubleshooting.
No opening of the measuring chamber holder!
Do not open the measuring chamber holder. You cannot carry out
any repairs in this area, but damage the device. If you open the
measuring chamber holder, your warranty will expire.
CAUTION
!
Installation
10
Installation
Risks resulting from incorrect installation!
Install Testomat 2000® THCL at a location where it is protected
against dripping or splash water, dust and aggressive substances
– e. g. in a switch cabinet or on a suitable wall.
Information for trouble-free operation
Install Testomat 2000® THCL vertically and without mechanical
stress.
Install Testomat 2000® THCL at a vibration-free site.
Operating Testomat 2000® THCL in the pres-
sure range of 0.3 to 1 bar
Prior to installation, please check whether lower operating pressure is
required. The instrument is factory set for the operating range of 1 to
8 bar. Remove the flow controller valve body to operate the in-
strument in the operating range of 0.3 to 1 bar (e.g. when using an
aerator type R). This involves removing the retaining pin from the
controller/filter receiver . Subsequently use the metal bracket to
remove the controller plug from the borehole. Then remove the
flow controller valve body and reinsert the controller plug and the
retaining pin.
Installing Testomat 2000® THCL
Select an installation site where the water inlet hose can be kept as
short as possible (max. 5 m).
Please leave sufficient space on the left-hand side of the instru-
ment to open the door.
Drill the mounting holes as shown in the drawing on the left.
Use three screws to attach the instrument at a suitable position in
the switch cabinet or on a wall.
WARNUNG
!
NOTE
Remove for
pressure
range 0.3 to
1 bar
Indice
Altri manuali Heyl Strumento di misura
Heyl
Heyl Testomat Modul TH Istruzioni operative
Heyl
Heyl Testomat 808 Manuale utente
Heyl
Heyl Testomat EVO TH Istruzioni operative
Heyl
Heyl Testomat 2000 PO4 Manuale utente
Heyl
Heyl Testomat 808 Series Manuale
Heyl
Heyl Testomat NH2CL Manuale utente
Heyl
Heyl Testomat ECO Manuale utente
Heyl
Heyl Testomat NH2CL-R Manuale utente
Heyl
Heyl Testomat EVO TH series Manuale utente
Heyl
Heyl Testomat EVO Manuale utente
