Hirschmann RS20-0800B Manuale utente

RS20 Basic

Release

06/2012

Technical Support

https://hirschmann-support.belden.eu.com

User Manual

Installation

Industrial Ethernet Rail Switch

RS20 Basic Family

RS20

0V 0V

FAULT

+24V

(P2)

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

+24V

(P1)

12FAULT

RS20-0400...B

RS20

LS DA

+24V(P1) 0V 0V

FAULT

+24V(P2)

Aufkleber MAC-Adresse

IP-ADDRESS

LS DA

V.24

P12 FAULT

RS20-0800...B

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use. For devices with embedded software, the end-user license agreement on the

enclosed CD applies.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Printed in Germany

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Deutschland

Tel.: +49 1805 141538

RS20 Basic 039 524-201-01-0612 – 13.6.12

RS20 Basic

Release

06/2012 3

Contents

Safety instructions 4

About this Manual 13

Key 13

1 Device description 14

1.1 Description of the device variants 15

1.1.1 Combination options for RS20-...B 15

1.1.2 Number of ports and media for RS20-...B 16

2 Assembly and start-up 18

2.1 Installing the device 18

2.1.1 Unpacking and checking 18

2.1.2 Insert data in label area 18

2.1.3 Connecting the terminal blocks for supply voltage and

signal contact 19

2.1.4 Installing the device on the DIN rail, grounding 20

2.1.5 Dimension drawings 21

2.1.6 Installing the terminal block, start-up procedure 22

2.1.7 Connecting the data lines 22

2.2 Display elements 23

2.3 Basic set-up 25

2.4 Maintenance 26

2.5 Disassembling the device 27

3 Technical data 28

A Further Support 33

4RS20 Basic

Release

06/2012

Safety instructions

Important Information

Notice: Read these instructions carefully, and look at the equipment to

become familiar with the device before trying to install, operate, or maintain

it. The following special messages may appear throughout this

documentation or on the equipment to warn of potential hazards or to call

attention to information that clarifies or simplifies a procedure.

The addition of this symbol to a Danger or Warning safety label

indicates that an electrical hazard exists, which will result in

personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

Note: A note contains important information on the product, on how to

manage the product, or on the respective section of the documentation to

which your special attention is being drawn.

DANGER

DANGER indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided,

can result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided,

can result in minor or moderate injury.

RS20 Basic

Release

06/2012 5

Certified usage

Please observe the following: The device may only be employed for the

purposes described in the catalog and technical description, and only in

conjunction with external devices and components recommended or

approved by the manufacturer. The product can only be operated

correctly and safely if it is transported, stored, installed and assembled

properly and correctly. Furthermore, it must be operated and serviced

carefully.

Supply voltage

For safety reasons the devices have been designed to operate at low

voltages. Thus, they may only be connected to the supply voltage

connections and to the signal contact with SELV circuits with the voltage

restrictions in accordance with IEC/EN 60950-1.

The supply voltage is electrically isolated from the housing.

Use undamaged parts.

Relevant for North America:

The device may only be connected to a supply voltage of class 2 that

fulfills the requirements of the National Electrical Code, Table 11(b). If

the voltage is being supplied redundantly (two different voltage

sources), the combined supply voltages must fulfill the requirements of

the National Electrical Code, Table 11(b).

Relevant for North America: For use in class 2 circuits.

Use 60/75 °C or 75 °C copper (Cu) wire only.

The device does not contain any service components. Internal fuses

are only triggered if there is a fault in the device. If the device is not

functioning correctly, or if it is damaged, switch off the supply voltage

and return the device to the plant for inspection.

Only switch on the supply voltage to the device if

the housing is closed,

the terminal blocks are wired up correctly and

the terminal blocks are connected.

6RS20 Basic

Release

06/2012

Shielding ground

Note: The shield ground wire of the twisted pair lines is connected to the

front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

Hazardous Locations

Relevant for North America for devices certified for Hazardous Locations:

Power, input and output (I/O) wiring must be in accordance with Class I,

Division 2 wiring methods [Article 501-4(b) of the National Electrical

Code, NFPA 70] and in accordance with the authority having jurisdiction.



SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D

HAZARDOUS LOCATIONS, OR NON-HAZARDOUS LOCATIONS

ONLY.

WARNING – EXPLOSION HAZARD – SUBSTITUTION OF ANY

COMPONENTS MAY IMPAIR SUITABLE FOR CLASS I, DIVISION 2.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT

EQUIPMENT WHILE THE CIRCUIT IS LIVE OR UNLESS THE AREA IS

KNOWN TO BE FREE OF IGNITABLE CONCENTRATIONS.



The USB connector is for temporary connection only. Do not use,

connect, or disconnect unless area is known to be non-hazardous.

Connection or disconnection in an explosive atmosphere could result in

an explosion.



Peripheral equipment must be suitabel for the location it is used in. 

Use 60/75 °C or 75 °C copper (Cu) wire only.

RS20 Basic

Release

06/2012 7

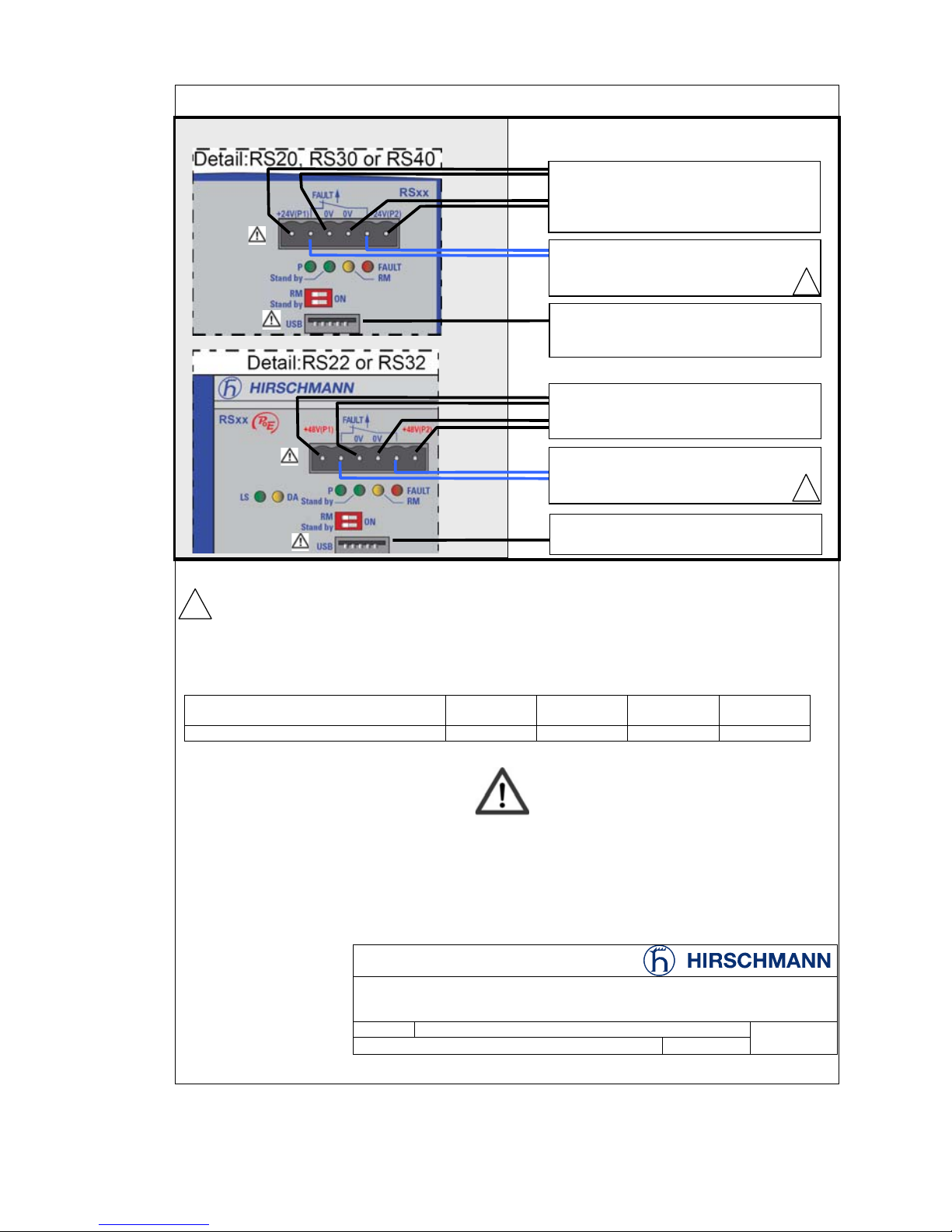

CONTROL DRAWING: Hazardous Locations Class I Division 2 Groups A, B ,C ,D

Notes:

The nonincendive field wiring circuit concept allows interconnection of nonincendive field wiring apparatus

and associated nonincendive field wiring apparatus using any of the wiring methods permitted for

unclassified locations when certain parametric conditions are met.

CaCi+ CCable ; LaLi+ LCable

Nonincendive field wiring circuits must be wired in accordance with the National Electrical Code (NEC),

NFPA 70 , article 501.

Nonincendive Field Wiring Parameters:

Entity Parameters

... for Class I Division 2 Groups A,B,C,D =>

Vmax

[V]

Imax

[mA]

[nF]

[µH]

Fault contacts 30 90 2,5 1,0

WARNING - EXPLOSION HAZARD – SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY

FOR HAZARDOUS LOCATIONS OR EXPLOSIVE ATMOSPHERES.

WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN

SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

DO NOT OPEN WHEN ENERGIZED.

CONTROL DRAWING for RS20, RS22, RS30, RS32 and RS40 Family

Size A4 Document No.: 000157671DNR Rev. 0

Date: 2011-09-21 Sheet 1 of 1

NON HAZARDOUS LOCATION

USB Port for Auto Configuration

Adapter.

For maintenance only

See

HAZARDOUS LOCATION





V<30V I<90mA Li<1,0µH Ci<2,5nF

!

"#$$

USB Port for Auto Configuration Adapter.

For maintenance only – See Installation

Instructions

Power supply (Redundant: P1 P2)

Type “P”: 48Vdc max.





V<30V I<90mA Li<1,0µH Ci<2,5nF

Power supply:

(Redundant: P1 P2)

Type “D”: 9,6Vdc – 60Vdc

8RS20 Basic

Release

06/2012

ATEX Directive 94/9 EC – Special conditions for safe use



Relevant for RS20 Basic family devices when operating in explosive gas

atmospheres according to ATEX Directive 94/9 EC, the following applies:

List of Standards: 

EN 60079-0:2009

EN 60079-15:2010

Certificate No.: DEKRA 11ATEX0139 X.

Make sure that the device has the following label:

II 3G Ex nA IIC T4 Gc Dekra 11ATEX0139 X

Ambient rating and temperature code:

T4: 0 °C ≤Ta ≤+60 °C for “B” types (item 17 of nomenclature

breakdown).

The modules shall be installed in a suitable enclosure in accordance

with EN 60079-15 providing a degree of protection of at least IP54

according to EN 60529, taking into account the environmental

conditions under which the equipment will be used.

When the temperature under rated conditions exceeds 70 °C at the

cable or conduit entry point, or 80 °C at the branching point of the

conductors, the temperature specification of the selected cable and

cable entries shall be in compliance with the actual measured

temperature values.

Provisions shall be made to prevent the rated voltage from being

exceeded by transient disturbances of more than 40 %.

Connectors shall be connected or disconnected exclusively in dead-

voltage state.

DIP switches shall be switched exclusively in dead-voltage state.

The USB port (not available to RS 20 Basic devices) shall

remain disconnected.



RS20 Basic

Release

06/2012 9

Housing

Only technicians authorized by the manufacturer are permitted to open

the housing.

The housing is grounded via the separate ground screw on the bottom left

of the front panel.

WARNING

ELECTRIC SHOCK

Never insert any pointed objects (small screwdrivers, wires, etc.) into the

product!

Never insert sharp objects (small screwdrivers, wires, etc.) into the

connection terminals for the supply voltage or the signal contact, and do not

touch the terminals!

Failure to follow these instructions can result in death, serious injury,

or equipment damage.

CAUTION

EQUIPMENT OVERHEATING

When installing the device, make sure any ventilation slots remain free. 

Maintain a clearance of at least 10 cm (3.94 in).

Failure to follow these instructions can result in injury or equipment

damage.

10 RS20 Basic

Release

06/2012

For the ground conductor, use a cable with a cross section of at least

1.0 mm².

The clearance between the ventilation slots of the housing and other

objects must be at least 10 cm (3.94 in).

The device must be installed in the vertical position.

If installed in a living area or office environment, the device must be

operated exclusively in switch cabinets with fire protection

characteristics in accordance with EN 60950-1.

Environment

The device may only be operated at the specified surrounding air

temperature (temperature of the surrounding air at a distance of up to

5 cm (1.97 in) from the device) and relative air humidity specified in the

technical data.

Install the device in a location where the climatic threshold values

specified in the technical data will be observed.

Use the device only in an environment within the pollution degree

specified in the technical data.

Qualification requirements for personnel

Qualified personnel as understood in this manual and the warning signs,

are persons who are familiar with the setup, assembly, startup, and

operation of this product and are appropriately qualified for their job. This

includes, for example, those persons who have been:

trained or directed or authorized to switch on and off, to ground and to

label power circuits and devices or systems in accordance with current

safety engineering standards;

trained or directed in the care and use of appropriate safety equipment

in accordance with the current standards of safety engineering;

trained in providing first aid.

General safety instructions

Electricity is used to operate this equipment. Comply with every detail of

the safety requirements specified in the operating instructions regarding

the voltages to apply.

See “Supply voltage” on page 5.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hirschmann Interruttore

Hirschmann

Hirschmann MSP30 Manuale utente

Hirschmann

Hirschmann PowerMICE MS4128 Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann OCTOPUS 8M Series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann Power MICE Manuale utente

Hirschmann

Hirschmann MACH104-20TX-F Series Manuale utente

Hirschmann

Hirschmann MSP30 Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann OCTOPUS OS20 Manuale utente

Hirschmann

Hirschmann PowerMICE Manuale utente

Hirschmann

Hirschmann BATOne Manuale utente

Hirschmann

Hirschmann LION-GIGA-1SX Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann LRS Series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann SPIDER 8TX-PRO Manuale utente

Hirschmann

Hirschmann GRS103 Series Manuale utente

Hirschmann

Hirschmann RH1-TP/FL Manuale

Hirschmann

Hirschmann PAT TRS 05 / PATB3 Guida utente

Hirschmann

Hirschmann OCTOPUS 8TX-EEC Manuale utente

Hirschmann

Hirschmann OS20-001000T5T5TAFUHB Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
