Hirschmann RSPM20-4Z64Z6 Series Manuale utente

Installation RSPM

Release

04/2018

Technical support

https://hirschmann-support.belden.eu.com

User Manual

Installation

Industrial Ethernet Rail Switch Power Media module

RSPM

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

RSPM 26.04.2018

Installation RSPM

Release

04/2018 3

Contents

Safety instructions 5

About this manual 14

Key 15

1 Description 16

1.1 General description 16

1.2 Device name and product code 17

1.3 Media module variants 19

1.3.1 Port configuration 19

1.3.2 Media module slots on the RSPE device 20

1.4 Ethernet ports 21

1.4.1 100 Mbit/s F/O port 21

1.4.2 10/100 Mbit/s twisted pair port 21

1.4.3 Support of PoE(+) 22

1.5 Display elements 23

1.5.1 Media module status 23

1.5.2 Port status 24

2 Installation 25

2.1 Checking the package contents 25

2.2 Mounting a media module 25

2.3 Installing an SFP transceiver (optional) 26

2.4 Connecting data cables 26

3 Maintenance and service 27

4 Disassembly 28

4.1 Removing an SFP transceiver (optional) 28

4.2 Removing a media module 28

5 Technical data 29

6 Scope of delivery, order numbers and

accessories 35

4Installation RSPM

Release

04/2018

6.1 Scope of delivery 35

6.2 Accessories 35

7 Underlying technical standards 37

A Further support 38

Installation RSPM

Release

04/2018 5

Safety instructions

General safety instructions

You operate this device with electricity. Improper usage of the device

entails the risk of physical injury or significant property damage. The

proper and safe operation of this device depends on proper handling

during transportation, proper storage and installation, and careful

operation and maintenance procedures.

Before connecting any cable, read this document, and the safety

instructions and warnings.

Operate the device with undamaged components exclusively.

The device is free of any service components. In case of a damaged

or malfunctioning the device, turn off the supply voltage and return the

device to Hirschmann for inspection.

Certified usage

Use the product only for the application cases described in the

Hirschmann product information, including this manual.

Operate the product only according to the technical specifications.

See “Technical data” on page 29.

Connect to the product only components suitable for the requirements

of the specific application case.

Qualification requirements for personnel

Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the

prerequisite for grounding and labeling circuits, devices, and systems

in accordance with current standards in safety technology.

Qualified personnel are aware of the dangers that exist in their work.

Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

Qualified personnel receive training on a regular basis.

National and international safety regulations

Verify that the electrical installation meets local or nationally applicable

safety regulations.

6Installation RSPM

Release

04/2018

Shielding ground

The overall shield of a connected shielded twisted pair cable is connected

to the grounding connector on the front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

ESD Guidelines

The modules are equipped with electrostatically sensitive components.

These can be destroyed, or their life cycles reduced, by the effects of an

electrical field or by a charge equalization if the connections are touched.

You will find information about electrostatically endangered assemblies in

DIN EN 61340-5-1 (2007-08) and DIN EN 61340-5-2 (2007-08).

Installation RSPM

Release

04/2018 7

ATEX directive 2014/34/EU – specific regulations for safe

operation

The following applies to RSPM devices if you operate them in areas with

explosive gases according to ATEX directive 2014/34/EU:

List of standards:

EN 60079-0:2012, A11:2013

EN 60079-15:2010

Certificate No.: DEKRA 15ATEX0016X

Use only device variants featuring supply voltage with characteristic

value CC.

Make sure that the device has the following label:

II 3G Ex nA IIC T4 Gc DEKRA 15ATEX0016X

for RSPM types

Environmental class and temperature code for RSPM types:

T4: 0 °C ≤Ta ≤+60 °C for “S“ types or

T4: −40 °C ≤Ta ≤+70 °C for “T“ or “E“ types

Ambient rating and temperature code for RSPM types:

T4: 0 °C ≤Ta ≤+60 °C for “S” types or

T4: −40 °C ≤Ta ≤+70 °C for “T” or “E” types

The modules shall be installed in a suitable enclosure in accordance

with IEC 60079-15 providing a degree of protection of at least IP54

according to IEC 60529, taking into account the environmental

conditions under which the equipment will be used.

When the temperature under rated conditions exceeds 158 °F (70 °C)

at the cable or conduit entry point, or 176 °F (80 °C) at the branching

point of the conductors, the temperature specification of the selected

cable and cable entries shall be in compliance with the actual

measured temperature values.

Provisions shall be made to prevent the rated voltage from being

exceeded by transient disturbances of more than 119 V.

Connectors shall be connected or disconnected exclusively in dead-

voltage state.

The USB port must not be connected.

8Installation RSPM

Release

04/2018

Relevant for use in explosion hazard areas (Hazardous

Locations, Class I, Division 2)

The relay connections are to be installed and used within their Entity

Parameters as per Control Drawing 000182303DNR.

Avertissement - Risque d'explosion - Ne pas débrancher tant que le

circuit est sous tension à moins que l'emplacement soit connu pour ne

contenir aucune concentration de gaz inflammable.

Avertissement - Risque d'explosion - La substitution de tout composant

peut rendre ce matériel incompatible pour une utilisation en classe I,

division 2.

Installation RSPM

Release

04/2018 9

Control Drawing for RSPE devices according to Class ,Division 2 Hazardous Locations

Rev.: 1Document No.: 000182303DNR Page 1/2

For Use in Hazardous Locations Class I Division 2 Groups A, B, C, D:

Only allowed for RSPE/RSPM model No´s. which are individually labeled

“FOR USE IN HAZARDOUS LOCATIONS”.

This equipment is suitable for use in Class I, Division 2,

Groups A, B, C, and D OR non-hazardous locations only.

Nonincendive eld wiring circuits must be wired in accordance with the National Electrical Code

(NEC), NFPA 70, article 501.

WARNING – EXPLOSION HAZARD

Substitution of any components may impair suitability for hazardous locations or explosive

atmospheres.

WARNING – EXPLOSION HAZARD

Do not disconnect equipment unless power has been switched off or the area is known to be

known to be non-hazardous.

10 Installation RSPM

Release

04/2018

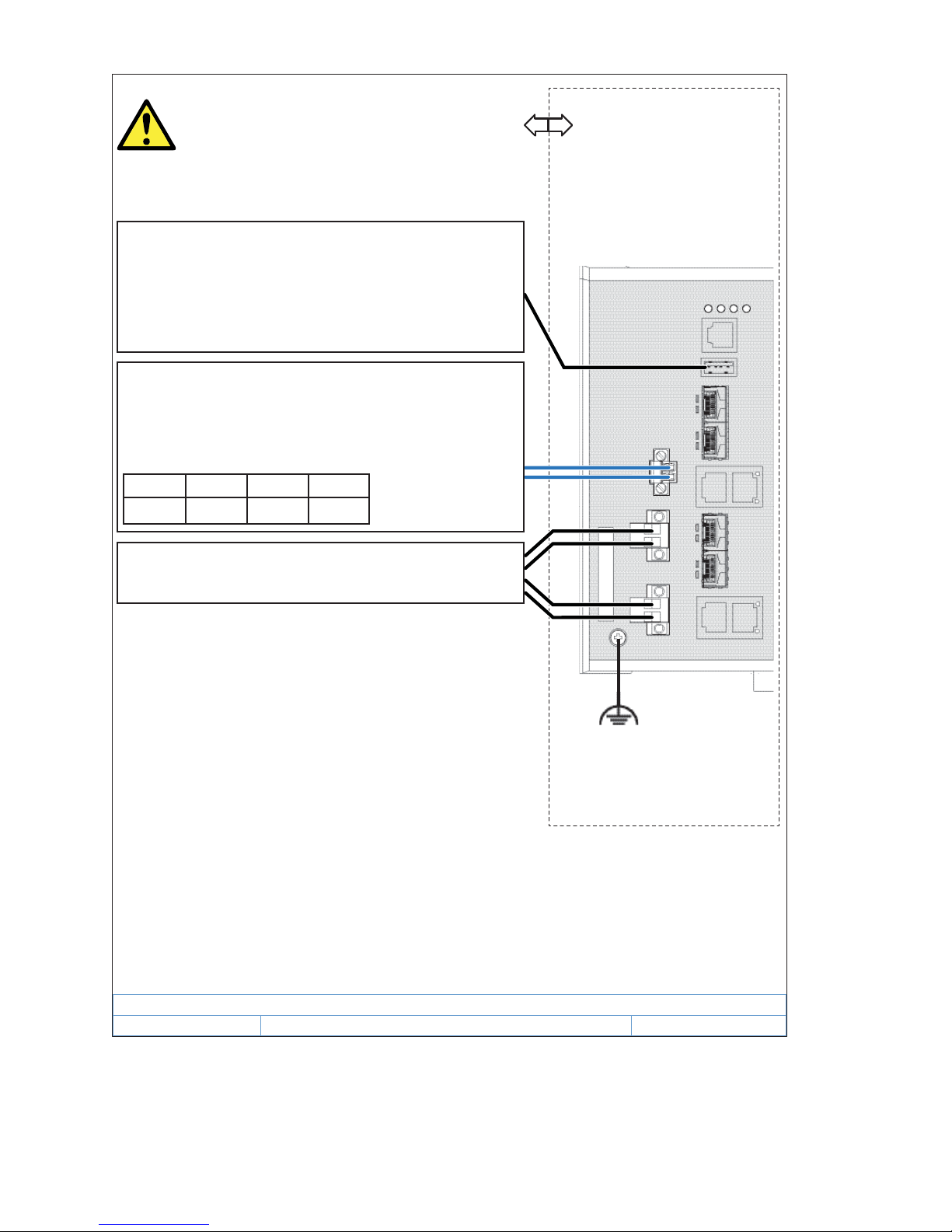

Control Drawing for RSPE devices according to Class ,Division 2 Hazardous Locations

Rev.: 1 Document No.: 000182303DNR Page 2/2

Ordinary Location,

Non-Hazardous Area,

Non-Explosive Atmosphere

Explosive Atmosphere

Class ,Division 2

Groups A, B, C, D

Hazardous Location

RSPE - Industrial Ethernet

Rail Switch Power Enhanced

Relay

USB

The earth conductor must

be at least of the same

wire size (mm² or AWG)

as the supply conductors.

Temperature Code: T4

Ambient Temperature rating:

Ta: 0 °C to +60 °C for “S” temperature types

Ta: í40 °C to +70 °C for “T” or “E” temperature types

(Refer to the temperature code of the type designation on the

device.)

Power Supply connectors

*) Notes:

The nonincendive eld wiring circuit concept allows interconnection

of nonincendive eld wiring apparatus and associated nonincendive

eld wiring apparatus using any of the wiring methods permitted for

unclassied locations when certain parametric conditions are met.

Capacity: CaCi+ CCable ; Inductivity: LaLi+ LCable

WARNING!

The USB is for temporary connection only, for maintenance

use. Do not use, connect or disconnect unless the area is

known to be non-hazardous.

Connection or disconnection in an explosive atmosphere

could result in an explosion.

The maximum cable length has to be determined as follows:

(a) max. Cable Length < (LaíLi) / CableL

(”CableL” denotes the inductance per unit length of used cable)

and

(b) max. Cable Length < (CaíCi) / CableC

(“CableC” denotes the capacitance per unit length of used cable)

The lower value of (a) and (b) is to apply.

Relay contacts:

Equipment with nonincendive eld wiring parameters.

Polarity is not relevant.

The relay terminals are dependent upon the following

Entity parameters:

UiIiCiLi

30 V 90 mA 2 nF 1 H

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hirschmann Interruttore

Hirschmann

Hirschmann GREYHOUND GRS1020 Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann PowerLION-24TP Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann OCTOPUS 8M Series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann LRS Series Manuale utente

Hirschmann

Hirschmann OS20-001000T5T5TAFUHB Manuale utente

Hirschmann

Hirschmann Power MICE Manuale utente

Hirschmann

Hirschmann GECKO Manuale utente

Hirschmann

Hirschmann RS1 Series Manuale

Hirschmann

Hirschmann MACH 4000 Series Manuale utente

Hirschmann

Hirschmann MACH 100 Manuale utente

Hirschmann

Hirschmann MAR1042 Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RS2-5TX/FX Manuale

Hirschmann

Hirschmann RSP 25 Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RH1-TP Manuale

Hirschmann

Hirschmann MSM20 Manuale utente

Hirschmann

Hirschmann LION-GIGA-1SX Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RS20 series Manuale utente

Hirschmann

Hirschmann RH1-TP Manuale

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
