Honeywell Farenhyt Series Manuale tecnico

RA-1000/RA-1000R

Remote Fire Annunciator

Product Installation Document

Document 151154:F 2/15/2022 ECN: 151770

Farenhyt™ Series

1 Description

The RA-1000 (gray) and RA-1000R (red) are optional 4x20 remote

annunciators that can be surface or flush-mounted.

2 Compatibility

The RA-1000/R is compatible with Honeywell Farenhyt FACPs. For

more information, see the FACP Installation manual.

3 Specifications

4 Installing the RA-1000/R

RA-1000/R installation involves the following steps:

1. Ensure power is turned off at the panel.

2. Mount the RA-1000/R in the desired location.

3. Connect the RA-1000/R to the panel (see Figure 5).

4. Use the DIP switches on the back of the RA-1000/R to assign an ID

number. See the FACP Manual for more details.

5. The new RA-1000/R module must be added to the system through

programming. The JumpStart®Auto-programming feature will add

the module automatically. Refer to the FACP Manual for more

information.

5 Mounting

The RA-1000/R comes from the factory fully assembled. You must dis-

assemble it for mounting. To disassemble the annunciator, use a 5/64”

hex wrench to remove the set screws, located on the bottom of the

annunciator bezel.

FIRE ALARM ANNUNCIATOR

Figure 1 RA-1000/R Remote Annunciator

Parameter Value

Operating Voltage: 24 VDC

Current Standby: 58 mA

Alarm: 68 mA

Operating Temperature: 0° to 49° C (32° to 120° F)

1".25

(3.175cm)

6.44"

(16.35cm)

8"(20.64cm).125

7".375

(18.73cm)

1”

.25

(3.175cm)

Figure 2 Annunciator Dimensions

backbox bezel

side

view

RA-1000/RA-1000R Installation Document — P/N 151154:F 2/15/2022 2

5.1 Surface Mounting

The RA-1000/R can be mounted directly to a surface or can be attached

to a single, double, or four-square electrical box. Trim Ring Kit 5860TG

(gray) and 5860TR (red) are available for use when surface mounting.

1. Drill holes in the surface to match the screw holes on the backbox.

Refer to Figure 4.20 for locations.

2. Fit the trim ring over the backbox, if used.

3. Attach the backbox to the wall using screws provided.

5.2 Flush-Mounting

1. Cut a hole in the sheet rock to the following dimensions: 8.25” W x

6.625” H. If an electrical box is used, the box must be 1.375” back

from face of wall to accommodate the annunciator.

2. Remove knockout holes as needed for wires.

3. Fit the annunciator backbox into the hole and stabilize with

mounting wires. Angle the mounting wires into the first hole past

the sheet rock. Secure the wires behind the screws as shown in

Figure 4. When all four wires are in place, the backbox should fit

snugly into the hole in the sheetrock.

4. After the annunciator wiring to the panel has been completed (refer

to Figure 4.22), replace the electronic assembly in the back box.

Place the bezel over the back box and tighten the set screws on the

bezel.

5.2.1 Flush-Mounting with an Electrical Box

The RA-1000/R annunciator can be used with the following types of

electrical boxes: 4S, single-gang, and double-gang.

If an electrical box is used, the box must be 1.375” back from the face of

the wall to accommodate the annunciator. Studs used with an electrical

box must be 2x4” (or larger).

6 Wiring Connections

Wire the RA-1000/R to the FACP as shown below.

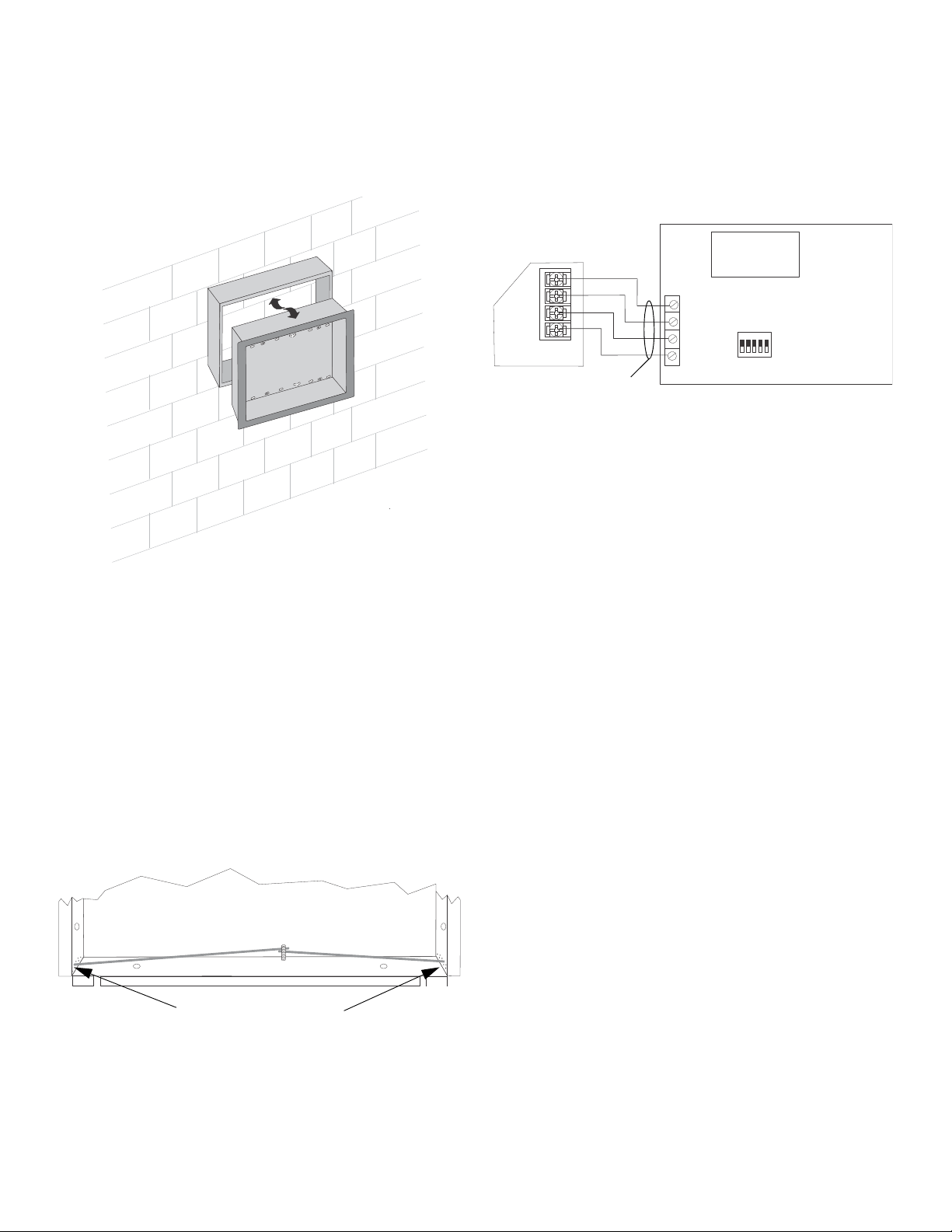

Figure 3 Trim Ring for Surface-mounting

backbox

trimring

Attach second set of wires to top of backbox.

Secure wires behind screw.

Insert wires at an angle into the

first holes past sheetrock.

Figure 4 Flush Mounting the Backbox

SBUS OUT

–+AB

SB SA S+ S-

12345

Figure 5 SBUS Connections

RA-1000/R

FACP SBUS

supervised,

power-limited,

Class B
