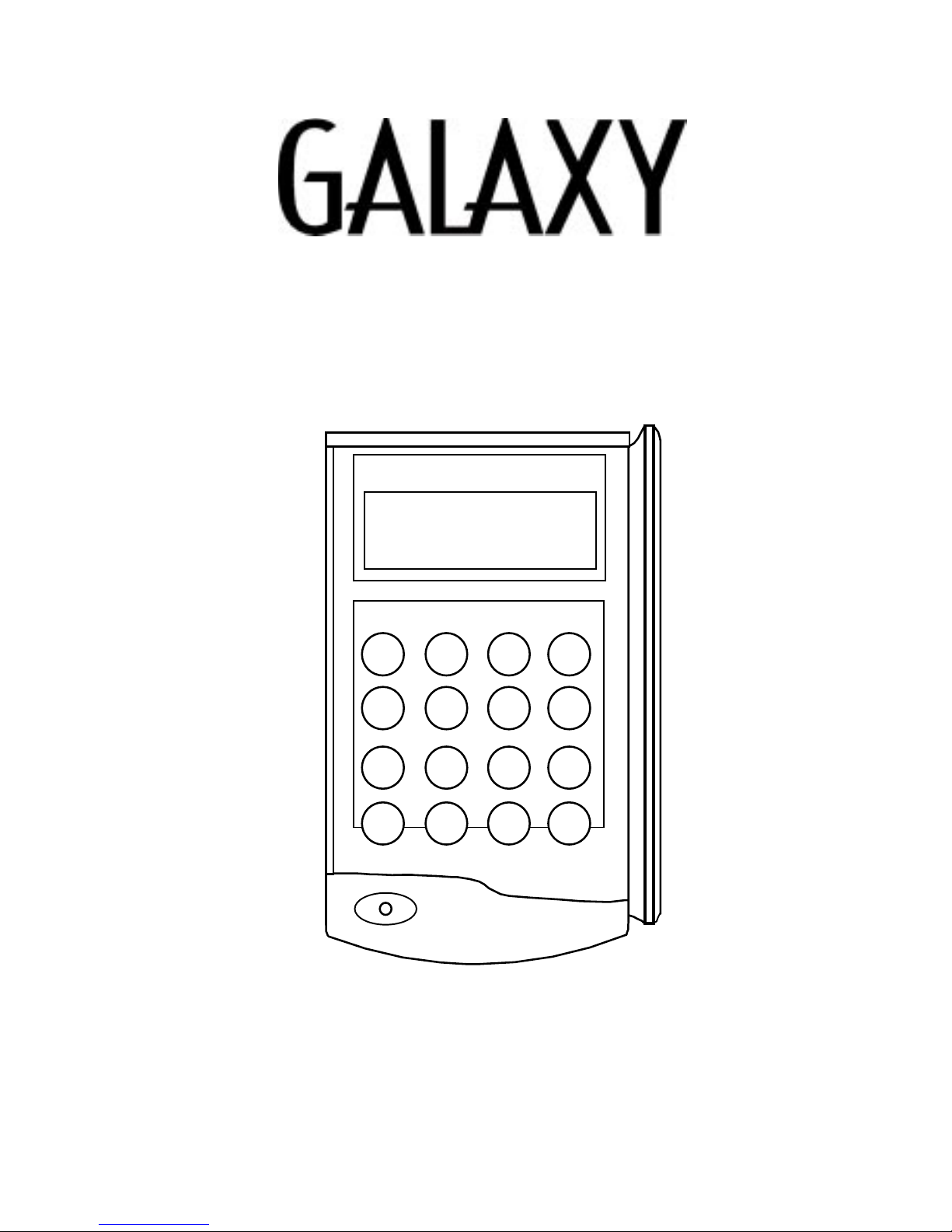

Honeywell Galaxy 16 Manuale utente

16 and 16 plus

Users Guide

123

456

789

ent

esc

GALAXY 16+ V2.XX

06.22 TUE 30 JUN

iii

Contents

INTRODUCTION ......................................................................... v

QUICK OPERATION GUIDE .....................................................vii

GLOSSARY OF TERMS ............................................................ ix

KEYPAD INFORMATION ........................................................... 1

Star (Ö) Key Features ............................................................................. 2

SETTING AND UNSETTING THE SYSTEM ............................... 3

Setting the System ................................................................................... 3

Unsetting the System ............................................................................... 4

Cancelling Alarms .................................................................................... 5

USER MENU ............................................................................... 7

Option 1  Omit ........................................................................................ 7

Option 2  Chime ..................................................................................... 8

Option 3  Walk ....................................................................................... 8

Option 4  Codes ..................................................................................... 9

Option 5  Test ...................................................................................... 10

Option 9  Log ....................................................................................... 11

Option 10  Time ................................................................................... 12

APPENDIX A  ALARM AND HELP MESSAGES ...................13

APPENDIX B  AVOIDING FALSE ALARMS..........................15

ZONE REFERENCE TABLE ......................................................17

INTRODUCTION

The Galaxy 16 and 16 plus control panels are designed to the highest speci-

fications and requirements using the most advanced software and hardware

technology.

The Galaxy 16 and 16 plus are designed to satisfy the requirements of do-

mestic and smaller commercial installations, yet are flexible enough to pro-

vide ease of use and operational versatility.

This Users Guide contains the information required to operate the system.

The installation engineer will program and commission the system to meet

your requirements. The system is simple to operate but users are advised to

read this guide carefully before using the system and retain it in a safe place

for future reference.

vii

ENTER YOUR USER

CODE THEN SELECT

QUICK OPERATION

GUIDE

A SET (an Unset system)

B PART SET (Defaults to Parts 1 and 2)

1key  toggles the Set (ON)/Unset (OFF) status of Part 1

2key  toggles the Set (ON)/Unset (OFF) status of Part 2

3key  toggles the Set (ON)/Unset (OFF) status of Part 3

ent UNSET (a Set system)

1 OMIT ZONES

Aor Bkey to view zones

#to change omit status of zone (must be an omittable zone)

ent key to accept programming and start setting

esc key to accept programming without setting

2 CHIME ZONES

Aor Bkey to view zones

#key to enable/disable chime function on zone

ent key to accept

esc key to cancel

3 WALK TEST

A or Bkey to view zones

#key to enable/disable Walk Test function on zone

ent key to start Walk Test

#key to toggle display between open and tested zones

esc key to end Walk Test

Note: Zones number 10 to 16 will be displayed as A to G

4 (ASSIGNING) USER CODES

Aor Bkey to select user (1  14)

ent key to program code

number keys to enter digits, Ökey to delete digits

ent key to accept programming, esc to cancel

5 TEST OUTPUTS

Aor Bkey to select output for test

#key to enable/disable test function on zone

esc key to end test

9LOG

Akey to step forwards through events

Bkey to step backwards through events

#key to display event date

esc key to exit Log

ent+BTIME

To access the Time option, enter your user code, press the

ent key, the Bkey and then the ent key.

Then press the:

1key to select Time (hh/mm)

2key to select Date (dd/mm/yy)

3key to select Start Summer (dd/mm)

4key to select End Summer (dd/mm).

Press the ent key to accept the programming for each option,

or the esc key to cancel.

GLOSSARY OF TERMS

Chime: Zone attribute which gives an audible indication of the

activation of a detector or contact.

Duress: Applicable when a remote signalling device is fitted.

A Duress code entered at the keypad will unset the

system but transmit a Duress code to the Alarm Re-

ceiving Centre.

Entry Time: The preset time allowed for users to reach the keypad

and unset the system.

Exit Time: The preset time allowed for users to leave the building

after the setting routine has been initiated.

Exit Terminator: A switch or push-button located outside the protected

area and used to set the system.

Event Log: The control panel memory which stores, in sequence,

a record of the system events.

Final Exit: The last door closed or detector operated by the user

on exit.

LCD Liquid Crystal Display.

Nonomit: An alarm circuit which cannot be omitted (bypassed)

by the user.

Numeric Keypad: The unit comprising the LCD display and buttons that

is the interface between users and the system.

Omit: Setting the system with alarm zones excluded from the

system. Only zones programmed as omittable by the

engineer can be omitted.

PA Panic Alarm: an emergency button or switch used to

set off the alarm; results in instantaneous transmission

of a silent alarm signal using the remote signalling de-

vice.

Part Set: To set only a section of the full system.

Programme: To alter the system functions or parameters.

Set: To arm the system.

Unset: To disarm the system.

User Code: A four digit code that identifies users to the system.

Walk Test: A routine test of the alarm detectors.

Security Circuit: An alarm circuit which has been programmed to be

armed continuously whether the system is set or

not.
