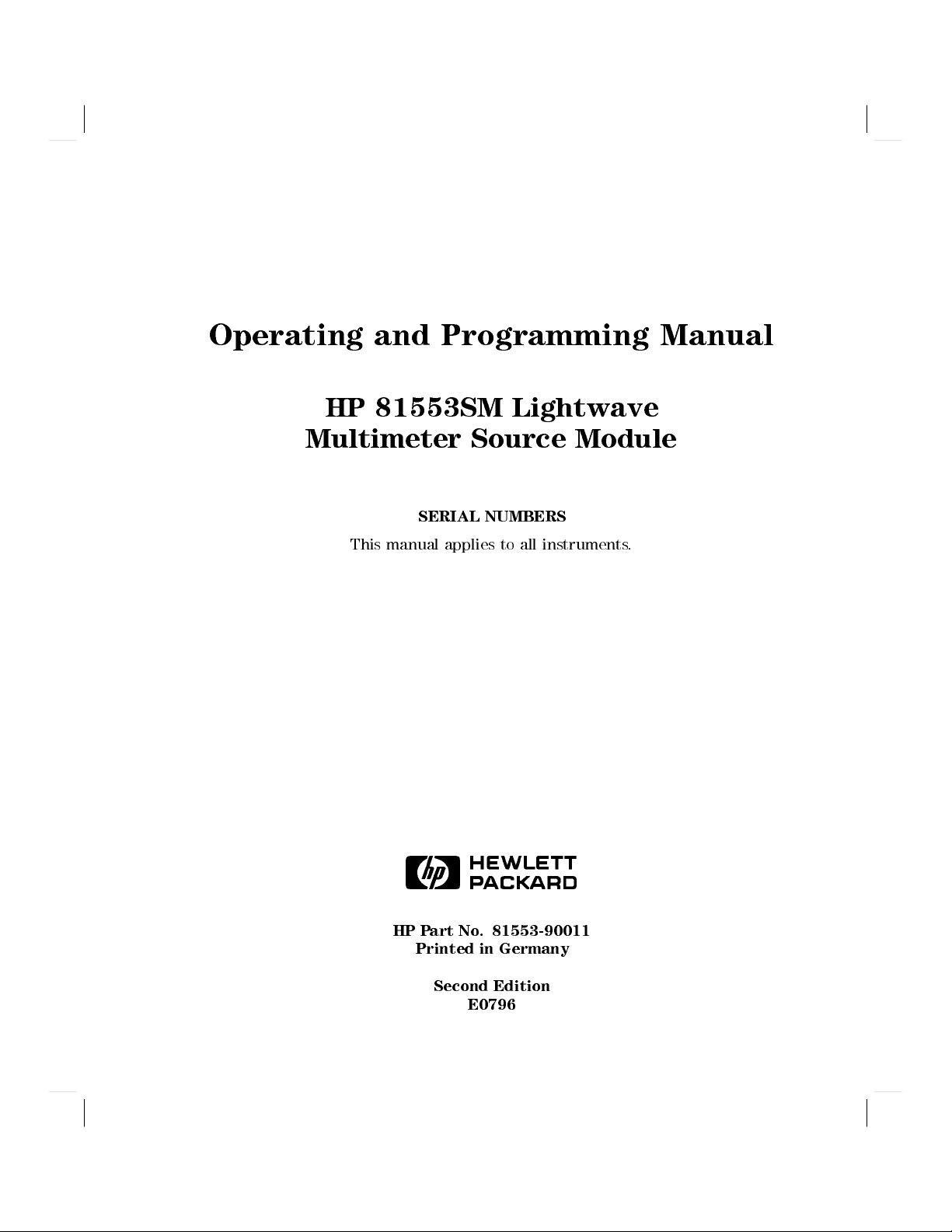

Operating and Programming Manual

HP 81553SM Lightwave

Multimeter Source Module

SERIAL NUMBERS

This manual applies to all instruments.

ABCDE

HP Part No. 81553-90011

Printed in Germany

Second Edition

E0796

Control Serial Number: Edition 2 applies directly to all instruments.

First Edition : 1st May 1990 : 81553-90011 : E0590

Second Edition : 1st March 1991 : 81553-90011 : E0391 ; 1st April 1992 : 81553-

90011 : E0492 ; 1st February 1994 : 81553-90011 : E0294 ; 1st December 1994 :

81553-90011 : E1294 ; 1st July 1996 : 81553-90011 : E0796

Safety Considerations

Before operation, review the instrument and manual, including the red safety

page, for safety markings and instructions

.You must follow these to ensure safe

operation and to maintain the instrument in safe condition.

Initial Inspection

Warning

To avoid hazardous electrical shock, do not perform

electrical tests when there are signs of shipping damage to

any portion of the outer enclosure (covers, panels, etc.).

Line Power Requirements

The HP 81553SM operates when installed into the HP 8153A Lightwave

Multimeter mainframe

iii

Initial Safety Information for Laser Source Modules

The Specications for these modules are as follows:

HP 81553SM

Laser Type

FP-Laser

InGaAsP

Laser Class

According to IEC 825-1 3A

(not USA)

(EN 60825-1 Europe)

According to 21 CFR 1040.10 1

(USA)

Output Power

0dBm

Beam Diameter



Numerical Aperture

0.1

Wavelength

1550

20nm

Sicherheitsinformation f 

ur Laser Quellen

Die Spezikationen f ur die Lasereinsch ube sind wie folgt:

HP 81553SM

Laser Typ

FP-Laser

InGaAsP

Laser Klasse

Entsprechend IEC 825-1 3A

(EN 60825-1 Europa)

Ausgangsleistung

0dBm

Strahldurchmesser



Numerische Apertur

0.1

Wellenl 

ange

1550

20nm

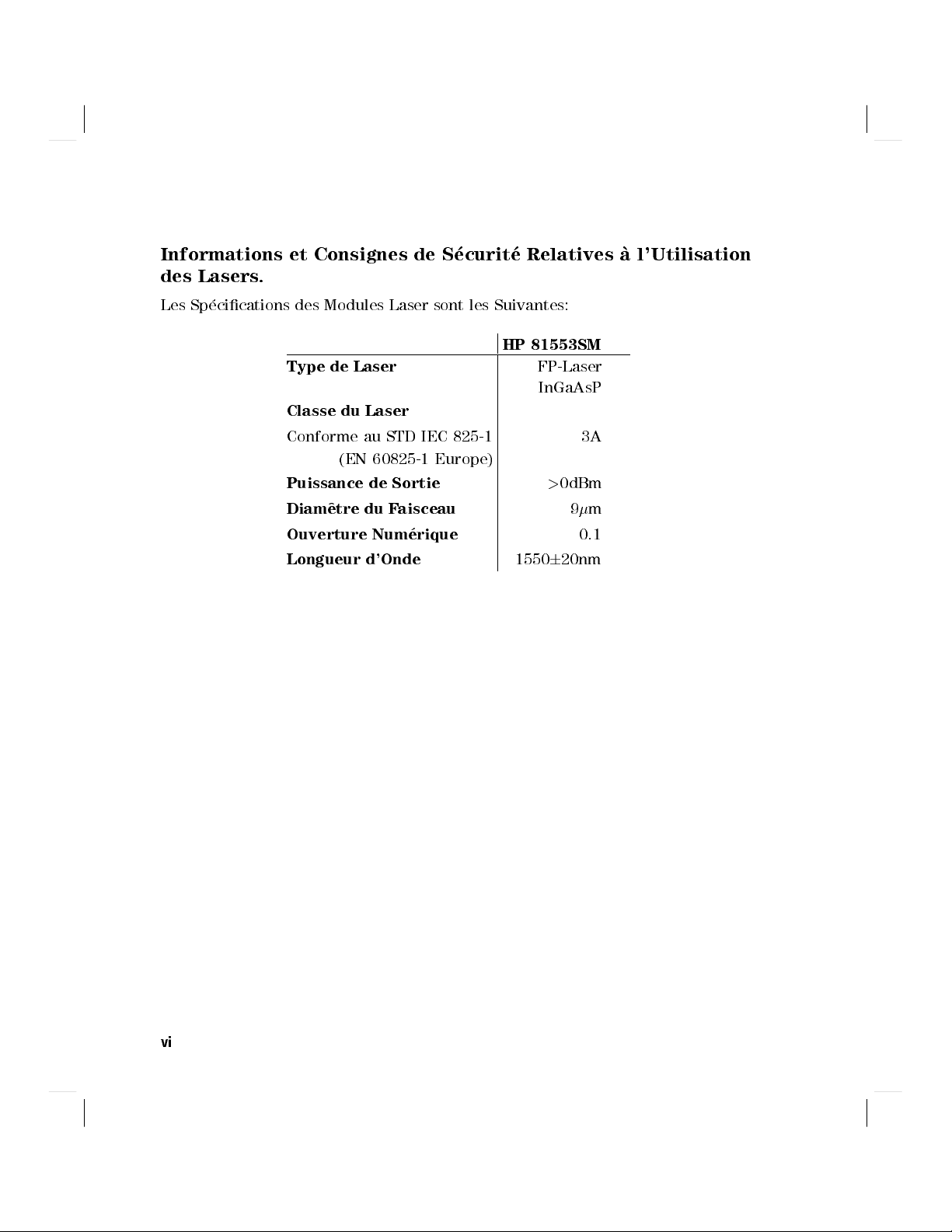

Informations et Consignes de S 

ecurit 

e Relatives 

a l'Utilisation

des Lasers.

Les Sp ecications des Modules Laser sont les Suivantes:

HP 81553SM

Type de Laser

FP-Laser

InGaAsP

Classe du Laser

Conforme au STD IEC 825-1 3A

(EN 60825-1 Europe)

Puissance de Sortie

0dBm

Diam ^

etre du Faisceau



Ouverture Num 

erique

0.1

Longueur d'Onde

1550

20nm

Contents

C. HP 81553SM Specications

Supplementary Performance Characteristics . . . . . . . . . . . C-2

Internal Digital Modulation . . . . . . . . . . . . . . . . . . C-2

Output Attenuation .. .. .. .. .. .. .. .. .. .. . C-2

Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

D. HP 81553SM Performance Tests

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Equipment Required . . . . . . . . . . . . . . . . . . . . . . D-1

Test Record .......................... D-2

Test Failure .......................... D-2

Instrument Specication .... .. .. .. .. .. .. .. .. D-3

Performance Tests . . . . . . . . . . . . . . . . . . . . . . . D-3

Output Power and Stability Tests .... .. .. . .. .. .. D-3

I. Output Power Test.. .. .. .. .. .. . .. .. .. . D-3

II. Attenuation Function Test................ D-4

III. Modulation Function Test.. .. .. .. .. .. .. .. D-5

IV. Stability Test....................... D-5

E. Cleaning Procedures

The Cleaning Kit . . . . . . . . . . . . . . . . . . . . . . . . E-1

Other Cleaning Tools . . . . . . . . . . . . . . . . . . . . . E-3

Preserving Connectors . . . . . . . . . . . . . . . . . . . . . E-4

Cleaning Instrument Housings ................. E-4

Cleaning Procedures . . . . . . . . . . . . . . . . . . . . . . E-5

Cleaning Cable Connectors . . . . . . . . . . . . . . . . . . E-5

Cleaning Connector Adapters . . . . . . . . . . . . . . . . . E-6

Cleaning Connector Interfaces ................ E-6

How to clean instruments with a physical contact interface .. E-7

Light dirt .... .. .. .. .. .. .. .. .. . .. .. E-7

Heavy dirt ........................ E-7

Contents-1

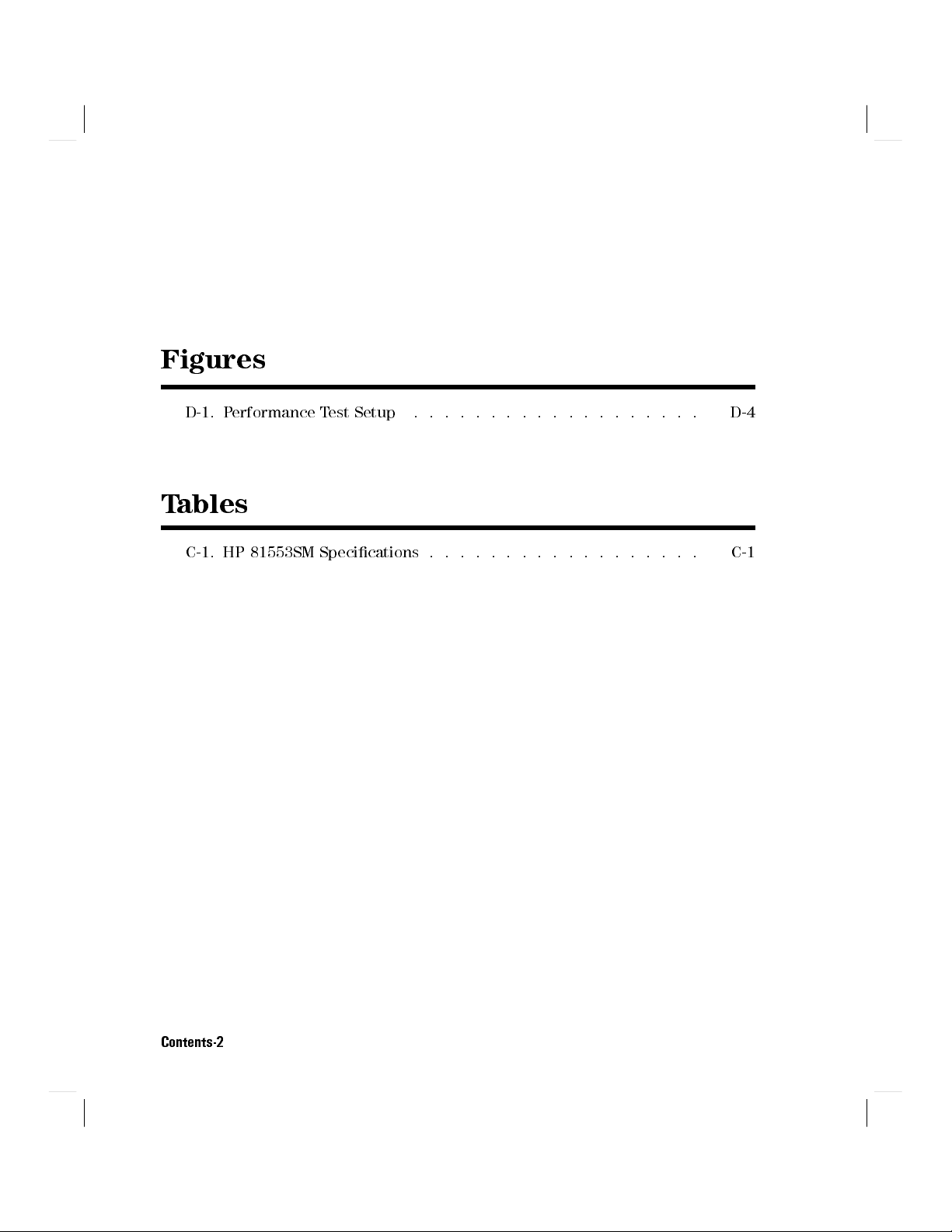

Figures

D-1. Performance Test Setup ................... D-4

Tables

C-1. HP 81553SM Specications . . . . . . . . . . . . . . . . . . C-1

Contents-2

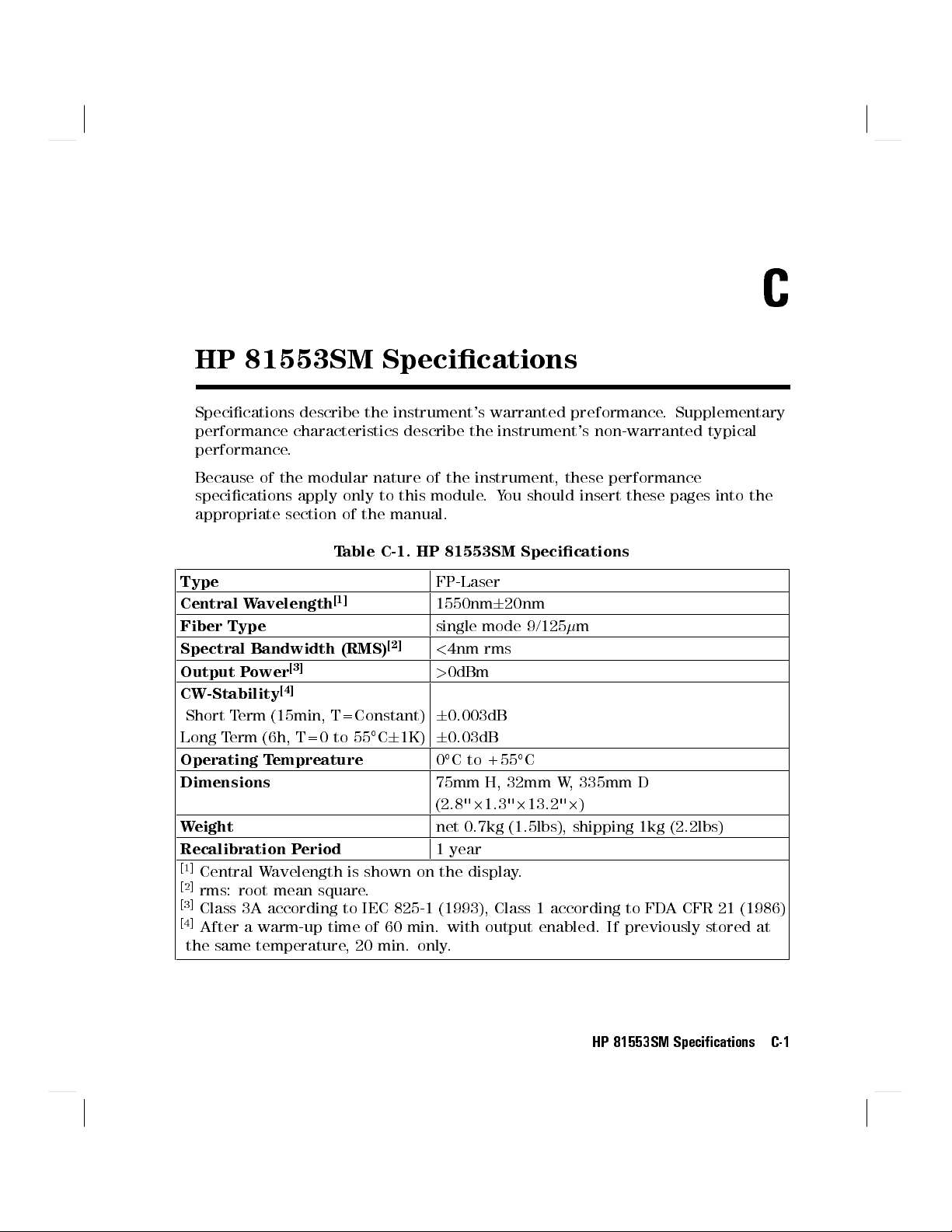

HP 81553SM Specications

Specications describe the instrument's warranted preformance. Supplementary

performance characteristics describe the instrument's non-warranted typical

performance.

Because of the modular nature of the instrument, these performance

specications apply only to this module.You should insert these pages into the

appropriate section of the manual.

Table C-1. HP 81553SM Specications

Type

FP-Laser

Central Wavelength

[1]

1550nm

20nm

Fiber Type

single mode 9/125



Spectral Bandwidth (RMS)

[2]

4nm rms

Output Power

[3]

0dBm

CW-Stability

[4]

Short Term (15min, T=Constant)

0.003dB

Long Term (6h, T=0 to 55



1K)

0.03dB

Operating Tempreature



C to +55



Dimensions

75mm H, 32mm W, 335mm D

(2.8

1.3

13.2

)

Weight

net 0.7kg (1.5lbs), shipping 1kg (2.2lbs)

Recalibration Period

1 year

[1]

Central Wavelength is shown on the display.

[2]

rms: root mean square.

[3]

Class 3A according to IEC 825-1 (1993), Class 1 according to FDA CFR 21 (1986)

[4]

After a warm-up time of 60 min. with output enabled. If previously stored at

the same temperature, 20 min. only.

HP 81553SM Specications C-1

Supplementary Performance Characteristics

Internal Digital Modulation

You can select internal modulation frequencies of 270HZ, 1kHz, or 2kHz. All

outputs are pulse shaped, with a duty cycle of 50%.

Output Attenuation

The output can be attenuated from 0 to 6dB, in steps of 0.1dB.

Stability

The value of the long term CW-stability doubles with just one minute warmup

time (source enabled).

C-2 HP 81553SM Specications
