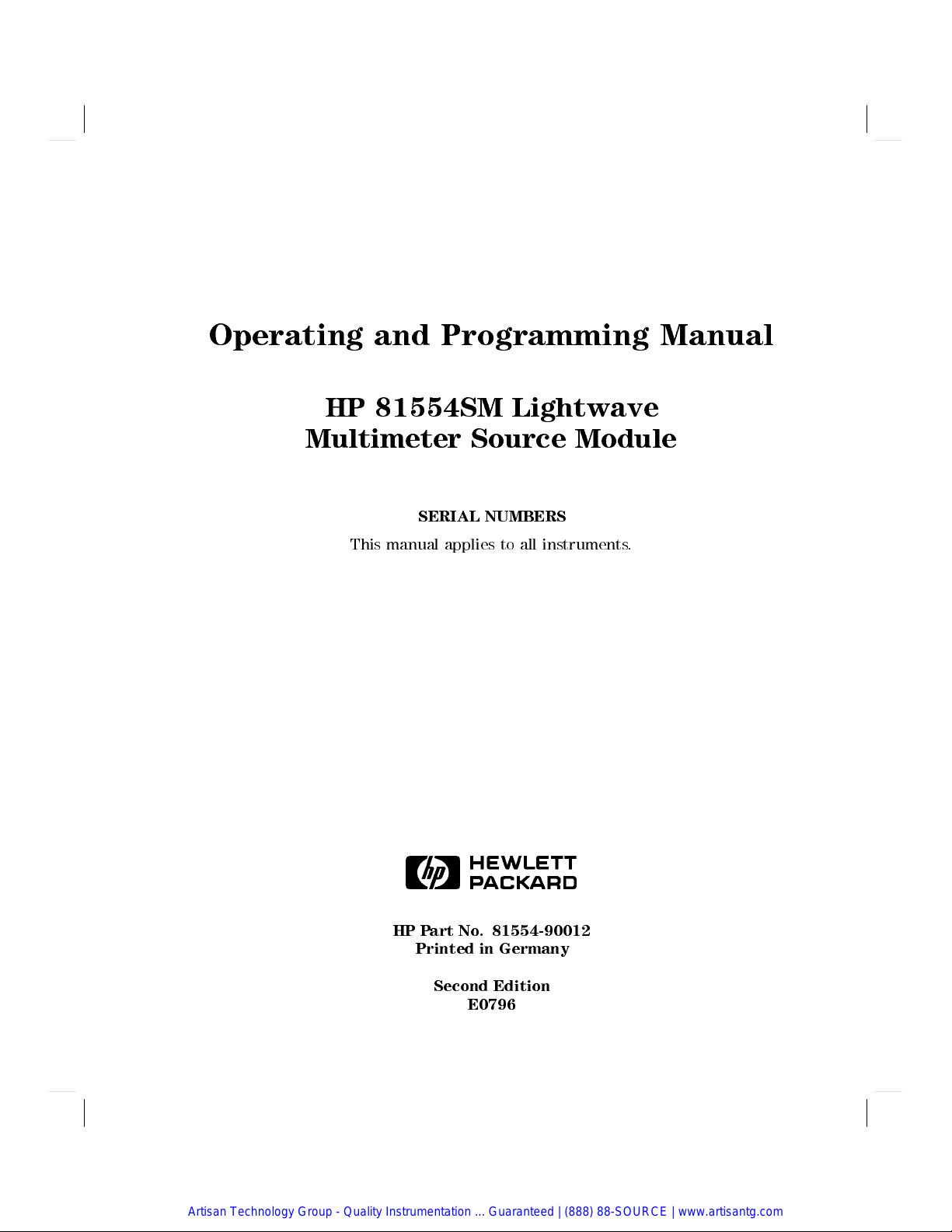

Operating and Programming Manual

HP 81554SM Lightwave

Multimeter Source Module

SERIAL NUMBERS

This manual applies to all instruments.

ABCDE

HP Part No. 81554-90012

Printed in Germany

Second Edition

E0796

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Control Serial Number: Edition 2 applies directly to all instruments.

First Edition : 1st May 1990 : 81553-90011 : E0590

Second Edition : 1st March 1991 : 81553-90011 : E0391 ; 1st January 1992 :

81553-90011 : E0192 ; 1st December 1994 : 81553-90011 : E1294 ; 1st July 1996

: 81553-90011 : E0796

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Safety Considerations

Before operation, review the instrument and manual, including the red safety

page, for safety markings and instructions

.You must follow these to ensure safe

operation and to maintain the instrument in safe condition.

Initial Inspection

Inspect the shipping container for damage. If there is damage to the container

or cushioning, keep them until you have checked the contents of the shipment

for completeness and veried the instrument both mechanically and electrically.

The Performance Tests give procedures for checking the operation of the

instrument. If the contents are incomplete, mechanical damage or defect is

apparent, or if an instrument does not pass the operator's checks, notify the

nearest Hewlett-Packard oce.

Warning

To avoid hazardous electrical shock, do not perform

electrical tests when there are signs of shipping damage to

any portion of the outer enclosure (covers, panels, etc.).

Line Power Requirements

The HP 81554SM operates when installed into the HP 8153A Lightwave

Multimeter mainframe

Operating Environment

The HP 8153A safety information summarizes the HP 81554SM operating

environment ranges. In order for the HP 81554SM to meet specications, the

operating environment must be within the limits specied for the HP 8153A.

Storage and Shipment

The module can be stored or shipped at temperatures between



C and

+70



C. Protect the module from temperature extremes that may cause

condensation within it.

iii

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Initial Safety Information for Laser Source Modules

The Specications for these modules are as follows:

HP 81554SM

Laser Type

FP-Laser

InGaAsP

Laser Class

According to IEC 825-1 3A

(not USA)

(EN 60825-1 Europe)

According to 21 CFR 1040.10 1

(USA)

Output Power

-1dBm

Beam Diameter



Numerical Aperture

0.1

Wavelength

1310/1550

20nm

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Sicherheitsinformation f 

ur Laser Quellen

Die Spezikationen f ur die Lasereinsch ube sind wie folgt:

HP 81554SM

Laser Typ

FP-Laser

InGaAsP

Laser Klasse

Entsprechend IEC 825-1 3A

(EN 60825-1 Europa)

Ausgangsleistung

-1dBm

Strahldurchmesser



Numerische Apertur

0.1

Wellenl 

ange

1310/1550

20nm

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Informations et Consignes de S 

ecurit 

e Relatives 

a l'Utilisation

des Lasers.

Les Sp ecications des Modules Laser sont les Suivantes:

HP 81554SM

Type de Laser

FP-Laser

InGaAsP

Classe du Laser

Conforme au STD IEC 825-1 3A

(EN 60825-1 Europe)

Puissance de Sortie

-1dBm

Diam ^

etre du Faisceau



Ouverture Num 

erique

0.1

Longueur d'Onde

1310/1550

20nm

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

C. HP 81554SM Specications

Suppelementary Performance Characteristics .... .. .. .. C-2

Internal Digital Modulation . . . . . . . . . . . . . . . . . . C-2

Output Attenuation .. .. .. .. .. .. .. .. .. .. . C-2

Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

D. HP 81554SM Performance Tests

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Equipment Required . . . . . . . . . . . . . . . . . . . . . . D-1

Test Record .......................... D-2

Test Failure .......................... D-2

Instrument Specication .... .. .. .. .. .. .. .. .. D-3

Performance Tests . . . . . . . . . . . . . . . . . . . . . . . D-3

Output Power and Stability Tests .... .. .. . .. .. .. D-3

I. Output Power Test.... .. .. .. .. . .. .. .. . D-4

II. Attenuation Function Test................ D-4

III. Modulation Function Test...... .. .. .. .. .. D-5

IV. Stability Test....................... D-5

E. Cleaning Procedures

The Cleaning Kit . . . . . . . . . . . . . . . . . . . . . . . . E-1

Other Cleaning Tools . . . . . . . . . . . . . . . . . . . . . E-3

Preserving Connectors . . . . . . . . . . . . . . . . . . . . . E-4

Cleaning Instrument Housings ................. E-4

Cleaning Procedures . . . . . . . . . . . . . . . . . . . . . . E-5

Cleaning Cable Connectors . . . . . . . . . . . . . . . . . . E-5

Cleaning Connector Adapters . . . . . . . . . . . . . . . . . E-6

Cleaning Connector Interfaces ................ E-6

How to clean instruments with a physical contact interface .. E-7

Light dirt .. .. .. .. .. .. .. .. .. .. . .. .. E-7

Heavy dirt ........................ E-7

Contents-1

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Figures

D-1. Performance Test Setup ................... D-4

Tables

C-1. HP 81554SM Specications . . . . . . . . . . . . . . . . . . C-1

Contents-2

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

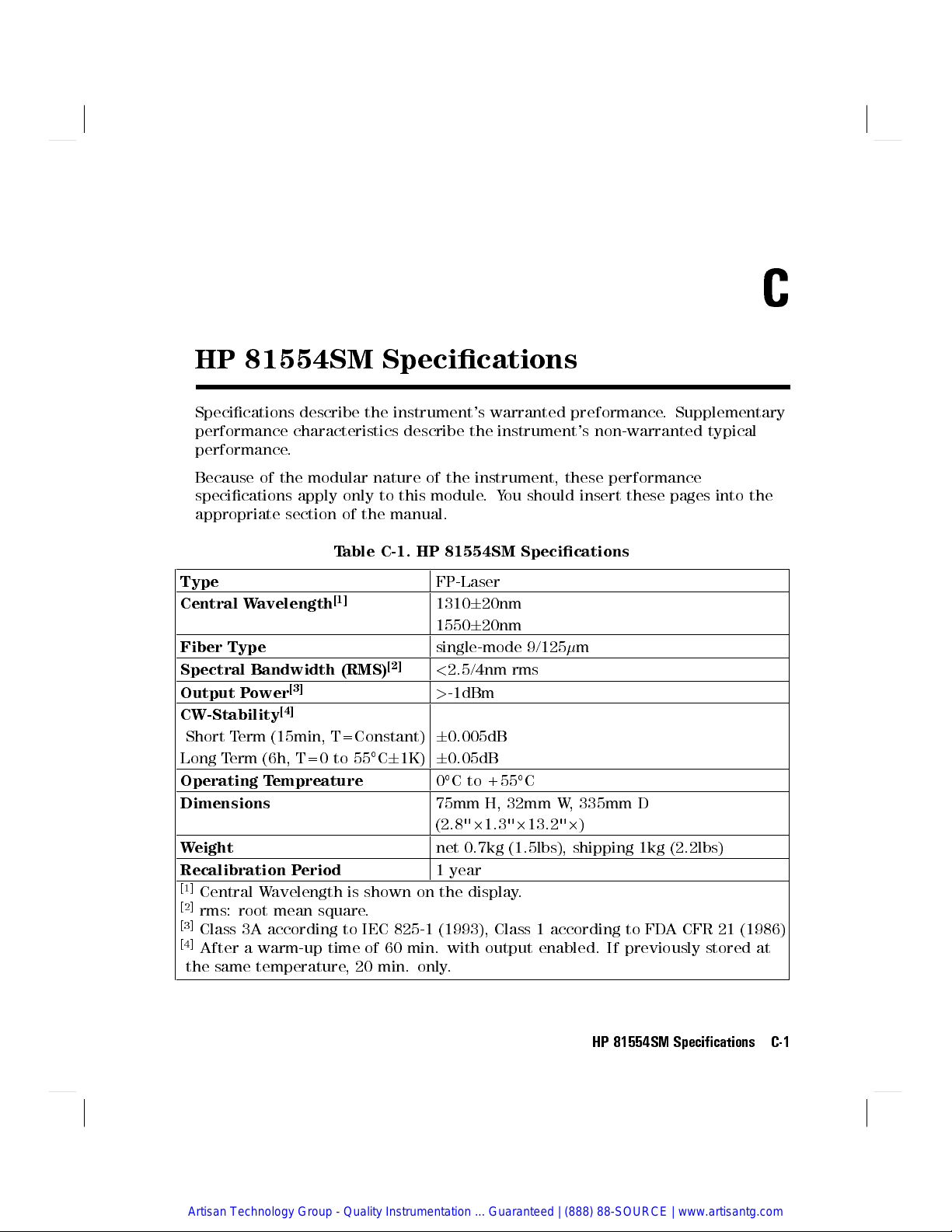

HP 81554SM Specications

Specications describe the instrument's warranted preformance. Supplementary

performance characteristics describe the instrument's non-warranted typical

performance.

Because of the modular nature of the instrument, these performance

specications apply only to this module.You should insert these pages into the

appropriate section of the manual.

Table C-1. HP 81554SM Specications

Type

FP-Laser

Central Wavelength

[1]

1310

20nm

1550

20nm

Fiber Type

single-mode 9/125



Spectral Bandwidth (RMS)

[2]

2.5/4nm rms

Output Power

[3]

-1dBm

CW-Stability

[4]

Short Term (15min, T=Constant)

0.005dB

Long Term (6h, T=0 to 55



1K)

0.05dB

Operating Tempreature



C to +55



Dimensions

75mm H, 32mm W, 335mm D

(2.8

1.3

13.2

)

Weight

net 0.7kg (1.5lbs), shipping 1kg (2.2lbs)

Recalibration Period

1 year

[1]

Central Wavelength is shown on the display.

[2]

rms: root mean square.

[3]

Class 3A according to IEC 825-1 (1993), Class 1 according to FDA CFR 21 (1986)

[4]

After a warm-up time of 60 min. with output enabled. If previously stored at

the same temperature, 20 min. only.

HP 81554SM Specications C-1
