HP LaserJet 9000 Guida utente

System Installation Guide

D Class and R Class

HP 9000 Enterprise Servers

Part No. A3262-90057

Edition 5

October 1998

E1098

Printed in: USA

Legal Notices

The information in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this manual,

including, but not limited to, the implied warranties of merchantability and fitness

for a particular purpose. Hewlett-Packard shall not be held liable for errors

contained herein or direct, indirect, special, incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

Restricted Rights Legend. Use, duplication or disclosure by the U.S. Government

is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in

Technical Data and Computer Software clause at DFARS 252.227-7013 for DOD

agencies, and subparagraphs (c) (1) and (c) (2) of the Commercial Computer

Software Restricted Rights clause at FAR 52.227-19 for other agencies.

HEWLETT-PACKARD COMPANY

3000 Hanover Street

Palo Alto, California 94304

U.S.A.

reserved.

Reproduction, adaptation, or translation of this document without prior written

permission is prohibited, except as allowed under the copyright laws.

Trademark Notices. UNIX is a registered trademark in the United States and other

countries, licensed exclusively through X/Open Company Limited.

iii

Printing History

The manual printing date and part number indicate its current edition. The printing

date will change when a new edition is printed. Minor changes may be made at

reprint without changing the printing date. The manual part number will change

when extensive changes are made.

Manual updates may be issued between editions to correct errors or document

product changes. To ensure that you receive the updated or new editions, you should

subscribe to the appropriate product support service. See your HP sales

representative for details.

First Edition: October, 1995

Second Edition: November, 1996

Third Edition: August, 1997

Fourth Edition: August, 1998

Fifth Edition: October, 1998

NOTE Reader Comments. We welcome your comments about our documentation. If you

have editorial suggestions or recommended improvements for this document, please

write to us. You can reach us through e-mail at: hardwaredoc[email protected]om or by

sending your letter to: Documentation Manager, M/S 5657, Hewlett-Packard

Company, 8000 Foothills Blvd., Roseville, CA 95747-6588 USA. Please include the

following information in your message:

• Title of the manual you are referencing.

• Manual part number (from the title page).

• Edition number or publication date (from the title page).

• Your name.

• Your company’s name.

SERIOUS ERRORS, such as technical inaccuracies that may render a program or a

hardware device inoperative, should be reported to your HP Response Center or

directly to a Support Engineer.

Who Should Use this Guide

The procedures in this guide are intended to be performed by a person who is

qualified in the installation and servicing of computer equipment, and is trained to

recognize the hazards involved. Internal add-onoptions cards are installed in an area

of the product where energy levels which are considered hazardous may be

produced.

Contents

vii

1. D Class System Installation

Overview of System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1. Install Internal Add-on Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

2. Connect the Console or Graphics Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

3. Connect the SCSI, Network, and Parallel Cables . . . . . . . . . . . . . . . . . . . . . . . 1-6

4. Connect Remote Management Card and Serial Data Cable for the Optional UPS .

1-7

5. Set the Input Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

6. Connect the System Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

7. Turn On Power to the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

8. Prepare for Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

9. Prepare for Terminal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

10. Contacting Hewlett-Packard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15

Reference Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15

2. R Class System Installation

Overview of System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

1. Install the Rack Kit and Server Into the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . 2-3

1A. Install the Rack Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1B. Mount the System Into the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2. Install Internal Add-on Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

3. Connect the Console, Web Console, or Graphics Monitor . . . . . . . . . . . . . . . 2-11

4. Connect the SCSI, Network, and Parallel Cables . . . . . . . . . . . . . . . . . . . . . . 2-14

5. Connect Remote Management Card and Serial Data Cable for the Optional UPS .

2-15

viii

Contents

6. Connect the System Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

7. Turn On Power to the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

8. Prepare for Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

9. Prepare for Terminal Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Contacting Hewlett-Packard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

1-1

1 D Class System Installation

How to install the basic HP 9000 D Class Enterprise server and its associated

components, such as the console and keyboard.

1-2

D Class System Installation

Overview of System Installation

Installation of a basic system consists of the following procedures:

1. Install internal add-on options.

2. Connect the console or graphics monitor.

3. Connect the SCSI, network, and parallel cables.

4. Connect Remote Management (Access Port) card and the serial data cable for

the optional UPS.

5. Set the input voltage selector.

6. Connect system power cords.

7. Turn on power to the system.

8. Prepare for network connections.

9. Prepare for terminal connections.

The installation procedures start with “1. Install Internal Add-on Options”. Refer to

the picture on the next page when connecting cables to rear panel connectors.

WARNING The HP 9000 D Class Enterprise Server weighs about 49.5 kg (110 lbs). You

must use two people to lift the D Class server cabinet.

1-3

D Class System Installation

Overview of System Installation

CAUTION To avoid damage to the front panel of the server, DO NOT use any part of the front

panel as a handle to lift or move the D Class server cabinet. When moving or lifting

the server cabinet, be sure that the front panel peripheral door is locked.

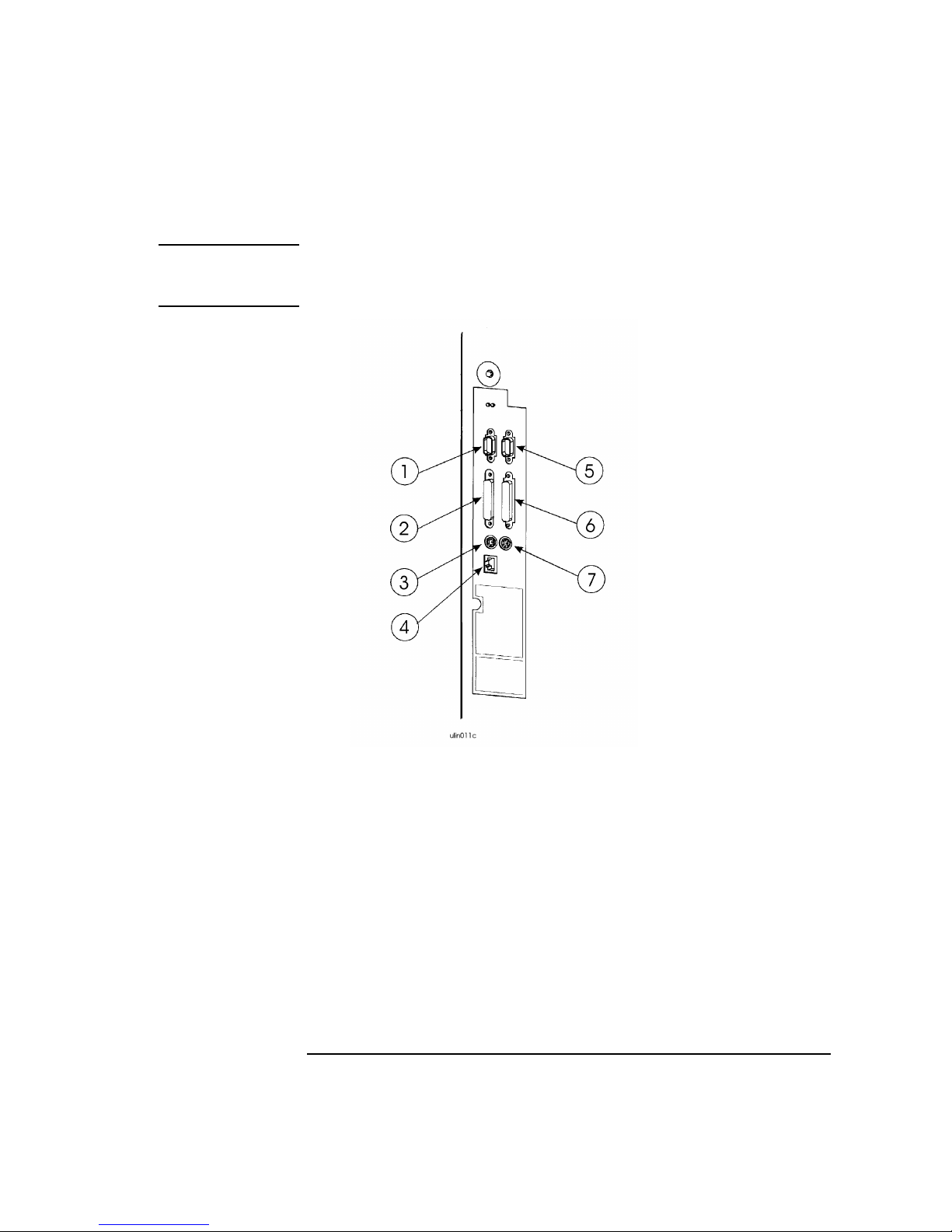

REAR PANEL

CONNECTORS

1. Serial (D3xx servers) or

Serial 2/UPS (D2xx servers)

2. SCSI (Single-Ended)

3. Graphics Mouse

4. LAN 10 Base-T

5. Serial 1/Console

6. Parallel

7. Graphics Keyboard

1-4

D Class System Installation

1. Install Internal Add-on Options

D Class servers are configured at the factory to include most I/O cards and internal

peripherals.

If you have any internal add-on options, install them now according to the

instructions shipped with the option.

WARNING DO NOT CONNECT SYSTEM POWER CORD AT THIS TIME. If you open

the system cabinet when power is connected, you will be exposed to high-energy

(high-amperage) circuits and possible ejection of molten metal. Be sure to

remove all rings, watches, and other jewelry from fingers, wrists, and arms

before opening the system cabinet.

Electrostatic

Discharge

Precautions

If you are installing additional cards or peripherals, you must ensure that they are

not damaged due to electrostatic discharge (ESD). To prevent such damage from

occurring, observe the following ESD precautions when handling and installing

boards:

1. Use a grounding mat and an anti-static wrist strap. These items are included in

the ESD Field Service Kit (HP P/N A3024-80004).

2. Wear the anti-static wrist strap to ensure that any accumulated electrostatic

charge is discharged from your body to ground.

3. Keep uninstalled printed-circuit boards in their protective anti-static bags until

you are ready to install them.

4. Handle printed-circuit boards by their edges after you have removed them from

their protective anti-static bags.
