HP Rp7400 Manuale utente

Wheel Kit Installation Guide

HP Server rp74XX and rx76XX

Second Edition

Manufacturing Part Number : A9903-96001

July 2003

Notice

adaptation, or translation without prior written permission is prohibited, except as allowed under the

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to,

the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be

liable for errors contained herein or for incidental or consequential damages in connection with the

furnishing, performance or use of this material.

Revision History

Second Edition Added Part Numbers for new colors. July 2003.

First Edition Initial release. April 2003.

Chapter 1 3

1Wheel Kit Installation Guide

The HP Servers rp74XX and rx76XX can be configured as a standalone server. This is accomplished by using

the wheel kit in conjunction with the proper tools to attach the wheel kit to the server before rolling it off of

the shipping pallet. This guide describes how to install the wheel kit.

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

NOTE Wheel kits are available in both dark and light colors.

Compare the packing list with the contents of the wheel kit before beginning the installation.

Tools Required for Installation

The following list provides the installer with the recommended tools to perform the wheel kit installation.

• Diagonal side cutters

• Safety glasses

• Torx driver with T-15 bit

• Phillips head screwdriver

WARNING Wear protective glasses while cutting the plastic bands around the shipping

container. These bands are under tension. When cut, they can spring back and cause

serious eye injury.

Table 1-1 Wheel Kit Packing List

Part Number

(Light Color)

Part Number

(Dark Color) Description Quantity

A6753-04013 A9903-04001 Wheel Kit consisting of the

following components:

A6753-04002 A9903-04006 Side Cover 1

A6753-04003 A9903-04007 Side Cover 1

A6753-04004 A9903-04008 Top Cover 1

A6753-00007 A9903-00001 Caster Cover 2

A6753-04001 A9903-04002 Right Front Caster Assembly 1

A6753-04005 A9903-04003 Right Rear Caster Assembly 1

A6753-04006 A9903-04004 Left Front Caster Assembly 1

A6753-04007 A9903-04005 Left Rear Caster Assembly 1

0515-2478 0515-2478 M4 x 0.7 8mm T15 Steel Zinc

Machine Screw (Used to attach

each caster to the chassis)

A6093-44013 A6093-44013 Plywood Unloading Ramp 1

Not Applicable Not Applicable Phillips Head Wood Screw (Used

to attach the ramp to the pallet)

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

1. Cut and remove the polystrap bands securing the HP Server to the pallet.

2. Lift the carton top from the cardboard tray resting on the pallet.

3. Remove the Wheel Kit carton and the top cushions from the pallet.

Figure 1-1 Component Locations

4. Unfold bottom cardboard tray.

MWK001

3/10/03

Top Cushions

Cardboard Tray

Bezel

Kit

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

5. Carefully tilt the server and place one of the foam blocks (A6093-44002) under the left side of the server.

Do not remove any other cushions until instructed to do so.

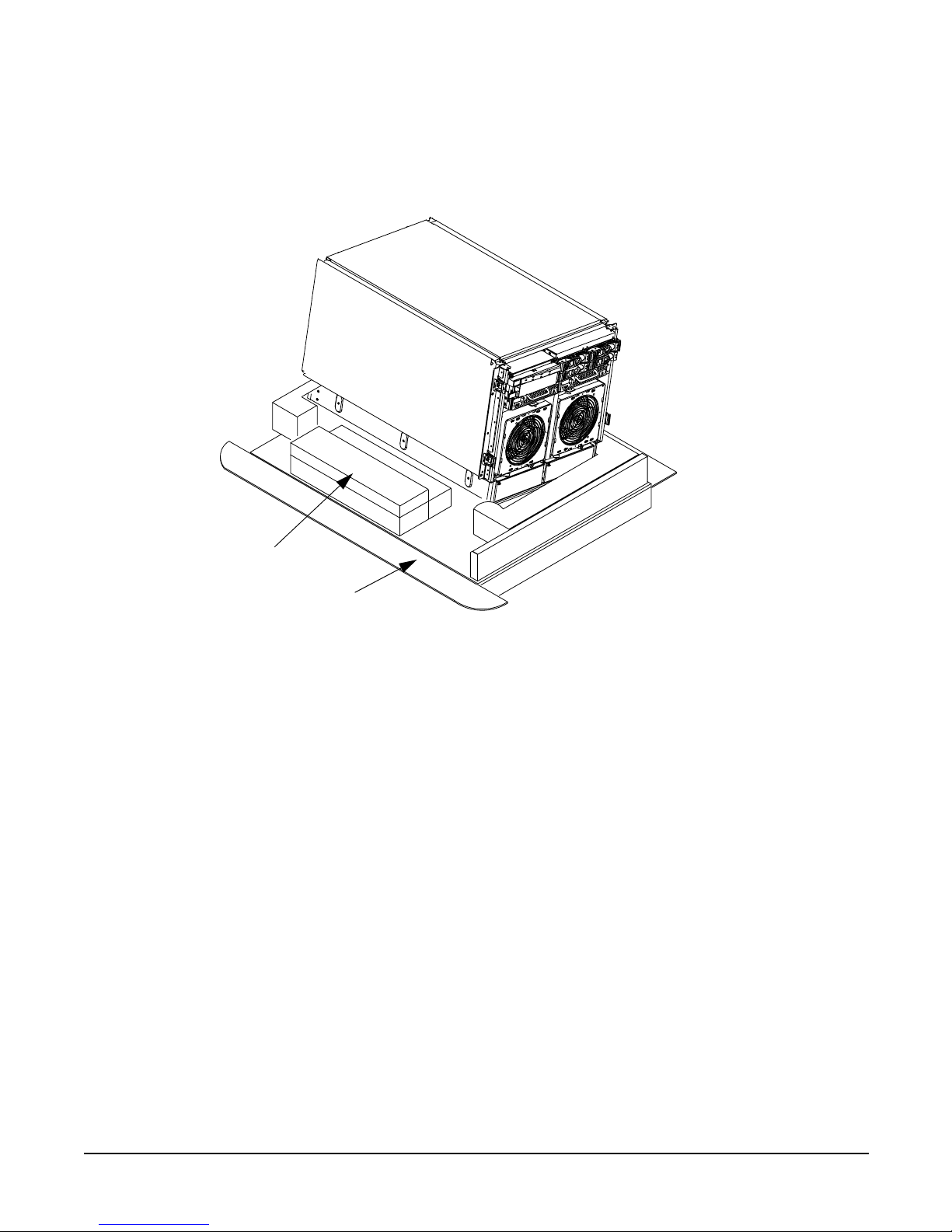

Figure 1-2 Position foam block on left side of server

MWK002

3/11/03

Foam Block

Cardboard Tray

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

6. Carefully tilt the server and place the other foam block provided in the kit under the right side of the

server.

Figure 1-3 Position foam block on right side of server

MWK003

3/11/03

Foam

Block

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

7. Remove the cushions from the lower front and rear of the server. Do not disturb the side cushions.

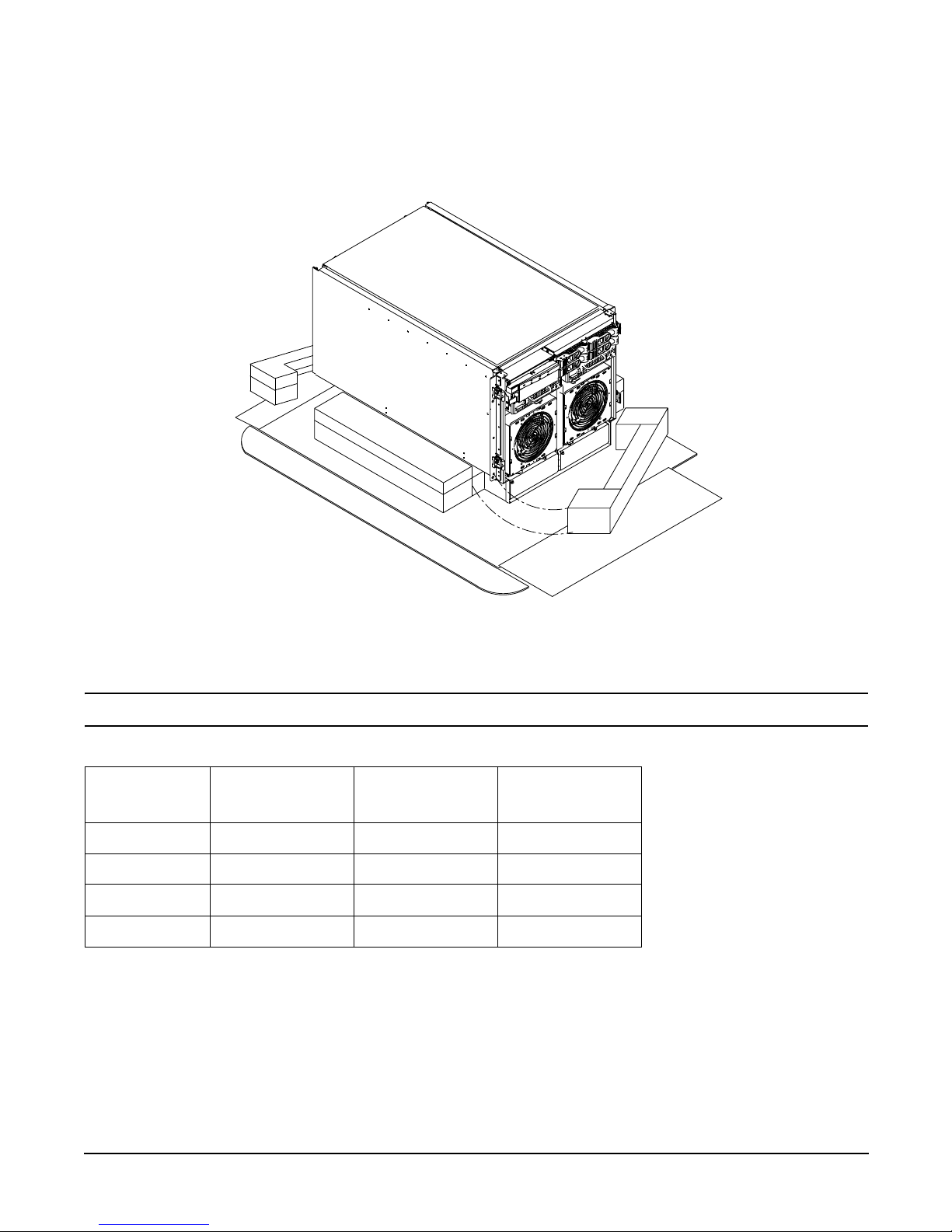

Figure 1-4 Remove lower front and rear foam blocks

8. Locate and identify the caster assemblies.Use the following table to identify the casters

NOTE The caster part number is stamped on the caster mounting plate

Table 1-2

Caster

(Light Color) Part Number Caster

(Dark Color) Part Number

Right Front A6753-04001 Right Front A9903-04002

Right Rear A6753-04005 Right Rear A9903-04003

Left Front A6753-04006 Left Front A9903-04004

Left Rear A6753-04007 Left Rear A9903-04005

MWK004

3/12/03

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

9. Locate and remove one of the four screws from the plastic pouch. Attach the a caster to the server.

Figure 1-5 Attaching a Caster to the Server

10. Attach the remaining casters to the server using screws supplied in the plastic pouch.

11. Remove the foam blocks from the left and right side of the server.

12. Locate the plywood ramp.

13. Attach the ramp to the edge of the pallet.

NOTE There are two pre-drilled holes in the ramp. Use the two screws taped to the ramp to attach

the ramp to the pallet.

14. Carefully roll the server off the pallet and down the ramp.

15. Locate the caster covers.

MWK005

3/12/03

Chapter 1

Wheel Kit Installation Guide

Wheel Kit Installation

16. Insert the slot on the caster cover into the front caster. Secure the cover to the server by tightening the

captive screw on the cover at the rear of the server.

Figure 1-6 Securing each Caster Cover to the Server

17. Remove the existing top and side covers and replace them with the new covers provided.

Remove and Replace the Top and Side Covers

It is necessary to remove the server covers and replace them with the painted covers provided.

CAUTION Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD

safety precautions could result in damage to the server.

MWK006

3/11/03

Rear Casters

Front Casters

Caster Cover
