LSQM2MPUD0 management and route unit

1 Card identifier

The card identifier LSQM2MPUD0 is in the upper right corner of the front panel.

2 Specifications

IMPORTANT:

•The S7506E (non-PoE) does not support this card.

•Before installing the card, you must remove the protection cover from the card to ensure correct

installation.

•The 40G QSFP+ fiber module cannot be connected to a 10-Gbps SFP+ transceiver module

when the 40G QSFP+ fiber module is installed in this card.

Table 1 LSQM2MPUD0 specifications

Item Specifications

Flash 1 GB

SDRAM (DDR3) 4 GB

Card size (H × W × D) 40 × 399 × 355 mm (1.57 × 15.71 × 13.98 in)

Power consumption 55 W to 96 W

Ports

•1 x console port

•1 x USB console port

•4 x network management ports: 2 × 10/100/1000BASE-T copper

ports and 2 SFP fiber ports

•2 x QSFP+ ports

•1 x USB port

Port speed

•Console port: ≤115200 bps (default: 9600 bps)

•USB console port: ≤115200 bps (default: 9600 bps)

•10/100/1000BASE-T copper port: 10/100/1000 Mbps, half/full

duplex

•SFP fiber port: 1000 Mbps

•QSFP+ fiber port: 40 Gbps

Transmission medium and max

transmission distance

•Console port: 15 m (49.21 ft) over ordinary asynchronous serial

port cables

•USB console port: 10 m (32.81 ft) over USB-AB cables

•10/100/1000BASE-T copper port: 100 m (328.1 ft) over Category

5 or higher twisted pair cables

•SFP fiber port: see Table 3

•QSFP+ fiber port: see Table 4, and Table 5

Compatible device models S7503E/S7506E/S7506E-V/S7510E

Applicable host software versions Version 7168 and later

Manual version: 6PW108-20180130 BOM: 3123A0XN

NOTE:

•To successfully connect an Ethernet port to a network management port (SFP port) on the card,

make sure the Ethernet port is operating in full duplex mode and at the port speed of 1000 Mbps.

•H3C recommends not using a USB extender cable to connect the USB port.

The 10/100/1000BASE-T copper port uses an RJ-45 connector.

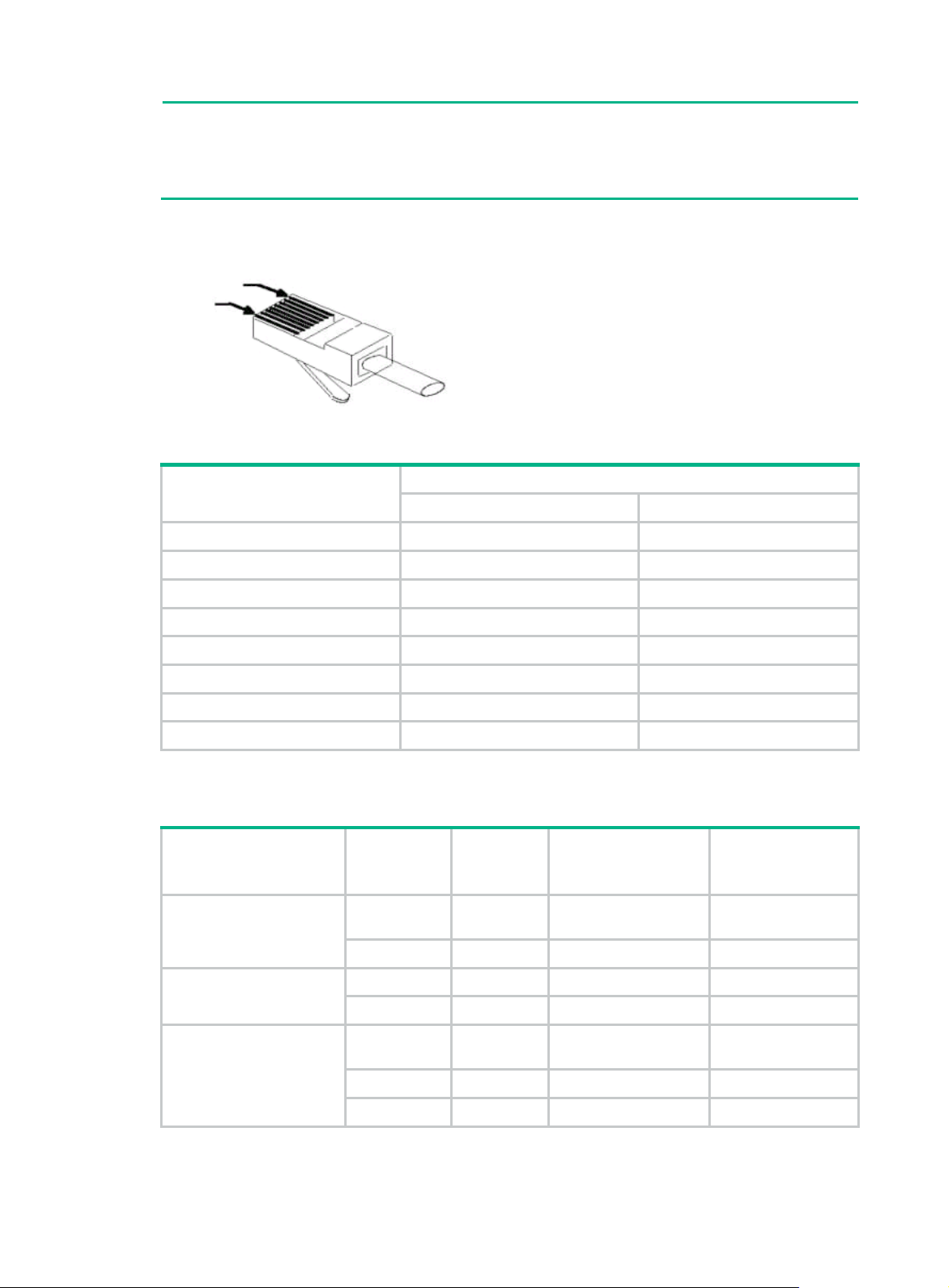

Figure 1 RJ-45 connector

Table 2 RJ-45 GE connector pinout

Pin 10BASE-T/100BASE-TX/1000BASE-T

Signal Function

1 MX_0+ Transmits and receives data.

2 MX_0- Transmits and receives data.

3 MX_1+ Transmits and receives data.

4 MX_2+ Transmits and receives data.

5 MX_2- Transmits and receives data.

6 MX_1- Transmits and receives data.

7 MX_3+ Transmits and receives data.

8 MX_3- Transmits and receives data.

Table 3 descirbes the SFP transceiver modules available for the SFP ports on the card.

Table 3 SFP transceiver module specifications

Module Central

wavelength Connector

type Cable

specifications

Maximum

transmission

distance

SFP-GE-SX-MM850-A

850 nm LC 50/125 µm multi-mode

optical fiber (MMF) 550 m (0.34 miles)

850 nm LC 62.5/125 µm MMF 275 m (0.17 miles)

SFP-GE-SX-MM850-D

850 nm LC 50/125 µm MMF 550 m (0.34 miles)

850 nm LC 62.5/125 µm MMF 275 m (0.17 miles)

SFP-GE-LX-SM1310-A

1310 nm LC 9/125 µm single-mode

optical fiber (SMF) 10 km (6.21 miles)

1310 nm LC 50/125 µm MMF 550 m (1804.46 ft)

1310 nm LC 62.5/125 µm MMF 550 m (1804.46 ft)

PIN #8

PIN #1

Manual version: 6PW108-20180130 BOM: 3123A0XN

iii

Module Central

wavelength Connector

type Cable

specifications

Maximum

transmission

distance

SFP-GE-LX-SM1310-D

1310 nm LC 9/125 µm SMF 10 km (6.21 miles)

1310 nm LC 50/125 µm MMF 550 m (1804.46 ft)

1310 nm LC 62.5/125 µm MMF 550 m (1804.46 ft)

SFP-GE-LH40-SM1310 1310 nm LC 9/125 µm SMF 40 km (24.86 miles)

SFP-GE-LH40-SM1310-D 1310nm LC 9/125 µm SMF 40 km (24.86 miles)

SFP-GE-LH40-SM1550 1550 nm LC 9/125 µm SMF 40 km (24.86 miles)

SFP-GE-LH80-SM1550 1550 nm LC 9/125 µm SMF 70 km (43.50 miles)

SFP-GE-LH80-SM1550-D 1550nm LC 9/125 µm SMF 70 km (43.50 miles)

SFP-GE-LH100-SM1550 1550 nm LC 9/125 µm SMF 100 km (62.14 miles)

SFP-GE-LX-SM1310-BIDI RX: 1490 nm

TX: 1310 nm LC 9/125 µm SMF 10 km (6.21 miles)

SFP-GE-LX-SM1490-BIDI RX: 1310 nm

TX: 1490 nm LC 9/125 µm SMF 10 km (6.21 miles)

NOTE:

•BIDI modules use different central wavelengths in transmit and receive directions, in order to

implement bidirectional transmission of optical signals over the same fiber.

•The BIDI modules must be used in pairs. For example, if you install the

SFP-GE-LX-SM1310-BIDI in the local port, you must install the SFP-GE-LX-SM1490-BIDI in the

peer port.

Table 4 describes the QSFP+ transceiver modules available for the QSFP+ ports on the card.

Table 4 QSFP+ transceiver module specifications

Module Central

wavelength Connector Fiber

specifications

Maximum

transmission

distance

QSFP-40G-SR4-MM850

850 nm MPO 50/125 µm MMF 100 m (328.08 ft)

850 nm MPO 50/125 µm MMF 150 m (492.13 ft)

QSFP-40G-SR4-MM850-N

DDM

850 nm MPO 50/125 µm MMF 100 m (328.08 ft)

850 nm MPO 50/125 µm MMF 150 m (492.13 ft)

QSFP-40G-CSR4-MM850

850 nm MPO 50/125 µm MMF 300 m (984.25 ft)

850 nm MPO 50/125 µm MMF 400 m (492.13 ft)

QSFP-40G-CSR4-MM850-

NDDM

850 nm MPO 50/125 µm MMF 300 m (984.25 ft)

850 nm MPO 50/125 µm MMF 400 m (492.13 ft)

QSFP-40G-BIDI-SR-MM850 850 nm LC 50/125 µm MMF

100 m (328.08 ft)

150 m (492.13 ft)

Manual version: 6PW108-20180130 BOM: 3123A0XN

Module Central

wavelength Connector Fiber

specifications

Maximum

transmission

distance

QSFP-40G-LR4-WDM1300

1271 nm

1291 nm

1311 nm

1331 nm

LC 9/125 µm SMF 10 km (6.21 miles)

QSFP-40G-LR4L-WDM1300

1271 nm

1291 nm

1311 nm

1331 nm

LC 9/125 µm SMF 2 km (1.24 miles)

QSFP-40G-ER4-WDM1300

1271 nm

1291 nm

1311 nm

1331 nm

9/125 µm

single-mode optical

fiber

40 km (24.86 miles)

NOTE:

•The QSFP-40G-LR4-WDM1300 cannot be connected to the 10-Gbps SFP+ module.

•The QSFP-40G-LR4L-WDM1300 is supported only if the software version of the device is

Release 7536P07 or later.

Table 5 describes the QSFP+ cables that used for connecting 40G QSFP+ ports.

Table 5 QSFP+ cable specifications

QSFP+ cable Cable length Data rate Cable type

LSWM1QSTK0 1 m (3.28 ft) 40 Gbps QSFP+ cable

LSWM1QSTK1 3 m (9.84 ft) 40 Gbps QSFP+ cable

LSWM1QSTK2 5 m (16.40 ft) 40 Gbps QSFP+ cable

Table 6 describes the specifications of the QSFP+ fiber cables that used for connecting 40G QSFP+

ports.

Table 6 QSFP+ fiber cables available for the QSFP+ ports

QSFP+ fiber cable Cable length Data rate Remarks

QSFP-40G-D-AOC-7M 7 m (22.97 ft)

40 Gbps For connecting 40G QSFP+

ports

QSFP-40G-D-AOC-10M 10 m (32.81 ft)

QSFP-40G-D-AOC-20M 20 m (65.62 ft)

3 Related documentation

For module installation, see H3C S7500E Switch Series Installation Guide.

For software upgrade, see the release notes for the device.
