Quidway® NetEngine 5000E Core Router 10GE Optical Interface Boards

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 5000E Core Router

10GE Optical Interface Boards

Overview

Based on the 10G platform, the Quidway®NetEngine 5000E core router (hereinafter referred to as

"NE5000E") supports 10GE optical interface boards with different port densities. Having 16 service

slots and supporting multi-chassis cascading, the NE5000E is scalable to provide high-density 10G

interfaces, fully satisfying super core node requirements of IP backbone networks. The NE5000E

has a switching capacity of 2.56 Tbps, achieving the wire-speed forwarding performance on

high-density 10G interfaces.

The 10GE optical interface boards provided by the E5000E fall into two categories: WAN board and

LAN board. Their differences are as follows:

zThe WAN board encapsulates Ethernet MAC frames in the SDH/SONET frame structure and

then transmits them over optical fibers. It can be connected with the interfaces of another WAN

board or with the SDH/SONET transmission equipment. The WAN board is mainly applied in

WAN interconnection of the Ethernet.

zThe LAN board conducts electrical/optical (E/O) conversion of Ethernet MAC frames and then

directly transmits them via optical fibers. It can be connected only to the interface of another

LAN board. It is mainly applied in LAN interconnection of the Ethernet.

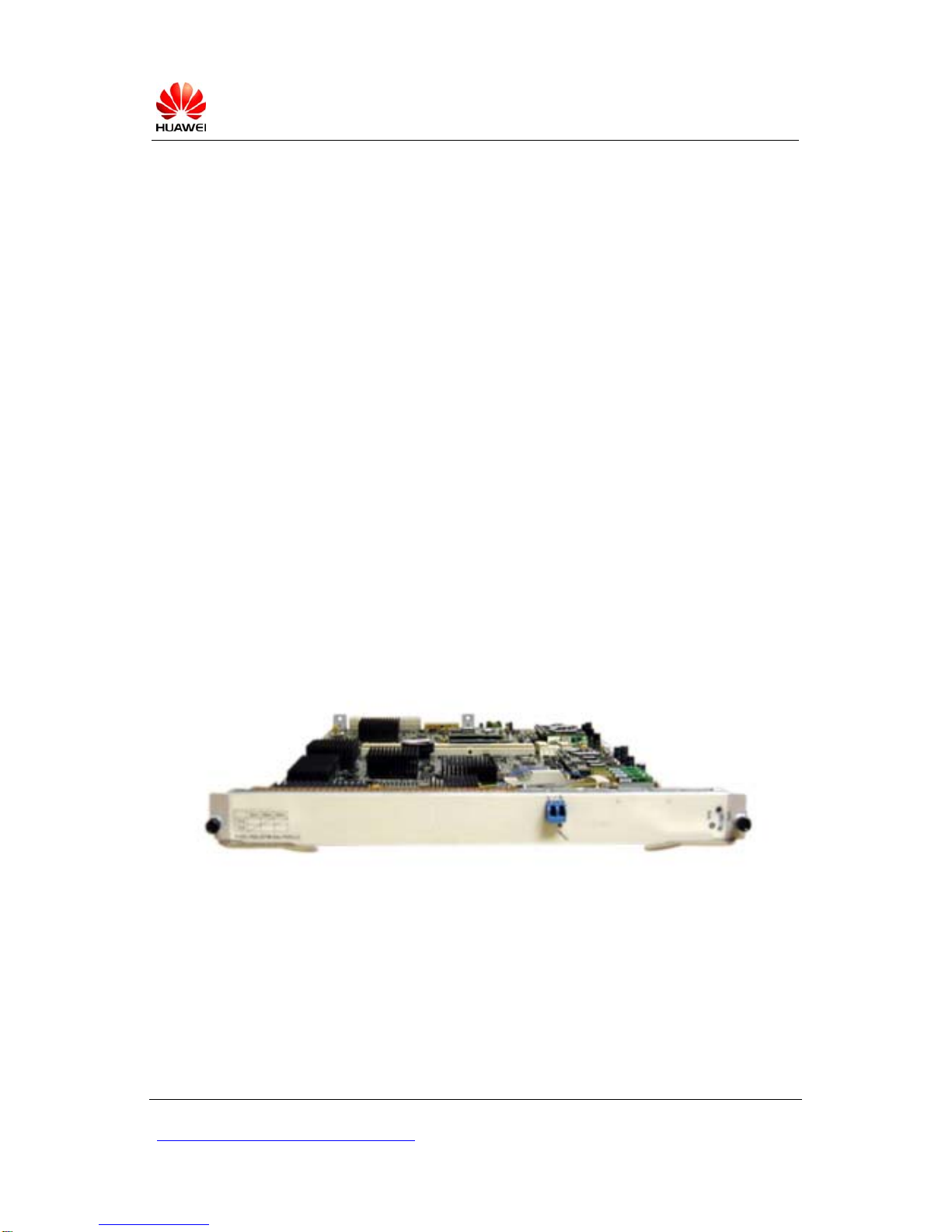

CR52K-10GE-LAN-10KM

The 10G LAN board mainly implements 10G LAN processing and interface functions. The interface

complies with IEEE 802.3ae, implements MAC and Physical Coding Sublayer (PCS) functions and

provides functions such as loopback, environment monitoring and information query.

The 10G WAN board mainly implements 10G WAN processing and interface functions. The

interface complies with IEEE 802.3ae, implements MAC, PCS and Wide Area Interface Sublayer

(WIS) functions and provides functions such as loopback, environment monitoring and information

query.

Quidway® NetEngine 5000E Core Router 10GE Optical Interface Boards

http://www.huawei.com/products/datacomm/ 2

Currently, the NE5000E provides two types of 10GE optical interface boards: 1-port and 2-port. The

first type uses pluggable XFP optical modules, and the latter type uses fixed optical modules.

Before networking, you must first choose between 10G LAN board and 10G WAN board based on

their differences, then choose between 1-port and 2-port 10GE optical interface boards based on

network requirements, and finally choose between pluggable XFP optical modules and fixed optical

modules for the 10G optical interface board based on transmission distance requirements.

Specifications

Currently, the NE5000E supports three types of 10G LAN boards and three types of 10G WAN

boards. Among them, two use pluggable XFP optical modules (2-port), and the other four use fixed

optical modules (1-port). The specifications are listed below:

Module name Interface type Description

CR52K-2x10GE-LAN-XFP LC

2-port 10G LAN Ethernet optical interface

board: Different XFP optical modules can be

chosen for different transmission distances.

CR52K-10GE-LAN-10KM LC

1-port 10G LAN Ethernet optical interface

board: The center wavelength is 1310 nm, and

the maximum transmission distance is 10 km.

CR52K-10GE-LAN-40KM LC

1-port 10G LAN Ethernet optical interface

board: The center wavelength is 1550 nm, and

the maximum transmission distance is 40 km.

CR52K-2x10GE-WAN-XFP LC

2-port 10G WAN Ethernet optical interface

board: Different XFP optical modules can be

chosen for different transmission distances.

CR52K-10GE-WAN-10KM LC

1-port 10G WAN Ethernet optical interface

board: The center wavelength is 1310 nm, and

the maximum transmission distance is 10 km.

CR52K-10GE-WAN-40KM LC

1-port 10G WAN Ethernet optical interface

board: The center wavelength is 1550 nm, and

the maximum transmission distance is 40 km.

Quidway® NetEngine 5000E Core Router 10GE Optical Interface Boards

http://www.huawei.com/products/datacomm/ 3

Currently, the NE5000E supports the following two types of 10GE XFP optical modules:

Interface rate 10 Gbps

Transmission distance 10 km 40 km

Center wavelength 1310 nm 1550 nm

Min. -6.0 dBm -1.0 dBm

Transmitting optical power Max. -1.0 dBm 2.0 dBm

Receiving sensibility -11.0 dBm -15.0 dBm

Overload optical power 0.5 dBm -1.0 dBm
