Huawei G5500 Manuale utente

HUAWEI TECHNOLOGIES CO., LTD.

Huawei FusionServer G5500 Server

Competitive Positioning

www.huawei.com ▪Huawei Confidential ▪1

Usage of This

Document Training materials for Huawei sales personnel, including Huawei sales, channel partners, and pre-

sales technical

support.

Description

Introduction to G5500

Comparison Between G5500 and Competitor Specifications

Advantages and Disadvantages of G5500 and Competitor Specifications (International)

Advantages and Disadvantages of G5500 and Competitor Specifications (China)

How to Defend

Restriction

Scenario

This document is used only for pre-sales learning. The product and vendor specifications provided in this

document are compiled according to the information obtained from the network. Actually, the information of each

vendor on the network is incomplete or may not be up-to-date. In addition, Huawei may update this course

without notifying the customer. Therefore, this course cannot be used as a basis for project bidding or

configuration selection.

Revised Version V1.0 (2017-10)

Special Declaration

www.huawei.com ▪Huawei Confidential ▪2

1Click to add Title

Introduction to the G5500

Click to add Title

2Comparison Between G5500 and

Competitor Specifications

Click to add Title

3Advantages and Disadvantages of G5500 and

Competitor Specifications (International)

Contents

Click to add Title

4Advantages and Disadvantages of G5500 and

Competitor Specifications (China)

Click to add Title

5How to Defend

www.huawei.com ▪Huawei Confidential ▪3

G5500 full-width server

Specifications of the G5500 Full-Width Server

Front view

Rear view

•Excellent performance: Supports 8 FHFL dual-slot 350 W GPU accelerator cards, 6 NVMe SSDs, 2 x 2.5-inch and 8 x 3.5-inch SAS/SATAHDDs.

•Flexible topology: A single server supports multiple topologies (1:4/1:8).A single node supports one-click switching of single-RC and balanced dual-

RC topologies, and supports P2P and GPUDirect RDMA.

•Easy maintenance: The CPU and GPU nodes support independent evolution and maintenance. Fan modules and PSUs can be removed and

inserted without opening the chassis, and main components can be replaced in one minute.

Highlights

Form factor Full-width single-slot 2S blade server

Node G560, full-width single node

Number of processors 2

Processor model Intel Xeon E5-2600 v4 series, up to 22 cores

Number of GPUs 8

GPU model NVIDIA Tesla P40/P100/V100

Memory 24 DDR4 DIMM slots, maximum memory capacity: 3 TB

Number of hard drives 6 x 2.5-inch NVMe SSDs, 2 x 2.5-inch SAS/SATA HDDs, and 8 x 3.5-inch

SAS/SATA HDDs

RAID support Supports RAID 0, 1, 10, 5, 50, 6, and 60

Supports supercapacitors

Power supply units 4 x 2,200 W Platinum PSUs, supporting 220 V AC and 240 HVDC, 2+2

redundancy

Fan modules 6 hot-swappable fan modules, supporting maintenance without opening

the chassis; N+1 redundancy

Operating temperature 5°C to 35°C

Dimensions

(H x W x D)

175 mm x 447 mm x 790 mm

www.huawei.com ▪Huawei Confidential ▪4

Front View of the G5500 Full-Width Server

GPUnode,supporting8GPUcards

TheGPUsupportsNVIDIATesla

P40/P100/V100.

Computenode, 2S +24DIMM

G560

6 x 2.5-inch NVMe SSDs

2 x 2.5-inch SAS/SATA HDDs

8 x 3.5-inch SAS/SATA HDDs

PCIex4NVMeSSD

6G/12Gbit/sSASHDD

SupportsRAID0,1,10,5,50,6,60,and

supercapacitorforcachepower-off

protection

Hard Drive

3.5

-inch hard drive

Power button/indicator

3.5

-inch hard drive fault indicator

UID button/indicator

3.5

-inch hard drive activity

indicator

Health status indicator

2.5

-inch hard drive

elease button

2.5

-inch hard drive fault indicator

NVMe SSD

2.5

-inch hard drive activity

indicator

NVMe SSD activity indicator

Slide

-out information label

NVMe SSD fault indicator

Ejector lever

91011 12

www.huawei.com ▪Huawei Confidential ▪5

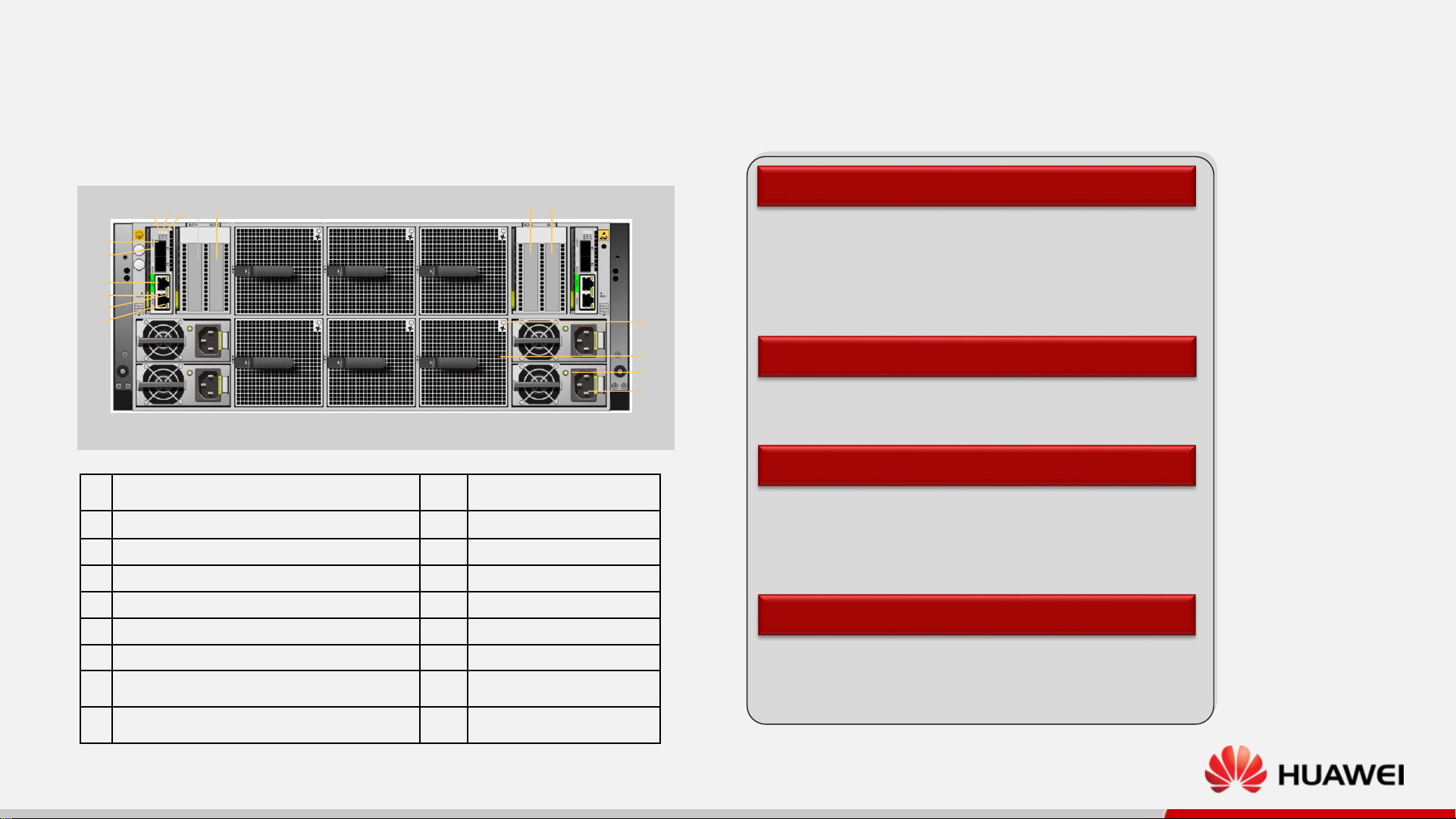

Rear View of the G5500 Full-Width Server

Dualmanagementmodules(G560supportsonly

onemodule)

2x10GEopticalports(currentlynotsupportedby

theG560)

GEmanagementnetworkportandserialport

Management/IO Module

Platinum PSUs, 2+2 redundancy

Maximum power consumption of a single

PSU: 2,200 W

SupportsAC and 240 V HVDC

Power Supply

6hot-swappablefanmodules, N+1redundancy

Supportsonlinemaintenancewithoutopeningthe

chassis

Fan Module

Management module:Active/standby

indicator

PSU

Management module: Health indicator

PSU

indicator

Management module: Power indicator

Fan module

10GE optical port

Fan module indicator

10GE optical port LINK/ACT indicator

Interface card slot 1

Management module: Serial port

Interface card

slot 2

Management module: GE electrical port

Interface card slot 3

Management module:ACT indicator of the

GE electrical port

Interface card slot 4

Management module: LINK indicator of the

GE electrical port

3or4PCIex16expansionslots

SupportsHHHLPCIecard

Management/IO Module

www.huawei.com ▪Huawei Confidential ▪6

Product diagram

Internal View of the G5500 Full-Width Node

G560 Node

8*PCIe x16 (FHFL GPU)

8*3.5'' HDD

G560 CPU compute module G560 heterogeneous compute module

2*E5-2600 v4

CPU

24*DDR4 DIMM PCIe interface card

RAID

controller

card

2*2.5'' HDD

6*2.5'' NVMe

www.huawei.com ▪Huawei Confidential ▪7

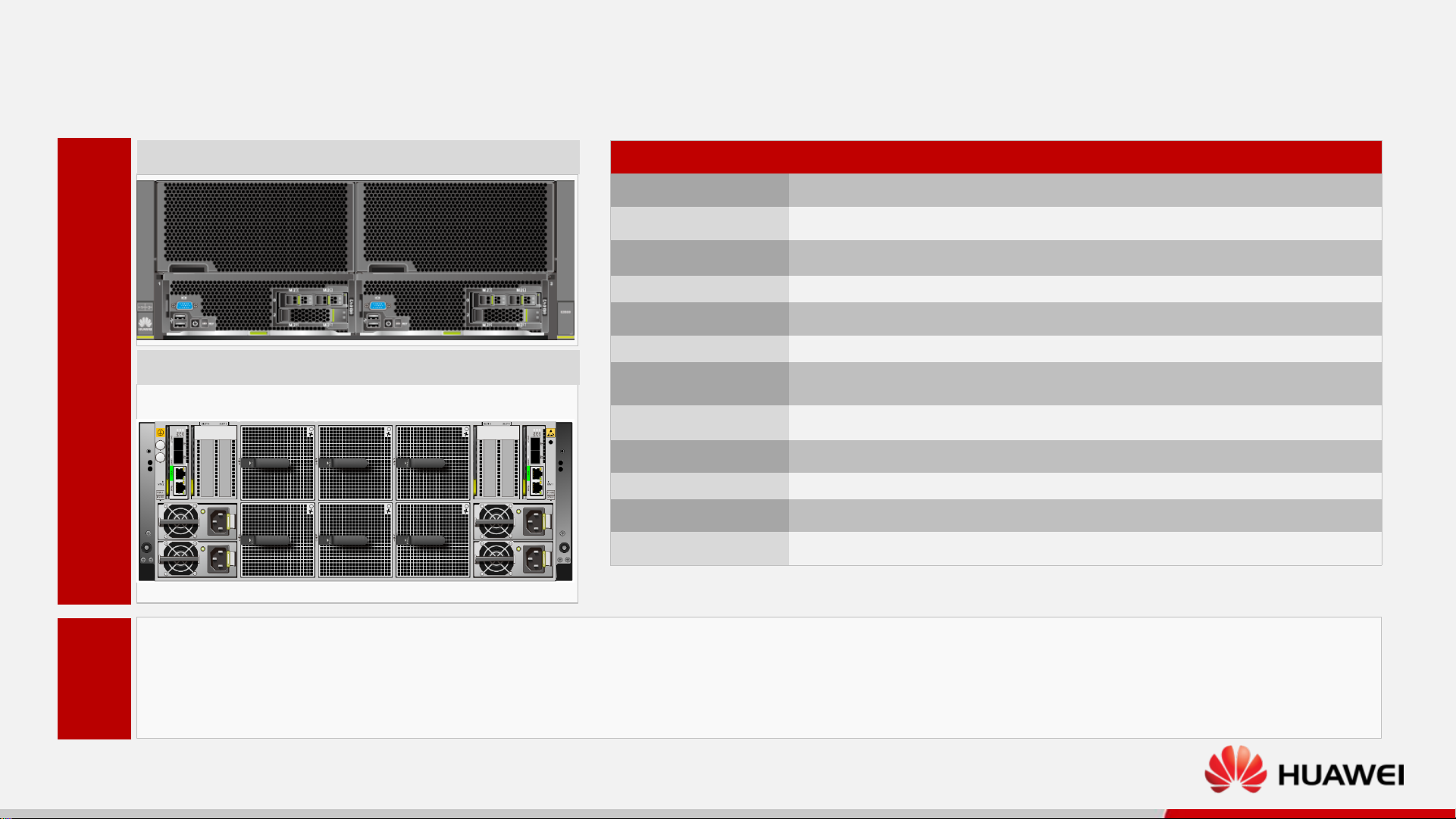

G5500 half-width server

Specifications of the G5500 Half-Width Server

•Excellent performance: A single node supports 16 HHHL 75 W GPU accelerator cards and supports 2 NVMe/SAS/SATA or M.2 SATA SSDs.

•Flexible topology: A single server supports the 1:8 topology and supports P2P and GPUDirect RDMA.

•Easy maintenance: The CPU and GPU nodes support independent evolution and maintenance. Fan modules and PSUs can be removed and

inserted without opening the chassis, and main components can be replaced in one minute.

Highlights

Form factor Full-width single-slot 2S blade server

Node G530 V2, half-width dual nodes, 16 GPUs

Number of processors 2

Processor model Intel Xeon Scalable Processors, up to 28 cores

Number of GPUs 16

GPU model NVIDIA Tesla P4

Memory 24 DDR4 DIMM slots, maximum memory capacity: 3 TB

Number of hard drives 2 x 2.5-inch SAS/SATA/NVMe or 4 x M.2 SATA SSDs

RAID support RAID 0, 1, and 10

Power supply units 4 x 2,200 W Platinum PSUs, supporting 220 V AC and 240 V HVDC, 2+2 redundancy

Fan modules 6 hot-swappable fan modules, N+1 redundancy

Operating temperature 5°C to 35°C

Dimensions (H x W x D

)

175 mm x 447 mm x 790 mm

Front view

Rear view

www.huawei.com ▪Huawei Confidential ▪8

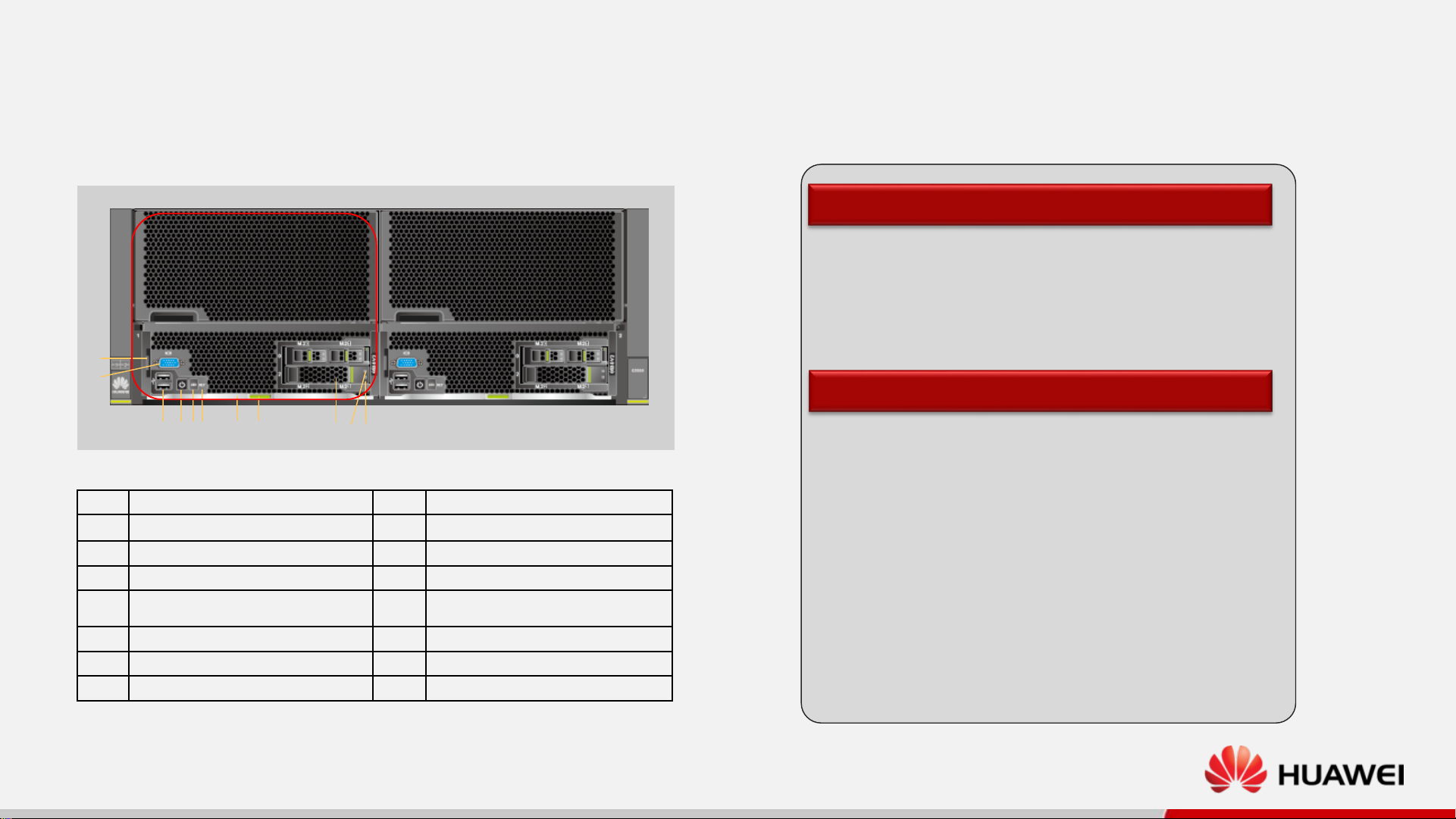

Front View of the G5500 Half-Width Server

Slide

-out information label

elease button

VGA port

Ejector lever

USB3.0 interface

2.5

-inch hard drive

Power button/indicator

2.5

-inch hard drive fault indicator

UID button/indicator

2.5

-inch hard drive activity

indicator

Health status indicator

691011

GPUnode,supporting16GPUcards

TheGPUsupportsNVIDIATeslaP4.

Computenode, 2S +24DIMM

G530 V2

2 x 2.5-inch SAS/SATA/NVMe or 4 x

M.2 SATA SSDs

PCIex4NVMe

6G/12Gbit/sSASHDD

RAID0, 1,10

Hard Drive

www.huawei.com ▪Huawei Confidential ▪9

Rear View of the G5500 Half-Width Server

Dualmanagementmodules

2x10GEopticalports

GEmanagementnetworkportandserialport

Management/IO Module

Platinum PSUs, 2+2 redundancy

Maximum power consumption of a single

PSU: 2,200 W

AC and 240 V HVDC

Power Supply

6hot-swappablefanmodules, N+1redundancy

Supportsonlinemaintenancewithoutopeningthe

chassis

Fan Module

4PCIex16expansionslots

SupportsHHHLPCIecard

Management/IO Module

Management module:Active/standby

indicator

PSU

Management module: Health indicator

PSU

indicator

Management module: Power indicator

Fan module

10GE optical port

Fan module indicator

10GE optical port LINK/ACT indicator

Interface card slot 1

Management module: Serial port

Interface card

slot 2

Management module: GE electrical port

Interface card slot 3

Management module:ACT indicator of

the GE electrical port

Interface card slot 4

Management module: LINK indicator

the

GE electrical port
