Hussmann IMPACT Elite E3-XC Manuale utente

P/N 0503573_A

Note: Rev. A is first issue.

E3-XC

Data Sheet Set

P/N 0503573_A

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

6 Ft Only

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0382383 Fan Blade (FB.4780617)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0382383 Fan Blade (FB.4780617)

Item Part # Description Wiring Item #

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS AND BALLASTS

D. Ballast, Electronic (4)

0466234 2 lamps (BA.4480823)

0466235 3 lamps (BA.4480901)

0466236 4 lamps (BA.4481095)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/8(1222) 72 1/8 (1832) 96 1/4(2445) 144 3/8(3667)

(Each end and insulated partition adds 1 in. (25 mm) to case line up.)

Maximum O/S dimension back to front (with bumper) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181)

Back of case to front of front panel 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Back of case to O/S edge of front skid rail 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

Width of skid rail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 1 3/8(34) 1 3/8(34) 1 3/8(34) 1 3/8(34)

Distance between edges of

external support and center support NA 28 1/2 (724) 40 1/2 (1029) 40 1/2 (1029)

Distance between edges of center supports NA NA NA 44 (1118)

Stub-up area between front skid rail and front panel 5 3/4 (146) 5 3/4 (146) 5 3/4 (146) 5 3/4 (146)

Electrical Service (Electrical Field Wiring connection point)

(B) Length of electrical raceway 18 3/8 (467) 18 3/8 (467) 37 (940) 37 (940)

Back of case to center of end knockout 29 5/8 (752) 29 5/8 (752) 29 5/8 (752) 29 5/8 (752)

(D) RH End of case to RH end of wireway 27 5/8 (702) 51 5/8 (1311) 57 1/4 (1454) 105 1/8 (2670)

(E) LH End of case to LH end of wireway 2 1/8 (54) 2 1/8 (54) 2 (51) 2 1/4 (57)

Waste Outlet

(F) RH End of case to the center of waste outlet 24 1/4 (616) 24 1/4 (616) 24 1/2 (622) 72 1/4 (1834)

LH End of case to the center of waste outlet 23 7/8 (606) 47 7/8 (1216) 71 3/4 (1822) 72 1/8 (1832)

Back O/S of case to center of waste outlet 27 5/8 (702) 27 5/8 (702) 27 5/8 (702) 27 5/8 (702)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail; water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 3/4 (781) 30 3/4 (781) 30 3/4 (781) 30 3/4 (781)

RH end of case to center of refrigeration outlet 8 3/8 (213) 8 3/8 (213) 8 3/8 (213) 8 3/8 (213)

2 of 8 E3-XC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

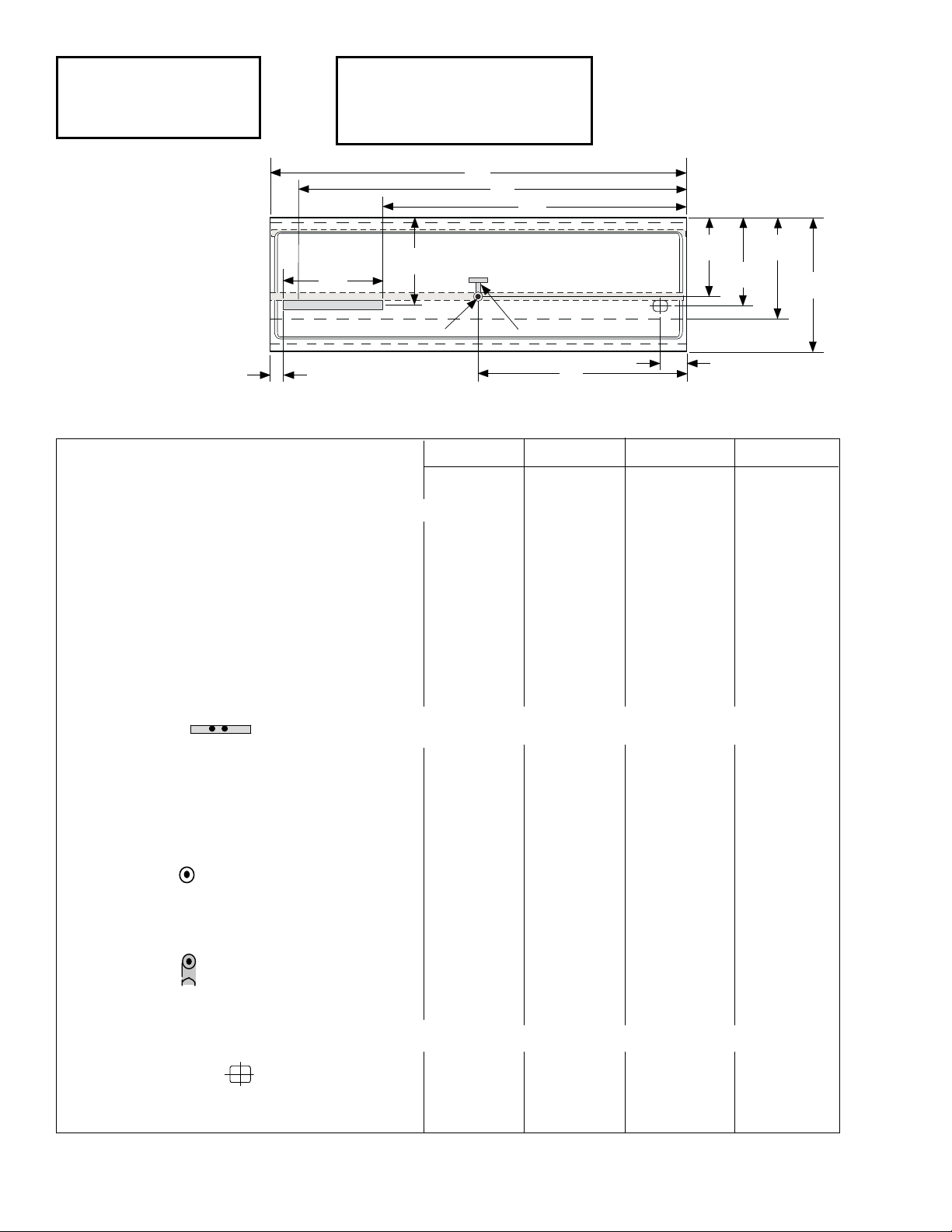

Engineering

Plan Views Dimensions shown as

inches and (mm).

02-2008

34 1/2

(876)

83/8(213)

Electrical Service

29 5/8

(752)

Waste Outlet

Front

27 5/8

(702)

30 3/4

(781) 46 1/2

(1181)

Water Seal

E3-XC

Delicatessen

Precut & Packaged

Produce

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75 (°F) and

55% R.H.

E3-XC

Discharge Air (°F) 29

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft — Unlit Shelves

E3-XC‡‡ Parallel Conventional

UNLIT 1180 1280

‡‡ Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

E3-XC

Frequency (hr) 6

Defrost Water 8 lb/ft/day

(± 15% based on case configuration and product

loading).

OFFTIME E3-XC

Temp Term (°F) 48

Failsafe (minutes) 40

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** E3-XC

Temp (°F) 14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)*** E3-XC

4 ft 0.9

6 ft 1.8

8 ft 1.9

12 ft 2.9

***This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0503573_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

20 3/8

(517)

(762)

55 7/8

(1419)

(305)

(559)

34 1/2

(876)

46 1/2

(1181)

(305)

27 5/8

(702)

30 3/4

(781)

31 (787)

FAN

35 1/4

(895)

E3-XC

4 1/4

(108)

Refrigeration

Outlet

Impact

Elite

E3-XC

Delicatessen

Precut & Packaged Produce

Elite Specialty Merchandiser Multi-deck,

Extended Canopy, 3 Display Levels

Dimensions shown as in. & (mm).

See Page 8 for

shelf arrangement.

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 E3-XC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Elite

E3-XC

Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—7W 1 — 2 3

Number of Fans—4W — 2 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.50 0.62 1.00 1.50 39 48 78 117

120V 50Hz Standard 0.55 0.76 1.10 1.65 42 54 84 126

230V 60Hz Export 0.25 0.30 0.50 0.75 39 48 78 117

230V 50Hz Export 0.28 0.36 0.56 0.84 42 54 84 126

120V 60Hz Energy Efficient 0.19 0.24 0.38 0.57 14 16 28 42

230V 60Hz Energy Efficient 0.10 0.12 0.20 0.30 14 16 28 42

Minimum Circuit Ampacity †

120V 60Hz Standard 0.70 0.82 1.20 1.70

120V 50Hz Standard 0.75 0.96 1.30 1.85

230V 60Hz Export 0.45 0.50 0.70 0.95

230V 50Hz Export 0.48 0.56 0.76 1.04

120V 60Hz Energy Efficient 0.39 0.44 0.58 0.77

230V 60Hz Energy Efficient 0.30 0.32 0.40 0.50

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting

2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170

Optional Always*Bright LED Lighting

2 Row of Shelves 0.26 0.34 0.47 0.67 31 41 56 80

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8

P/N 0503573_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Elite

E3-XC

Delicatessen

Precut & Packaged Produce

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 10 ft 12 ft (each)

lb (kg) 600 (272) 800 (363) 1000 (454) NA (NA) 1300 (590) 100 (45)

5Actual weights will vary according to optional kits included.

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 5.15 ft3 /ft (0.48 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 4.77 ft3 /ft (0.44 m3/m)

ARI Total Display Area 3 (Sq Ft/Ft) 3.30 ft2 /ft (1.01 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.07 ft2 /ft (2.17 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3] / Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume / Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2] / Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (1) row of 14-inch shelf, (1) row of 18-inch shelf and

(1) row of 22-in shelf.

6 of 8 E3-XC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

2 & 3 Fans 120V NEUTRAL

BROWN BAND

120V POWER Fans 1

BROWN BAND

= Case GROUND

Connector

Connector Connector

Shelf Harness and Light Circuits for One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Optional Shelf Lighting

Fluorescent Fixtures

G G

Connector

Optional Fluorescent Lighting: 1 Row Ledge or 1 Row Rail

Light Circuits

Standard Fluorescent Lighting 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

7 of 8

P/N 0503573_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

8 of 8 E3-XC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Load Limit

18 in.

14 in.

Recommended

Angle

Shelf

Size

22 in.

SHELF CONFIGURATION

This merchandiser is designed for three

shelves.

This illustration shows recommended

shelf depth and shelf angle for the three

locations.

It is critical to case performance that no

product, shelf or stop extend beyond the

load limit, as shown in this illustration.

This configuration supports the air

curtain and provides optimal case

performance.

Check with Hussmann engineering

before using a different configuration.

Impact

Elite

E3-XC

Delicatessen

Precut & Packaged Produce

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann IMPACT RL Manuale di istruzioni

Hussmann

Hussmann C2XEC-E Manuale di istruzioni

Hussmann

Hussmann IMPACT D6 Manuale utente

Hussmann

Hussmann IMPACT IEDG1 Manuale di istruzioni

Hussmann

Hussmann FM Manuale utente

Hussmann

Hussmann impact Excel C2X-LEP Manuale di istruzioni

Hussmann

Hussmann IMPACT Elite E1 Manuale utente

Hussmann

Hussmann APT0500 Manuale utente

Hussmann

Hussmann RI1 Manuale utente

Hussmann

Hussmann IMPACT Elite E1 Manuale di istruzioni

Hussmann

Hussmann HGL-1BS Guida rapida

Hussmann

Hussmann Impact Excel D5X-ULEP Manuale di istruzioni

Hussmann

Hussmann Impact Excel M4X-GEP Manuale di istruzioni

Hussmann

Hussmann IMPACT C6LRE Manuale utente

Hussmann

Hussmann Impact M1GLE-93 Manuale utente

Hussmann

Hussmann D5NX-LE Manuale di istruzioni

Hussmann

Hussmann Specialty Products CR3-H Manuale di istruzioni

Hussmann

Hussmann Specialty ProductsCR3FO Istruzioni operative originali

Hussmann

Hussmann VGK Manuale utente

Hussmann

Hussmann RMID Manuale di istruzioni

Hussmann

Hussmann IMPACT Excel D5XLRE Manuale di istruzioni

Hussmann

Hussmann SMBT Manuale di istruzioni

Hussmann

Hussmann SMBV Manuale utente

Hussmann

Hussmann MicroSC ISMGG2DA-A Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
