Hussmann IMPACT M5G Manuale di istruzioni

P/N 0378422_D

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0315470 Fan Blade (FB.0315470)

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat (CT.0411744)

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

(CT.4481084)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. Ballast, Electronic (4)

0428648 2 lamps (BA.4480823)

0428649 3 lamps (BA.0428649)

E. Fluorescent Lamp (5)

Replace with like fixtures

M5G

Technical Data Sheet

P/N 0378422_D

NSF®Certified

March 2007

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision D adds the 10-ft model and After Market numbers.

2 of 6 M5G Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

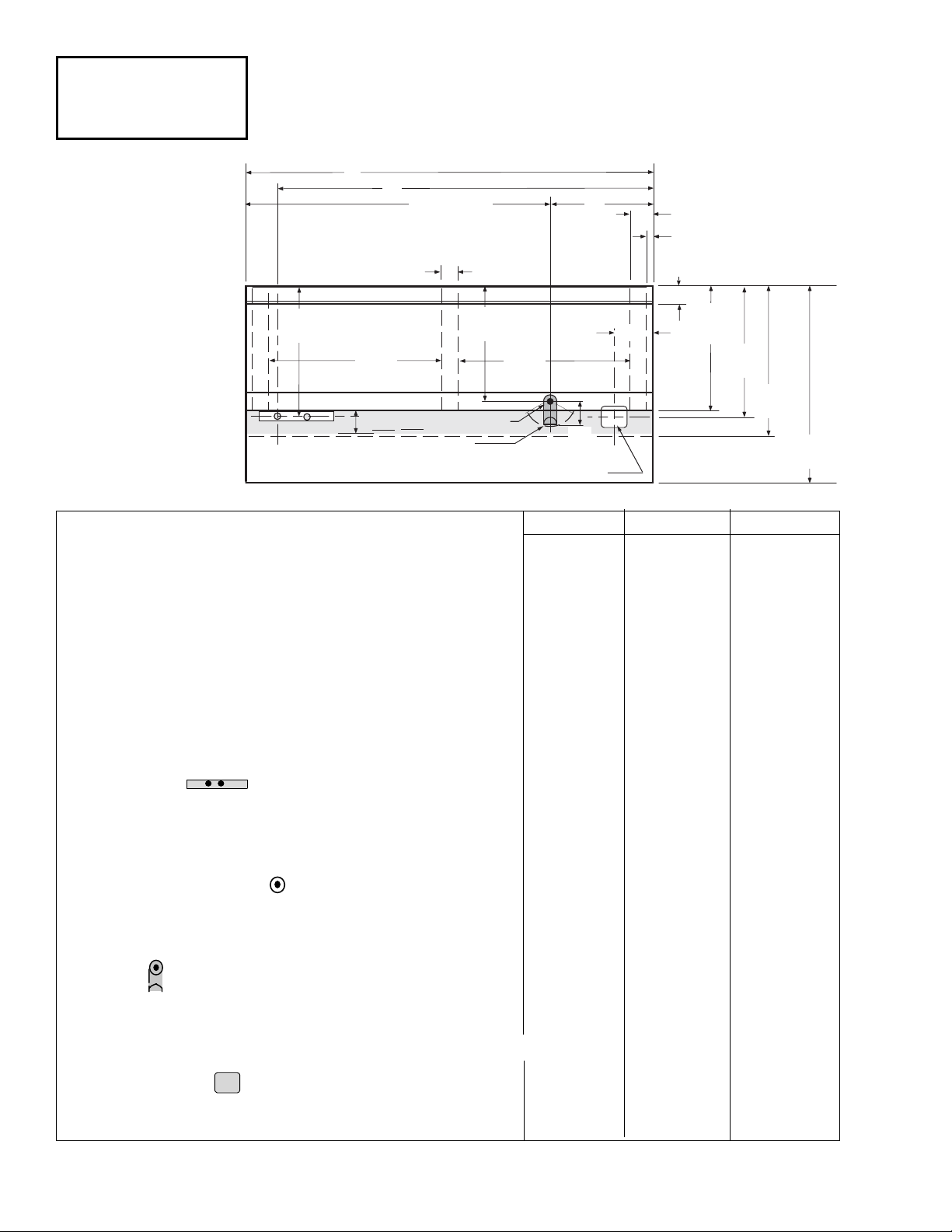

Plan Views

Waste Outlet

Water Seal

(see note) Refrigeration

Outlet

Electrical

72 1/4(1835)

40 5/8

(1032)

27 5/8

(703)

30 5/8

(778)

4 1/8(105)

29 3/8

(747)

46 1/4

(1174)

4 1/2(114)

5 1/2(140)

1 3/8(35)

40 5/8

(1032)

35 3/8

(897)

(102)

FRONT

4 1/2(114)

30 1/2

(775)

Dimensions shown as inches and (mm).

Meat &

Delicatessen

09-2003

8 ft 10 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 120 1/2(3061) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front (includes bumper) 46 5/8(1184) 46 5/8(1184) 46 5/8(1184)

Back of case to front of splashguard 35 3/8(897) 35 3/8(897) 35 3/8(897)

Back of case to O/S edge of front skid rail 29 3/8(747) 29 3/8(747) 29 3/8(747)

Width of skid rail 4 1/2(114) 4 1/2(114) 4 1/2(114)

RH End of case to inside edge of external support 5 1/2(140) 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8(1032) 40 5/8(1032) 40 5/8(1032)

Distance between edges of center support NA NA 44 (1118)

Stub-up area between front skid rail and splashguard 4 1/2(114) 4 1/2(114) 4 1/2(114)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8(2245) 112 1/2(2858) 136 1/2(3467)

Back of case to center of knockout 30 1/2(775) 30 1/2(775) 30 1/2(775)

Length of electrical raceway 31 5/8(803) 31 5/8(803) 31 5/8(803)

Waste Outlets (One each end)

LH End of case to the center of waste outlet 72 1/4(1835) 72 1/4(1835) 72 1/4(1835)

Back O/S of case to center of waste outlets 27 5/8(703) 27 5/8(703) 27 5/8(703)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2(38) 1 1/2(38) 1 1/2(38)

NOTE: Water seal outlet must clear front skid rail; water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 5/8(778) 30 5/8(778) 30 5/8(778)

(D) RH End of case to center of refrigeration outlet 9 (230) 9 (230) 9 (230)

3 of 6

P/N 0378422_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

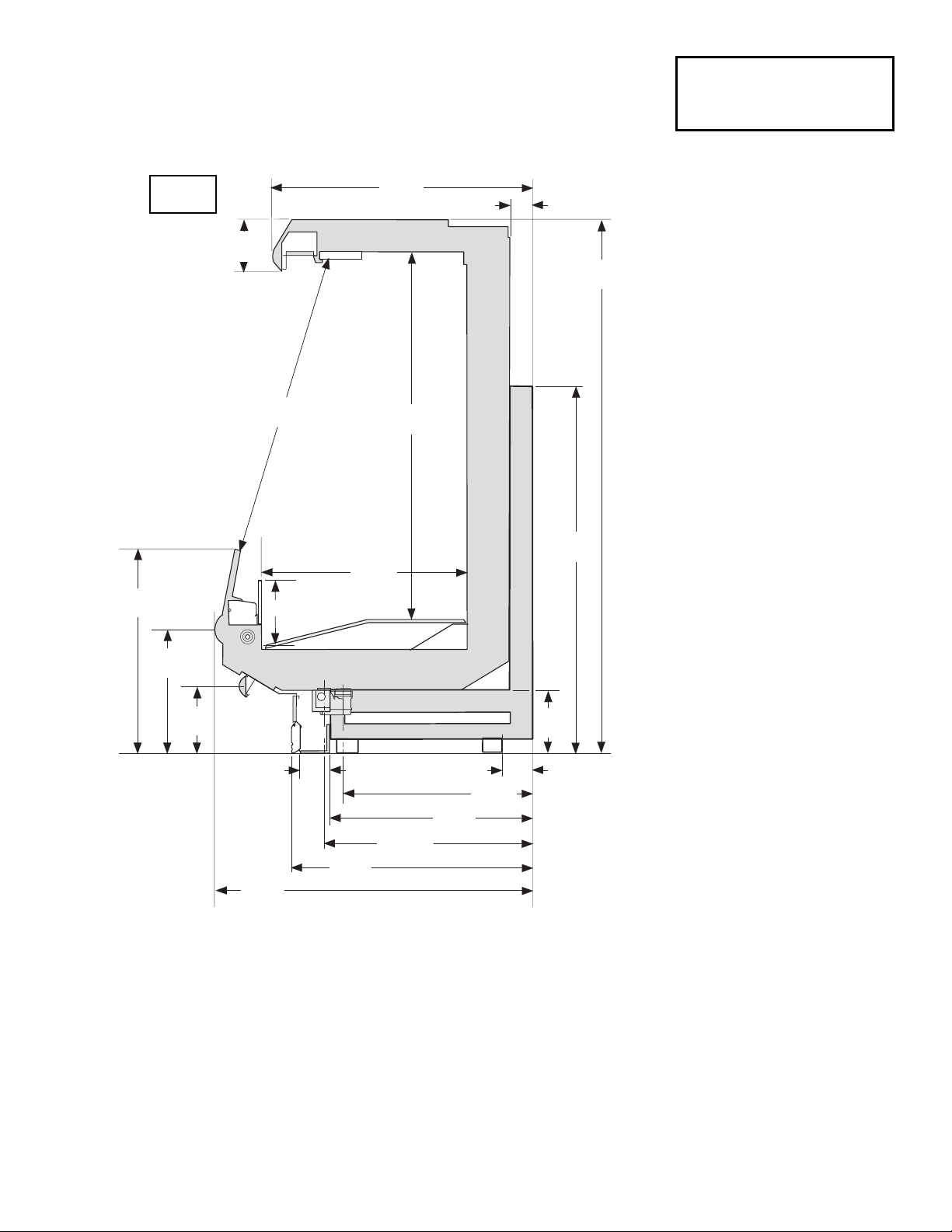

FAN

3 1/8 (79)

4 1/2 (114)

27 5/8

(703)

35 3/8

(897)

46 5/8

(1184)

38 1/8

(966)

7 1/2

(190)

43 1/2

(1107) 53 7/8

(1368)

9 7/8 (250)

30 1/4

(769)

77 7/8

(1979)

9 1/4

(234)

4 1/2 (114)

53 1/2

(1356)

(763)

30 5/8

(778)

29 3/8

(747)

18 1/8

(462)

(254)

Impact M5G

Meat & Delicatessen

Dimensions shown as inches and (mm).

Multi-deck, 5 Display Levels, and Front Glass

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

M5G M5GE

Discharge Air °F 27 28

Evaporator °F 18 21

Unit Sizing °F 16 19

Btu/hr/ft M5G M5GE

Parallel 1380 1320

Conventional 1500 1440

DEFROST DATA

Frequency Hrs 66

Defrost Water (lb/ft/day) 9

(± 15% based on case configuration and

product loading).

OFFTIME M5G M5GE

Temp Term °F 48 48

Failsafe Minutes 35 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*M5G M5GE

12°F / 2°F 14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)**

M5G M5GE

8 ft 2.7 3.2

10 ft — 3.9

12 ft 3.9 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by Each

End and Insulated Partition (in.) 1 1/2

M5G

4 of 6 M5G Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact M5G

Meat & Delicatessen

Electrical Data

Number of Fans 8 ft 10 ft 12 ft

Refrigeration – 9W 4 6 6

Export – 9W 4 6 6

Amperes Watts

Merchandiser 8 ft 10 ft 12 ft 8 ft 10 ft 12 ft

Fans (Refrigeration)

120V 60Hz Standard 2.80 4.20 4.20 210 330 330

120V 60Hz Energy Efficient 1.52 2.28 2.28 100 150 150

230V 50Hz Export 1.52 2.28 2.28 228 342 342

Constant On Anti-sweat Heaters NA NA NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA NA NA

Minimum Circuit Ampacity

120V 60Hz Standard 3.00 4.40 4.40

120V 60Hz Energy Efficient 1.72 2.48 2.48

230V 50Hz Export 1.72 2.48 2.48

Maximum Over Current Protection 120V 20 20 20

Maximum Over Current Protection 230V 15 15 15

208V Electric Defrost Heaters NA NA NA NA NA NA

208V Gas Defrost Heaters NA NA NA NA NA NA

Standard Lighting 8 ft 10 ft 12 ft 8 ft 10 ft 12 ft

1 Row Canopy 0.51 0.77 0.77 59 85 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 1.54 118 170 170

2 Row Canopy 1.02 1.54 1.54 118 170 170

2 Row Canopy and 1 Row Rail 1.53 2.31 2.31 177 255 255

3 Row Canopy 1.53 2.31 2.31 177 255 255

3 Row Canopy and 1 Row Rail 2.04 3.08 3.08 236 340 340

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 0.77 59 85 85

2 Rows of Shelves 1.02 1.54 1.54 118 170 170

3 Rows of Shelves 1.53 2.31 2.31 177 255 255

4 Rows of Shelves 2.04 3.08 3.08 236 340 340

5 of 6P/N 0378422_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Fan Wiring

Offtime Defrost

4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Grayed components in 10 foot and 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

6 of 6 M5G Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Standard Lighting 1 Row Canopy or Optional 1 Row Rail

Light Circuits

Optional Lighting 2 Row Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 10 foot and 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 3 Row Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND
