IBM OpenPower 710 Manuale utente

Quick start guide for OpenPower 710 (9123-710)

1Before you begin

This Quick start guide contains an abbreviated set of setup instructions designed to help you quickly

unpack and set up a standard system. Users unfamiliar with this IBM hardware should use the fully

detailed, setup instructions that you can find in the IBM Systems Hardware Information Center. For

details about how to access the information center, see task 9 .Finish your system setup

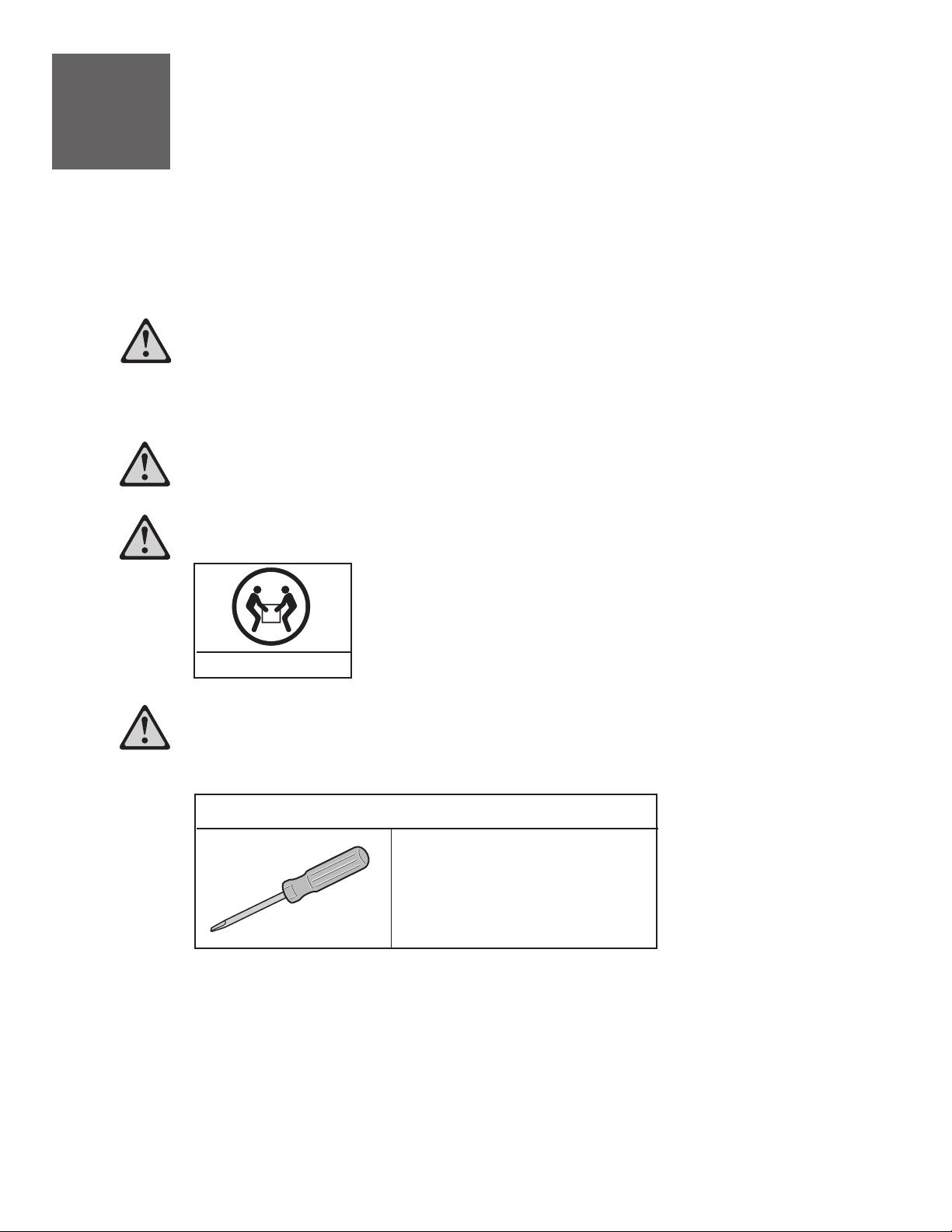

The exclamation mark surrounded by a gray triangle denotes caution. A CAUTION

notice indicates the presence of a hazard that has the potential of causing

moderate or minor personal injury. Before doing a step that contains a caution icon,

read and understand the caution statement that accompanies it.

Use safe practices when lifting.

Rack-mounted devices are not to be used as a shelf or workspace. Do not

place any object on top of rack-mounted devices.

18-32 kg (39.7-70.5 lbs)

Tools needed (Rack installation only)

Flat-blade screwdriver

CAUTION: The weight for this part or unit is between 18 and 32 kg (39.7 and

70.5 lbs). It takes two persons to safely lift this part or unit. (C009)

Inventory

2.1 Complete an inventory of the external parts.

Locate the kitting report (inventory list) in the bag that contains the information

center CD (SK3T-8159). Make sure you received all of the parts that you ordered.

Your order information should be located in an envelope adhered to the outside

of your system box. You can also obtain order information from your marketing

representative or IBM Business Partner.

If you have incorrect, missing, or damaged parts, consult any of the following

resources:

Your IBM reseller

IBM Rochester manufacturing automated information

line at 1-800-300-8751 (United States only)

Directory of worldwide contacts at www.ibm.com/planetwide.

Select your location to view the service and support contact information.

2.2 Yo u will need the following parts:

Slide rail assemblies

Cable-management arm

Rack-mounting hardware kit

Screws

3.1

3.2

3.3

If you are installing your server into a new rack, ensure that you have completed the

unpacking instructions that were provided with the rack.

If your s is already installed in a rack, skip to task 7

Place the rack in the location of the installation.

Use the wrench that was provided with your rack to level the rack by raising or

lowering the front and back leveling feet .

Install the stabilizer bracket on the front of the rack.

If necessary, remove any trim kit pieces that were previously installed on the

rack. Removing the trim kit pieces allows you to read the EIA units on the rack.

Tip:

erver Cable the HMC and the

server

3.4

Prepare the rack for installation

4.1 Determine where in the rack to place the server. This server occupies two EIA units.

Remove any filler panels necessary to allow adequate access to the location where

you will install your server.

If you do not have enough space around your rack to open the front and back doors

completely, remove the doors before starting this task to allow adequate access.

Install the slide rail assemblies

4.2 Install the slide rail assemblies.

Pull the front and back blue latch-assembly release tabs and use the blue

tabs to push the latch assembly into the retracted position. Make sure both

front and back slide-rail pins are fully retracted.

Front view

Note: Install units into the lower part of the rack first. Place larger and heavier units

in the lower part of the rack.

Back view

Actual size

part 12J5289

4.3

4.4

()Optional Finger-tighten the system-retaining screws into the back

slide-rail bracket holes on the back of the rack.

Repeat steps 4.2 and 4.3 for each

slide rail assembly.

From the back of the rack, place the front rack flange between the front

slide-rail flange and the retracted front-alignment pins . Press the release

tab to extend the pins into the holes.

Align the back alignment pins with the correct holes in the back rack-flange

and press the latch assembly release tab to extend the pins into the back of

the rack.

Ensure that the pins are in the correct holes and that the slide rail assembly

is level.

Front view

Note: You will securely tighten the

screws during task 5 Install the server

onto the slide rail assembly.

5.1

5.3

5.4

5.5

5.2

5.6

Fully extend both slide rails.

Lift the server, and position it over the extended slide rails.

Use a screwdriver to tighten the system-retaining screws that you may have

installed in step 4.3.

Use safe practices when lifting.

Align the slots on the server chassis with the tabs on the slide rails.

Lower the server onto the slide rails, ensuring that the slots and tabs align

correctly, and the server is securely seated onto the slide rails.

Simultaneously pull the blue safety latches on the slide rails of each side of the

server, and carefully push the server into the rack.

Install the server onto the slide rail assembly

Before you begin: Read this entire task before completing any individual steps.

Before installing the server onto the slide rail assembly, ensure that the

leveling feet are extended and that the stabilizer bracket is correctly installed

to prevent the rack from falling forward.

18-32 kg (39.7-70.5 lbs)

6.1 Locate the cable-management arm and the two pins .EA

6Install the cable-management arm

6.3

From the back of the rack, use the pin to affix the cable-management arm to the

left slide rail management arm flange that is attached to the rack frame .

D--

6.2

Use the second pin to affix the other end of the cable-management arm to the

flange that is attached to the sliding portion of the left slide rail assembly .

Tip: If space is limited inside the rack, slide the server out part of the way to install

the cable-management arm.

7.1

7.2

7.3

Route the power cords through the rings or clamps, if available, and

connect to the server, monitor, and HMC. Do not connect the power

cords to a power source until instructed to do so.

7.4 Attach the monitor cable to the monitor connector on the HMC

and tighten the screws.

Tip: If you are using the rack-mounted LCD monitor and keyboard (7316-TF3),

use the C2T-to-KVM adapter breakout cable to attach to the HMC.

A Hardware Management Console (HMC) is a system that connects to the server and manages it

through a network.

If you are using a rack-mounted HMC, these steps assume that it is already installed in the rack.

If you need to install the HMC into the rack, follow the instructions in the IBM Systems Hardware

Information Center, and return to this guide when you are ready to begin cabling your HMC. For

details about how to access the information center, see task 9

If you are not using an HMC to manage your server, you can use the Integrated

Virtualization Manager (IVM), a graphics terminal, or an ASCII terminal. If you plan to use

IVM, which allows you to create and manage partitions, skip to task 8

. For information about the other console

options, go to the IBM Systems Hardware Information Center. For details about how to

access the information center, see task 9 .

Cable the server and

access the Integrated Virtualization Manager

Finish your system setup

Finish your system setup.

If you are using any optional adapters for the HMC, connect the cables to the

appropriate adapter connectors in the PCI slots of your server and HMC.

Cable the HMC and the server

Connect the mouse and keyboard cables to the appropriate ports on the back of

the HMC. If your mouse and keyboard use Universal Serial Bus (USB) cables,

you can connect these to the ports on the front of the HMC.

Important: Ensure that if there is a voltage switch next to the power

connector on the monitor, it is in the appropriate position for the voltage

used in your geography.

7.5

7.6

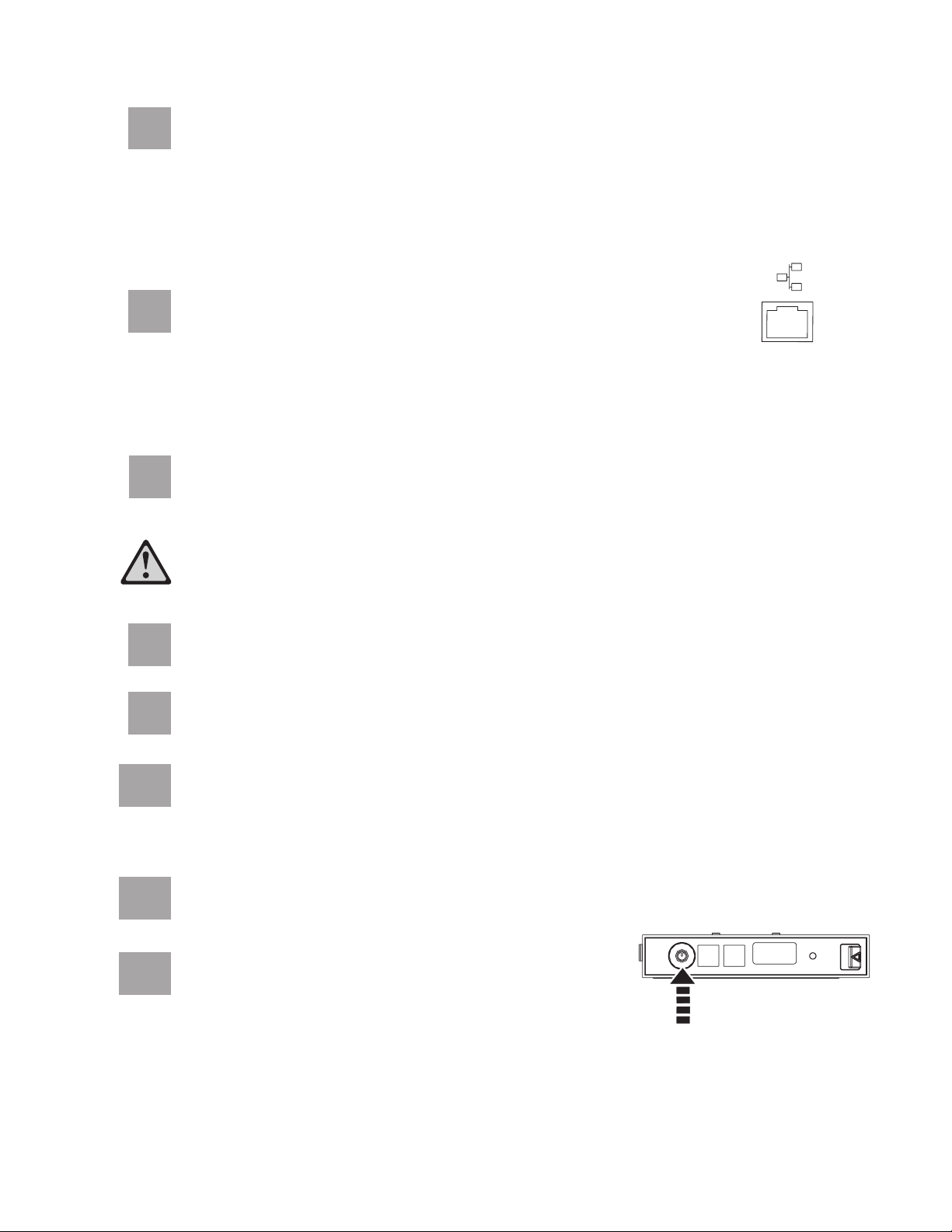

If you are not using a modem, skip to step 7.6.

If you are using the integrated HMC modem, connect the telephone cable to the

modem and to the analog jack on the wall. If you are using an external modem,

connect the modem data cable to the external modem and to a serial port on the

HMC. Then connect the telephone cable to the external modem and to the

analog jack on the wall.

Connect the Ethernet cable to the Ethernet port on the HMC and to

the Ethernet port labeled HMC1 on the server.

For a stand-alone HMC, use the integrated Ethernet port. For the 7310-CR2

rack-mounted HMC, use the bottom-right Ethernet port. For the 7310-CR3 rack-

mounted HMC, use the left port of the two planar board Ethernet ports.

7.7

7.8

7.9

If using an external modem, plug the power cord into the modem.

CAUTION: This product is equipped with a 3-wire (two conductors and a

ground) power cable and plug. Use this power cable with a properly

grounded electrical outlet to avoid electrical shock. (C018)

You have completed the basic setup. Go to task 9 Finish your system setup.

Route the cables through the cable-management arm on the server, and secure

the cables with the straps provided.

Start and configure the HMC, which includes the Guided Setup Wizard. You can

find the instructions for configuring the HMC in the IBM Systems Hardware

Information Center. For details about how to access the information center, see

task 9 Finish your system setup.

7.10

Connect the s to a power source and wait for the control panel on the front

of the server to display . This might take several minutes.

erver ,

7.11

Press the white Power On button on the control panel.

Plug the power cords for the monitor, HMC, and external modem into a power

source. Do not connect the server to a power source until instructed to do so.

7.12
