WinPAC-8000 Quick Start Guide

Version 1.0.3, October 2009

Congratulations on purchasing Win PAC-8000 - the most popular automation solution

for remote monitoring and control application. This Quick Start Guide will provide

information needed to get started with WinPAC. Please also consult the User Manual

for detailed information on the setup and use of Win PAC.

In addition to this guide, the package includes the following items:

Win PAC Module

1GB Micro SD card

Software Utility CD Screw Driver

WP-8141: 1 slot

WP-8441: 4 slots

WP-8841: 8 slots

(1C016)

2.4 mm

--------------------------------------------------------------------------------

Preparing for Start-up the WinPAC-8000

Power Supply: +10V ~ +30V/DC (Ex: DP-665):

http://www.icpdas.com/products/Accessories/power_supply/power_list.htm

---------------------------------------------

Configuring the boot mode

Make sure the rotary switch placed in

the “0” position.

•WinPAC-8000 Quick Start Guide

ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ

+7(495)109-02-08 [email protected] www.bbrc.ru

-2

WinPAC-8000 Quick Start Guide

--------------------------------------------------------------------------------

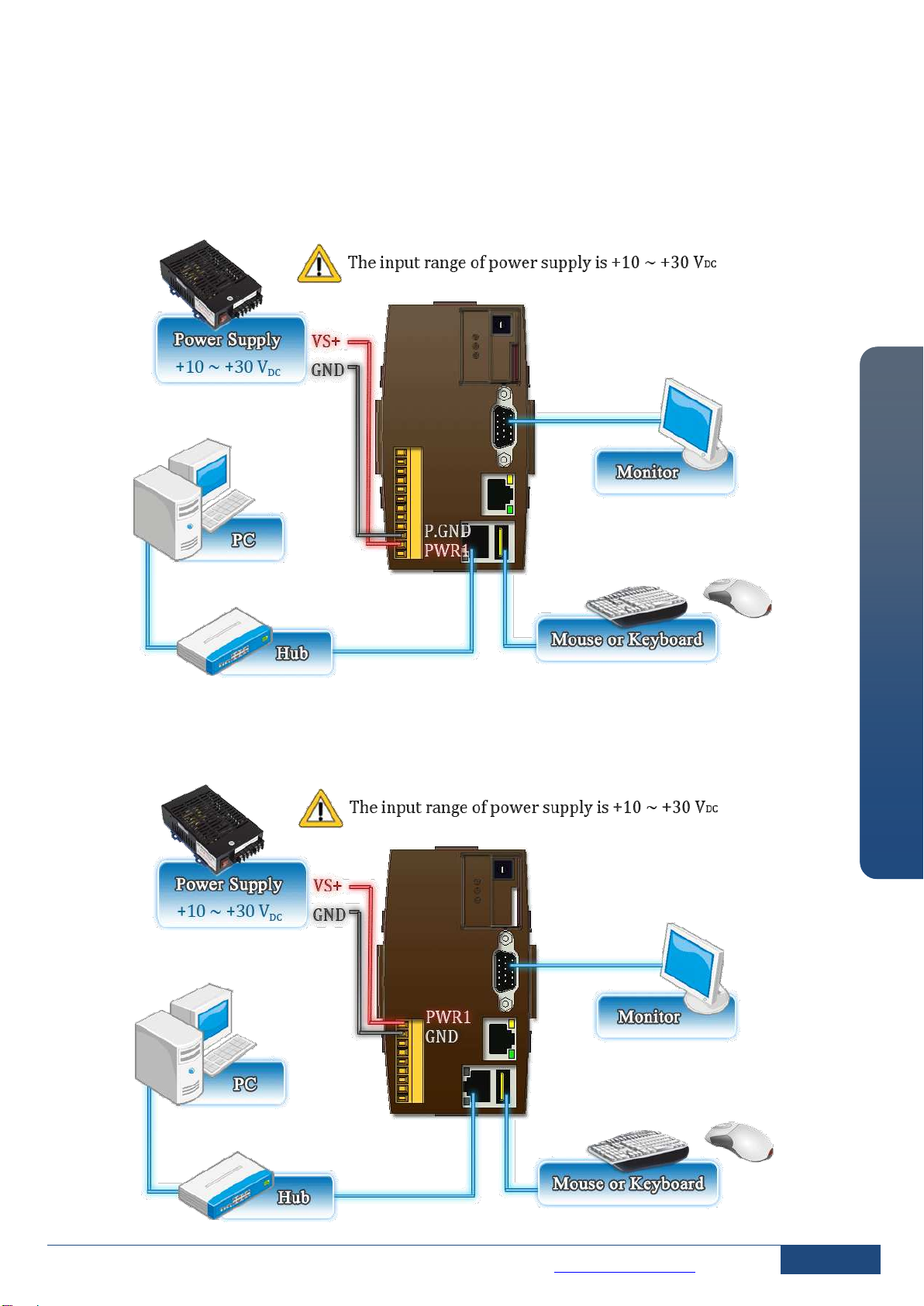

Setting up the power supply and other I/O devices

The diagram below shows the connections of WP-8141.

The diagram below shows the connections of WP-8441/WP-8841.

ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ

+7(495)109-02-08 [email protected] www.bbrc.ru

-3

WinPAC-8000 Quick Start Guide

--------------------------------------------------------------------------------

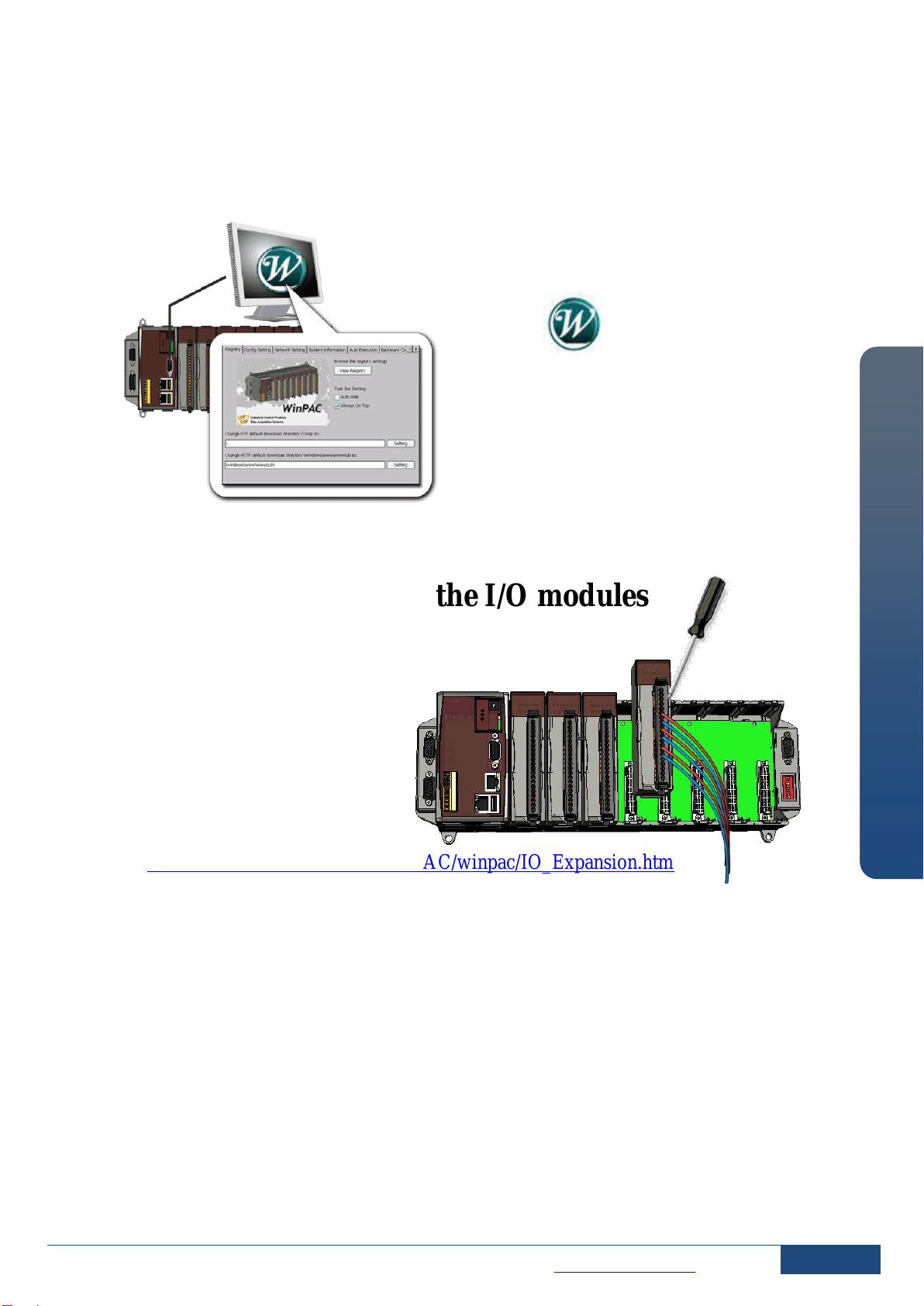

Start the WinPAC Utility to manage the Win PAC

The WinPAC Utility is a toolkit used to quickly control and manage the Win PAC.

Step 1: Run the WinPAC Utility

located on desktop

Step 2: Configure IP(DHCP), FTP Server,

Auto Execution…, etc

Step 3: Save and Reboot

--------------------------------------------------------------------------------

Inserting and Wiring the I/O modules

Only high profile I-8K and I-87K

series modules can be plugged.

For more information about

this expansion I/O modules,

please refer to

CD:\NAPDOS\io_module\

http://www.icpdas.com/products/PAC/winpac/IO_Expansion.htm

--------------------------------------------------------------------------------

Start the DCON Utility to configure I-87K modules

DCON Utility is a tool kit used to quickly control and manage I-87K series expansion

I/O modules.

Step 1: Run the DCON firmware on the Win PAC

The DCON firmware is located at:

\System_Disk\tools\DCON_CE\

ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ

+7(495)109-02-08 [email protected] www.bbrc.ru

-4

WinPAC-8000 Quick Start Guide

Step 2: Run the DCON Utility on the host PC

The DCON Utility can be obtained from:

CD:\Napdos\wp-8x4x_ce50\PC_Tools\DCON_Utility\

http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/pc_tools/dcon_utility/

Step 3: Click the WIN CE button

Step 4: On the WINCE device connection, enter the IP address of the Win PAC to

search the I-87K series expansion I/O modules

Step 5: It will display a list of

I-87K series expansion

I/O modules, then select

the module name that you

want to configure

WinPAC 8000 User Manual

CD:\Napdos\wp-8x4x_ce50\Document\

http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/document/

WinPAC 8000 Demo References

CD:\NAPDOS\wp-8x4x_ce50\Demo\

http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/demo/

DCON User Manual

CD:\NAPDOS\wp-8x4x_ce50\PC_Tools\DCON_Utility\Manual\

http://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/PC_To

ols/DCON_Utility/Manual/

WinPAC Website

http://www.icpdas.com/products/PAC/winpac/introduction.htm/

Technical Support

ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ

+7(495)109-02-08 [email protected] www.bbrc.ru
