Ikan PT19-SDI-TM Manuale utente

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

PT19-SDI-TM

Quick Start Guide

19" High Bright alent eleprompter Add-On Kit (SDI)

What’s Included

1 x SDI eleprompter Monitor w/ Aluminum Chassis

1 x Power Adapter with Cable

1 x VESA Monitor Mount

1 x 15mm Rod Adapter

1 x Mounting Knob

4 x 10mm Screws

4 x 15mm Screws

2 x Large Screws

4 x Riser Washers

1 x Adjustable Plate

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Assembly Steps

Setting Up the Talent Monitor

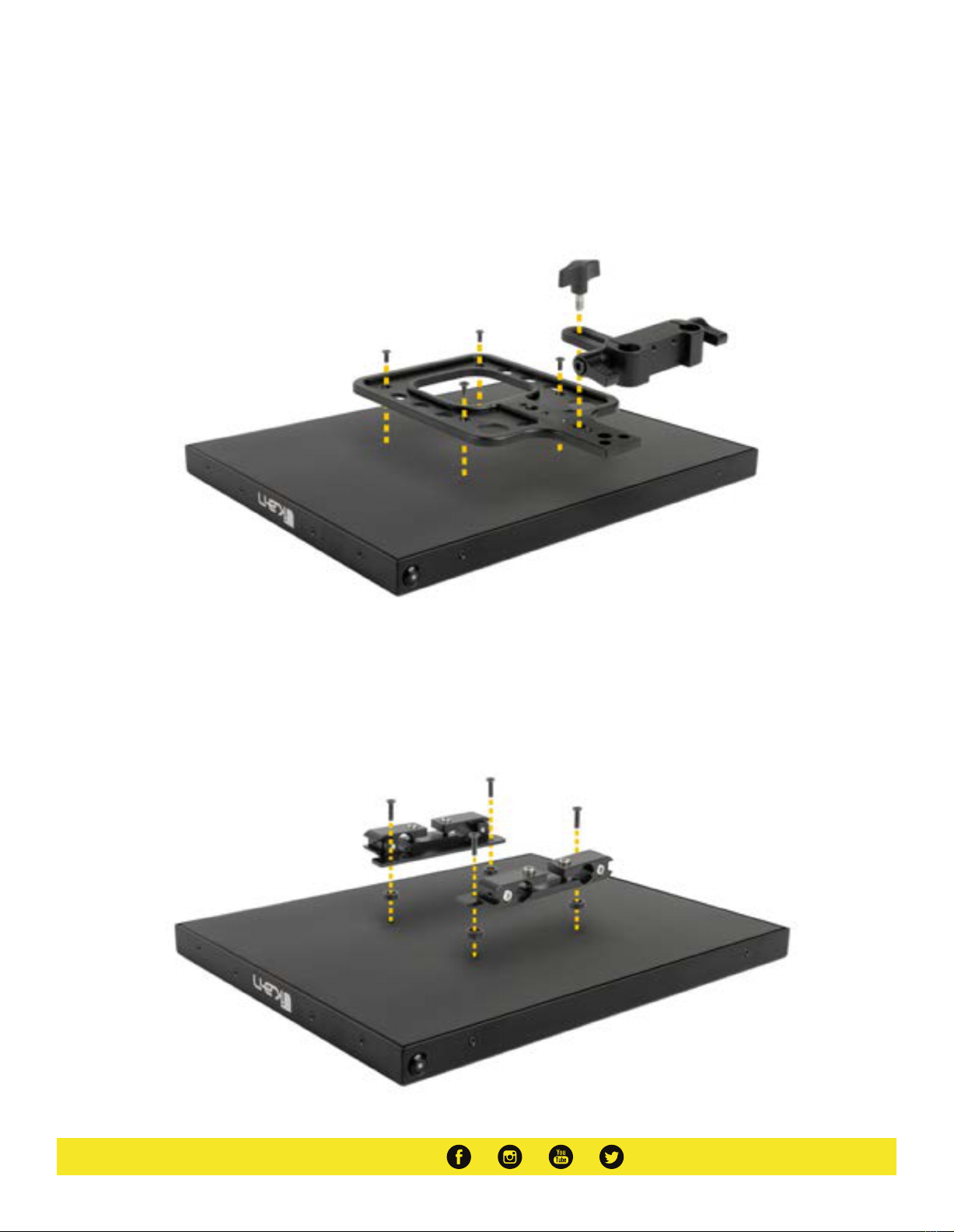

Using the shorter 4 x 10mm Screws, attach the VESA Monitor Mount. Make sure that the long end of the VESA Monitor Mount is pointing in the direction

of the power button like the image above. Use the Mounting Knob to tighten the 15mm Rod Adapter to the VESA Monitor Mount.

Setting Up the Teleprompter Monitor (Monitor from the PT4900-SDI)

If the mounting brackets where previously installed on the teleprompter monitor, remove those screws. Using the longer 4 x 15mm Screws and 4 x Riser

Washers attach the mounting brackets with the washers between the bracket and monitor like the image below.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Attaching the Talent Monitor

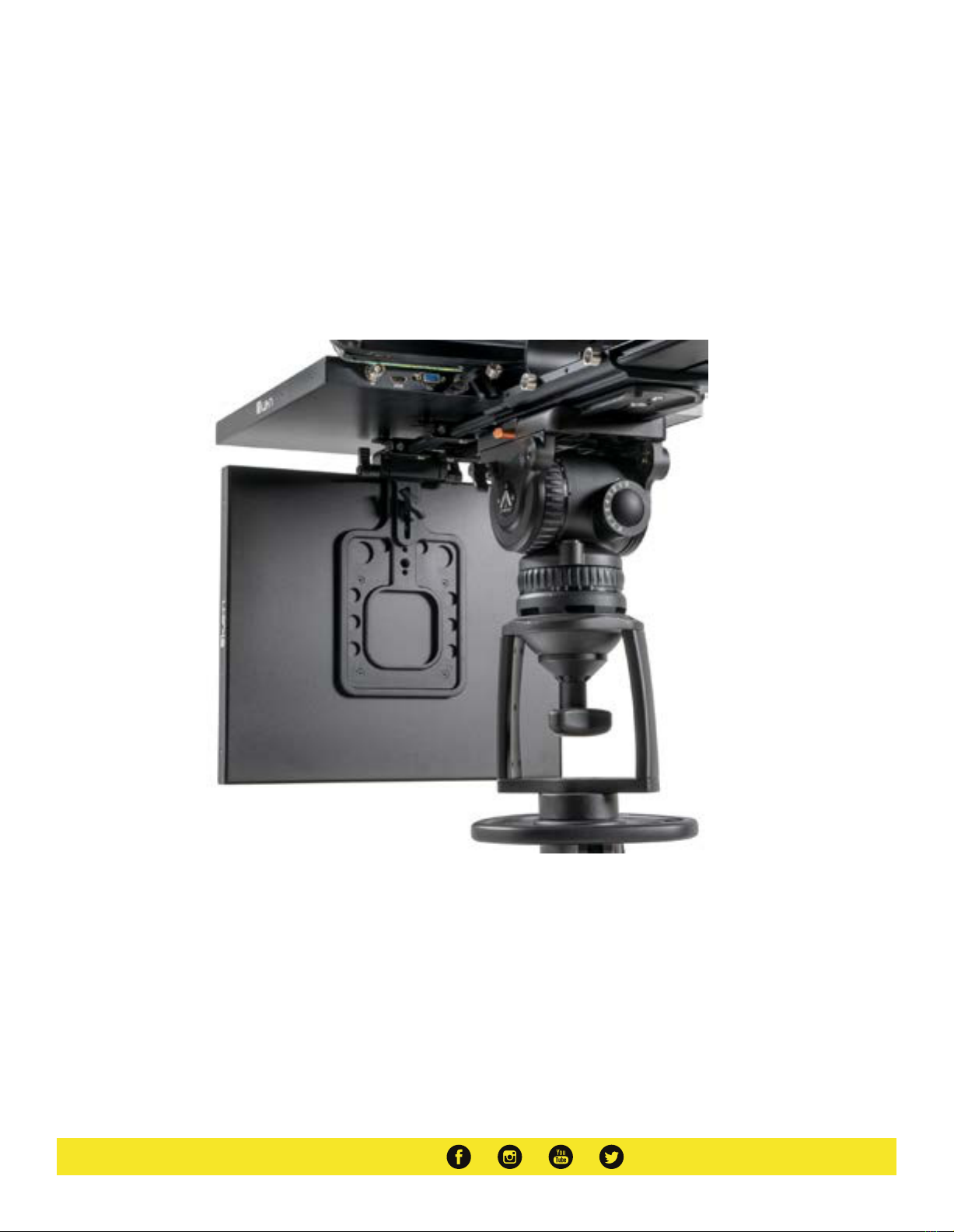

After both the talent monitor and teleprompter monitor are set up, slide the talent monitor on to the P 4900-SDI.

*WARNING* We recommend at least 1 inch of rod should be left inside the teleprompter base.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Speciﬁcations

Optional Accessories

Some other products that work well with this item available from Ikan include:

PT4900-SDI Professional 19" High Bright Beam Splitter eleprompter with 3G-SDI

PT 9-SDI-TM

19” High-Bright eleprompter Monitor

Aspect Ratio 4:3

Brightness 1000 cd/m2

Screen Size 19”

Video Inputs SDI, HDMI, VGA

Input Voltage DC 12v / 4A

Power Consumption 10 w

Product Weight 12 lbs

Product Dimensions 17” x 15” x 1”

Native Resolution 1280 x 1024

Shipping Weight 14 lbs

Shipping Dimensions 24” x 20” x 4”

Viewing Angle 160° (H) / 170° (V)

UPC

Build Material

847983033218

Aluminum Chassis

HDMI

720x480i & 720x480p @ 59.94, 60 Hz

720x576i & 720x576p @ 50 Hz

1280x720p @ 50, 59.94, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

Supported Video Signals

SDI

720x480i @ 59.94, 60 Hz

720x576i @ 50 Hz

1280x720p @ 50, 60 Hz

1920x1080i @ 50, 59.94, 60 Hz

1920x1080psf @ 24, 25, 29.97, 30 Hz

1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• he components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
