IKEA VALGJORD Manuale utente

VÄLGJORD

ENGLISH 4

Contents

Safety information 4

Safety instructions 5

Product description 7

Control panel 7

Programmes 8

Options 10

Settings 11

Before first use 14

Daily use 15

Hints and tips 17

Care and cleaning 18

Troubleshooting 20

Technical information 21

IKEA GUARANTEE 22

ENVIRONMENT CONCERNS 24

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible if

an incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future

reference.

General Safety

•This appliance is intended to be used in household and

similar applications such as:

–farm houses; staff kitchen areas in shops, offices and other

working environments;

–by clients in hotels, motels, bed & breakfast and other

residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and maximum) must

be between 0.5 (0.05) / 8 (0.8) bar (Mpa)

•Obey the maximum number of 15 place settings.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons in order to avoid a hazard.

•Put knives and cutlery with sharp points in the cutlery basket

with the points down or in a horizontal position.

ENGLISH 4

•Do not keep the appliance door open without supervision to

prevent to fall on it.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the appliance.

•The ventilation openings in the base (if applicable) must not

be obstructed by a carpet.

•The appliance is to be connected to the water mains using

the new supplied hose-sets. Old hose sets must not be

reused.

Children and vulnerable people safety

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.

•Do not let children play with the appliance.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door when

it is open.

•Cleaning and user maintenance shall not be made by

children without supervision.

Safety instructions

Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance where

the temperature is less than 0 °C.

• Obey the installation instruction supplied

with the appliance.

• Make sure that the appliance is installed

below and adjacent to safe structures.

Electrical connection

Warning! Risk of fire and

electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information

on the rating plate agrees with the

power supply. If not, contact an

electrician.

ENGLISH 5

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by our

Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains

plug.

• This appliance complies with the E.E.C.

Directives.

• Only for UK and Ireland. The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use fuse: 13 amp ASTA (BS

1362).

Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to new

pipes or pipes not used for a long time,

let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

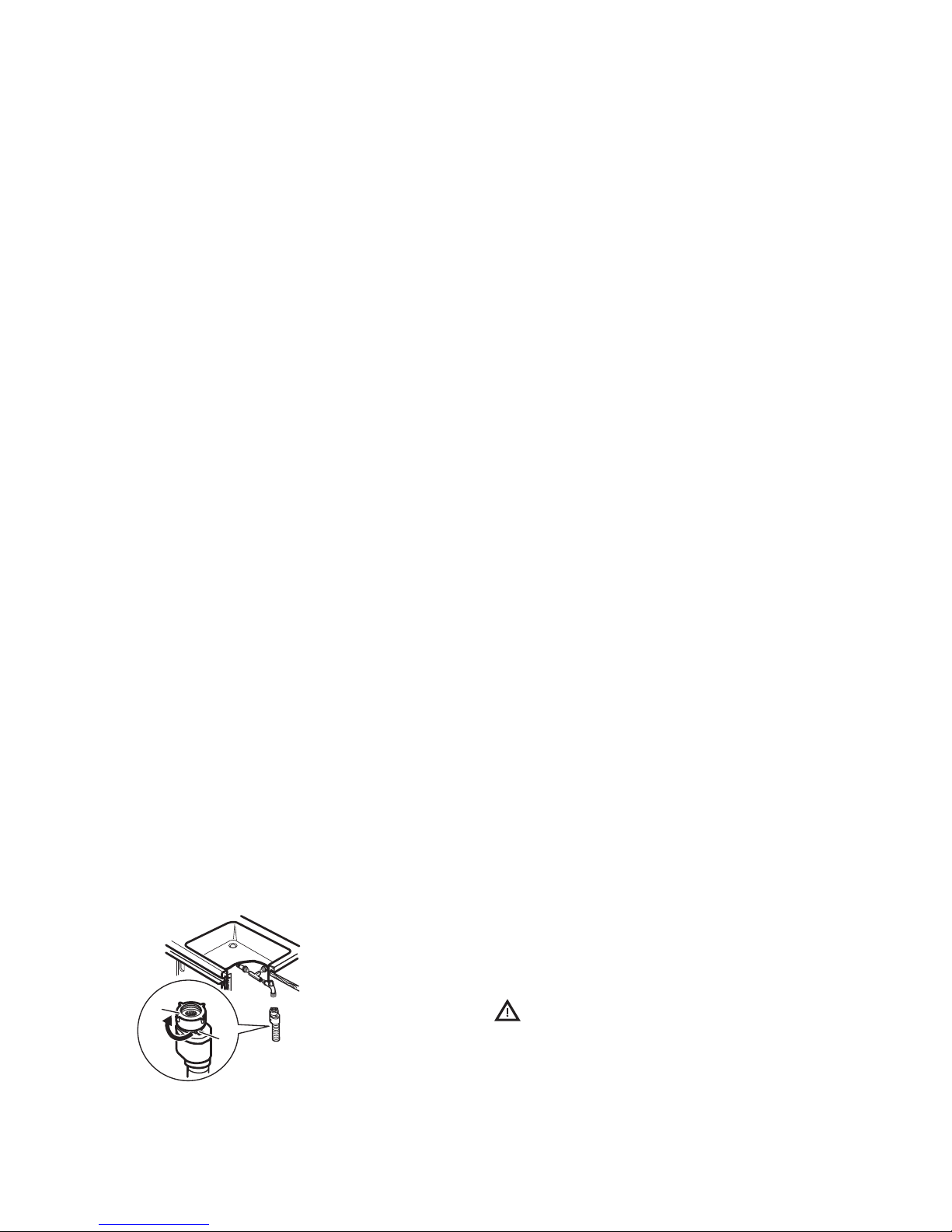

• The water inlet hose has a safety valve

that prevents the hose to loosen. To

disconnect the hose, press the lever (B)

and turn the fastener (A) clockwise.

• The water inlet hose has an external

transparent sheath. If the hose is

damaged, the water in the hose

becomes dark.

• If the water inlet hose is damaged,

immediately disconnect the mains plug

from the mains socket. Contact the

Authorised Service Centre to replace the

water inlet hose.

Use

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous.

Obey the safety instructions on the

detergent packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

completed. There can be detergent on

the dishes.

• The appliance can release hot steam if

you open the door while a programme

operates.

• Do not put flammable products or items

that are wet with flammable products in,

near or on the appliance.

Service

• Contact the Authorised Service Centre to

repair the appliance. We recommend

only the use of original spare parts.

• When you contact the Authorised Service

Centre, ensure that you have the

following information that is available on

the rating plate.

Model :

PNC :

Serial Number :

Disposal

Warning! Risk of injury or

suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

ENGLISH 6

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

Product description

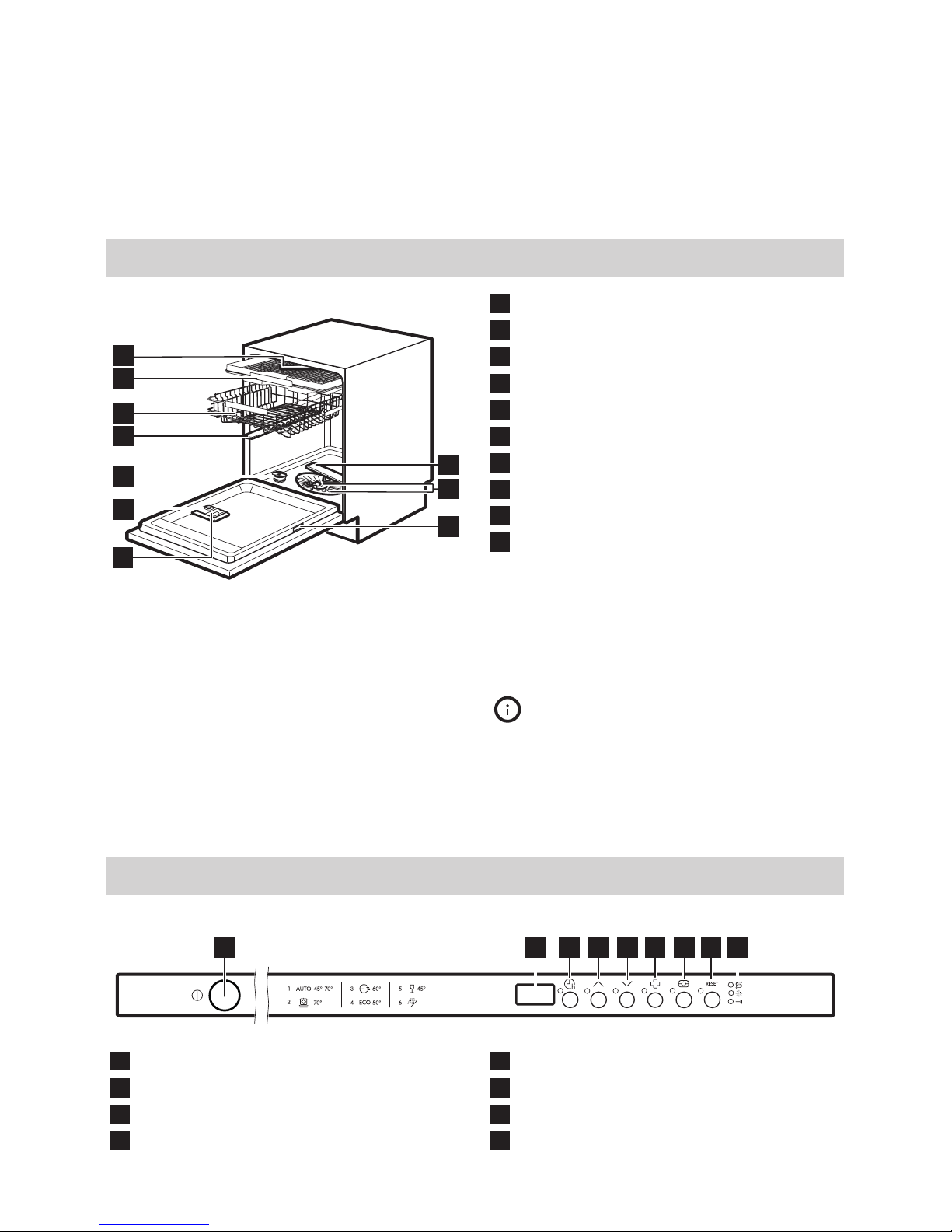

1Lower spray arm

2Filters

3Rating plate

4Rinse aid dispenser

5Detergent dispenser

6Salt container

7Upper spray arm

8Upper basket

9Cutlery drawer

10 Top spray arm

Beam-on-Floor

The Beam-on-Floor is a light that shows on

the kitchen floor below the appliance door.

• When the programme starts, a red light

comes on and stays on for all the

duration of the programme.

• When the programme is completed, a

green light comes on.

• When the appliance has a malfunction,

the red light flashes.

The Beam-on-Floor goes off

when the appliance is

deactivated.

Control panel

1 2 3 4 5 6 7 8 9

1On/off button

2Display

3Delay button

4Programme button (down)

5Programme button (up)

6ExtraHygiene button

7Multitab button

8RESET button

ENGLISH 7

9Indicators

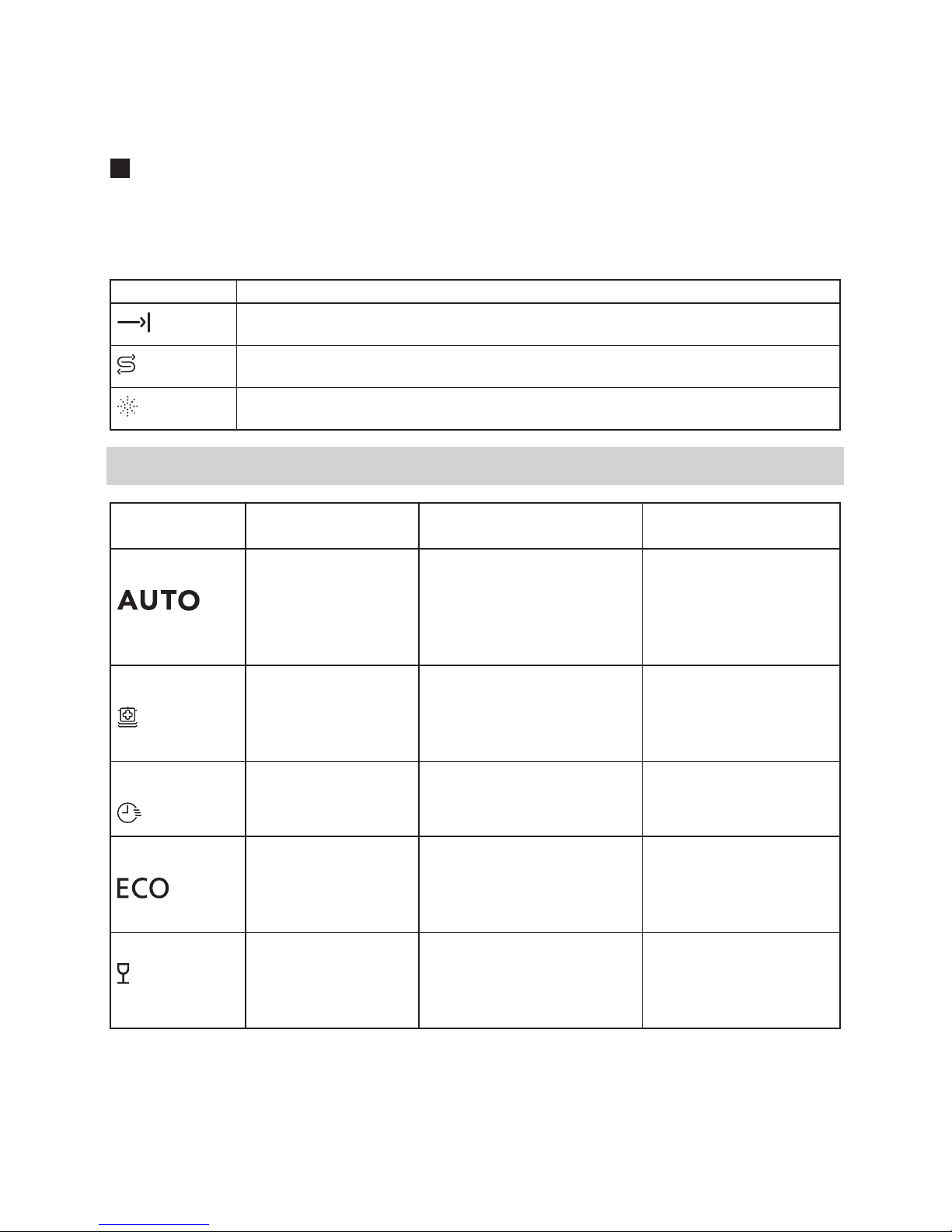

Indicators

Indicator Description

End indicator.

Salt indicator. It is always off while the programme operates.

Rinse aid indicator. It is always off while the programme operates.

Programmes

Programme Degree of soil

Type of load

Programme phases Options

• All

• Crockery, cutlery,

pots and pans

• Prewash

• Wash from 45 °C to 70

°C

• Rinses

• Dry

• Heavy soil

• Crockery, cutlery,

pots and pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• ExtraHygiene

• Fresh soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

• Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• ExtraHygiene

P5 • Normal or light

soil

• Delicate crockery

and glassware

• Wash 45 °C

• Rinses

• Dry

ENGLISH 8

Programme Degree of soil

Type of load

Programme phases Options

• All • Prewash • ExtraHygiene

The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the tem-

perature and the quantity of water, the energy consumption and the programme duration.

Programme with prolonged rinsing time in high temperature for extra hygienic wash-up. Ideal for baby bottles or

when a family member is ill.

With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with

normal soil. (This is the standard programme for test institutes).

With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form

in the appliance. Do not use detergent with this programme.

Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

P1 7 - 14 0.6 - 1.4 40 - 150

P2 10.7 - 14.5 1.4 - 1.6 154 - 167

P3 10 0.9 30

P4 7.5 0.96 240

P5 12 - 14 0.7 - 0.9 75 - 85

P6 4 0.1 14

The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of

dishes can change the values.

Information for test institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC) that

is on the rating plate.

ENGLISH 9

Options

Desired options must be

activated every time before you

start a programme (except for

Multitab).

It is not possible to activate or

deactivate options while a

programme is running.

Multitab

Activate this option when you use multi-

tablets that integrate the salt, rinse aid and

detergent functions. They can also contain

other cleaning or rinsing agents.

This option deactivates the release of salt.

The salt indicator does not come on.

With the use of this option the programme

duration is prolonged to improve the

cleaning and drying results with the use of

multi-tablets.

You do not need to activate the Multitab

option every time you start a programme.

Once you have activated the option it will

remain active.

How to activate Multitab

Press .

The related indicator comes on.

What to do if you want to stop using multi-

tablets

Before you start to use detergent, salt and

rinse aid separately do the following

procedure.

1. Deactivate the Multitab option.

2. Set the highest level of the water

softener.

3. Make sure that the salt and rinse aid

containers are full.

4. Start the shortest programme with a

rinsing phase. Do not add detergent

and do not load the baskets.

5. When the programme is completed,

adjust the water softener according to

the water hardness in your area.

6. Adjust the released quantity of rinse aid.

ExtraHygiene

This option provides better hygiene results

by keeping the temperature at 70 °C for at

least 10 minutes during last rinsing phase.

The ExtraHygiene option combined with the

Rinse programme, allows to clean

thoroughly and to sanitize the inside of the

appliance.

The duration of the Rinse programme will

increase when used with the ExtraHygiene

option. The display shows the updated

programme duration.

We recommend to follow this "sanitisation

procedure" of the appliance before and

after a long absence (e.g. holidays).

How to activate ExtraHygiene

Press , the related indicator comes on.

If the option is not applicable to the

selected programme, the indicator stays off.

The display shows the updated programme

duration.

ENGLISH 10

Altri manuali per VALGJORD

Indice

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente
