IKEA 603-039-33 Manuale utente
HÖGKLASSIG
GB
DE
ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.
DEUTSCH
Auf der letzten Seite dieser Broschüre finden Sie eine vollständige
Liste der offiziellen IKEA After-Sales-Dienstleister mit den
jeweiligen nationalen Telefonnummern.
Contents
Safety information 4
Safety instructions 6
Product description 8
Daily use 10
Flexible induction cooking area 12
Hints and tips 17
Care and cleaning 17
Troubleshooting 18
Installation 21
Technical data 22
Rating Plate 22
Energy efficiency 23
ENVIRONMENTAL CONCERNS 23
IKEA GUARANTEE 24
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
ENGLISH 4
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
General Safety
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Do not operate the appliance by means of an external timer
or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
•CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and do not
rely on the pan detector.
•If the glass ceramic surface / glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock.
•If the supply cord is damaged, it must be replaced by the
manufacturer, the Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
ENGLISH 5
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for air
circulation.
• The bottom of the appliance can get hot.
Make sure to install a non-combustible
separation panel under the appliance to
prevent access to the bottom.
Refer to the Assembly Instructions.
• Make sure that the ventilation space of 2
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.
Electrical Connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
ENGLISH 6
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
Warning! Risk of injury, burns
and electrical shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance
from the power supply. This to prevent
an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it may
splash.
Warning! Risk of fire and
explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature
than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Care and cleaning
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Deactivate the appliance and let it cool
down before you clean it.
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
ENGLISH 7
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
Disposal
Warning! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
Product description
Cooking surface layout
3
2
1
4
1Single cooking zone (210mm) 2300W,
with Booster 3200W
2Single cooking zone (180mm) 1800W,
with Booster 2800W
3Control panel
4Flexible induction cooking area (240 x
440mm) 2400W, with Booster 3300W
Control panel layout
11 10 913
67 8
12
51 2 3 4
Press the symbol to operate the appliance. The display, indicators and sounds tell which
function operate.
Symbol Function Comment
1ON / OFF To activate and deactivate the hob.
ENGLISH 8
Symbol Function Comment
2Lock / The Child Safety
Device
To lock / unlock the control panel.
3Pre-Set Cooking mode To activate and deactivate the function.
4Multi-Flexi mode To switch between three modes of the func-
tion.
5- Power setting display To show the power setting.
6- Timer indicators of cook-
ing zones
To show for which zone you set the time.
7- Timer display To show the time in minutes.
8STOP+GO To activate and deactivate the function.
9Booster function To activate and deactivate the function.
10 - Power selector To set the power setting.
11 - To select the cooking zone for the timer.
12 / - To increase or decrease the time.
13 - Power selector To set the power setting for flexible induction
cooking area.

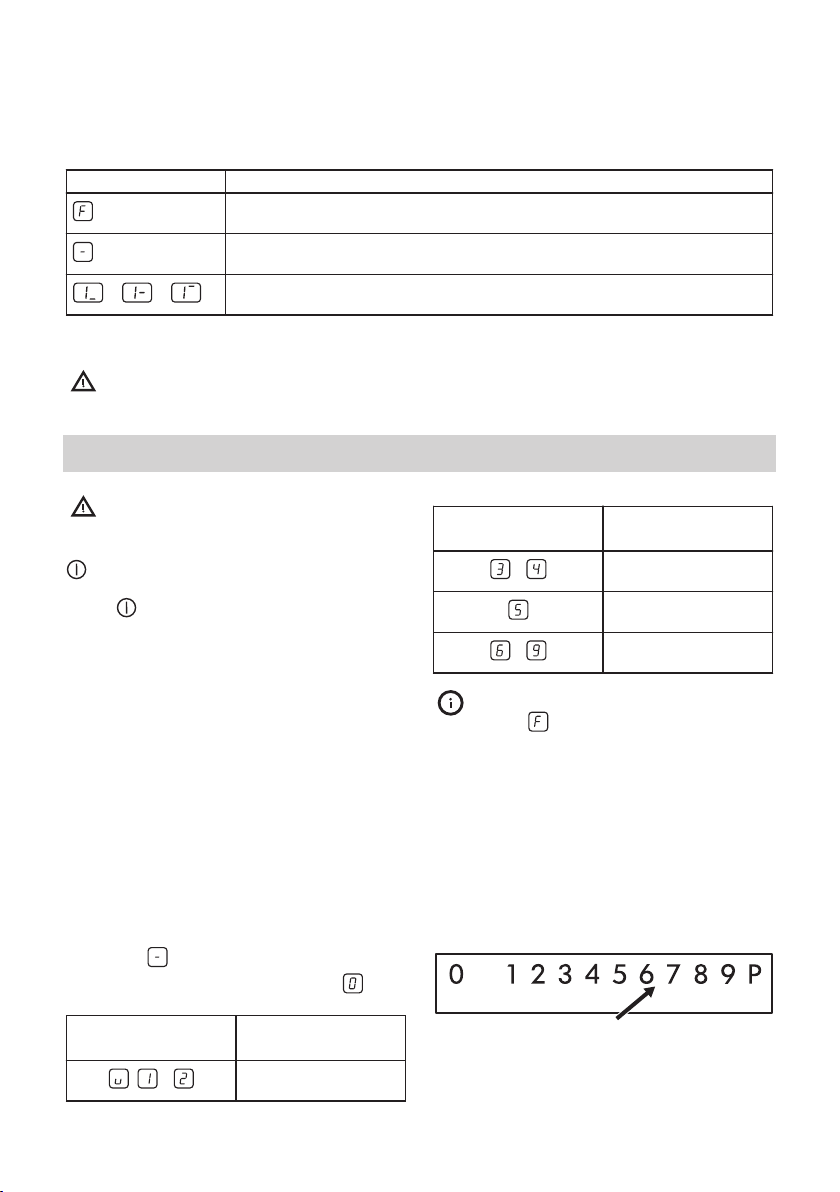

Power setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
STOP+GO function operates.
Booster function operates.
+ digit There is a malfunction. Refer to "Troubleshooting" chapter.
Lock / The Child Safety Device function operates.
ENGLISH 9
Display Description
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off function operates.
/ / Pre-Set Cooking mode operates.
Warning! There is a risk of burns
from residual heat.
The induction cooking zones make the heat
necessary for cooking process directly in the
bottom of the cookware. The glass ceramic
is heated by the heat of the cookware.
Daily use
Warning! Refer to Safety
chapters.
Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated.
• you do not set the power setting after
activating the hob.
• you cover any symbol with an object (a
pan, a cloth, etc.) for longer than approx.
10 seconds.
• you do not deactivate a cooking zone
after a certain time, or you do not modify
the power setting, or if the overheating
occurs (e.g. when a pan boils dry). The
symbol lights up. Before using again,
you must set the cooking zone to .
Power setting Automatic switch off
after
, - 6 hours
Power setting Automatic switch off
after
- 5 hours
4 hours
- 1.5 hours
If cookware that is not suitable is
used, lights up on the display
and after 2 minutes the indicator
for the cooking zone deactivates
itself.
Adjusting the power setting
Touch the power selector at a desired
power setting. Correct to the left or the
right, if necessary. Do not release before
you reach a desired power setting.
ENGLISH 10
Using the Booster function
The Booster function makes additional
power available for the induction cooking
zones. Touch to activate it, a lights up
on the display. After maximum 10 minutes,
the induction cooking zones automatically
return to cooking level .
Using the Timer
Touch repeatedly until the indicator of a
desired cooking zone flashes. For example
for the front right zone.
Touch or of the Timer to set the time
between 00 and 99 minutes. When the
indicator of the cooking zone flashes more
slowly, the time counts down. Set the power
setting.
If the power setting is set and the time set
has elapsed, an acoustic signal sounds, 00
flashes, and cooking zone deactivates. If
cooking zone is not in use and the time set
has elapsed an acoustic signal sounds and
00 flashes.
Touch to deactivate the function for the
selected cooking zone and the indicator for
this cooking zone flashes faster. Touch
and the remaining time counts backwards
to 00. The indicator of the cooking zone
goes out.
STOP+GO
The function sets all cooking zones that
operate to the lowest power setting .
When the function operates, you cannot
change the power setting. The function does
not stop the timer function.
• To activate this function touch . The
symbol comes on.
• To deactivate this function touch . The
power setting that you set before comes
on.
Lock
When the cooking zones operate, you can
lock the control panel, but not deactivate
the appliance. It prevents an accidental
change of the power setting.
First set the power setting.
To start this function touch . The symbol
comes on for 4 seconds. The Timer stays
on.
To stop this function touch . The power
setting that you set before comes on.
When you stop the appliance, you also stop
this function.
The Child Safety Device
This function prevents an accidental
operation of the appliance.
To activate the Child Safety Device
• Activate the appliance with . Do not
set the power settings.
• Touch for 4 seconds. The symbol
comes on.
• Deactivate the appliance with .
To deactivate the Child Safety Device
ENGLISH 11
Indice
Altri manuali IKEA Piano cottura
IKEA
IKEA DATID Manuale utente
IKEA
IKEA SMAKLIG Manuale utente
IKEA
IKEA FRAMTID HGA5K Manuale utente
IKEA
IKEA GRUNDAD Manuale utente
IKEA
IKEA ELDSLAGA Manuale utente
IKEA
IKEA VALBILDAD Manuale utente
IKEA
IKEA 504.678.21 Manuale utente
IKEA
IKEA FÖRDELAKTIG Manuale utente
IKEA
IKEA GRUNDAD Manuale utente
IKEA
IKEA VASASTAN Manuale utente
IKEA
IKEA MOJLIG Manuale utente
IKEA
IKEA MATMASSIG METOD Manuale utente
IKEA
IKEA MATMÄSSIG Manuale utente
IKEA
IKEA MATMÄSSIG Manuale utente
IKEA
IKEA HÖGKLASSIG Manuale utente
IKEA
IKEA TILLREDA Manuale utente
IKEA
IKEA UTNAMND Manuale utente
IKEA
IKEA NUTID HIN1T Manuale utente
IKEA
IKEA TILLREDA Manuale utente
IKEA
IKEA Lagan HGA4K Manuale utente
