ENGLISH
Please refer to the chapter IKEA GUARANTEE for contact details of
the after sales customer service centre.
ENGLISH 4
Contents
Safety information 4
Conditions of Use 6
Safety instructions 6
Product description 8
Daily use 9
Hints and tips 11
Care and cleaning 11
Troubleshooting 12
Installation 13
Technical data 15
Energy efficiency 15
ENVIRONMENTAL CONCERNS 16
IKEA GUARANTEE 16
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
ENGLISH 4
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
General Safety
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Do not operate the appliance by means of an external timer
or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
•CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•Do not use a steam cleaner to clean the appliance.
•If the glass ceramic surface / glass surface is cracked, switch
off the appliance to avoid the possibility of electric shock.
•If the supply cord is damaged, it must be replaced by the
manufacturer, the Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
ENGLISH 5
Conditions of Use
This appliance is intended to be used in
household and similar applications such as:
• Farm houses
• By clients in serviced apartments, holiday
apartments and other residential type
environments.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for air
circulation.
• The bottom of the appliance can get hot.
Make sure to install a non-combustible
separation panel under the appliance to
prevent access to the bottom.
Refer to the Assembly Instructions.
Electrical Connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in such
ENGLISH 6
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
Warning! Risk of injury, burns
and electrical shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance
from the power supply. This to prevent
an electrical shock.
• When you place food into hot oil, it may
splash.
Warning! Risk of fire and
explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature
than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Care and cleaning
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Deactivate the appliance and let it cool
down before you clean it.
ENGLISH 7
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
Disposal
Warning! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
Product description

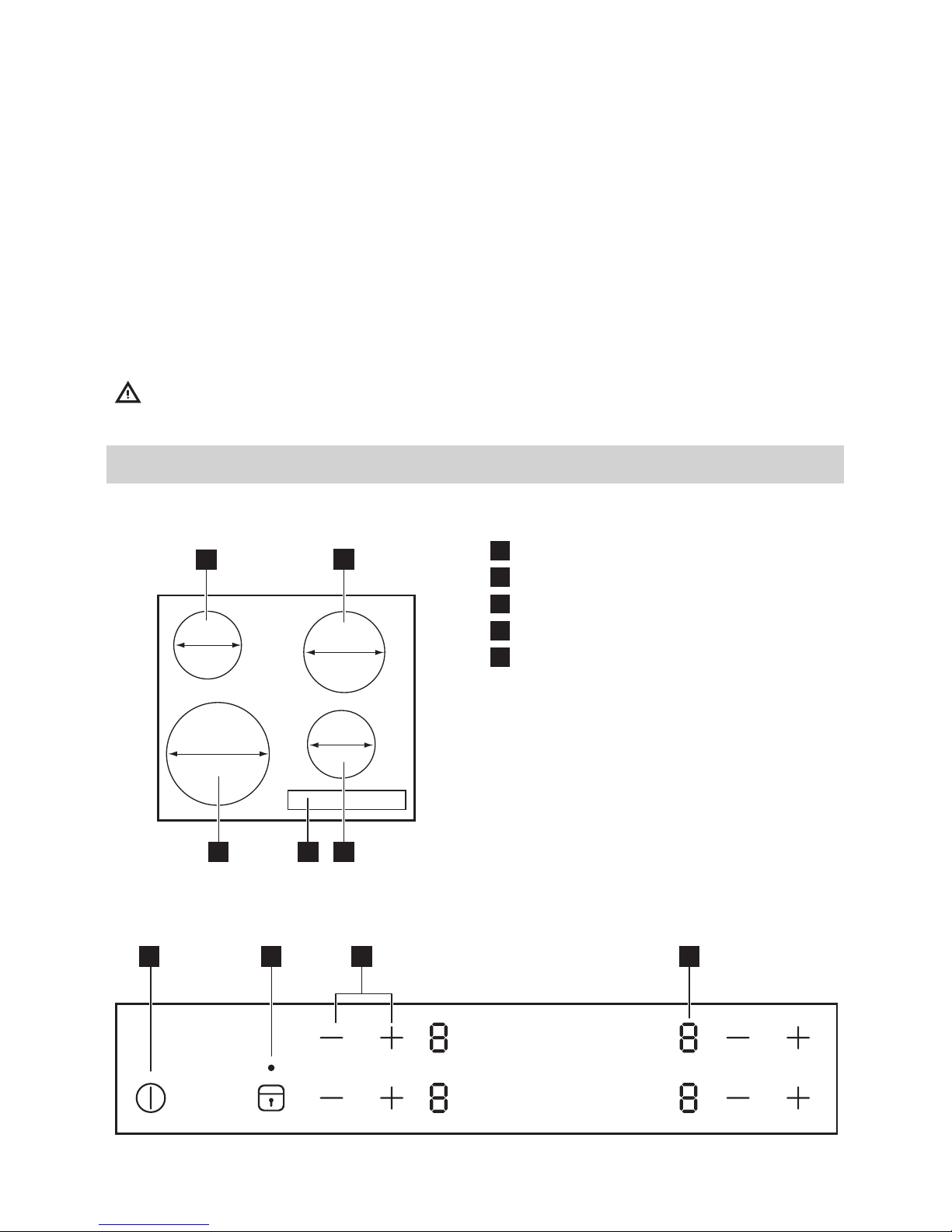

Cooking surface layout
210 mm 145 mm
145 mm 180 mm
12
4 35
1Single cooking zone 1200 W
2Single cooking zone 1800 W
3Single cooking zone 1200 W
4Control panel
5Single cooking zone 2300 W
Control panel layout

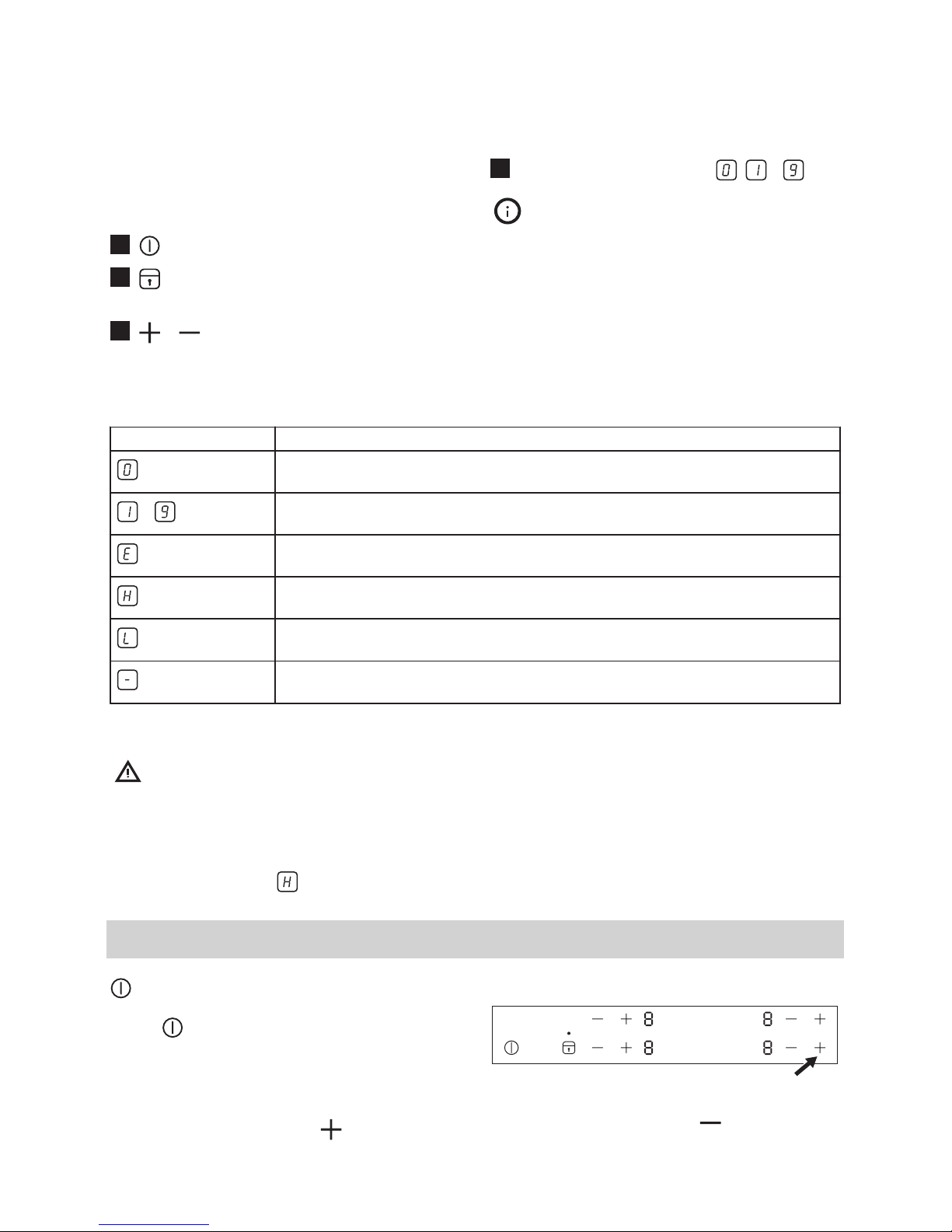

1 2 43
ENGLISH 8
Press the symbol to operate the appliance.
The display, indicators and sounds tell
which function operate.
1 To activate or deactivate the hob.
2 To activate and deactivate the Lock
or the Child Safety Device.
3 / To increase or to decrease
power settings.
4A power setting display: , - .
If you place close to the control
panel cookware bigger then the
cooking zone the control panel
can get hot.
Power setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
+ digit There is a malfunction. Refer to "Troubleshooting" chapter.
A cooking zone is still hot (residual heat).
Lock / The Child Safety Device function operates.
Automatic Switch Off function operates.
Residual heat indicator
Warning! Risk of burns from
residual heat! After you
deactivate the appliance, the
cooking zones need some time to
cool down. Look at the residual
heat indicator .
Use residual heat for melting and keeping
food warm.
Daily use
Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.

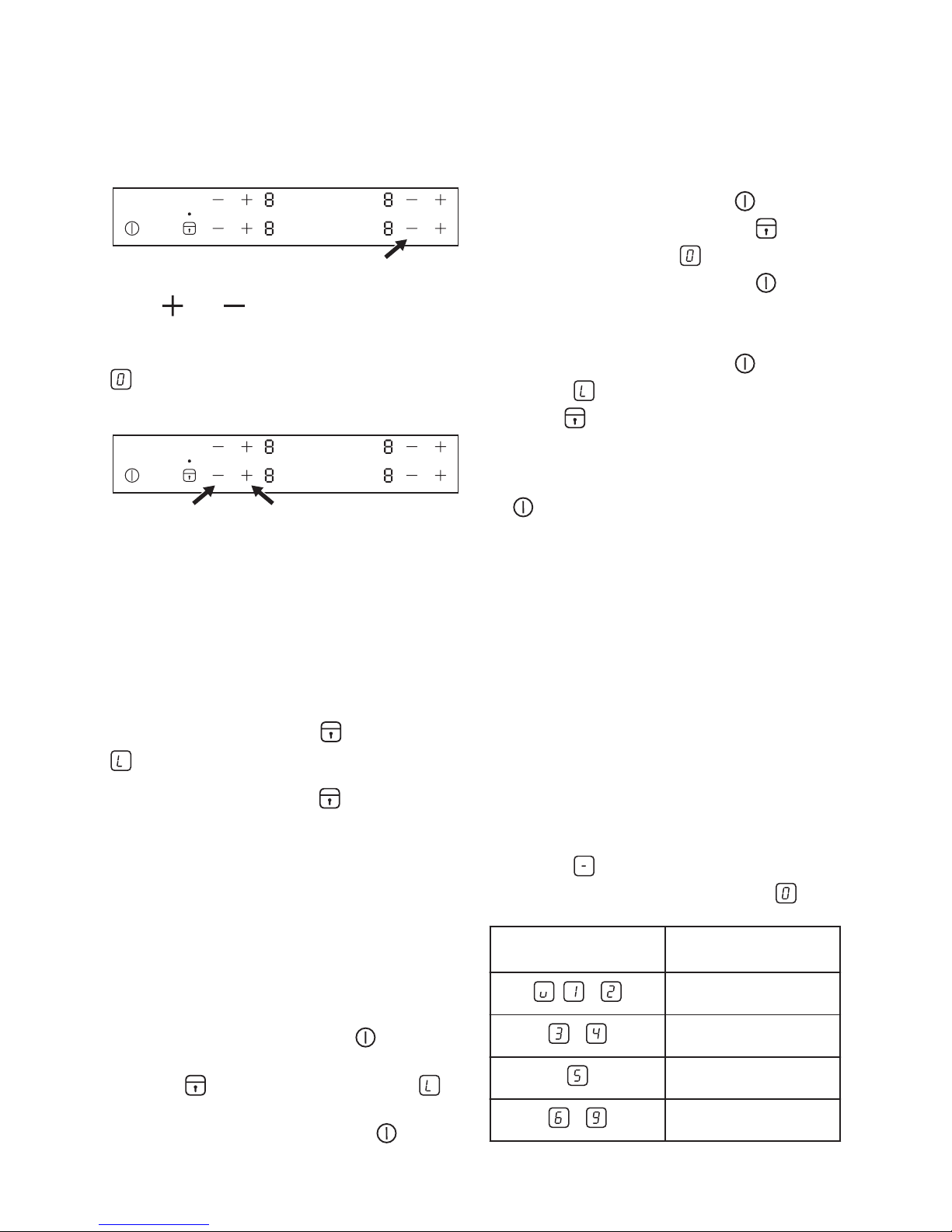

Adjusting the power setting
Set the power setting with to increase. Set the power setting with to decrease.
ENGLISH 9
Touch and of a respective cooking
zone simultaneously to deactivate the
cooking zone. The settings will reverse to
.
Lock
When the cooking zones operate, you can
lock the control panel, but not deactivate
the appliance. It prevents an accidental
change of the power setting.
First set the power setting.
To start this function touch . The symbol
comes on for 4 seconds.
To stop this function touch . The power
setting that you set before comes on.
When you stop the appliance, you also stop
this function.
The Child Safety Device
This function prevents an accidental
operation of the appliance.
To activate the Child Safety Device
• Activate the appliance with . Do not
set the power settings.
• Touch for 4 seconds. The symbol
comes on.
• Deactivate the appliance with .
To deactivate the Child Safety Device
• Activate the appliance with . Do not
set the power settings. Touch for 4
seconds. The symbol comes on.
• Deactivate the appliance with .
To override the Child Safety Device for
only one cooking time
• Activate the appliance with . The
symbol comes on.
• Touch for 4 seconds. Set the power
setting in 10 seconds. You can operate
the appliance.
• When you deactivate the appliance with
, the Child Safety Device operates
again.
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated.
• you do not set the power setting after
activating the hob.
• you cover any symbol with an object (a
pan, a cloth, etc.) for longer than approx.
10 seconds.
• you do not deactivate a cooking zone
after a certain time, or you do not modify
the power setting, or if the overheating
occurs (e.g. when a pan boils dry). The
symbol lights up. Before using again,
you must set the cooking zone to .
Power setting Automatic switch off
after
, - 6 hours
- 5 hours
4 hours
- 1.5 hours
ENGLISH 10
Altri manuali per BARMHARTIG
2
Indice
Altri manuali IKEA Piano cottura
IKEA
IKEA BEJUBLAD Manuale utente
IKEA
IKEA TREVLIG Manuale utente
IKEA
IKEA MATMÄSSIG Manuale utente
IKEA
IKEA LIVSLAGA Manuale utente
IKEA
IKEA VASASTAN 305.234.46 Manuale utente
IKEA
IKEA BEJUBLAD Manuale utente
IKEA
IKEA DAGLIG Manuale utente
IKEA
IKEA MATMASSIG 503.688.40 Manuale utente
IKEA
IKEA FÖRDELAKTIG Manuale utente
IKEA
IKEA SMAKLIG Manuale utente
IKEA
IKEA Livsgnista Manuale utente
IKEA
IKEA FRAMTID HGC4T Manuale utente
IKEA
IKEA 603-039-33 Manuale utente
IKEA
IKEA MOJLIG Manuale utente
IKEA
IKEA LIVSLAGA Manuale utente
IKEA
IKEA Livsgnista Manuale utente
IKEA
IKEA VALBILDAD Manuale utente
IKEA
IKEA GÖRLIG Manuale utente
IKEA
IKEA TILLREDA Manuale utente
IKEA
IKEA BARMHARTIG Manuale utente
