Infinity Kappa Series perfect5.1 Manuale utente

Thank you for purchasing an Infinity Kappa Perfect component

system. Kappa Perfect components have been engineered to provide

the most accurate sonic reproduction possible. Over the years, we at

Infinity have listened to hundreds of automotive speakers and we

think these are among the finest. We hope you agree.

This manual includes information that will make your installation as

simple and trouble-free as possible. It also provides detailed technical

information that will help an experienced installer optimize speaker

placement and crossover adjustment. Please study this manual before

you begin your installation. Remember to send in your warranty

registration card, and keep your sales receipt somewhere safe in case

you need warranty service.

kappa series

perfect5.1

perfect6.1

instructions

IMPORTANT

Installation of automotive stereo components

can require extensive experience performing

a variety of mechanical and electrical proce-

dures. Although these instructions explain

how to install a Kappa Perfect component

system in a general sense, they do not

show the exact installation method for your

particular car. If you feel you may not have

the necessary tools or experience, ask your

authorized Infinity car audio dealer about

professional installation options.

WARNING

Playing loud music in your automobile can

permanently damage your hearing as well

as hinder your ability to hear traffic. We

recommend listening at low volume while

driving. Infinity accepts no liability for hear-

ing loss, bodily injury or property damage

resulting from use or misuse of this product.

A NOTE ABOUT SYSTEM PERFORMANCE

For the best performance possible, the

Kappa Perfect components should be used

with a two-channel amplifier with output

power of at least 50W RMS per channel.

The passive

crossover contains impedance-

compensating

circuitry and has been

computer-optimized for the flattest possible

frequency response with the tweeter flush-

mounted, on-axis with the listener. The

combined responses of the speakers and

passive crossover constitute a 4th-order

Linquitz-Riley

acoustic alignment and cannot

be duplicated

with any electronic crossover

currently available for car audio use.

Consequently, bi-amping a Perfect

component system with an electronic

crossover is not recommended.

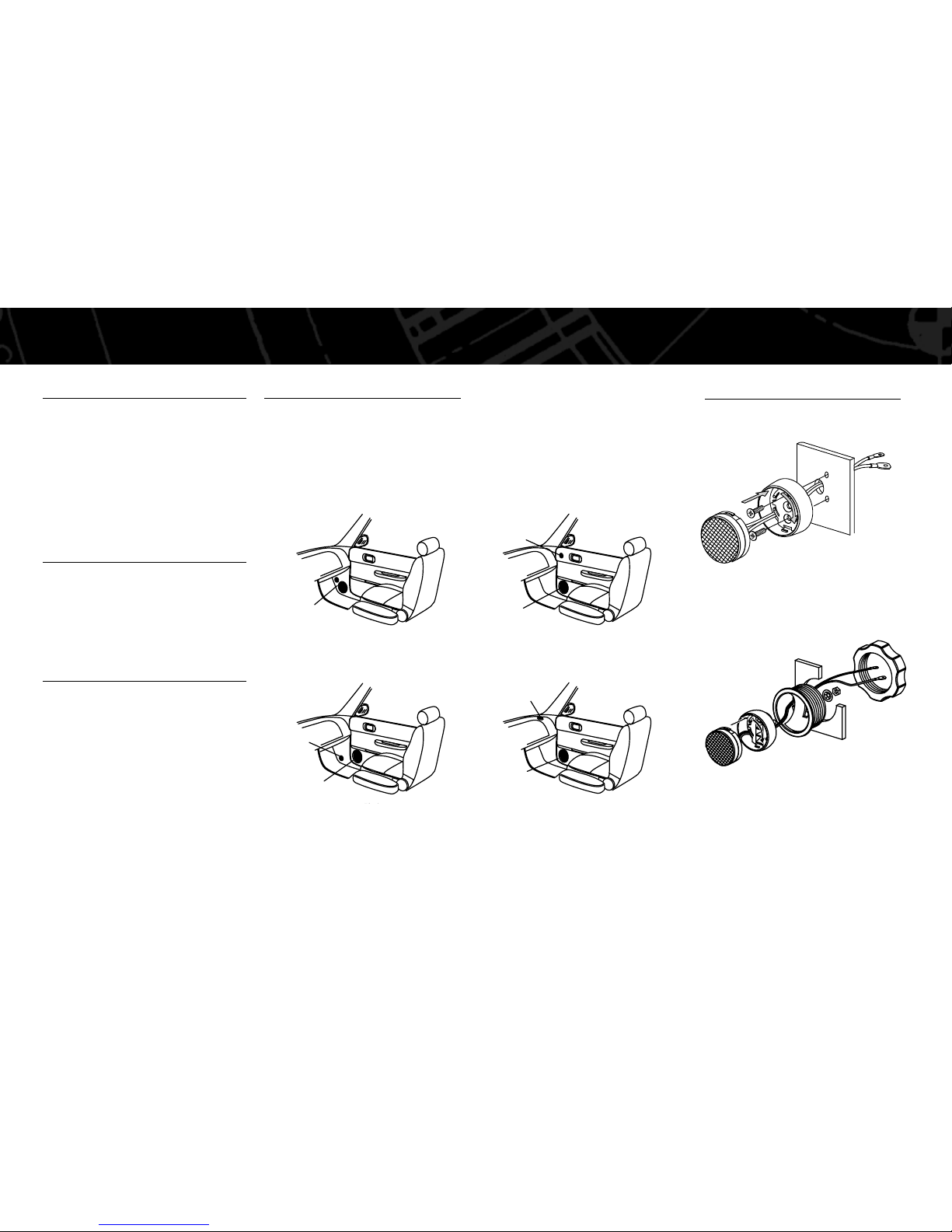

SPEAKER PLACEMENT

Figures 1–4 show possible speaker place-

ments in the order of most desirable to

least desirable. Kick-panel mounting will

provide the best staging and imaging in

most vehicles.

TWEETER INSTALLATION

TWEETER

on dash

WOOFER

in factory-

door location

TWEETER

on kick panel

WOOFER

in factory-

door location

TWEETER

and

WOOFER

on kick panel

WOOFER

in factory-

door location

TWEETER

in high/forward

location on door

Fig 1 Fig 3

Fig 2 Fig 4

Figure 1.

Mounting the woofer and tweeter in

the kick panels

Figure 2.

Mounting the woofer in the door and

the tweeter in the kick panel

Figure 3.

Mounting the woofer and tweeter in

the doors

Figure 4.

Mounting the woofer in the door and

the tweeter in the dash

–

red

blk

Figure 5.

Surface-mounting the tweeter

Figure 6.

Flush-mounting the tweeter

- 2 -

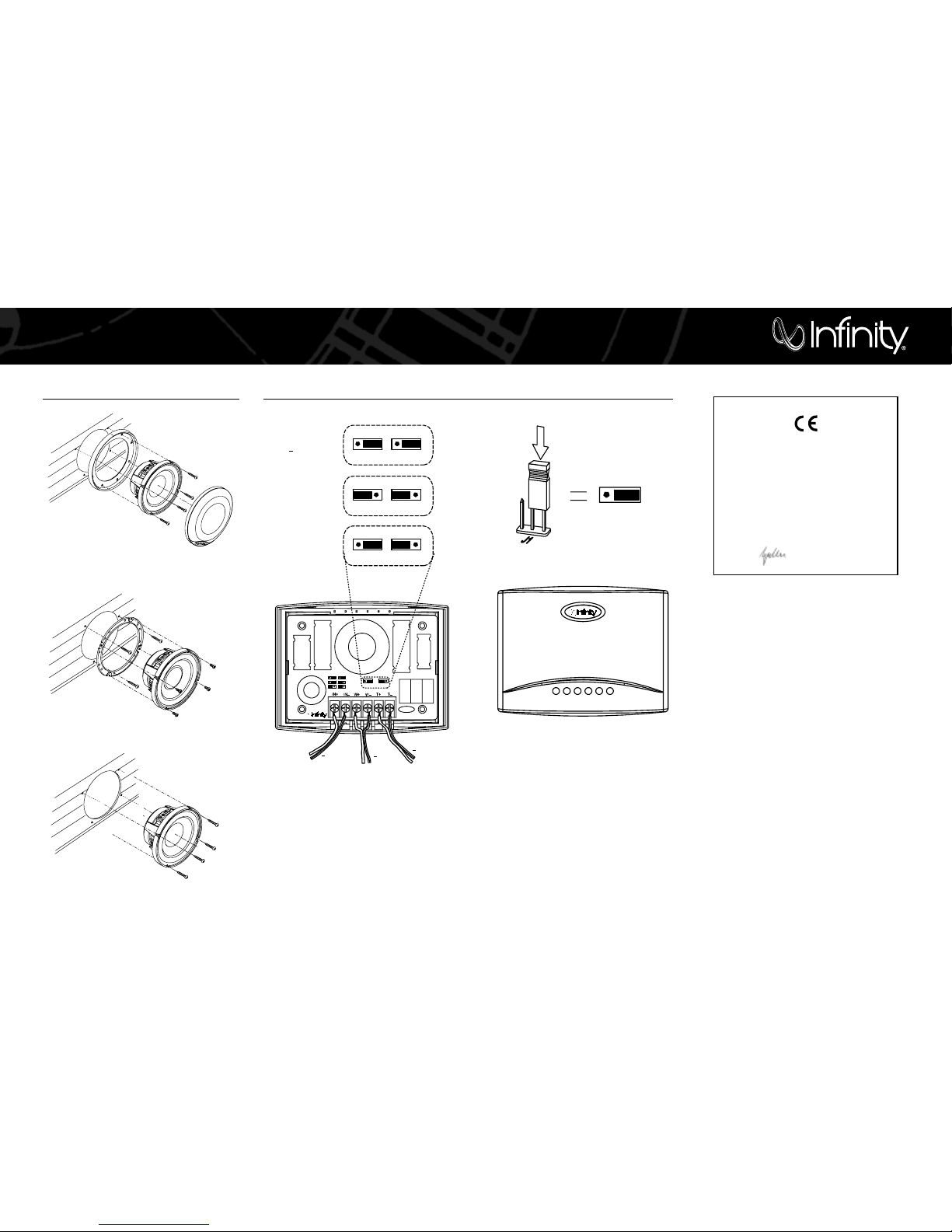

WOOFER INSTALLATION

Figure 7.

Mounting the P5.1 or P6.1 woofer

where there is no factory speaker location.

To mount the P5.1 in factory locations, omit

the grille and grille tray.

Figure 8.

Mounting the P6.1 woofer in

standard 5-1/4" holes (in many

Japanese and American automobiles)

Figure 9.

Mounting the P6.1 woofer in

165mm holes (in many European

and American automobiles)

ELECTRICAL CONNECTIONS AND CROSSOVER ADJUSTMENTS

TWEETER LEVEL

—4dB

J1 J2 J1 J2

0dB

+5dB

KPX00

J1 J2

Tweeter level

+5dB

Tweeter level

0dB

(default)

To woofer To tweeter

To amplifier

speaker output

J1 J2

Tweeter level

4dB J1 J2

Figure 10.

Connecting the speakers and the amplifier

to the crossover

Figure 11.

Adjust the crossover using the jumpers

provided

- 3 -

DECLARATION OF CONFORMITY

We, Harman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

Lutz Uphoff

Harman Consumer International

Chateau-du-Loir, France 4/01

declare in own responsibility, that the products

described in this owner’s manual are in compliance

with technical standards:

EN 50081-1:1992

EN 50082-1:1997

20 Frequency 100 500 1k Hz 5k 10k 20k

dB spl

100

Deg 180

135

-45

-90

-135

-180

< Magnitude > Sound Pressure Level < Phase >

Kappa Perfect6.1 (flat setting)

Kappa Perfect6.1 (+5dB setting)

Kappa Perfect6.1 (–4dB setting)

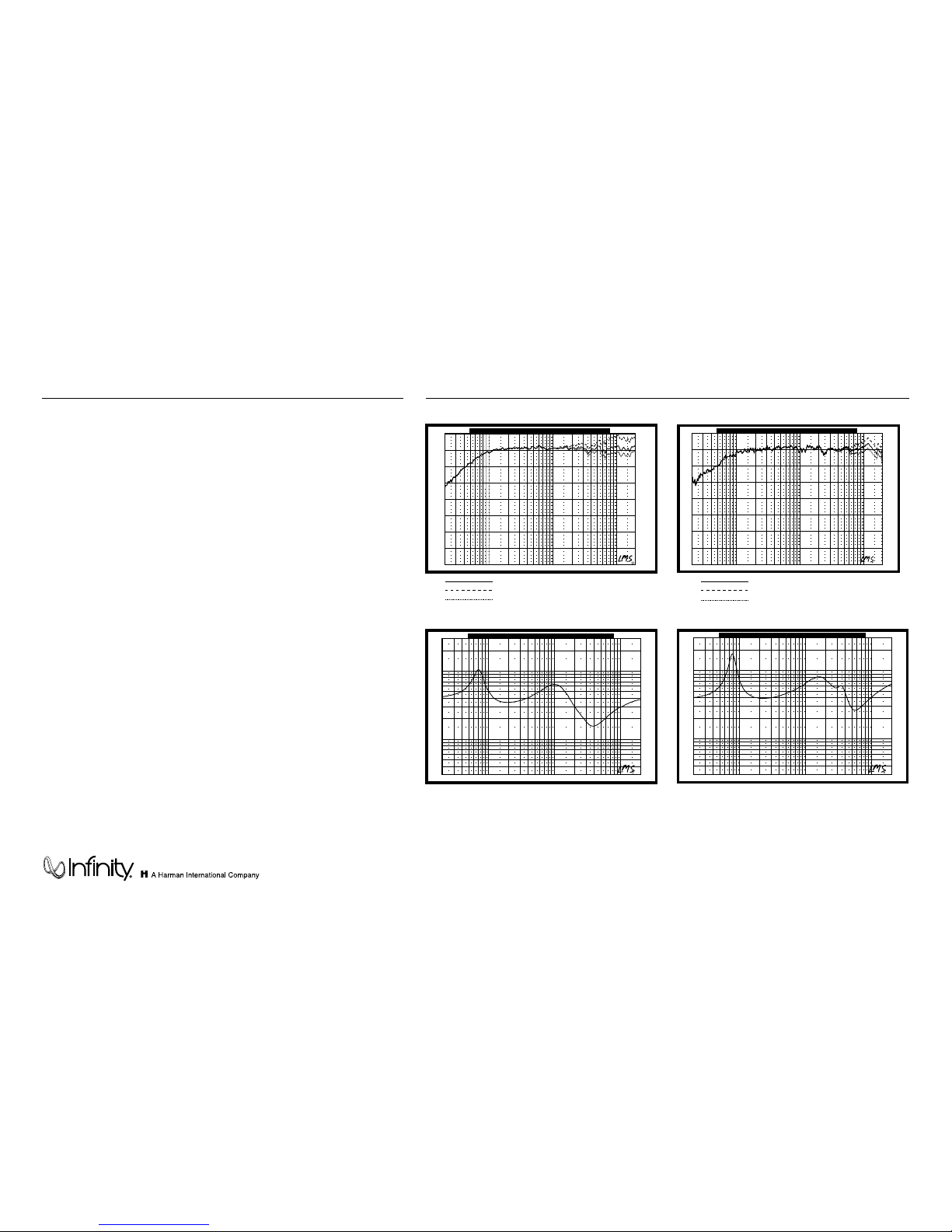

SYSTEM RESPONSE CURVES

SPECIFICATIONS

System P6.1 P5.1

Frequency Response: 75Hz –23kHz, ±3dB 80Hz –23kHz, ±3dB

Power Handling: 100W RMS, 400W Peak 100W RMS, 400W Peak

Nominal Impedance: 4 Ohms 4 Ohms

Sensitivity: 90dB 89dB

Crossover Frequency: 3.5kHz, 24dB/oct. 3.5kHz, 24dB/oct.

Linquitz-Riley Acoustic Linquitz-Riley Acoustic

Thiele and Small Parameters

P6.1 Woofer P5.1 Woofer Tweeter

Revc: 3.45 3.38 3.31

Levc: 0.37 0.21 0.02

Sd: 0.0113 0.0100 0.0005

BL: 6.37 3.94 1.99

Vas: 11.43 9.29 0.0016

Cms: 630.36 654.21 44

Mms: 18.94 10.41 0.3064

Mmd: 18.25 9.84 0.3

Fs: 46.05 60.98 1370.65

Qms: 3.44 3.60 5.4

Qes: 0.465 0.87 2.19

Qts: 0.41 0.701 1.56

Top-PlateThickness: 9/32" (7.115mm) 9/32" (7.115mm) N/A

Voice-Coil Length: 9/16" (14mm) 9/16" (14mm) N/A

Voice-Coil Diameter: 1-1/2" (38.1mm) 1-1/4" (31.75mm) 1" (25.4mm)

Xmax: 1/8" (3.44mm) 1/8" (3.44mm) N/A

Mounting Depth: 2-3/4" (70mm) 2-3/8" (61mm) 1" (25.4mm)

Cut-Out Diameter: 5-1/16" (129mm) 4-5/8" (118mm) 1-3/4"

(45mm)

Infinity Systems, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA

(800) 553-3332 •FAX (516) 682-3523 •www.infinitysystems.com

20 Frequency 100 500 1k Hz 5k 10k 20k

Ohms

0.3

1.0

3.0

10.0

30.0 Deg 180

135

-45

-90

-135

-180

< Magnitude > Impedance Measurement < Phase >

Perfect6.1 System Frequency Response

Perfect6.1 System Impedance

20 Frequency 100 500 1k Hz 5k 10k 20k

Ohms

0.3

1.0

3.0

10.0

30.0 Deg 180

135

-45

-90

-135

-180

< Magnitude > Impedance Measurement < Phase >

Perfect5.1 System Impedance

Perfect5.1 System Frequency Response

re u ncy

100

500

10k

20k

0Fqe

Sound Pressure Level

dB spl

110

100

Deg

180

135

-45

-90

-135

-180

Kappa Perfect6.1 (flat setting)

Kappa Perfect6.1 (+5dB setting)

Kappa Perfect6.1 (–4dB setting)
