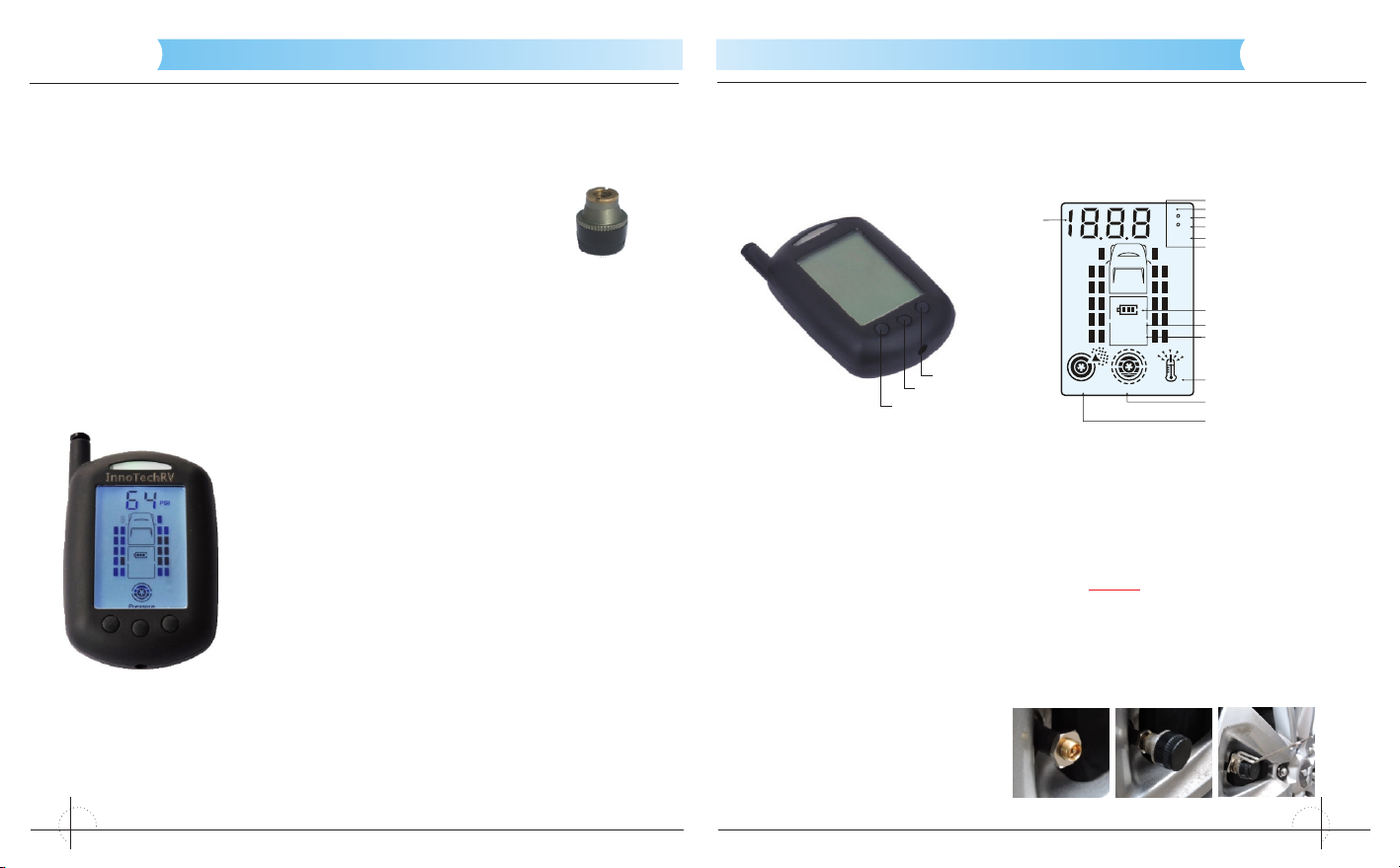

TPMS-4000
910
Loss of Signal Indication
Notes:
InnoTechRV InnoTechRV
If the monitor does not receive a signal from one or more of the
sensors for a continuous period of 30 minutes after coming out of
Sleep mode, the audible alarm will sound for 15 seconds along with
the flashing red LED on the monitor. The corresponding icon of the
abnormal sensor will also flash and indicate “noS” which indicates
there is either a fault with the sensor, the sensor is damaged or the
sensor is out of range. The system will alarm every 20 minutes if the
monitor still can't receive the signal from the sensor, as the graphic on
the right shows. This may be a result of low battery voltage on the
sensor or indicate the need for a booster/repeater if it happens
regularly
In an alarm condition the monitor will sound a continuous audible alarm for 15 seconds with
the flashing red LED and the back light will remain on for 5 minutes along with the
corresponding faulty tire icon flashing. Pressing the L or Rbutton will stop the audible alarm.
Shortly afterwards the back light will automatically go off but the red LED will remain on until
the fault condition clears. The system alarm will sound again after one hour to further remind
the operator if the condition has not cleared.
When a sensor is removed to inflate or deflate a Tire, this will cause the sensor to detect
rapid and/or slow leakage because the sensor has suddenly detected zero pressure. Once
the sensor is refitted the monitor will return to normal and the alarm will clear within a short
period of time.
If you wish to add further sensors to the monitoring system, i.e. fitting sensors to an
additional trailer, etc. refer to section 3, Installation & Operating Instructions.
Forced Update
Auto Trailer Disconnect
Manual Trailer Disconnect
This feature allows you to zero out all pressure and temperature
readings. The monitor will then update on the next round of
updates from sensors.
When in normal operating mode hold the Center and Right
buttons for 3 seconds until monitor beeps. All readings will revert
to 0.
This feature will automatically switch the monitor to Trailer
Disconnect mode when 4 sensors in the Trailer section have
failed to report within a 60 minute period. “td” will show on
screen. The monitor will revert to normal when it comes back into
range of the sensors. Prior to entering “tD” mode individual
sensors may show “noS”. You may wish to then switch to Manual
tD mode. Note that this function will only work with trailers with 4
or more tires
This feature enables you to manually switch the monitor to Trailer
Disconnect mode. When in “tD” mode the monitor will not
continually report loss of signal on the sensors in the trailer
section. It will beep several times each time it wakes up out of
sleep mode and show “tD’ on screen.
Switch to tD mode by holding the Left Button down for 6 secs, “td”
will show on screen. To take it out of tD mode hold the Left Button
down again for 6 Secs. “tC” will briefly show on screen.
This feature will allow all sensor alignments to be deleted from the monitor to allow
realignment if sensors have been removed and wheel positions are unknown.
When in Alignment Mode press the Center and Right buttons for 3 seconds. All sensor
alignments will be deleted.
5 Additional Functions
PSI
Pressure
Manual Trailer Disconnect
Delete All Function

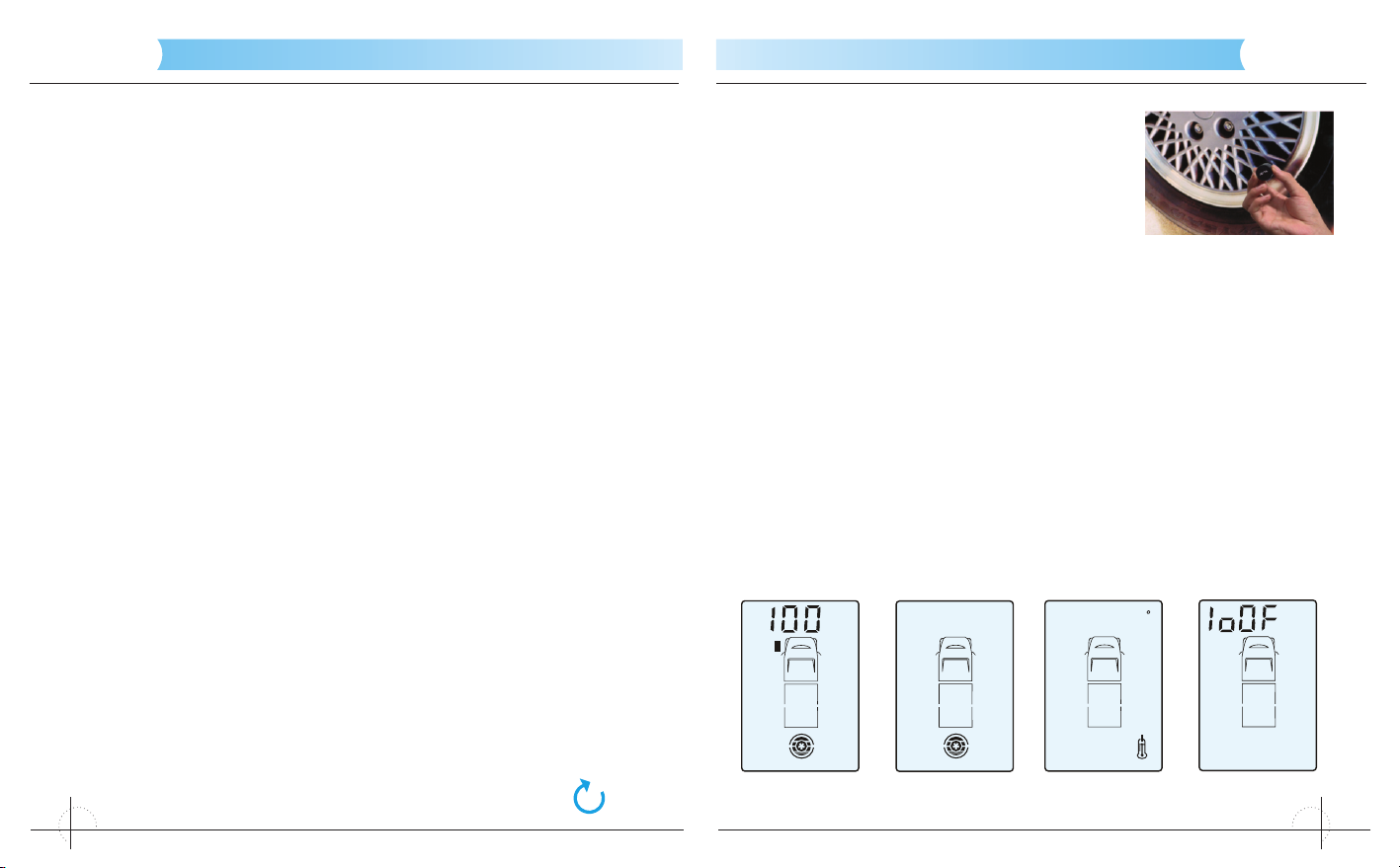

Dual Pressure Function
This feature is designed primarily for 4 Wheel Drive vehicles
which are regularly taken on and off road. It allows two pressure
settings to be set on each wheel so that the monitor can be
switched between low pressures and road pressures. It can also
be used for multiple trailer combinations.
When in programming mode, after setting pressure and
temperature units (C/F), the next press of the center button will
select the Dual Pressure mode. Press left or right button to select
LoOff or LoOn. LoOn turns this function on.
PTO......
