Intel DH55PJ Manuale utente

Intel® Desktop Board

DH55PJ

Specification Update

December 2011

Order Number: E96959-005

The Intel®Desktop Board DH55PJ may contain design defects or errors known as errata, which may cause the product to deviate

from published specifications. Current characterized errata are documented in this Specification Update.

2 Intel Desktop Board DH55PJ Specification Update

Revision History

Revision Revision History Date

-001 This document is the first Specification Update for the Intel®Desktop

Board DH55PJ

April 2010

-002 Update to the General Information section July 2010

-003 Update to the General Information section December 2010

-004 Update to the Specification Changes section March 2011

-005 Update to the Specification Changes section December 2011

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. INTEL PRODUCTS ARE NOT

INTENDED FOR USE IN MEDICAL, LIFE SAVING, LIFE SUSTAINING APPLICATIONS.

Intel may make changes to specifications and product descriptions at any time, without notice.

Designers must not rely on the absence or characteristics of any features or instructions marked “reserved”

or “undefined”. Intel reserves these for future definition and shall have no responsibility whatsoever for

conflicts or incompatibilities arising from future changes to them.

The Intel®Desktop Board DH55PJ may contain design defects or errors known as errata which may cause

the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your

product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel

literature, may be obtained from:

Intel Corporation

P.O. Box 5937

Denver, CO 80217-9808

or call in North America 1-800-548-4725, Europe 44-0-1793-431-155, France 44-0-1793-421-777,

Germany 44-0-1793-421-333, other Countries 708-296-9333

Intel and the Intel logo are registered trademarks of Intel Corporation in the U.S. and other countries.

* Other names and brands may be claimed as the property of others.

Intel Desktop Board DH55PJ Specification Update 3

Contents

Specification Update for the Intel®Desktop Board DH55PJ

Terminology ............................................................................................ 5

General Information ................................................................................. 5

Summary of Changes ............................................................................... 6

4 Intel Desktop Board DH55PJ Specification Update

Specification Update for the

Intel®Desktop Board DH55PJ

This document is an update to the specifications contained in the Intel®Desktop Board

DH55PJ Technical Product Specification (Order Number: E95284). It is intended for

hardware system manufacturers and software developers of applications, operating

systems, or tools. It will contain Specification Changes, Errata, Specification

Clarifications, and Documentation Changes.

Refer to the Intel®Core™ i7-800 and Intel®Core™ i5-700 Desktop Processor Series

Specification Update (Order Number: 322166) as well as to the Intel®Core™ i5-600,

Intel®Core™ i3-500 Desktop Processor Series and Intel®Pentium®Processor G6950

Series Specification Update (Order Number: 322911) for specification updates

concerning supported processors that may apply to the desktop board DH55PJ. Unless

otherwise noted in this document, it should be assumed that any Processor errata for a

given stepping are applicable to the Altered Assembly (AA) revision(s) associated with

that stepping.

Refer to the Intel®5 Series Chipset and Intel®3400 Series Chipset Specification

Update (Order Number: 322170) for specification updates concerning the Intel®H55

Express Chipset that may apply to the desktop board DH55PJ. Unless otherwise noted

in this document, it should be assumed that any Platform Controller Hub errata for a

given stepping are applicable to the Altered Assembly (AA) revision(s) associated with

that stepping.

Intel Desktop Board DH55PJ Specification Update 5

Terminology

Specification Changes are modifications to the current published specifications.

These changes will be incorporated in the next release of the specifications.

Errata are design defects or errors. Characterized errata may cause the desktop

board behavior to deviate from published specifications. Hardware and software

designed to be used with any given Altered Assembly (AA) and BIOS revision level

must assume that all errata documented for that AA and BIOS revision level are

present on all desktop boards.

Specification Clarifications describe a specification in greater detail or further

highlight a specification’s impact to a complex design situation. These clarifications

will be incorporated in the next release of the specifications.

Documentation Changes include typos, errors, or omissions from the current

published specifications. These changes will be incorporated in the next release of the

specifications.

General Information

Basic Desktop Board DH55PJ Identification Information

AA Revision BIOS Revision Notes

E93812-300 TCIBX10H.86A.0032 1,2

E93812-301 TCIBX10H.86A.0035 1,2

E93812-302 TCIBX10H.86A.0037 1,2

E96351-300 TCIBX10H.86A.0032 1,2

E96351-301 TCIBX10H.86A.0035 1,2

E96351-302 TCIBX10H.86A.0037 1,2

Notes:

1. The AA number is found on a small label on the component side of the board.

2. The Intel®H55 Express Chipset used on this AA revision consists of the following component:

Device Stepping S-Spec Numbers

82H55 Platform Controller Hub (PCH) B3 SLGZX

6 Intel Desktop Board DH55PJ Specification Update

Summary of Changes

The following table indicates the Specification Changes, Errata, Specification

Clarifications, or Documentation Changes that apply to the Intel®Desktop Board

DH55PJ. Intel intends to fix some of the errata in a future revision of the desktop

board, and to account for the other outstanding issues through documentation or

specification changes as noted.

The following notations are used in the table:

Doc: Document change or update that will be implemented.

Plan Fix: This erratum may be fixed in a future revision of the desktop board, driver, or BIOS.

Fixed: This erratum has been previously fixed.

No Fix: There are no plans to fix this erratum.

Shaded: This erratum is either new or modified from the previous version of the document.

No. Plans Specification Changes

1 Doc Updated Section 2.2.2.1, Section 2.2.2.2, and Section 2.2.2.6 of the Technical

Product Specification as shown in the Specification Changes Section below.

2 Doc Corrected the number of Conventional PCI connectors in Section 2.2.2.2 of this

Specification Update from three to one.

No. Plans Errata

There are no characterized erratum for this product

Specification Changes

The Specification Changes listed in this section apply to the Intel®Desktop Board

DH55PJ Technical Product Specification (Order Number E95284).

1. Updated Section 2.2.2.1 Signal Table for the Connectors and Headers,

Section 2.2.2.2 Add-in Card Connectors, and Section 2.2.2.6 Front Panel USB

Headers of the Intel Desktop Board DH55PJ Technical Product Specification as

shown below.

2.2.2.1 Signal Tables for the Connectors and Headers

Table 1. Front Panel USB Header 2

Pin Signal Name Pin Signal Name

1 +5 VDC 2 +5 VDC

3 D−4 D−

5 D+ 6 D+

7 Ground 8 Ground

9 KEY (no pin) 10 LED#

Intel Desktop Board DH55PJ Specification Update 7

2.2.2.2 Add-in Card Connectors

The board has the following add-in card connectors:

•One PCI Express 2.0 x16: this connector supports simultaneous transfer speeds of

up to 8 GB/s of peak bandwidth per direction.

•Two PCI Express 2.0 x1: each of these connectors support simultaneous transfer

speeds of up to 250 MB/s (2.5 GT/s) of peak bandwidth per direction.

•Three Conventional PCI (rev 2.3 compliant) connectors.

2.2.2.6 Front Panel USB Headers

Figure 12 is a connection diagram for the front panel USB headers.

NOTES

•The +5 V DC power on the USB headers is fused.

•Use only a front panel USB connector that conforms to the USB 2.0 specification for

high-speed USB devices.

•USB Header 2 (FP USB 2) has Pin 10 routed to the HDD LED to support specific

USB SSD devices. Connecting any device to this header, that has any connection to

Pin 10, may cause the HDD LED to behave erratically or stay on continuously.

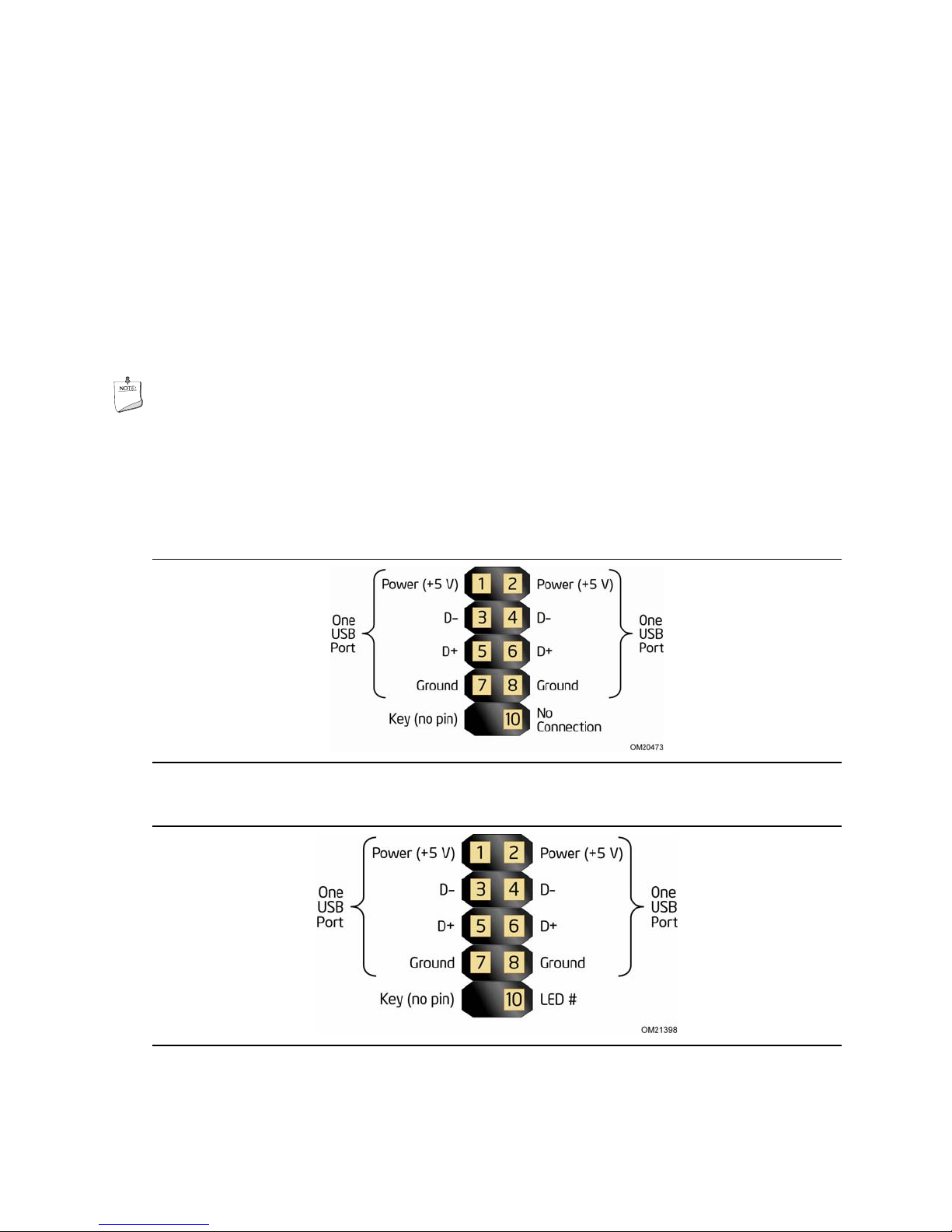

Figure 1. Connection Diagram for Front Panel USB Headers

Figure 2. Connection Diagram for Front Panel USB Header 2

8 Intel Desktop Board DH55PJ Specification Update

2. Corrected the number of Conventional PCI connectors in Section 2.2.2.2 of this

Specification Update from three to one.

2.2.2.2 Add-in Card Connectors

The board has the following add-in card connectors:

•One PCI Express 2.0 x16: this connector supports simultaneous transfer speeds of

up to 8 GB/s of peak bandwidth per direction.

•Two PCI Express 2.0 x1: each of these connectors support simultaneous transfer

speeds of up to 250 MB/s (2.5 GT/s) of peak bandwidth per direction.

•One Conventional PCI (rev 2.3 compliant) connectors.
