Intel I945P Manuale utente

TRADEMARK

All products and company names are trademarks or registered trademarks of their

respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

June 30, 2006

IntelIntel

Intel i945P or i945Gi945P or i945G

i945P or i945Gi945P or i945G

i945P or i945G mainboardmainboard

mainboardmainboard

mainboard

for Intel Socor Intel Soc

or Intel Socor Intel Soc

or Intel Sockk

ket 775 pret 775 pr

et 775 pret 775 pr

et 775 processorocessor

ocessorocessor

ocessor

User’User’

User’ss

ManualManual

Manual

60000125PJ510

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

HANDLING PROCEDURES:

Static electricity can severely damage your equipment. Handle the mainboard and

any other device in your system with extreme care and avoid unnecessary contact

with system components on the mainboard. Always work on an antistatic surface

to avoid possible damage to the mainboard from static discharge. Always have

the power supply unplugged and powered off when inserting and removing

devices within the computer chassis. The Manufacturer assumes no responsibility

for any damage to the mainboard that results from failure to follow instruction or

failure to observe safety precautions.

CAUTION

The mainboard is subject to damage by static electricity.

Always observe the handling procedures.

iii

Post Port Frequently Asked Questions

Below is a list of some basic POST Codes, possible problems and solutions. For more detailed

information about POST Codes, refer to Appendix in this manual.

Post Code Problem Solution

FFh or CFh

1. BIOS chip inserted incorrectly

2. Incorrect BIOS update version

3. Mainboard problem

4. Add-on card inserted incorrectly

1. Reinsert the BIOS chip

2. Download the correct BIOS version

update from the manufacturer's

Web site

3. Replace mainboard

4. Remove and replace the add-on card

C1h - C5h

1. Memory module inserted incorrectly

2. Memory compatibility problem

3. Memory module damaged

1. Reinsert memroy module

2. Replace memory with correct type

3. Replace memory module

2Dh 1. Error occured in VGA BIOS

2. VGA card inserted incorrectly 1. Replace VGA card

2. Reinsert the VGA card

26h Overclock error Clear CMOS or press the insert key to

power on the system

07h - 12h 1. Initial Keyboard controller error

2. RTC error 1. Ensure the Keyboard and mouse are

connected correctly

2. Replace the RTC battery

Table of Contents

Section 1-- Introduction ................................................................................ 1

1-1 Package Contents ................................................................................1

1-2 Mainboard Features ..............................................................................2

1-3 Mainboard Specification .........................................................................4

1-4 System Block Diagram ...........................................................................6

Section 2-- Installation ................................................................................. 7

2-1 CPU Installation ....................................................................................7

2-2 Jumper Settings ...................................................................................8

2-3 System Memory Configuration ...............................................................9

2-4 Rear I/O Port........................................................................................10

2-5 Internal Connectors ..............................................................................10

Section 3-- BIOS Setup ................................................................................ 13

3-1 Main Menu............................................................................................13

3-2 Standard CMOS Setup ..........................................................................14

3-3 Advanced BIOS Features ......................................................................14

3-4 Power BIOS Features............................................................................16

Section 4-- Driver & Utiltiy ........................................................................... 19

Section 5-- Ghost BIOS ............................................................................... 20

Section 6-- Appendix .................................................................................... 21

6-1 Post Codes...........................................................................................22

Page

Introduction

English

USER’S

MANUAL

Section 1 -- Introduction

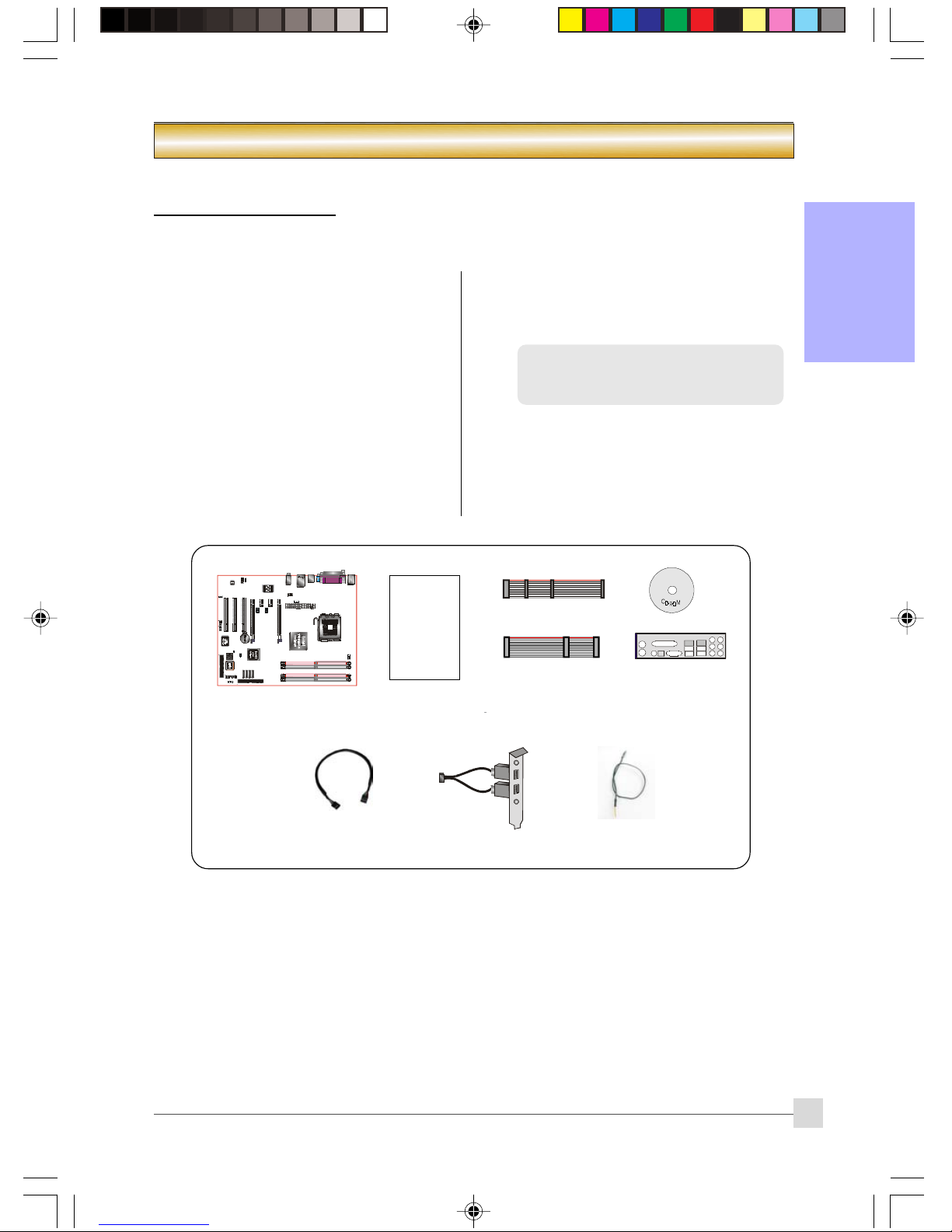

1-1 Package Contents

Contents

A. Mainboard

B. User’s manual

C. Floppy drive cable

D. HDD drive cable

E. CD (drivers and utilities)

F. I/O Shield

G. SATA II data cable

Optional items

H. Extra USB2.0 port cable

I. Thermo Stick cable

If you need the optional item, please

contact your dealer for assistance.

Introduction

English

1-2 Mainboard Features

Brief Introduction

Socket 775

Socket 775-based motherboards are designed to provide performance enhancements for Intel

Pentium®4 processor-based systems, and it also expected to be the next-generation of

platform innovations.

For more details about the Pentium®4 processor, please visit the Intel Web site at http://

www.Intel.com.

Chipset

The board is designed with Intel (i945P or i945G + ICH7) chipset, featuring performance and

stability with the most innovative technology and features.

For more details about the Intel Chipset, please visit the Intel Web site at http://www.Intel.

com.

VGA (Supported in the Intel i945G chipset)

Chipset contains integrated VGA. The VGA core shares memory usage with system memory,

therefore sometimes referred to as Unified Memory Architecture (UMA).

DDR2

DDR2 ushers in the new era of DDR memory technology. DDR2 memory offers faster speed,

higher data bandwidth and lower power consumption over DDR.

GLI mode (Graphics Link Interface)

GLI mode allows two PCI-Express VGA cards to be installed on the same mainboard to enjoy

dual display experience. With this technology you can expand your desktop space across two

monitors and have independent display on each monitor.

PCI-Express (PCI-E)

Next generation peripheral interface to succeed to current PCI bus for the next decade. With

smaller slot size and 250MB/sec (PCI-E*1) or 4GB/sec(PCI-E*16) maximum transfer, PCI-Express

overcomes PCI bus bottleneck.

Jumper Configurable PCI-Express

This mainboard is cleverly designed with a jumper configurable PCI-Express slot that lets user

select the bandwidth required. This allows high speed PCI-E devices such as RAID controller or

VGA cards to be supported on this mainboard.

Dual Channel

Supports dual channel of DDR2 memory to give you twice the memory bandwidth for greater

system performance.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system operation and

status. This includes CPU temperature, voltage and fan speed in RPMs.

10/100 LAN (Optional)

This mainboard is mounted with a 10/100BASE-T Ethernet LAN controller. It allows the mainboard

to connect to a local area network by means of a network hub.

GbE LAN (Optional)

The new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per second (Mbps),

which runs 10 times faster than conventional 10/100BASE-T Ethernet LANs.

Introduction

English

Ghost BIOS

No more worries if BIOS gets corrupted leaving your system unable to boot. The onboard

backup BIOS will rescue & recover main BIOS in just a few easy steps.

Thunder Probe

A hardware diagnostic software to monitor voltage, temperature and speed of a variety of

hardware. It also includes an ingenious built in fan control feature called Smart Fan.

Thunder Flash

A Windows based innovation tool to provide safe and easy BIOS rescue function, BIOS flash

function and personal start up screen.

Magic Health

Reports your system hardware status for every boot-up to help detect faults early. Monitor

hardware status including CPU temperature, CPU/Memory/Chipset voltage, fan RPM speed for

chassis fan, CPU fan & Power supply fan.

EZ-Boot

Simply press “ESC” to select your bootable device. No more hassle to search the BIOS menu,

change and re-start.

PowerBIOS

Supporting a full range of overclocking setting via BIOS. Various adjustable feature include FSB/

Memory/Chipset voltage tweaking.

Special Features

BIOS Features:

Post Port

An onboard LED-display trouble-shooting device, facilitating user to detect boot-up problems.

QuickSPDIF

On board SPDIF-out connector for quick connection to multi-channel speakers. Not only

removes cable cluttering but also delivers loss-free digital audio to let you enjoy DVD movies and

games with crystal clear sound.

Thermo Stick (Optional)

Flexible thermometer to let you measure any temperature by software. Ideal for monitoring

VGA card, chipset or even disk drives temperatures.

H/W Features:

Serial ATA II

S-ATA II is the second generation SATA interface with double the transferring speed up to

300MB/sec. It supports NCQ to provide faster reading speed for your storage devices.

USB2.0

A popular USB standard for plugging in peripherals with up to 480Mbps transfer speed while

maintaining backward compatibility with older USB1.1 device.

6ch

Mainboard is equipped with 6 channel of audio to support Dolby Digital 5.1 audio for DVD-playback.

The onboard audio jacks can be configured for normal 2 channel mode or 6 channel mode.

Introduction

English

1-3 Mainboard Specification

Processor

Socket LGA775 for Intel®Pentium-D 8xx/9xx series with Dual core processor

Support Intel Core E6000/E4000 series Conroe processor

Support Intel Celeron-D 3xx series, Intel Pentium-4 5xx/6xx series

Support 533/800/1066MHz front-side bus

Support Intel CPU manufactured in 65nm process

Support Intel 05B or 05A Platform Compatibility Guide

Chipset

Intel®i945P + ICH7 or,

Intel®i945G + ICH7 with Intel GMA950 graphics

Main Memory

Four 240-pin DDR2 SDRAM DIMM sockets

Support 1.8v DDR2-400/533/667 DIMMs with dual channel architecture

Support single-sided or double-sided, non-ECC, DIMMs with 256Mb/512Mb/1Gb devices

Supports up to 4GB memory size

Expansion Slots

Three PCI connectors compliant with PCI v2.3

Two PCI-Express (x1) connectors compliant with PCI Express 1.0a (Jumper selectable)

One PCI-Express (x16) connectors compliant with PCI Express 1.0a

One PCI Express (x4) connector for extra PCI-E VGA in GLI (Graphics Link Interface) mode

(Jumper selectable)

USB

Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors

at rear panel)

LAN

One Gb Ethernet from Realtek RTL8110S PCI controller (Optional)

One 10/100 Ethernet from Realtek RTL8100C PCI controller (Optional)

P-ATA IDE

One IDE interface (up to 2 IDE devices) with UDMA-33/66/100 support from embedded IDE

controller

S-ATA II

Four S-ATA II ports with up to 300MB/s bandwidth from ICH7

I/O

Onboard EPoX EP1308 LPC bus I/O controller

Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, Serial, and IrDA (v1.0

compliant)

Support Hardware Monitoring for fan speed monitoring and CPU temperature sensing

Intelligent fan speed control for CPU-fan (PWM) for quiet operation

Audio

6 channel audio from onboard Realtek ALC8xx HDA compliant CODEC

- Support CD-In

Introduction

English

- Support Jack detection for fool-proof audio device installation

- Rear panel audio jacks configuration

BIOS

Flash EEPROM with Award Plug&Play BIOS

Support ACPI S3 (Suspend To RAM) mode in ACPI compliant O/S

Support EZ Boot for fast bootable device selection

Support Magic Health for system hardware status report during system boot-up

Support Ghost BIOS for BIOS Recovery

Peripheral Interfaces

))

)At Rear Panel

PS/2 keyboard and mouse ports

One Parallel (printer) port

One S/PDIF-Out Coaxial jack

One Serial port (for Intel i945P model only)

One VGA port (for Intel i945G model only)

One RJ45 LAN connector

Four USB2.0 ports

Three Audio jacks

))

)Onboard connector and pin-header

One floppy drive connector

One ATA-100 IDE connector

Four extra USB2.0 ports

One CD-IN connector

One IR connector

One Serial port (COM1) connector (for Intel i945G model only)

Four S-ATA II connectors

Three Fan connectors

Front Panel Controller

Supports Reset & Soft-Off switches

Supports HDD & Power LEDs

Supports PC speaker

Supports Front Panel Audio connector

Special Features

Support KBPO function – Keyboard power on, turn on the computer from keyboard

Support Wake-On-LAN by PME

Support USB resume in S3

Onboard Post Port LED display for system debugging

PowerBIOS for excellent overclocking features:

- Programmable FSB and PCI-E Clock output frequency with 1MHz fine tuning

- Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock and DIMM frequency

ledomhc6roF

roloCkcaJenohP lennahc2 lennahc6

eulBthgiLni-eniLtuo-oeretsraeR

emiLtuo-eniLtuo-oeretstnorF

kniPni-ciMrefoowbuS&retneC

Introduction

English



Depending on the model you purchased, some components are optional and may

not be available.

- Support BIOS adjustable CPU Core voltage, Chipset voltage and DIMM voltage

Support Thermo Stick temperature (Optional)

Support Ghost BIOS - Rescue, recover BIOS in an easy step and no more worry of BIOS

being corrupted.

Powerful utilities for Windows

Support Thunder Probe - A hardware diagnostic software to monitor voltage, temperature

and speed of a variety of hardware. It also includes an ingenious built in fan control feature

called Smart Fan.

Support Thunder Flash - A Windows based innovation tool to provide safe and easy BIOS

rescue function, BIOS flash function and personal start up screen.

Form Factor

305mm x 245 mm ATX size

Supported Operating System

Windows 2000, Windows XP

1-4 System Block Diagram

Altri manuali per i945P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intel Scheda madre

Intel

Intel DG41KR Manuale utente

Intel

Intel BOXD865GVHZ Guida alla configurazione

Intel

Intel 915G - Matx DDR2-533 LGA775 Manuale utente

Intel

Intel DH67BL Manuale utente

Intel

Intel G41 Express Chipset Manuale utente

Intel

Intel D915PDT Manuale utente

Intel

Intel EMX-965GME Manuale utente

Intel

Intel DG43RK Manuale utente

Intel

Intel D945GCNL - Desktop Board Motherboard Manuale utente

Intel

Intel D865GSA Manuale utente

Intel

Intel DP55SB - Desktop Board Extreme Series... Manuale tecnico

Intel

Intel D845EPI Manuale utente

Intel

Intel DQ33HS Manuale utente

Intel

Intel D2550MUD2 Manuale utente

Intel

Intel BLKDH55HC Manuale utente

Intel

Intel Desktop Board D845GLVA Manuale utente

Intel

Intel BLKD945GCNL Guida alla configurazione

Intel

Intel EV80Cl96KB Manuale utente

Intel

Intel BOXD2700MUD Manuale utente

Intel

Intel D101GGC Manuale utente

Intel

Intel D865PCK Manuale utente

Intel

Intel BOXD2700DC Manuale utente

Intel

Intel DP67DE Manuale utente

Intel

Intel BOXDB43LD - B43 Chipset Executive Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente

Intel i945P Manuale utente

Manuali Scheda madre popolari di altre marche
