XP-P4I533E

Intel®Pentium®4 Processor Motherboard

User's Manual

Motherboard

XP-P4I533E

May 18, 2004

XP-P4I533E

Motherboard

CopyrightDeclaration

reproduced, copied, translated, or transmitted in any form or by any means without express

permission from Gigatrend Technology. Companies and product names mentioned in this

document are trademarks or registered trademarks of their respective owners.

LegalDisclaimer

The information and content of this document is provided "as is", without warranty of any kind,

express or implied, including but not limited to the warranties of merchantability, fitness for a

particular purpose and non-infringement. Gigatrend Technology assumes no responsibility for

errors or omissions in this document or other documents which are referenced by or linked to

this document. The content of this document are subject to change without prior notice.

Gigatrend Technology may make improvements and/or changes in the product described in

this publication at any time and without prior notice. In no event shall Gigatrend Technology be

liable for any special, incidental, indirect or consequential damages of any kind arising out of

or in connection with the use or performance of this document. If you are uncertain about any

installation procedures, please consult a qualified computer technician.

Termsof Use

To avoid unnecessary errors of operation, please consult the user manual prior to hardware

installation. For more up-to-date information, please link to our company website at http://

www.axper.com.tw

Prior to beginning installation procedures, please make sure that your computer turned off and

is connected to a grounded power outlet. If your system is not turned off during installation,

this could result in harm or damage to the motherboard, the components as well as to the

user.

Contents

MotherboardLayout ........................................................................4

1. ProductionIntroduction ...............................................................

51.1. FeatureSummary ............................................................................. 5

1.2. I/OBackPanelandConnectors&JumperSetting............................. 6

1.2.1. I/O Back Panel ..............................................................................6

1.2.2. Connectors&Jumper Setting ..........................................................6

2. HardwareInstallation ................................................................9

2.1. Installation of a Pentium 4 CPU and Fan Sink................................ 10

2.2. Installation of Memory ..................................................................... 10

2.3. Installation of the Graphics Card ......................................................11

3. BIOSSetup............................................................................13

3.1. SetupScreenFeatures (BIOSversion:E5)..................................... 13

3.2. StandardCMOSFeatures............................................................... 14

3.3. AdvancedBIOSFeatures ............................................................... 16

3.4. IntegratedPeripherals ..................................................................... 17

3.5. PowerManagementSetup.............................................................. 20

3.6. PnP/PCIConfiguration .................................................................... 21

3.7. PC Health Status ............................................................................. 22

3.8. Frequency/VoltageControl.............................................................. 23

3.9. TopPerformance ............................................................................. 25

3.10. LoadFail-SafeDefaults................................................................... 25

3.11. LoadOptimizedDefaults ................................................................. 25

3.12. SetUserPassword ......................................................................... 25

3.13. Save & Exit Setup ........................................................................... 25

3.14. Exit Without Saving ......................................................................... 25

4. DriverInstallation....................................................................26

English

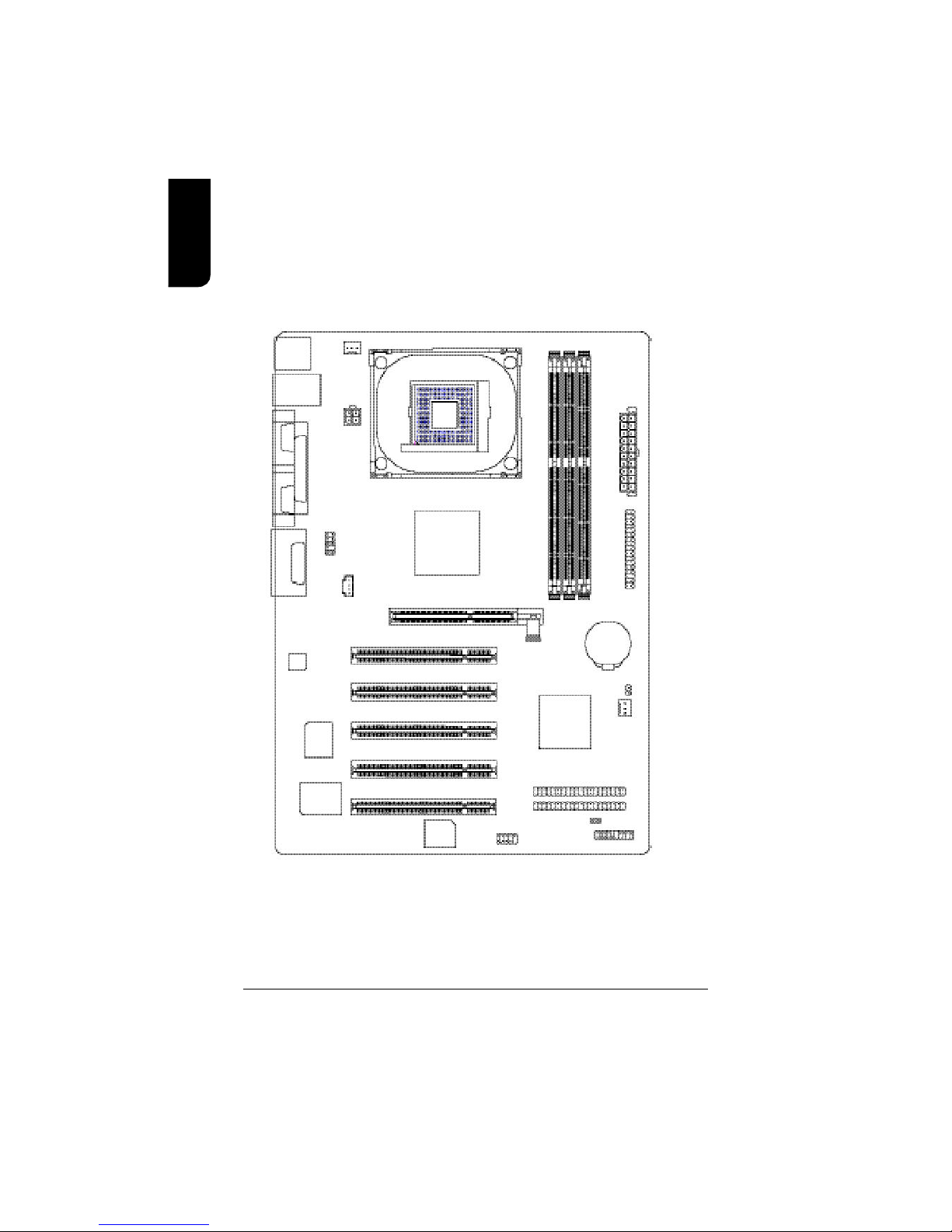

Motherboard Layout

XP-P4I533E

KB_MS

COMA

ATX_12V

CD_IN

F_AUDIO

F_PANEL

BAT

Intel ICH4

Intel 845E

SOCKET 478

CPU_FAN

ATX

FDD

IDE2

PCI1

PCI2

PCI3

DDR1

CODEC

SMSC

BIOS

COMB

IDE1

CLR_CMOS

F_USB1 PWR_LED

USB

LAN

DDR2

LPT

GAME

LINE_IN

LINE_OUTMIC_IN

RTL8100C

DDR3

AGP

PCI4

PCI5

SYS_FAN

English

CPU Socket 478 for Intel®Pentium®4 (Northwood) with HT Technology

Intel®Pentium®4 400/533MHz FSB

2nd cache depends on CPU

Chipset North Bridge: Intel®845E

South Bridge: Intel®ICH4

Memory 3 184-pin DDR DIMM sockets, supports up to 3GB DRAM (Max)

Supports DDR200/DDR266 DIMM

Supports only 2.5V DDR SDRAM

Slots 1 AGP slot device support

5 PCI slots support 33MHz & PCI 2.2 compliant

On-Board IDE 2 IDE controller provide IDE HDD/CD-ROM(IDE1, IDE2) with PIO,

Bus Master (Ultra DMA33/ATA66/ATA100) operation modes

Can connect up to 4 IDE devices

On-Board Floppy 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and

2.88M bytes

On-Board Peripherals 1 Parallel port supports Normal/EPP/ECP mode

2 Serial port (COMA, COMB)

4 USB 2.0/1.1 ports (2 x Rear, 2 x Front by cable)

1 Front Audio connector

1 PS/2 Keyboard

1 PS/2 Mouse

On-Board LAN Builit-in RTL8100C chipset

1 RJ45 port

On-Board Sound C-Media 9761 CODEC

Support 6 channel

Line Out / Line In / Mic In

CD In

BIOS Licensed AWARD BIOS

Supports BIOSNOW!

I/O Control SMSC

Hardware Monitor CPU Fan Revolution detect

CPU temperature detect

System Voltage detect

Form Factor ATX size form factor, 29.5cm x 20.0cm

1. Production Introduction

The user manual provides steps related to quick installation. If you wish to view complete

product information, please select the " ",Open User Manual button located on the driver

CD or link to our website at http://www.axper.com to received the most up-to-date information.

1.1. Feature Summary

English

PS/2

Keyboard

PS/2

Mouse LAN

USB COMB

Parallel Port

COM A

Game Port

Line Out MIC In

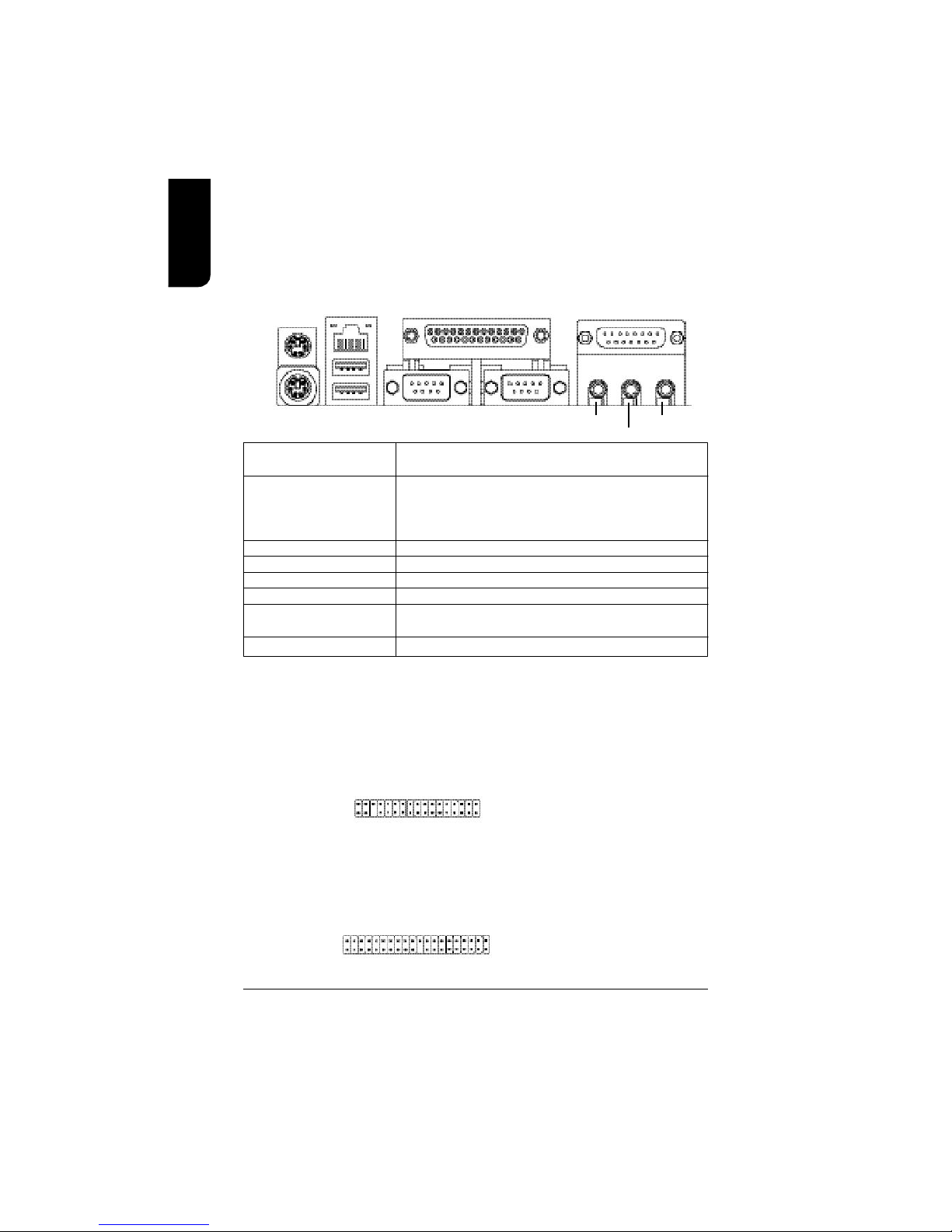

1.2. I/O Back Panel and Connectors&Jumper Setting

1.2.2. Connectors&JumperSetting

FDD(FloppyDisk Drive Connector)

The FDD connector is able to connect a single floppy disk drive via a FDD cable. Usually one

edge of the FDD cable is marked in red, please attach this marked edge to position 1 on the

connector.

IDE1 / IDE2 (IDE1 and IDE2 Connector)

The IDE connector is able to connect two IDE devices via an IDE cable and requires checking

of the IDE jumper setting. It is recommended that the hard drive be connected to the first IDE

connector while the optical drive be connected to the second IDE connector.

1.2.1. I/O Back Panel

PS/2 Keyboard Connects PS/2 standard keyboard and PS/2 standard

PS/2 Mouse connector mouse

USB Prior to use, please make sure that your system as well

(Universal Serial Bus Port) as the connected attachments support the USB interface.

If driver installation is required, please consult the USB

section of the user manual.

LAN (RJ45 LAN Port) Internet connection with speed of up to10/100Mbps

Parallel port (LPT) Connects to printer

COMA/COMB (Serial port) Connects to serial-based mouse or data processing devices

LineOut Connects to speakers or headphones

Line In Connects to optical devices, CD players and other audio

input devices

Mic In Connects to microphone

40 2

39 1

English

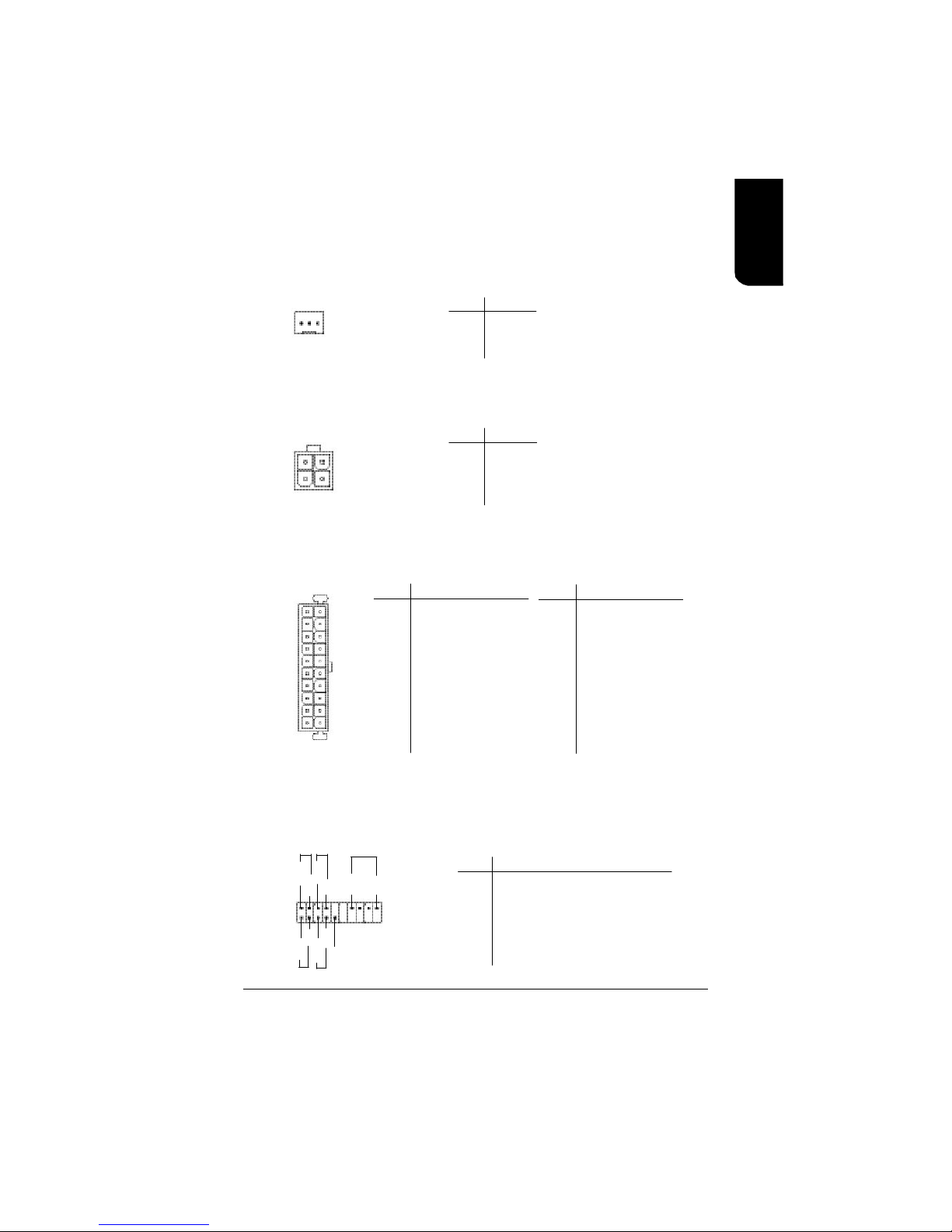

CPU_FAN(CPUFanPowerConnector);SYS_FAN(SystemFanPowerConnector)

The CPU_Fan power connector provides the largest amount of power to the CPU fan at

600mA. You can connect the casing fan to the SYS_FAN connector to enhance system cooling.

ATX_12V(+12VPower Connector)

The ATX_12V power connector provides power to the CPU. If this connector is not Attached,

the system will not start.

ATX(ATXPowerConnector)

The ATX power connector provides power to the motherboard. Prior to connection, please

make sure that the power supply is disconnected.

F_PANEL (Front Panel Control Connector)

The F_Panel Control Connector connects to certain connectors on the front panel of the

system casing such as IDE Hard Disk Active LED, speaker, reset, and power on/off connectors.

You can use the schematic diagram below as the basis for connection.

PIN SIGNAL

1GND

2GND

3+12V

4+12V

PIN SIGNAL

HD IDE Hard Disk Active LED

SPK SpeakerConnector

RES ResetSwitch

PW SoftPowerConnector

MSG MessageLED/Power/SleepLED

NC NC

PIN SIGNAL

13.3V

23.3V

3GND

4VCC

5GND

6VCC

7GND

8PowerGood

95VSB (stand by +5V)

10 +12V

PIN SIGNAL

11 3.3V

12 -12V

13 GND

14 PS_ON(softon/off)

15 GND

16 GND

17 GND

18 -5V

19 VCC

20 VCC

PIN SIGNAL

1GND

2+12V

3Sense

219

HD-

HD+

RES+

RES-

SPK-

MSG-

MSG+

PW-

PW+

SPK+

English

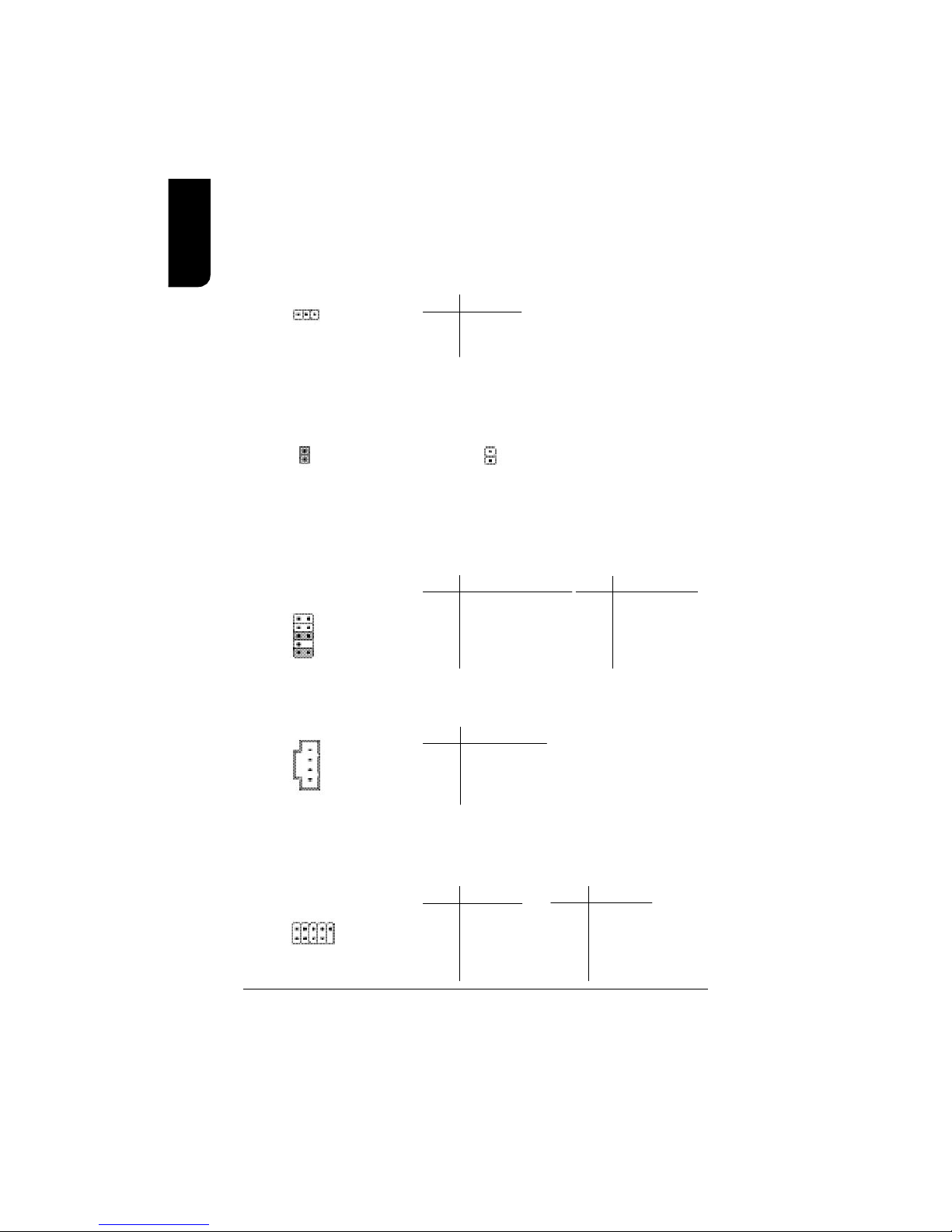

F_AUDIO(FrontAudio Connector)

Connects to the audio connector located on the front panel of the system casing (dependent

on case design). When use of the front panel audio connector is required, please remove the

5-6 pin, 9-10pin jumper. Please note that use of only the front panel audio connector or the

rear panel audio connector is permitted.

CD_IN (Optical Drive Audio Connector)

Connects CD-ROM or DVD-ROM audio connector.

PIN SIGNAL

1MIC

2GND

3MIC_BIAS

4POWER

5FrontAudio(R)

PIN SIGNAL

6RearAudio(R)

7Reserved

8NO PIN

9Front Audio (L)

10 RearAudio(L)

PWR_LED

Connects to the system power LED indicator whereby the power is indicated as ON or OFF.

However, the indicator will flash when the system is suspended.

1PIN SIGNAL

1MPD+

2MPD-

3MPD-

PIN SIGNAL

1CD_L

2GND

3GND

4CD_R

109

CLR_CMOS(Clear CMOS)

You can clear the motherboard CMOS with the jumper to return your system to its initial

status. To prevent improper usage, the jumper does not include the jumper plug. If you wish to

use the Clear CMOS function, please short circuit the 1-2Pin.

Open:Normal

Short : Clear CMOS

F_USB1(FrontUSBConnector)

Connects to the USB connector located on the front panel of the system casing (dependent on

case design). Note: Please make sure that each USB connection matches its designated

position. If connections are made incorrectly, the result can lead to inability to use the function

or even damage.

210

PIN SIGNAL

6USBDy+

7GND

8GND

9NO PIN

10 NC

PIN SIGNAL

1POWER

2POWER

3USB Dx-

4USB Dy-

5USB Dx+

English

The improper removal of the battery can result in harm. When replacing a

battery, please make sure you use one that is of similar brand and model

number.

For information related to battery specifications and precautions, please refer

to the manufacturer instructions.

If you wish to delete the data stored in the CMOS, please follow the steps

below:

1. Please turn off your computer and unplug the power.

2. Remove the battery from the motherboard.

3. Wait 30 seconds and then replace the battery onto the motherboard.

4. Plug in the power supply and turn on your system.

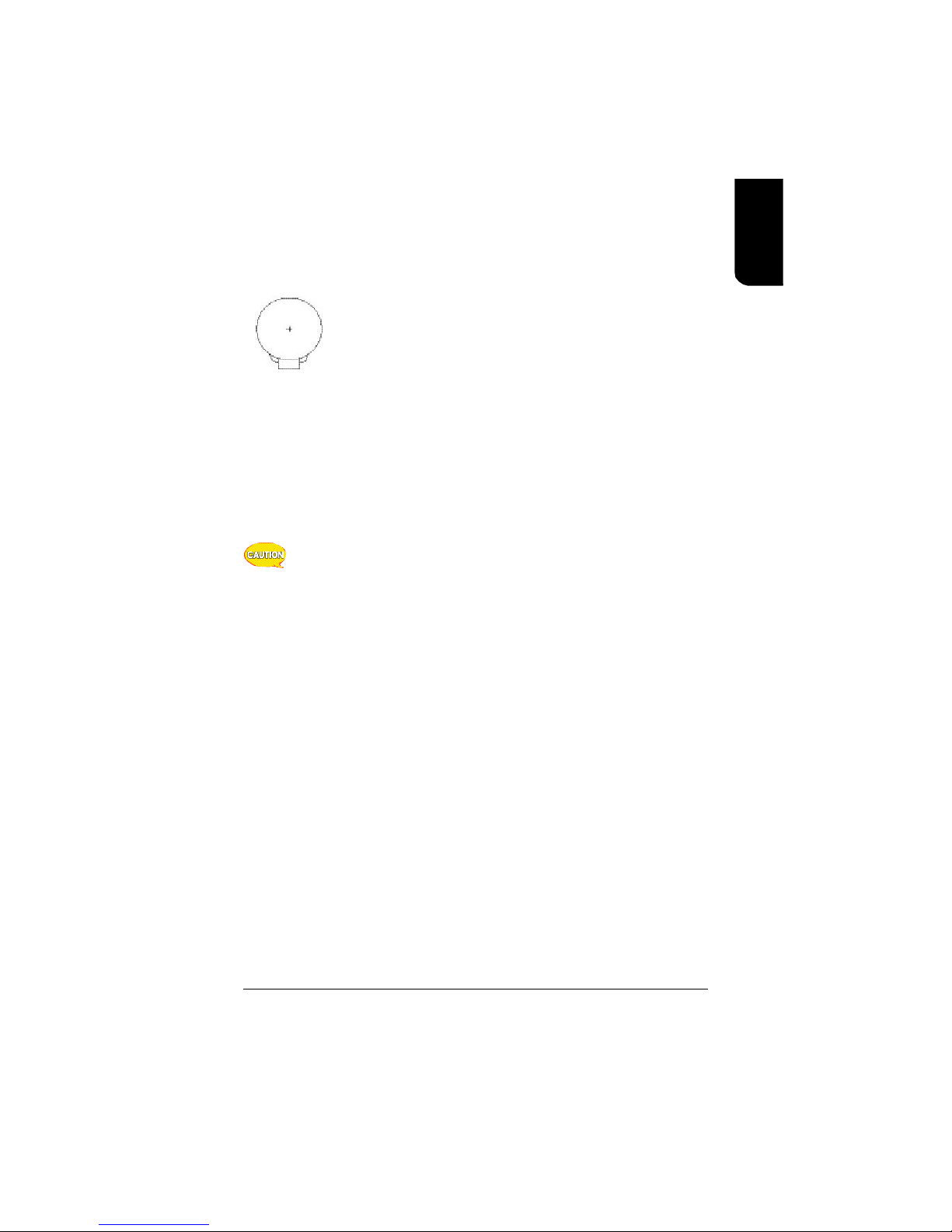

BAT1(Battery)

1. Please make sure that the CPU used is supported by your motherboard.

2. Please be aware of the placement position of the CPU. If the CPU does not

insert properly, do not apply force but check the placement position.

3. Please make sure that an even layer of heat sink paste is added between the

CPU and the fan sink.

4. Please do not turn on the power prior to installing the fan sink. Doing so can

result in overheating and lead to permanent damage to the CPU.

5. Please follow the CPU specifications when setting the frequency. It is not

recommended that system speed settings exceed that of hardware

specifications. If you wish to set your system speed to exceed the recom

mended specifications, please check your hardware specifications eg: CPU,

graphics card, memory, hard drive

The following must be supported to allow the use of Hyper-Threading Technology:

- an Intel Pentium 4 CPU with HT

- a motherboard supporting HT

- HT selection feature within BIOS

- an operating system supporting HT

2. Hardware Installation

English

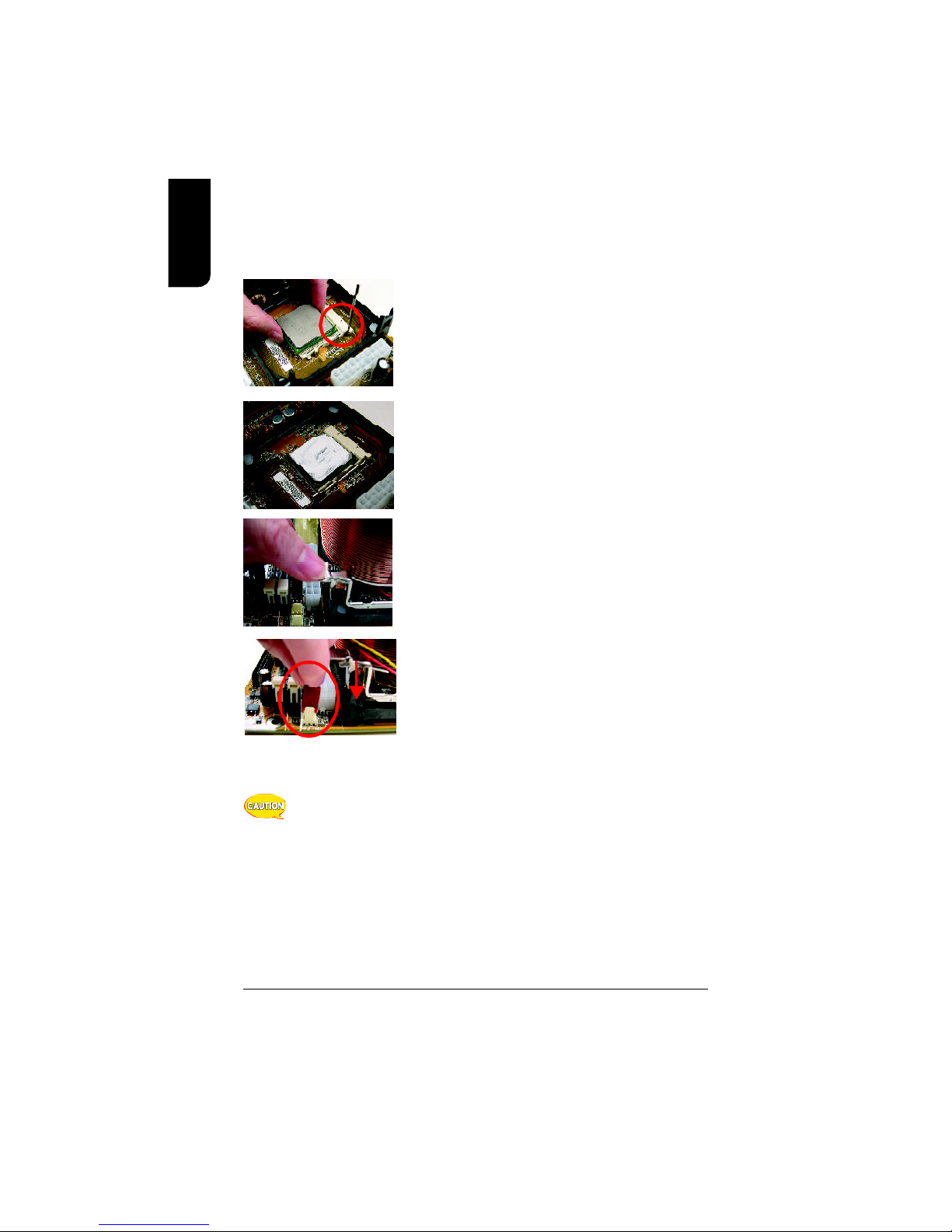

Position and attach the clips on one end of the fan sink firmly

atop the CPU. Please do the same for the clips on the other

end of the fan sink.

When the CPU is inserted into its position, gently press the

metal lever downwards until a click is heard. Then add an

even layer of heat sink paste between the CPU and fan sink

for heat dissipation.

2.1. Installation of a Pentium 4 CPU and Fan Sink

Note the small gold colored triangle on one corner of the CPU.

Place the triangle in the corner closest to the metal lever and

gently insert the CPU into its position.

Connect the 3-pin cooler power connector to the CPU Fan

connector located on the motherboard.

2.2. Installation of Memory

1. Before installing or removing memory, please make sure that the computer power

is turned off to prevent hardware damage.

2. Please make sure that the memory used is supported by the motherboard.

3. Memory modules have a foolproof insertion design. The memory can be in

stalled only when facing the correct position. If you cannot insert the module,

please switch directions.

4. It is recommended that memory of similar capacity, specifications and brand be

used.

The motherboard supports DIMM memory modules, whereby BIOS will automatically detect

memory capacity and specifications. Memory modules are designed so that they can be

inserted only in one direction.

Indice

Altri manuali Intel Scheda madre

Intel

Intel BLKDG31PR - 1333FSB DDR2 800 Audio Lan 4SATA uATX 10Pack... Manuale utente

Intel

Intel S2600KPFR Istruzioni per l'installazione

Intel

Intel BLKDG33TLM - G33 Express Socket775 mATX... Manuale utente

Intel

Intel H61 Express Manuale utente

Intel

Intel D845GVSR - Desktop Board Motherboard Manuale utente

Intel

Intel I865PE Manuale utente

Intel

Intel D102GGC2 Manuale tecnico

Intel

Intel D915GVWB Manuale tecnico

Intel

Intel D850MVSE Manuale utente

Intel

Intel BLKDP55KG - LG1156 MAX-16 GB DDR3 ATX... Guida alla configurazione

Intel

Intel DH55PJ Manuale utente

Intel

Intel D945GPM Manuale utente

Intel

Intel DQ965CO Manuale utente

Intel

Intel D865GSA Manuale utente

Intel

Intel DH61AGL Manuale utente

Intel

Intel D925XHY Manuale utente

Intel

Intel Desktop Board D845GLAD Guida di riferimento

Intel

Intel DG965PZ Manuale utente

Intel

Intel D33217CK Manuale utente

Intel

Intel BLKDG965SSCK Guida alla configurazione

Intel

Intel Desktop Board D845GLVA Manuale utente

Intel

Intel Desktop Board D915PCM Manuale utente

Intel

Intel D845EPI Manuale utente

Intel

Intel D2550DC2 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
