Spares/

Spares/Spares/

Spares/A essories

A essoriesA essories

A essories List and Configuration Guide

List and Configuration Guide List and Configuration Guide

List and Configuration Guide

A reference guide to assist customers in ordering the necessary components to

configure the Intel® Server BoardS5520UR and the appropriate 1U and 2U Intel Rack

Mount Server Systems

Revision 1.0

February 2009

Enterprise Platforms and Services Marketing

Revision History

April ’08- Rev 0.1 – Initial release for alpha

May ’08 – Rev 0.2 – Updated for beta board and systems

July ’08 – Rev 0.3 – Updated beta configuration guide

August ’08 – Rev 0.5 – Updated for silver board and systems

October `08 – Rev 0.6 – Silver corrections

November `08 – Rev 0.9 – Updated for production board and systems

February `09 - Rev 1.0 – Ready for open books

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS.

NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL

PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S

TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY

WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO

SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY

PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Intel products are not intended for use in medical, life saving, life sustaining applications. Intel may make

changes to specifications and product descriptions at any time, without notice.

Intel server boards, server chassis, and processors may contain design defects or errors known as

errata, which may cause the product to deviate from published specifications. Current characterized

errata are available on request.

Intel, Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation or

its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Table of Contents:

1. SYSTEM PRODUCT ORDER CODES ..................................................................................................................... 4

1.1 PRODUCT DESCRIPTIONS –OVERVIEW.................................................................................................................. 4

1.2 BOARD AND SYSTEM PRODUCT ORDER CODES..................................................................................................... 4

2. SPARES AND ACCESSORIES ORDER CODES ................................................................................................. 10

2.1 I/O MODULES ...................................................................................................................................................... 10

2.2 SR2600/SR2625 FLEX BAY KITS ....................................................................................................................... 11

2.3 BEZELS................................................................................................................................................................ 11

2.4 SYSTEM SPARES AND ACCESSORIES................................................................................................................... 12

2.5 POWER SUB-SYSTEM SPARES AND ACCESSORIES .............................................................................................. 15

2.6 CONTROL PANEL SPARES AND ACCESSORIES ..................................................................................................... 16

2.7 RISER SPARES AND ACCESSORIES ...................................................................................................................... 16

2.8 RAILS AND MOUNTING OPTIONS .......................................................................................................................... 17

2.9 CHASSIS AND ELECTRICAL SPARES KITS ............................................................................................................. 18

1. System Product Order Codes

1.1 Product Descriptions – Overview

Product based on the Intel® Server Board S5520UR will be offered in two methods at production:

1. Intel® Server Systems (Integrated SKUs). Customer orders an integrated system. All

systems – except SR1600URHS – do not have required options, and are complete.

All systems do not include processors, DDR3 main memory, hard drives, and other customer

configuration items

2. 10 Pack Server Board SS5520UR. Intended for customers utilizing 3rd party chassis or for

customers requiring spare boards.

* Chassis will not be offered separately.

1.2 Board and System Product Order Codes

Not included in systems: Processors, DDR3 main memory, hard drives, and other customer

configuration items are not included in below SKUs.


Product Code

UPC

Description

Minimum

Order

Quantity

BB5520UR

901085

735858206587

Intel Server Board S5520UR (shipped in bulk pack of 10)

SR1600UR

900983

735858206723

Intel Server System SR1600UR fixed configuration.

Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR1600

•Cabled front panel (no video port

•Three 3.5" fixed HDD sleds,

•One full height riser with PCI Express x16 2.0 slot

•One fixed high-efficient 600W power supply

•Fan-board

•SATA and power cables to connect 3 HDDs,

•Seven DIMM blanks

•Two processor heatsinks.

For complete list of accessories – please reference section 2.

SR1600URNA

900985

Same as SR1600UR but with North American power cord.

SR1600URHS

900985

735858206730

Intel Server System SR1600URHS Hot-Swap configuration.

Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR1600

•Standard control panel,

•Three 3.5" HDD carriers,

•One full height riser with PCI Express 2.0 x16 slot,

•One fixed high-efficient 600W power supply

•Seven DIMM blanks

•Two processor heatsinks.

Does not include backplane.

*NOTE: System Backplane must be ordered separately to

complete system.

Required accessory (choose one of two options):

To obtain SAS/SATA HotSwap functionality – need to order

Active Backplane – ASR1500SASBP (offers onboard SAS

controller with SW RAID support).

To obtain SATA HotSwap functionality – need to order

ASR1500PASBP, which allows cabled pass-through connection

from motherboard or add-in controller.

For complete list of accessories – please reference section 2.

SR1600URHSNA

901126

Same as SRURHS but with North American power cord.

SR1625UR

900986

735858206747

Intel Server System SR1625UR passive configuration.

Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR1625

•mini control panel,

•6 of 2.5" HDD carriers (and filler in slots 7&8)

•1 full height full length riser with PCI Express 2.0 x16

slot,

•1 passive SAS/SATA midplane,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 650W

power supply.

Key Optional accessories:

To enable redundant power supply feature – order additional

power supply ASR1625PS

To add SW Raid5 support – order AXXRAKSW5 key.

To add HW raid functionality: need to install add-in PCI HW

Raid controller, which must be cabled to Passive Midplane.

Alternatively, Passive Midplane may be replaced with Active

(FALSASMP2)

To add support for 8 drives by add-in controller – order

additional 2.5” HDD drive carriers ( available in 10 pack

FXX25HDDCAR).

To add Standard Control Panel - order ASR1625FP.

*Note: Only one control panel (Mini, Standard, or Local) can be

used in a system at a time.

*Note: Standard CP and two additional drives are installed in

the same bay, and can not be installed at the same time.

For complete list of accessories – please reference section 2.

SR1625URNA

901132

Same as above but with North American power cord

SR1625URSAS

900987

735858206754

Intel Server System SR1625UR active configuration.

Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR1625

•Mini control panel,

•6 2.5" HDD carriers (and filler in slots 7&8)

•1 full height full length riser with PCI Express 2.0 x16

slot,

•Active Midplane2 board with 8-port SAS controller

upgradeable to HW RAID mode,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 650W

power supply

Key Optional Accessories:

To enable redundant power supply feature – order additional

power supply (ASR1625PS)

To add HW raid functionality of Active Midplane2: order Raid

key (AXXRAKSAS2) , minidimm (AXXMINIDIMM512). RAID

cache battery backup is optional (AXXRSBBU3).

To add support for 8 drives by SAS controller on Active

Midplane2– order two additional 2.5” HDD drive carriers

(FXX25HDDCAR).

To add Standard Control Panel - order ASR1625FP.

*Note: Only one control panel (Mini or Standard) can be used in

a system at a time.

*Note: Standard CP and the two right most drives are installed

in the same bay, and can not be installed at the same time.

For complete list of accessories – please reference section 2.

SR1625URSASNA

901136

Same as above but with North American power cord

SR2600URBRP

901093

735858206761

Intel Server System SR2600UR system in base-passive

configuration. Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR2600

•Standard control panel,

•5 3.5" HDD carriers,

•3 fixed, non redundant fans

•Tape drive bay filler

•1 riser with three full-height PCI Express 2.0 x8 wired

slots (one x16 and two x8 connectors),

•passive SAS/SATA midplane,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 750W

power supply

KeyOptional accessories:

To enable power supply redundancy – order AXX750WPS

To upgrade cooling system to redundant– order

ASR2600LXFANS.

To add support for 6th hot-swap 3.5 inch drive – order

ASR2500SIXDRV

To change PCI expansion slots – included riser must be

replaced with ASR26XXFHLPR or ASR26XXFHXR

To add support for SATA Tape Drive – order ASR2500SATAPE

*NOTE: ASR2500SIXDRV and ASR2500SATAPE are installed

in the same bay and can not be installed at the same time.

For complete list of accessories – please reference section 2.

SR2600URBRPNA

901187

Same as above but with North American power cord

SR2600URLX

900988

735858206778

Intel Server System SR2600UR in active-SAS configuration.

Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR2600

•Standard control panel,

•5 3.5" HDD carriers,

•6 redundant and hotswap fans

•Tape drive bay filler

•1 active butterfly riser with five PCI Express 2.0 x8

wired slots (two full-height x16 connectors, one full-

height x8 connector and two low-profile x8

connectors),

•active Midplane2 board with SAS controller

upgradeable to HW RAID mode,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 750W

power supply

Key Optional Accessories:

To enable power supply redundancy – order AXX750WPS

To add PCI-X support – included riser must be replaced with

ASR26XXFHXR

To add support for two fixed 2.5inch SATA drives – order

ASR2600FXDRV (requires drives to be cabled to two open

SATA ports)

To add support for 6th hot-swap 3.5 inch drive – order

ASR2500SIXDRV

To add support for SATA Tape Drive – order ASR2500SATAPE

*NOTE: ASR2500SIXDRV and ASR2500SATAPE are installed

in the same bay and can not be installed at the same time.

For complete list of accessories – please reference section 2.

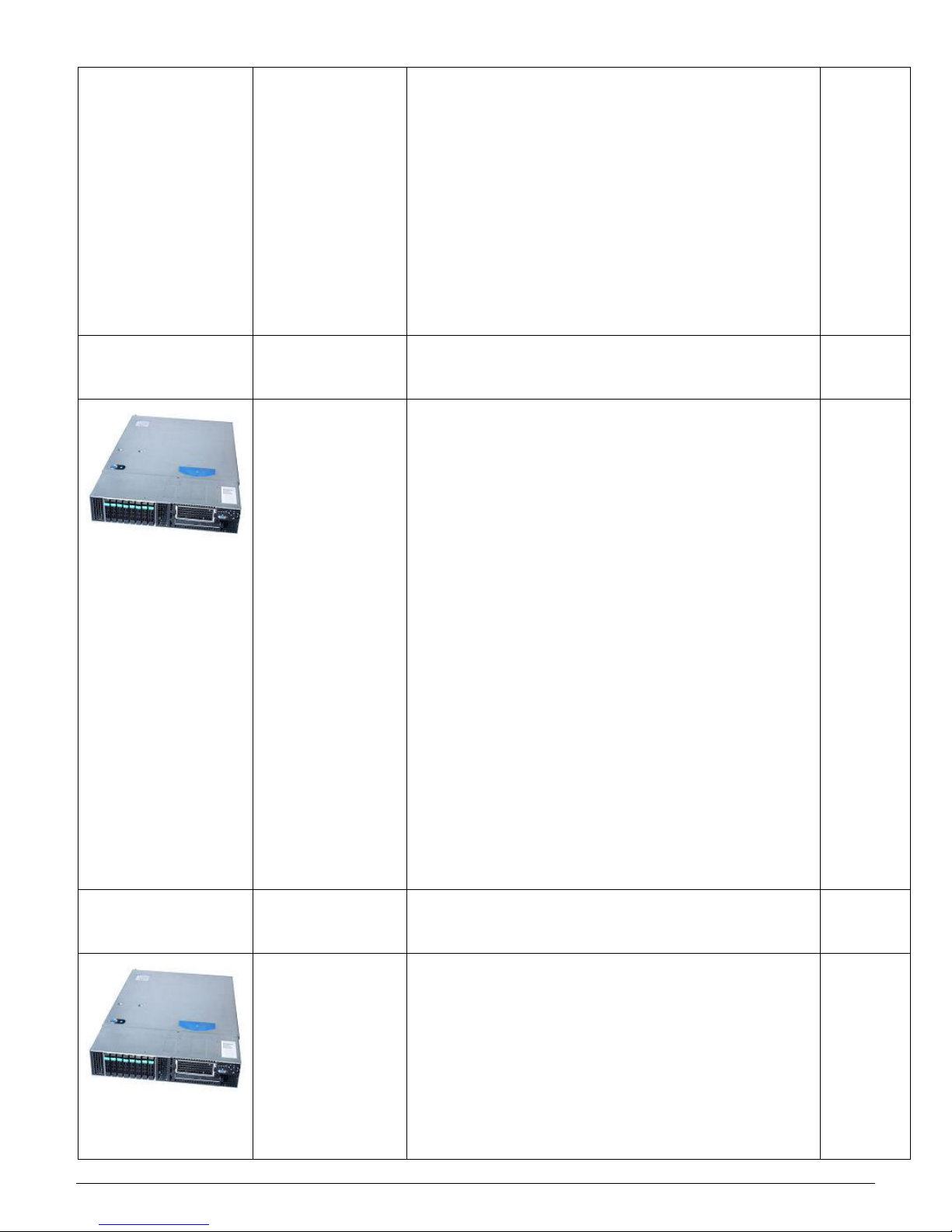

SR2600URLXNA

901131

Same as above but with North American power cord

SR2625URBRP

900989

735858206785

Intel Server System SR2625UR in base-passive

configuration. Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR2625

•Standard control panel

•6 2.5" HDD carriers (and filler in slots 7&8)

•3 fixed, non redundant fans

•Tape drive bay filler

•1 full-height riser with three PCI Express 2.0 x8 wired

slots (one x16 connector and two x8 connectors),

•1 passive SAS/SATA midplane,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 750W

power supply

Key Optional Accessories:

To enable power supply redundancy – order AXX750WPS

To add or change PCI expansion slots – included riser must be

replaced with ASR26XXFHLPR or ASR26XXFHXR

To add support for SATA Tape Drive – order ASR2500SATAPE

For complete list of accessories – please reference section 2.

SR2625URBRPNA

901141

Same as above but with North American power cord

SR2625URLX

900990

735858206792

Intel Server System SR2625UR system in SAS

configuration. Includes:

•Intel Server Board S5520UR

•Intel Server Chassis SR2625

•Standard control panel,

•8 2.5" HDD carriers,

•6 redundant and hot-swap fans

•Tape drive bay filler

•1 active butterfly riser with five PCI Express 2.0 x8

wired slots (two full-height x16 connectors, one full-

height x8 connector and two low-profile x8

connectors),

•active Midplane2 board with SAS controller

upgradeable to HW RAID mode,

•7 DIMM blanks

•2 processor heatsinks

•1 hot-swap and redundant capable high-efficient 750W

power supply

Key Optional Accessories:

To enable power supply redundancy – order AXX750WPS

To add PCI-X support – included riser must be replaced with

ASR26XXFHXR

To add support for SATA Tape Drive – order ASR2500SATAPE

For complete list of accessories – please reference section 2.

SR2625URLXNA

901129

Same as above but with North American power cord

2. Spares and Accessories Order Codes

2.1 I/O Modules


Product Code

UPC

Description

Minimum

Order

Quantity

AXX10GBIOMOD

Avail. Post SRA. 10GbE I/O module Dual port CX4 connector.

AXX4GBIOMOD2

901359

735858206532

Quad port GbE I/O module. RJ-45

connectors. 1

AXXIBQDRMOD

Avail. Post SRA.

Single port QDR speed InfiniBand I/O

Module. CX4 powered connector. 1

AXX4SASMOD

900946

00735858206372

Internal 4-port SAS module, based on LSI

1064e controller, with Em bedded RAID

support. (primarily targeted at non-intel

chassis)

AXXROMBSASMR

901641

735858208017

Internal 4-port SAS module, based on LSI

1078e controller. Provides 4 port full featured

SAS/SATA RAID 0,1,5, 6 and striping

capability for spans 10, 50, 60. (primarily

targeted at non-intel chassis)

AXXIBIOMOD

881891

735858185219

InfiniBand I/O Expansion Module, SDR

speed. Compatible with Intel Server Boards

S5000PALR and S5520UR.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intel Server

Intel

Intel R1000WF Series Guida rapida alla configurazione

Intel

Intel SR1530HSH - Server System - 0 MB RAM Manuale utente

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Manuale utente

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Manuale utente

Intel

Intel SPSH4 - Server Platform - 0 MB RAM Guida alla configurazione

Intel

Intel R1000SP Manuale utente

Intel

Intel M50CYP2UR Series Guida rapida alla configurazione

Intel

Intel S9200WK Series Manuale utente

Intel

Intel MFSYS25V2 Manuale utente

Intel

Intel P4308CP4MHEN Manuale utente

Intel

Intel SR1600UR - Server System - 0 MB RAM Manuale utente

Intel

Intel R1000WF Series Guida alla configurazione

Intel

Intel SR1435VP2 - Server Platform - 0 MB RAM Manuale utente

Intel

Intel MFSYS25V2 Manuale utente

Intel

Intel SR2100 Manuale utente

Intel

Intel SC5650BCDP Guida alla configurazione

Intel

Intel R2000SC Manuale utente

Intel

Intel NSC2U - IP Network Server Manuale utente

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Manuale utente

Intel

Intel TIGPT1U - Carrier Grade Server Manuale utente

Intel

Intel SR1520ML - Server System - 0 MB RAM Manuale utente

Intel

Intel SR1690WB - Server System - 0 MB RAM Manuale utente

Intel

Intel H2000WP Manuale utente

Intel

Intel P4304BT series Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
