Interface 9860 Istruzioni utente
Setting up the 9860
High Speed Indicator
– Setup Steps –
(3)
(1) (2)
After about ve seconds, the
screen will switch over to the live mode,
which should show a live reading, such as
"000.00" and the LEDs to the right turn
o. The decimal point setting may be
dierent on your indicator. We will
be setting this in upcoming steps.
Next, to turn on the 9860, simply plug in the
power cord and it will start immediately.
Before powering up the 9860, be sure to
connect your sensor(s) with the transducer.
The rst thing you will see are all of the
LEDS light up at the front and to the right
with the screen reading its release number.
Page 1 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
(4) (5)
For our rst step, we will set the
calibration in "CAL" mode.
Using the ▲ and ▼ buttons, enter:
" ▲ + ▼ + ▲"
Immediately after entering the correct
code, you will be brought the
next screen (Step 5).
Using the ▲ or ▼ buttons, set it to "On 1"
Begin by pressing the MODE button to the
far left. Before we can start making our
settings we'll rst be required to enter
a code, as shown below:
Before actually calibrating our sensor, we
will enter a series of settings by going
through the MODE screens.
Wait one second...
From here on, press the ▲ and / or ▼
buttons to cycle through your options as
they are presented to you in each mode.
Page 2 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
Press MODE. Next we
set the decimal point.
Press MODE. Next we activate the
Least Signicant Digit in "LSD" mode.
(6) (7)
Wait one second...
Set it to "On"
Wait one second...
Place the decimal point where
you need it to be. For this mode, use the
▲ button to place leftward or the
▼ button to place rightward.
Page 3 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
(9)(8)
Press MODE. Next we set the
lter "Band" factory default.
Press MODE. Next we set the
"Filter" value factory default.
Wait one second...
Set it to "500".
Wait one second...
Set it to "90".
When required to input
numbers, use the ▲ and / or ▼
buttons to set a value. Use the STEP
button to cycle rightwards through each
digit, looping around to the left side.
A digit will blink whenever selected.
Page 4 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
Refer to back of manual for full detail.
Refer to back of manual for full detail.
Press MODE. Referring to the actual load
that will be applied for calibrating purposes,
we will need to enter the weight
you will be applying.
(10) (11)
Press MODE. Below, the display is
showing the value of the "Scale". However,
we cannot change this setting because it is
does not apply to this calibration method.
Skip to the next step.
Wait one second...
Wait one second...
For this demonstration, we will
assign a load of 100lbf, so
we enter "0100.00".
Page 5 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
(12)
Again, in this demo, we are working
with 100lbf, so we enter "0100.00". The
decimal point may not be showing here but
it will in the end, so remember where you
placed it. In this example, "10000"
is actually "100.00".
Press MODE. Here, we will input the
number for the FS (Full-Scale), which sets
the analog output to 10VDC to match the
weight value entered here.
Wait one second...
Page 6 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
(13)
Press MODE.
Press MODE again.
Press MODE again.
Wait one second...
Now we will enter the
value for this set point.
Be sure that the set
point has "HI" selected.
Repeat the process of this this step for all
of the Set Points (SP1, SP2, SP3, SP4).
Now we will create set points
above the maximum capacity.
Enter the value "150.00"
as it is above "100.00".
Page 7 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
Press MODE. Here we have the
"Hysteresis Low". Similar the the "Scale"
Mode, this does not apply to this calibration
method. So we will leave this unchanged.
Press MODE. Now we're shown
the "Hysteresis High".
(14) (15)
Skip to the next step.
Skip to the next step.
Wait one second...
Wait one second...
Page 8 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
Press MODE. In the next screen we're pre-
sented with the Baud. Again, like in the pre-
veious two steps, we will not be focussing
on this mode for this calibration method.
(16)
Please do not change this setting.
Wait one second...
Page 9 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
Press MODE. Now we are back at the be-
ginning with a live reading again, but with
all of our preparatory settings in place.
(17)
Since the feed is live and not yet
calibrated, the reading may give
values from a range dierent
than around "000.00".
Wait three seconds...
Now press CAL again.
Up to this point, we haven't applied
any force to our sensor.
(20)
(21)
Load applied.
(18)
Press TARE. The TARE light will come on.
(19)
Press CAL. The CAL light will come on too.
For demonstration purposes, we will apply
a simulated load of 2mV/V for the 9860 as
though 100 lbf was applied to a load cell
having a max capacity of 100 lbf.
And with that,
calibration is complete!
Page 10 of 10
7401 East Butherus Drive · Scottsdale, Arizona 85260 USA · Phone: 480.948.5555 · Fax: 480.948.1924
– Calibration Steps –
Altri manuali per 9860
2
Indice
Altri manuali Interface Strumento di misura
Interface
Interface DMA2 Manuale
Interface
Interface 9840-400 Manuale utente
Interface
Interface 9860 Manuale utente
Interface
Interface BlueDAQ BX8 Manuale utente
Interface

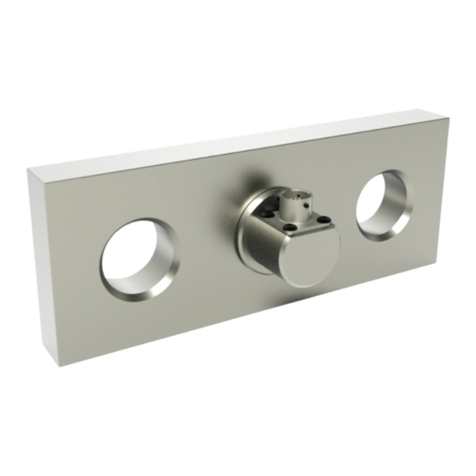

Interface ITL Specifiche
Interface
Interface 9840 Manuale utente
Interface
Interface 9825 Manuale di istruzioni
Interface

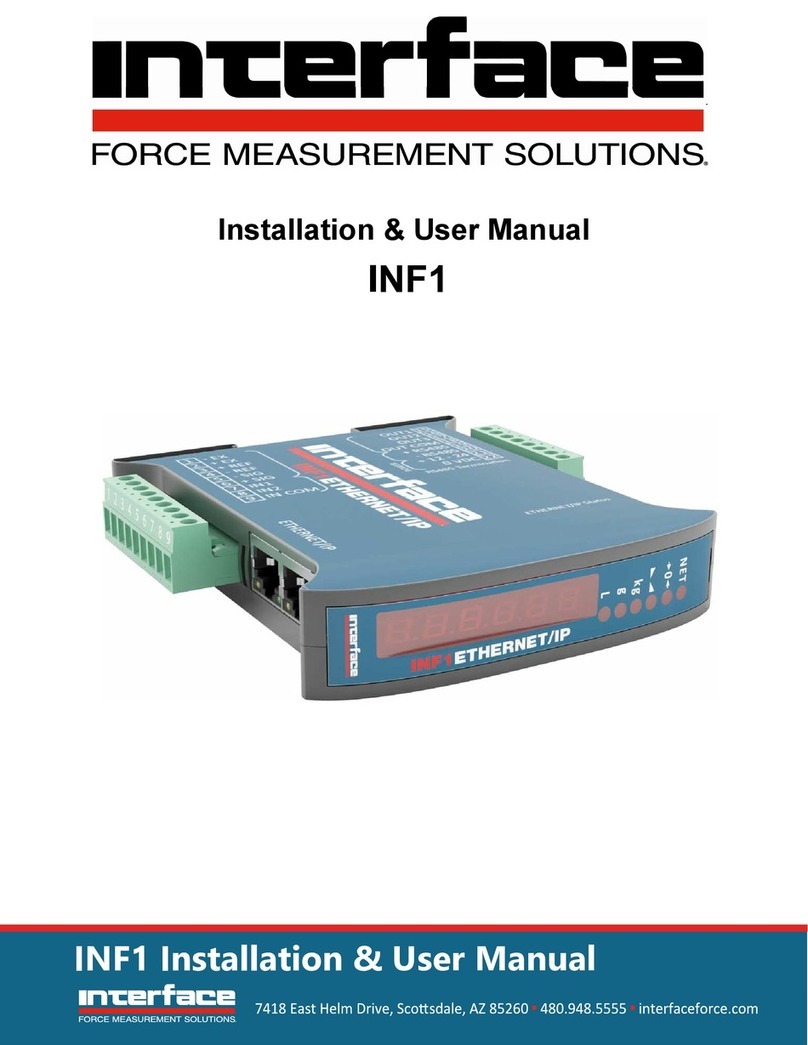

Interface INF1 Manuale di istruzioni
