Interlogix TruVision Line Foglio di istruzioni

TruVision IP PTZ Camera

Configuration Manual

Firmware 5.0X

P/N 1072664A-EN • REV 1.0 • ISS 24SEP13

2013 UTC Fire & Security Americas Corporation, Inc.

Interlogix is part of UTC Climate

Controls & Security, a unit of United

Technologies

Trademarks and

patents

he TruVision and Interlogix names and logos are trademarks of

United Technologies.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire &

Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Contact information

For contact information

, see www.interlogix.com or

www.utcfssecurityproducts.eu

Customer suppor

www.interlogix.com/customer

-support

TruVision IP PTZ Camera Configuration Manual i

Content

Chapter 1 Introduction 1

Chapter 2 Network connection 3

Checking your web browser security level 3

Configuring IE ActiveX controls 3

Windows Vista and 7 users 4

Accessing the camera over the internet 5

Overview of the camera web browser 5

Chapter 3 Camera configuration 9

Configuration menu overview 9

Local configuration 10

System time 12

Network settings 13

Recording parameters 17

Video image 18

OSD 21

Overlay text 22

ROI encoding of an image 23

Intelligent tracking 24

PTZ parameters 25

PTZ home position 25

Basic PTZ parameters 25

Limit camera movement 26

Schedule tasks 27

Park actions 29

Privacy masks 29

Clear PTZ configurations 31

Motion detection alarms 31

Tamper-proof alarms 33

Exception alarms 34

Alarm inputs and outputs 35

Video loss alarms 37

Snapshot parameters 38

NAS settings 39

Format storage devices 40

Recording schedule 41

Chapter 4 Camera management 45

User management 45

Adding and deleting users 46

Modifying user information 47

RTSP authentication 47

IP address filter 48

ii TruVision IP PTZ Camera Configuration Manual

Telnet 49

Restore default settings 49

Import/export a configuration file 50

Upgrade firmware 50

Reboot camera 51

Chapter 5 Camera operation 53

Logging on and off 53

Live view mode 53

Playing back recorded video 54

Searching event logs 57

Operating PTZ control 59

PTZ control panel 59

Using presets 60

Using preset tours 61

Using shadow tours 62

Index 63

TruVision IP PTZ Camera Configuration Manual 1

Chapter 1

Introduction

This is the configuration manual for the following TruVision IP PTZ camera

models:

TVP-1101 (1.3MPX pendant, PAL)

TVP-3101 (1.3MPX pendant, NTSC)

TVP-1102 (1.3MPX surface, PAL)

TVP-3102 (1.3MPX surface, NTSC)

TVP-1103 (1.3MPX flush, PAL)

TVP-3103 (1.3MPX flush, NTSC)

TVP-1104 (2MPX pendant, PAL)

TVP-3104 (2MPX pendant, NTSC)

TVP-1105 (2MPX surface, PAL)

TVP-3105 (2MPX surface, NTSC)

TVP-1106 (2MPX flush, PAL)

TVP-3106 (2MPX flush, NTSC)

0BChapter 1: Introduction

2 TruVision IP PTZ Camera Configuration Manual

TruVision IP PTZ Camera Configuration Manual 3

Chapter 2

Network connection

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP PTZ cameras can be configured and controlled using Microsoft

Internet Explorer (IE) and other browsers. The procedures described use

Microsoft Internet Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to

connect and view video using Internet Explorer. However, you cannot download

data, such as video and images due to the increased security measure.

Consequently you should check the security level of your PC so that you are able

to interact with the cameras over the web and, if necessary, modify the Active X

settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

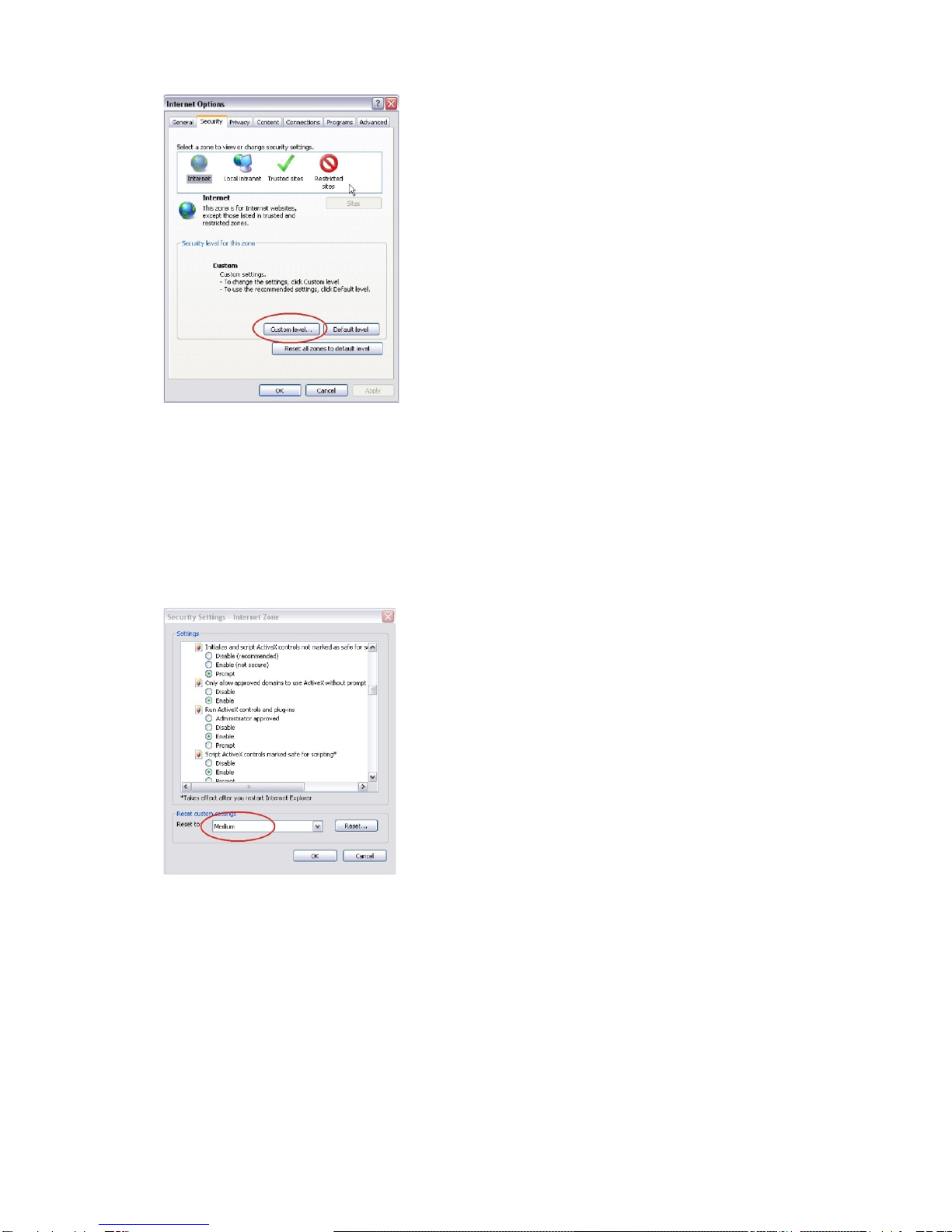

To change the web browser’s security level:

1. In Internet Explorer click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site

under “Select a web content zone to specify its security settings”.

3. Click Custom Level.

1BChapter 2: Network connection

4 TruVision IP PTZ Camera Configuration Manual

4. Change the ActiveX controls and plug-ins options that are signed or

marked as safe to Enable. Change the ActiveX controls and plug-ins

options that are unsigned to Prompt or Disable. Click OK.

- or -

Under Reset Custom Settings, click the security level for the whole zone in

the Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows Vista and 7 users

Internet Explorer for Windows Vista and Windows 7 operating systems have

increased security measures to protect your PC from any malicious software

being installed.

To have complete functionality of the web browser interface with Windows Vista

and Windows 7, do the following:

• Run the Browser interface as an administrator in your workstation

1BChapter 2: Network connection

TruVision IP PTZ Camera Configuration Manual 5

• Add the camera’s IP address to your browser’s list of trusted sites

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab, and then select the Trusted sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https:) for all sites in this zone box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Accessing the camera over the internet

Use the web browser to access and configure the camera over the internet.

It is recommended that you change the administrator password once the setup is

complete. Only authorized users should be able to modify camera settings. See

“User management” on page 45 for further information.

To access the camera online:

1. In the web browser enter the camera’s IP address (default is 192.168.1.70).

Use the tool, TruVision Device Finder, enclosed on the CD to find the IP

address of the camera.

The Login dialog box appears.

Note: Ensure that the Active X controls are enabled.

2. Enter your user name and password.

User name: admin

Password: 1234

3. Click Login. The web browser window appears in live view mode.

Overview of the camera web browser

The camera web browser lets you view, record, and play back recorded videos

as well as manage the camera from any PC with Internet access. The browser’s

easy-to-use controls give you quick access to all camera functions. See Figure 1

on page 6.

1BChapter 2: Network connection

6 TruVision IP PTZ Camera Configuration Manual

If there is more than one camera connected over the network, open a separate

web browser window for each individual camera.

Figure 1: Web browser interface

Table 1: Overview of the web browser interface

No.

Name

Description

1. Live view Click to view live video.

2. Playback Click to play back video.

3. Log Click to search for event logs. There are three main types:

Alarm, Exception, and Operation.

4. Configuration Click to display the configuration window for setting up the

camera.

5. Current user Displays current user logged on.

6. Logout Click to log out from the system. This can be done at any

time.

7. PTZ controls Direction actions, zoom, focus, iris, light, and wiper control.

8. Viewer View live video. Time, date and camera name are displayed

here.

9. Stream type and

aspect ratio Click to select dual or substream and to select the aspect

ratio (4×3, 16×9, or ×1).

10. Start/stop live view Click to start/stop live view.

11. Audio Adjust volume.
