Intermec 3400 Manuale utente

3400

Parallel I/O

Adapter

Card

Use the following instructions to install a 3400

Parallel I/O Adapter Card into a 3400 printer. This

procedure must be performed only by trained service

personnel.

Parts Provided:

• Parallel I/O Adapter Card

• Ribbon cable

Tools Required:

• Phillips screwdriver

Step 1

Removing the I/O Board Port Cover

1. Switch off the printer power and remove the power

cord from the printer.

2. Remove the media cover and the electronics cover

from the printer.

3. Remove and discard the optional I/O board port

cover from the rear of the printer. Retain the

two screws.

Instruction

Sheet

3400-72

Optional I/O

Board Port

Retain the

two screws.

Optional

I/O Board

Port Cover

(Remove and discard.)

Step 2

Installing the Parallel I/O Adapter Card

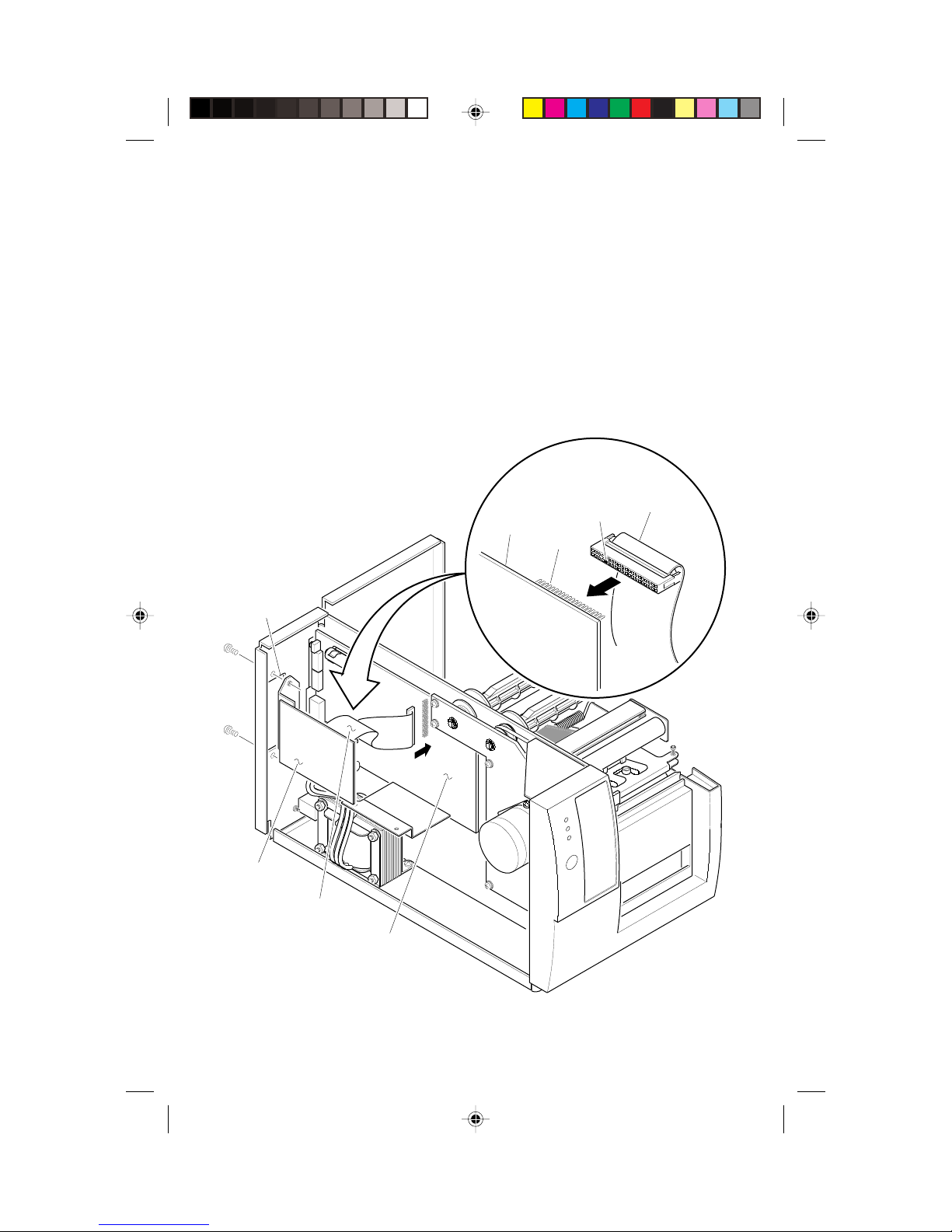

1. Connect one end of the ribbon cable to J2 on the parallel I/O adapter card.

Note: Both ends of the ribbon cable are keyed. Either end can be plugged onto

the parallel I/O adapter card or the main PCB.

2. With the component side of the parallel I/O adapter card facing the interior of

the printer, secure the parallel I/O adapter card to the optional I/O board port

with the two port cover screws.

3. Connect the free end of the ribbon cable to J8 on the main PCB.

4. Reinstall and secure the media cover and

electronics cover.

5. Reinstall the power cord.

6. To test for printer communication,

refer to Section 1 of the

3400 User’s Manual

(Part No. 059691).

INTERMEC Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

PN 060629-001

Intermec

3400-73

Parallel I/O

Adapter

Card

Optional I/O

Board Port

Main PCB

Ribbon

Cable

Key

Ribbon

Cable

Parallel I/O

Adapter

Card
