1Intermec EasyCoder 501 LL Cutter Guide – Installation Instructions Ed.1

EasyCoder 501 LinerLess Cutter

Cutter Guide Installation

1-960410-02

EasyCoder 501 LinerLess

Cutter Guide

Installation Instructions

Edition 1, October 2001

The guide plate is intended to be ﬁtted at the front

of the cutter of an EasyCoder 501 LinerLess. It

prevents labels to fall off after cutting and for

example stick to the front of the cutter or to the

table where the printer stands. It is not necessary

to ﬁt the guide plate, but we recommend to ﬁt it

unless some other means of taking care of the label

are provided, for example an applicator.

The guide plate has a special coating that prevents

labels from sticking to it.

The guide plate is not ﬁtted at delivery to prevent

damage during transportation, but is easy to ﬁt

using a #T10 Torx key:

•Loosen the two #T10 Torx screws, that hold

the plate beneath the cutter’s outfeed slot, a few

turns.

•Slip the guide plate onto the screws from

above.

•Make sure to press the guide plate down as

far as the U-shaped indents at the bottom edge

allow.

EasyCoder is a registered trademark of Intermec Technologies

Corp.

Torx is a registered trademark of Camcar Division of Textron Inc.

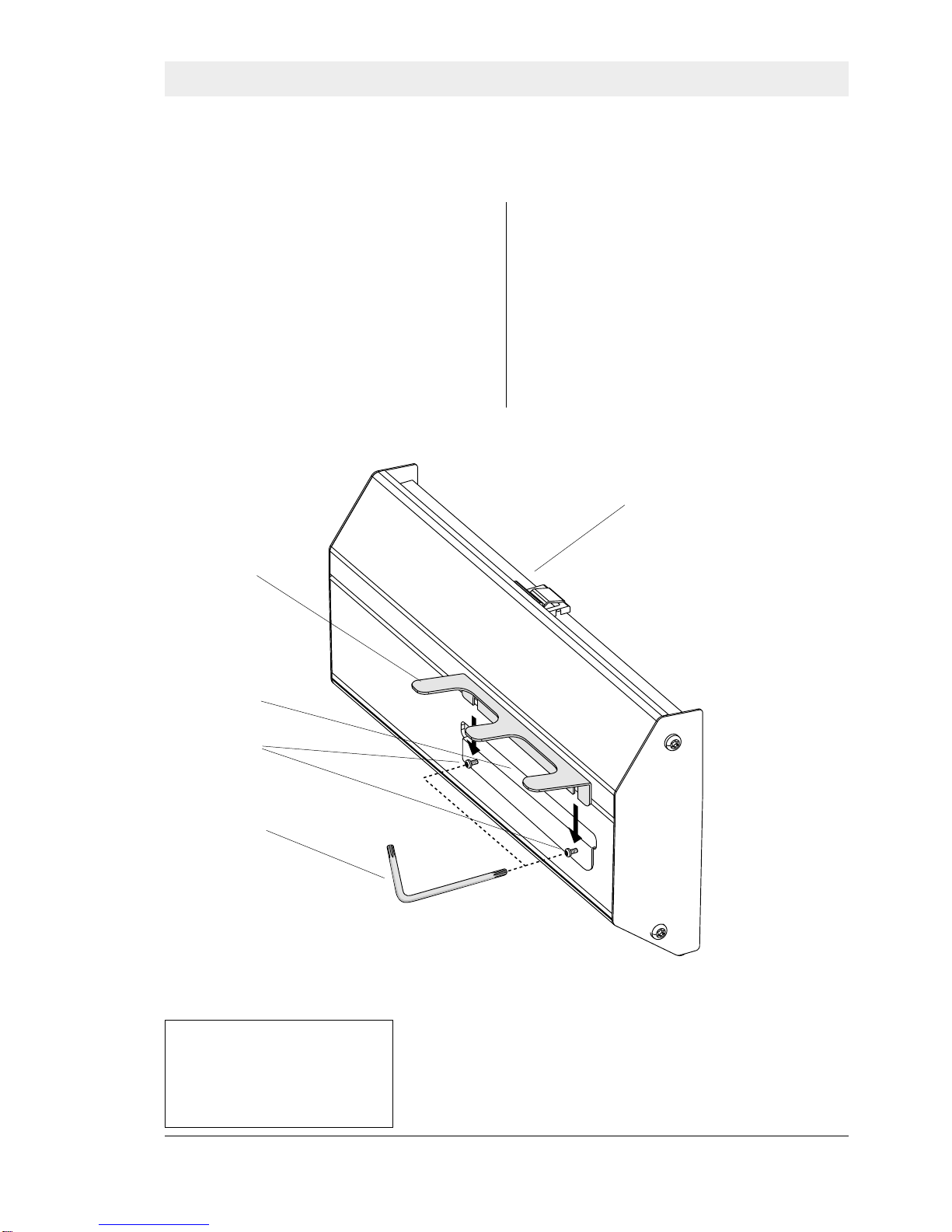

LinerLess Cutter Unit

Guide Plate

Outfeed Slot

#T10Torx Key

Torx Screws
