Installation

Instructions

EasyLAN

Interface Kit

(for EasyCoder PF2i,

PF4i, PF4i Compact

Industrial, and PM4i)

Intermec Printer AB

Idrottsvägen 10

P.O. Box 123

S-431 22 Mölndal

Sweden

Service support: +46 31 869500

The information contained herein is proprietary and is provided solely

for the purpose of allowing customers to operate and/or service Intermec

manufactured equipment and is not to be released, reproduced, or used

for any other purpose without written permission of Intermec.

Information and speciﬁcations in this manual are subject to change

without notice.

EasyCoder, EasyLAN, and Fingerprint are registered trademarks of

Intermec Technologies Corp. The word Intermec, the Intermec logo,

InterDriver, PrintSet, and Duratherm are trademarks of Intermec Tech-

nologies Corp.

Microsoft is a registered trademark of Microsoft Corporation.

Torx is a registered trademark of Camcar Division of Textron Inc.

UNIX is a registered trademark of The Open Group in the United States

and other countries.

Windows is a trademark of Microsoft Corporation.

Throughout this manual, trademarked names may be used. Rather than

put a trademark (™) symbol in every occurrence of a trademarked name,

we state that we are using the names only in an editorial fashion, and to

the beneﬁt of the trademark owner, with no intention of infringement.

Preface

Contents

Introduction ................................................................................. iv

Printer Firmware........................................................................... iv

Installation Kit.............................................................................. iv

1 Physical Installation

EasyCoder PF2/4i printers.............................................................2

EasyCoder PM4i printers...............................................................3

All Models .....................................................................................3

2 Setup in Fingerprint

Setup Methods...............................................................................8

Setting the New Line Parameter.....................................................8

Setting the Network Parameters .....................................................9

IP Selection .....................................................................9

Reading or Setting the IP Address..................................10

Reading or Setting the Netmask, Default Router, and

Name Server..................................................................10

3 Setup in IPL

Setup Methods.............................................................................14

Setting the Network Parameters ...................................................14

IP Selection ...................................................................14

Reading the IP Address..................................................15

Reading the Netmask, Default Router,

and Name Server ...........................................................15

Using ARP’n’PING to set an IP Address........................16

4 Accessing the Printer’s Home Page

Using the Web Browser................................................................22

Intermec EasyLAN Interface Kit Installation Instructions iii

Preface

iv Intermec EasyLAN Interface Kit Installation Instructions

Introduction

This Installation Instructions booklet describes how to install an

EasyLAN Ethernet interface in an EasyCoder PF2i, PF4i, PF4i Com-

pact Industrial, or PM4i printer and how to connect it to a LAN, WAN,

Intranet, or Internet network via an RJ-45 network cable.

The installation instructions describes how to physically install the inter-

face board in a printer and how to set up the IP address, netmask, default

router, and name server. The instructions end when you have the print-

er’s home page up and running. From there, please refer to the Intermec

EasyLAN User’s Guide on the attached CD-ROM.

This interface kit must only be physically installed by an

authorized service technician. Intermec assumes no respon-

sibility for personal injury or damage to the equipment if

the installation in performed by an unauthorized person.

Printer Firmware

The printer must either be ﬁtted with Intermec Fingerprint v8.00 (or

later) or IPL v2.00 (or later). In Intermec Fingerprint, the Ethernet port

is addressed as device "net1:" (communication channel #5).

Installation Kit

The EasyLAN Interface Kit contains:

•One EasyLAN interface board

•One light guide

•One hexagonal threaded spacer

•One network extension cable

•One cable tie

•One serial number label

•One CD-ROM with software and manuals

•One Installation Instruction booklet

The only tool required for the installation is a #T20 Torx screwdriver and

a small wrench.

Intermec EasyLAN Interface Kit Installation Instructions 1

1 Physical Installation

This chapter describes how to physically install the

EasyLAN interface kit in a PF2/4i- or PM4i-series

printer.

The installation described in this chapter

must only be performed by an authorized

service technician.

Take precautions against electrostatic

discharges, for example by wearing

grounded bracelets.

2 Intermec EasyLAN Interface Kit Installation Instructions

Chapter 1 — Physical Installation

•Switch off the printer and disconnect the power cord.

•Disconnect all communication cables.

•Remove the front/left-hand cover as follows.

The electronic compartment contains wires and compo-

nents with dangerous voltage (up to 380V). Make sure that

the printer is switched off and the power cord is discon-

nected before the left-hand cover is removed.

EasyCoder PF2/4i printers

•Open the right-hand door.

•Using a #T20 Torx screwdriver, remove the three screws and lift the

cover up so it disengages the bottom plate.

•Swing out the rear part of the cover so you can disconnect the console

cable from the CPU board.

•Put the cover aside on a soft cloth or similar to avoid scratches.

Intermec EasyLAN Interface Kit Installation Instructions 3

Chapter 1 — Physical Installation

EasyCoder PM4i printers

•Using a #T20 Torx screwdriver, loosen the four screws that holds the

cover along the lower left edge of the bottom plate.

•Remove the four screws that hold the cover to the center section.

•Pull out the cover so you can disconnect the console cable from the

CPU board.

•Put the cover aside on a soft cloth or similar to avoid scratches.

All Models

•Remove the LAN connector plug, which is snap-locked at the top of

the rear plate.

•Remove the #T20 Torx screw that holds the upper/front part of the

CPU board to the power supply unit and replace it with the hexagonal

spacer included in the kit. Keep the screw.

4 Intermec EasyLAN Interface Kit Installation Instructions

Chapter 1 — Physical Installation

•Connect the EasyLAN board to the PCI connector (J84) on the CPU

board so the hole in the interface board becomes aligned with the

spacer.

•Secure the EasyLAN board with the #T20 Torx screw you previously

removed.

•From the inside of the electronics compartment, press the metal

socket of the network extension cable into the square hole in the rear

plate (where you removed the LAN plug) until it is held by its snap-

lock.

•Route the extension cable over the SIMMs on the CPU board and

connect it to the RJ-45 socket on the EasyLAN interface board (J2).

•From the outside, insert the thin end of the light guide through the

small hole next to the RJ-45 socket on the rear plate. Press the clear

plastic “lamp”in place. Connect the other end to the black plastic

socket (D1) on the EasyLAN interface board.

•Pull the cable tie through the hole in the upper edge of the CPU

board between the SIMMs and the RTC socket. Secure both the

extension cable and the light guide with the cable tie.

•Fit the serial number label to the printer’s rear plate below the RJ-45

socket and to the right of the memory card slot.

•Put back the front/left-hand cover. Route the cable from the display

unit above the ribbon motor. Connect the cable to connector J50 at

the upper right corner of the CPU board.

•Connect the power cord and switch on the power.

•Enter the Setup Mode and print the test label “Hardware Info”to see

if the printer detects the EasyLAN interface board. For information

on how to enter the Setup Mode, refer to the User’s Guide for the

printer in question.

•Connect the network cable to the RJ-45 socket on the printer’s rear

plate.

•Set up the network parameters. See Chapter 2.

Intermec EasyLAN Interface Kit Installation Instructions

Chapter 1 — Physical Installation

Light guide

Cable tie

RJ-45

connector

Extension cable

EasyCoder PF2/4i-series printer

EasyCoder PM4i printer

EasyLAN interface

board

Light guide

Cable tie

RJ-45

connector #T20 Torx screw

and spacer

Extension cable

EasyLAN interface

board

#T20 Torx screw

and spacer

6 Intermec EasyLAN Interface Kit Installation Instructions

Chapter 1 — Physical Installation

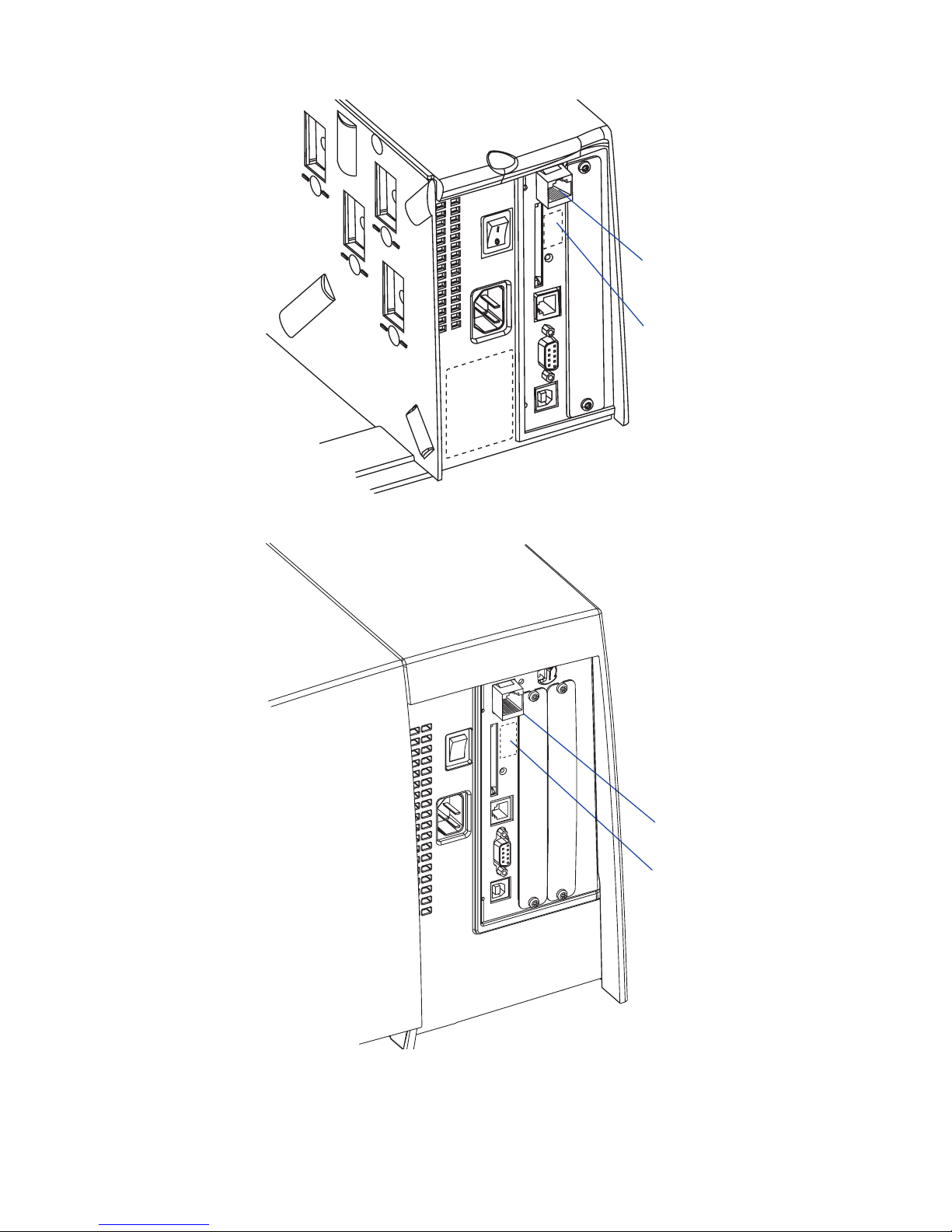

EasyCoder PF2/4i-series printer, rear view

EasyCoder PM4i printer, rear view

RJ-45 socket

Serial number

label

Serial number

label
