Intermec 3600 Manuale utente

3600

Batch Takeup

Accessory

Instruction

Sheet

Power

Intermec

3600

Alert

Feed/Pause

Empty/Pause

3600I.001

Media guide

plate Media access

door

Rewinder

clasp

Rewinder

hub

➤

Parts Provided:

• Batch Takeup Reel

• Media Guide Plate

• Media Clamp

Note: The batch takeup accessory rewinds small

batches of labels as they are printed by the 3600

printer. Space inside the printer allows the batch

takeup accessory to rewind batches of approximately

1500 inches of media (or 300 five-inch labels).

Step 1

Install the Media Guide Plate onto the

Media Access Door

1. Remove the media cover.

2. Remove the rewinder clasp from the rewinder hub.

3. Install the media guide plate to the front of the

media access door.

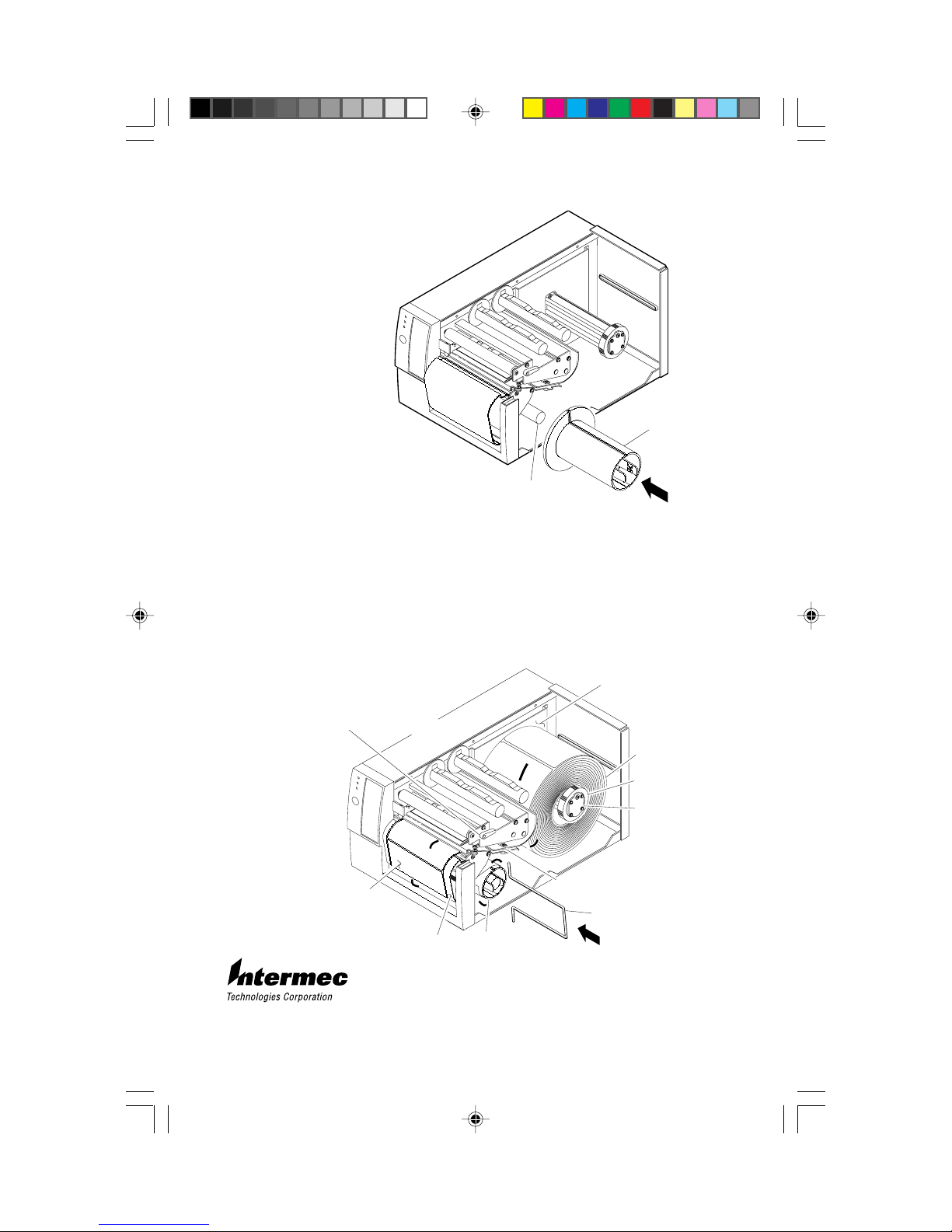

Step 2

Install the Batch Takeup

Reel

Slide the batch takeup

reel all of the way onto the

rewinder hub and rotate it

counterclockwise until it

snaps into place.

Power

3600

Alert

Feed/Pause

Empty/Pause

➤

3600I.003

Media

(Route through

opening in the

media access door.)

Batch

takeup reel

(Wind the media

clockwise around the reel.)

Lower media

guide

Media guide

plate

Media clamp

Supply roll

retainer

Supply roll

post

Position the media

roll firmly against the

inside wall of the printer.

Intermec

Head lift lever

(Raise the printhead

for loading media.

Lower when ready to print.)

Media roll

Power

Intermec

3600

Alert

Feed/Pause

Empty/Pause

3600I.002

Rewinder

hub

Batch

takeup

reel

Step 3

Loading the Media

1. Refer to “Straight Through Printing” in the 3600 User’s

Manual for media loading instructions.

2. Pull at least 12 inches of media out beyond the printhead.

3. Route the media around the media guide plate

and through the opening in the media access door.

4. Wind the media clockwise around the batch

takeup reel and install the media clamp

onto the batch take up reel.

PN 062750-001

6001 36th Avenue West, P.O. Box 4280, Everett, WA 98203-9280
