EasyCoder F-Series

IEEE 1284 Parallel Interface Board

P/N 1-960473-01

Edition 2

January 2001

Installation Instructions

EasyCoder F-Series IEEE 1284 Parallel Interface Board – Installation Instructions Ed. 2

Chapter 1

EasyCoder F-Series

IEEE 1284 Parallel Interface

Board

Installation Instructions

Edition 2, January 2001

Part No. 1-960473-01

Description

Application of Use

IEEE 1284 Interface

Installation Kit

The IEEE 1284 Parallel Interface Board is an optional device

for EasyCoder F2 and EasyCoder F4 which provides these

printers with an parallel interface port.

The parallel communication port is addressed in Intermec Fin-

gerprint v7.2 or later as device "centronics:". The board is

IEEE1284-I compatible. Nibble, byte, ECP, and EPP modes

from printer to host are not presently supported.

The IEEE 1284 board has a standard 36-pin female IEEE

1284B connector with the following conﬁguration:

Pin Signal Pin Signal

1 DSTROBE 19 GND

2 DATA 0 20 GND

3 DATA 1 21 GND

4 DATA 2 22 GND

5 DATA 3 23 GND

6 DATA 4 24 GND

7 DATA 5 25 GND

8 DATA 6 26 GND

9 DATA 7 27 GND

10 ACK 28 GND

11 BUSY 29 GND

12 PE 30 GND

13 SELECT 31 INIT

14 AF 32 ERROR

15 N/C 33 N/C

16 GND 34 N/C

17 SCREEN 35 N/C

18 + 5V EXT (max 200 mA)1 36 SELECTIN

1/. The external 5V is automatically switched off at overload.

There are neither any straps or other types of physical con-

ﬁguration on this interface board, nor any options in the Setup

Mode

The IEEE 1284 Parallel Interface Kit contains:

•One interface board.

•One ﬂat cable

•This Installation Instruction booklet

EasyCoder F-Series IEEE 1284 Parallel Interface Board – Installation Instructions Ed.2

Chapter 2

EasyCoder F2 and F4

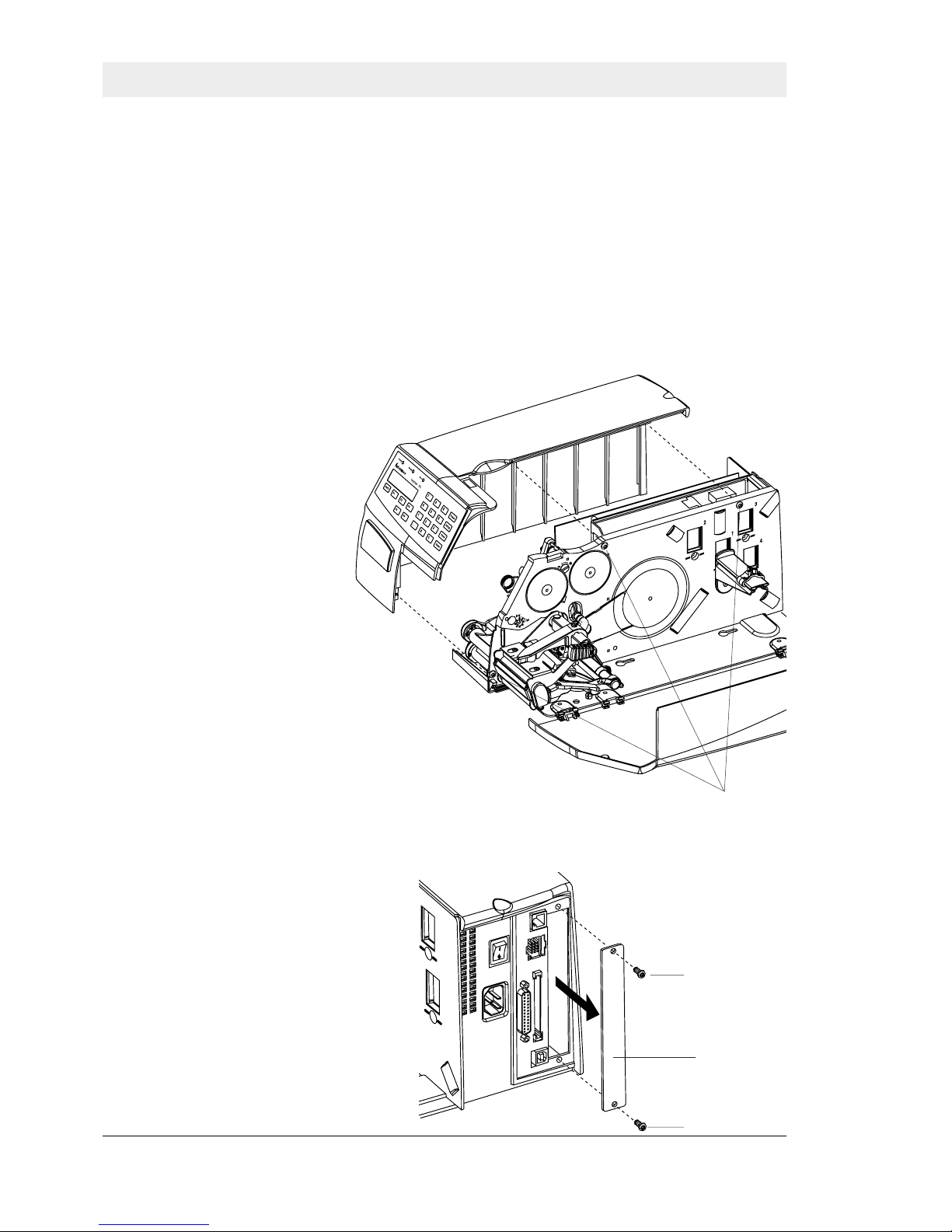

• Open the electronics compartment by removing the front/

left-hand cover, which is held by three #T20 Torx screws

from the media compartment side of the center section.

Warning!

Switch off the power and disconnect the power cord. The

electronics compartment contains high voltage components

and wires. Do not open the electronics compartment before

the printer is safely disconnected from any AC supply.

• Remove the two #T10 Torx screws that hold the interface

cover plate on the printer’s rear plate. Remove the cover

plate.

#T10 Torx screw

Cover Plate

#T10 Torx screw

#T20Torx screws (x3)

Installation

EasyCoder F-Series IEEE 1284 Parallel Interface Board –Installation Instructions Ed. 2

Chapter 2 Installation

EasyCoder F2 and F4,

cont.

•Save the cover plate for possible later use. Keep the

screws.

•Insert the interface board with the components side facing

right, as seen from behind.

•Attach the interface board to the printer’s rear plate by

means of the two screws left over when you removed the

original cover plate.

•Connect the ﬂat cable included in the kit between connector

P81 on the CPU board and connector P1 on the interface

board (also see the next page.)

Interface

Board

P35

IC305

P32

IC304

P33

P81

C10

C11

C12

C13

IC2

IC4 IC3

IC5A

R10

R11

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21

R22

R23 R24

R25 R26

R27

R28

R29

R30

R31

R33

R34

R35

R36

R37

R38

R39

R40

R41

FV1

FV2 FV3

L10

L11

L12

L13

L14

L15

L16

L17

L18

L19

1-971611-01.P01

C5 C6

IC1

C14

R32

EasyCoder F-Series IEEE 1284 Parallel Interface Board –Installation Instructions Ed. 2

Chapter 2 Installation

EasyCoder F2 and F4,

cont.

•Make sure that the cable between CPU board and interface

board runs as illustrated below.

•Put back the front/left-hand cover.

•Connect the power cord.

•Now you have one new interface connector ("centronics:")

on the printer’s rear plate in addition to the standard inter-

faces "uart1:" and "usb1:". Connect the parallel interface

cable and switch on the power.

IEEE 1284 Interface

"centronics:"

Serial Interface

"uart1:"

CPU Board

Interface Board

Cable

Information in this manual is subject to change without prior notice and

does not represent a commitment on the part of Intermec Printer AB.

Sweden.

EasyCoder, EasyLAN, Fingerprint, and LabelShop are registered trade-

marks of Intermec Technologies Corp. The word Intermec, the Intermec

logo, InterDriver, and PrintSet are trademarks of Intermec Technologies

Corp.

Centronics is a registered trademark of Genicom Corp.

Torx is a registered trademark of Camcar Division of Textron Inc.

Serial Interface

"usb1:"
