Intermec PW50 Manuale utente

Vehicle Mount

Guide d’installation du socle de véhicule

Installationsanleitung für Fahrzeugbefestigung

Guia de Instalação do Suporte do Veículo

Инструкция по установке автомобильной стойки

Guía de instalación del montaje para vehículos

PW50

Installation

Guide

Contents

PW50 Vehicle Mount Installation Guide . . . . . . . . . . . . . . . 3

Guide d’installation du socle de véhicule PW50 . . . . . . . . 13

Installationsanleitung für Fahrzeugbefestigung PW50. . 23

Guia de Instalação do Suporte do Veículo PW50 . . . . . . . 33

Инструкция по установке автомобильной стойки PW50. 43

Guía de instalación del montaje para vehículos PW50 . . 53

PW50 Vehicle Mount Installation Guide

The PW50 Vehicle Mount (Model AV11) provides you with a

convenient way to mount the PW50 Workboard Printer to your

vehicle for charging or printing. This installation guide describes

how to install these vehicle mounts:

•PW50 vehicle mount for the CN3 (P/N 225-749-xxx)

•PW50 vehicle mount for the CN3e (P/N 225-750-xxx)

•PW50 vehicle mount for the CK61 (P/N 225-751-xxx)

The procedures are the same for each vehicle mount. However,

for convenience, the CN3 version is shown in the illustrations.

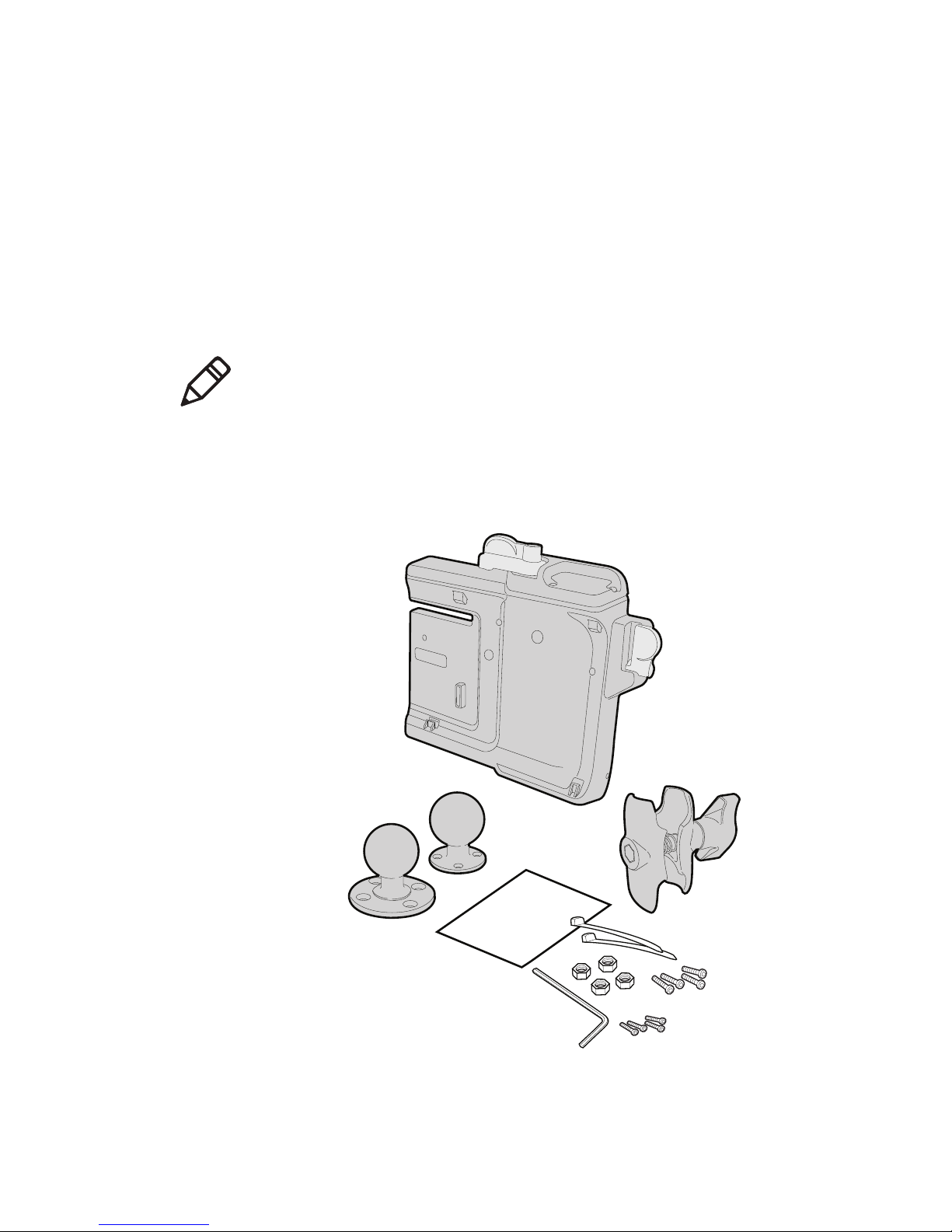

The shipping box for the vehicle mount contains these items:

PW50 Vehicle Mount Shipping Box Contents

Note: The PW50 vehicle mount is not recommended for use

with the CK61ex.

RAM

vehicle base

RAM vehicle

mount base

Mounting

arm

Vehicle mount

Documentation

Hardware

Items Not Provided

•Power cord. You need to purchase the appropriate power

cord separately. For help, contact your Intermec sales

representative.

•Common hand tools.

•Electric drill and drill bits.

Installing the Vehicle Mount

1Use the four hex screws and the hex key to attach the RAM

vehicle mount base to the vehicle mount.

2Use the four 1/4-inch-flathead hex screws and nuts to attach

the RAM vehicle base to your vehicle.

Vehicle

mount

RAM vehicle

mount base

Hex screw

(4 places)

3Place the mounting arm over the two bases, and then tighten

the mounting arm.

4Remove the two screws from the connector cover on the back

of the PW50.

Vehicle

mount

RAM vehicle

mount base Mounting arm

RAM

vehicle base

5Insert the PW50 into the vehicle mount until you hear a click

and the PW50 is firmly connected to the vehicle mount.

6Lock the mobile computer in place.

•For the CN3 and CN3e version, turn the lever.

•For the CK61 version, pull the lever over the CK61.

7Attach the power cord to the connector on the bottom of the

vehicle mount.

8Connect the other end of the power cord to your vehicle.

Using the Vehicle Mount With Fanfold Media

1Position the box that contains the fanfold media in a

convenient location.

2Press the media cover release button to open the media door.

3Route the media through the slot in the bottom of the

printer and pull a few inches through the printer.

4Close the media door.

Media cover

release button

Removing the PW50 From the Vehicle Mount

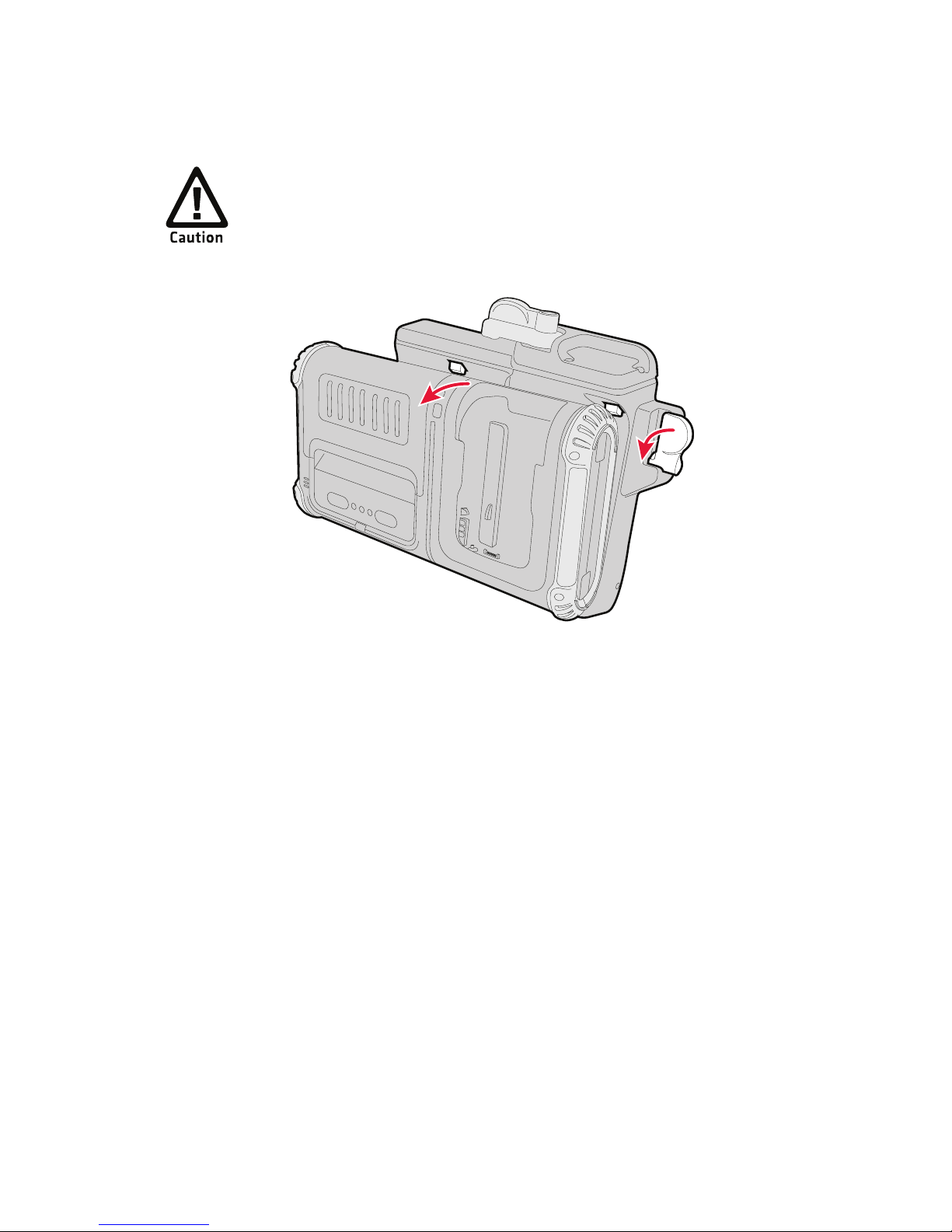

1Unlock the mobile computer.

•For the CN3 and CN3e version, turn the lever.

•For the CK61 version, press the button and pull the lever.

2Pull the release lever, pull the PW50 forward, and lift the

PW50 out of the vehicle mount.

Make sure that you lift the PW50 up and out of the

vehicle mount. Sliding the PW50 out of the vehicle

mount may damage the pins on the vehicle mount

connector.
