Jacuzzi Finestra 6036 Manuale utente

Finestra™ 6036

WALK-IN

PURE AIR®BATH

MODEL NUMBER:

EW25 (14" seat–LH)

EW30 (14" seat–RH)

EY60 (17" seat–LH)

EY65 (17" seat–RH)

EXTERIOR DIMENSIONS:

60" long x 36" wide x

37½" high

OPERATING GALLONS:

70-85 gallons

Designed with easy access and comfortable bathing in mind, the Finestra™

gives new meaning to independent living. Equipped with Jacuzzi®technology

and a variety of safety features, everyone can now enjoy the Jacuzzi®Home

Spa Experience.™

FEATURES:

• The ﬁrst and only air tight magnetic door seal

• Integral seat available in 2 heights – 14" or ADA compliant 17"

• Skirt with panels for easy installation and access

• 600 watt variable speed heated air blower

• Exclusive 360º Balanced Air Flow™ system

• Safety features include a grab bar and slip resistant ﬂooring

• PrO3

™Ozone Sanitation System standard

Finestra™ 6036 |WALK-IN PURE AIR®BATH

Finestra™6036

WALK-IN PURE AIR® BATH

Technical Speciﬁcations

DIMENSIONS

60” L x 36” W x 37-1/2” H

(1524 mm) L x (914 mm) W x (952.5 mm) H

DRAIN/OVERFLOW

A: 31-1/2” (800 mm) B: 6-5/8” (168 mm)

CUTOUT

TOTAL WEIGHT

EW25, EW30: 350 lb. (159 kg)

EY60, EY65: 350 lb. (159 kg)

OPERATING GALLONAGE

Max: 85 U.S. Gal. (322 liters)

Min: 70 U.S. Gal. (265 liters)

PRODUCT WEIGHT

EW25, EW30: 300 lb. (136 kg)

EY60, EY65: 300 lb. (136 kg)

SKIRT MOUNTING

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 115 VAC, 15 AMP, 60 Hz.

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FA35000 10/07

EW25 Finestra™ 6036 Walk-In 14" Seat Pure Air Bath, Left Hand

EW30 Finestra™ 6036 Walk-In 14" Seat Pure Air Bath, Right Hand

EY60 Finestra™ 6036 Walk-In 17" Seat Pure Air Bath, Left Hand

EY65 Finestra™ 6036 Walk-In 17" Seat Pure Air Bath, Right Hand

• Left and Right Hand drain locations

• Accessories / Hardware:

Drain Kit: #FB48000

Remote Drain Kit: #FC30000

Pillow: #EK91959

• Trim Kit Finishes Available:

(827) – Chrome

(829) – Bright Brass

(959) – White

DRAIN/OVERFLOW

60"

36"

17-1/2"

18"

6-5/8"

37"

13-3/4"

26"

4" x 16"

SeatFloor

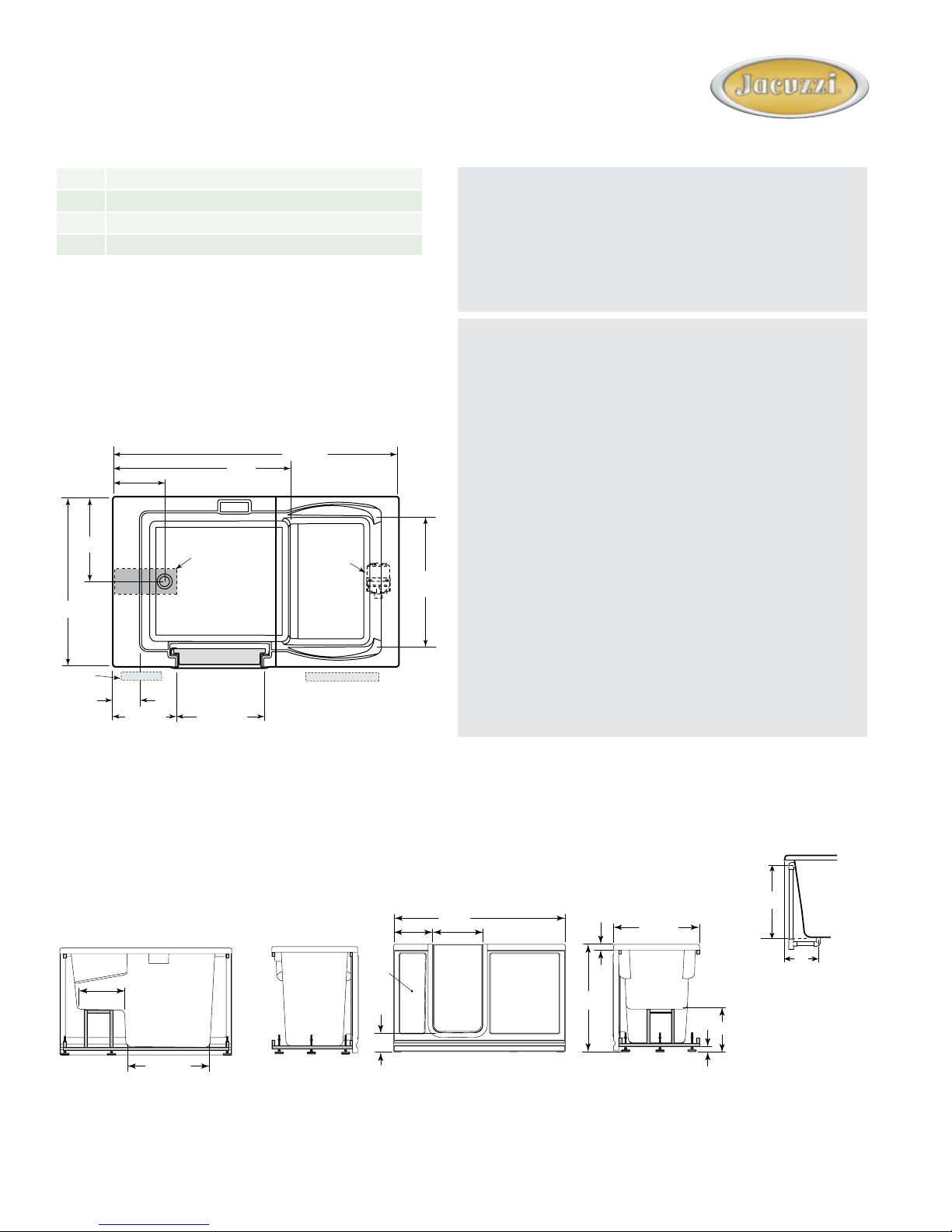

FINESTRA™ 6036

Blower

27" H x 24" L

Service Access

27" H x 9" L

Service Access

Door

BACK FRONTLEFT END RIGHT END

14" or 17"

1-1/2"

6-1/2"

29-1/2"

16-3/4"

17-1/2"

13-3/4"

Service Access

Service

Access

Finestra™ 6036 Walk-In 14" Seat Pure Air

Bath Left Hand (EW25) shown.

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum service access dimensions given.
