Jacuzzi Torretta 36 Whirlpool Bath EH95 Manuale utente

A throwback to old-world bathing comfort

the deep-welled, high-backed luxury of

tubs of years long gone.

features:

• 2 fully adjustable PowerPro® jets

• 2 fully adjustable TheraPro™ jets

• 4 AccuPro™ body and side jets

• 2 AccuPro™ neck jets

• Multi-speed motor

• 256 Chromatherapy lighting system

• All-in-one electronic control panel

• RapidHeat™ inline heater

• Wave Pulse™ system

• Water level sensor

• PrO

™

Ozone Sanitation System standard

torretta™ 36 whirlpool bath

the torretta™ whirlpool bath—truly classic, truly reﬁned—like the tiny, pristine mountain town for which it is named.

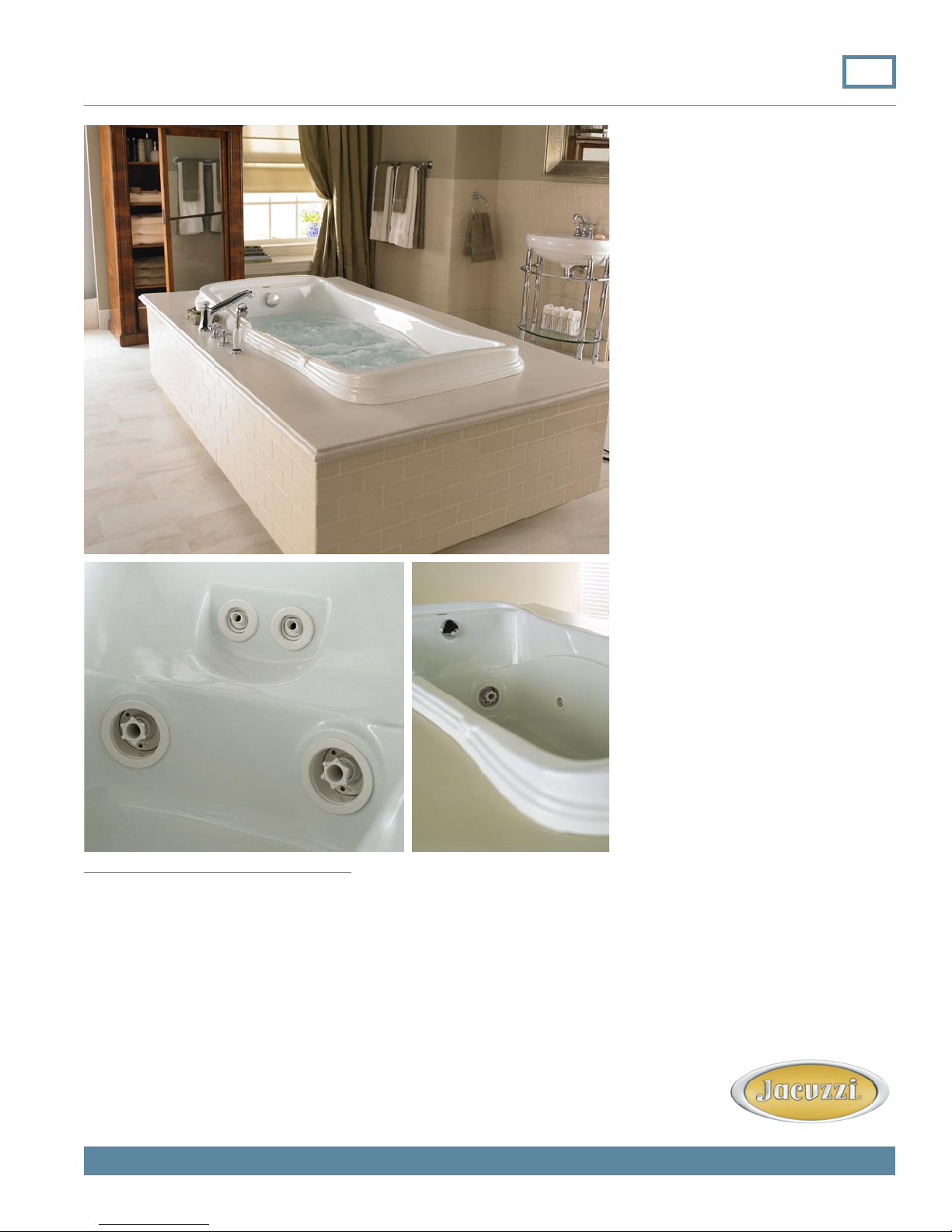

Detail: Powerful, massaging PowerPro® and AccuPro™ jets

reside in the Torretta™ whirlpool bath’s contoured backrest.

Graceful curves compliment most any décor.

torretta™ 36 whirlpool bath

model number: EH95

exterior dimensions:

72" long x 351

/8" wide x 23½" high

interior dimensions:

44" long x 23" wide

# of Jets/type of Jets:

2 PowerPro® Jets,

2 TheraPro™ Jets,

2 AccuPro™ Rotating Neck Jets,

2 AccuPro™ Body Jets

2 Side Jets

operating gallons:

70 gallons

Torretta™ 36 Whirlpool Bath

Model: EH95

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EH95 Torretta™ Whirlpool Bath

Right Hand

• Left hand Drain Location

• Accessories / Hardware:

Trim Kit: 2 HTA Jet Rings #P412

Trim Kit: 2 HTC Jet Rings #P413

Rotary Drain Kit, 30” Cable #K606

Trim Kit: 2 BMH Jet Rings #J869

Oval Trim Kit #N557

Trim Kit: 2 Neck Jet Rings #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 35-1/8” W x 22-7/8” H1 x 21” H2 x 23-1/2” H3

(1829 mm) L x (892 mm) W x (581 mm) H1 x (533 mm) H2 x (597 mm) H3

Drain/Overﬂow

A: 18-3/16” (459 mm) B: 15” (381 mm)

Cutout

Template Provided P/N: P652000

Total Weight

948 lb (430 kg) / 54 lb/sq. ft. (264 kg/m2)

Operating Gallonage

70 U.S. Gal. (265 Liters)

Product Weight

115 lb (52 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

72"

36"

18"

6-3/4"

15" X 4"

Heater

Motor

Opt. Service Access

12" H x 18" L

Service Access

15-1/4"

SIDE VIEW END VIEW

H1 H2

(51 mm)

TORRETTA 36

(Heater)

(Motor)

MAX. 1/2"

#FS31 12/06

DRAIN/OVERFLOW

Product Shown: Torretta™ Whirlpool Bath Right Hand Shown Model: EH95

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
