Technical Manual
HLS 610
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance 8 ohms
• Max Amp Power 125 watts
• Frequency Response 55Hz - 20kHz (+3dB)
• Sensitivity 88 dB (1 watt @ 1 meter)
• Crossover Frequency 2700 Hz
SYSTEM COMPONENTS:
• Cabinet HLS 610 (Not For Sale)
• Grille 332657-001
• Low Frequency Transducer* 6 1/2” Polypropylene,
Shielded (332650-001)
DC Resistance 4.4 ohms ±10%
• High Frequency Transducer*10mm Polycarbonate Dome
(TW010B17/101829B)
SYSTEM COMPONENTS: (cont.)
DC Resistance 5.5 ohms ±10%
• Crossover Network 332664-001
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test 6.0V Input 50 Hz to 20 kHz
• L.F. Aural Sweep Test 6.0V Input 40 Hz to 3 kHz
• H.F. Aural Sweep Test 2.83V Input 2 kHz to 20 kHz
PHYSICAL SPECIFICATIONS
• Enclosure dimensions: 16 1/4 x 8 5/16 x 9 7/16”
(H x W x D) 413 x 211 x 240mm
• Weight: 29lbs. (13.1kg). Sold in Pairs
WARRANTY:
• Refer to Warranty Statement packed with each product.
Owner's Manual
332661-001
Survey Card
331384-001
Warranty Card
331994-001
Upper Foam
332658-001
Lower Foam
332658-001 OWNER'S
MANUAL
Outer Carton
332660-001
PACKAGING WIRING DIAGRAM
3-99
JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
HLS 610
YEL
High Frequency*
TW010B17/101829B
Low Frequency*
332650-001
GRN/BLK GRN
Network
332664-001
YEL/BLK
– +
L1
1.85 mH
C1
10 mfd
50V
9.00" GREEN
9.00" GREEN/BLK
14.00" YELLOW
14.00" YELLOW/BLK
H.F.
L.F.
.250
.205
.110
.187
+IN
–IN
C2
2.2 mFd, 50V
INPUT
+
+
HLS 610 SCHEMATIC
332657-001
Grille Assembly
Cabinet (Not for Sale)
HLS 610
Screw (4) 61867
#6 x 3/4 OVHDPH
Woofer,*
332650-001
Tweeter *
TWO10B17/101829B
Screw (4)
#8 X 3/4"PANHD BLK
63563
Port Tube
70515-01
Logo
332663-002
Grille
Retainer (6)
333249-001
* See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers.
Terminal Cup
70442-01
Foilcal
332662-001
HLS Plastic Horn

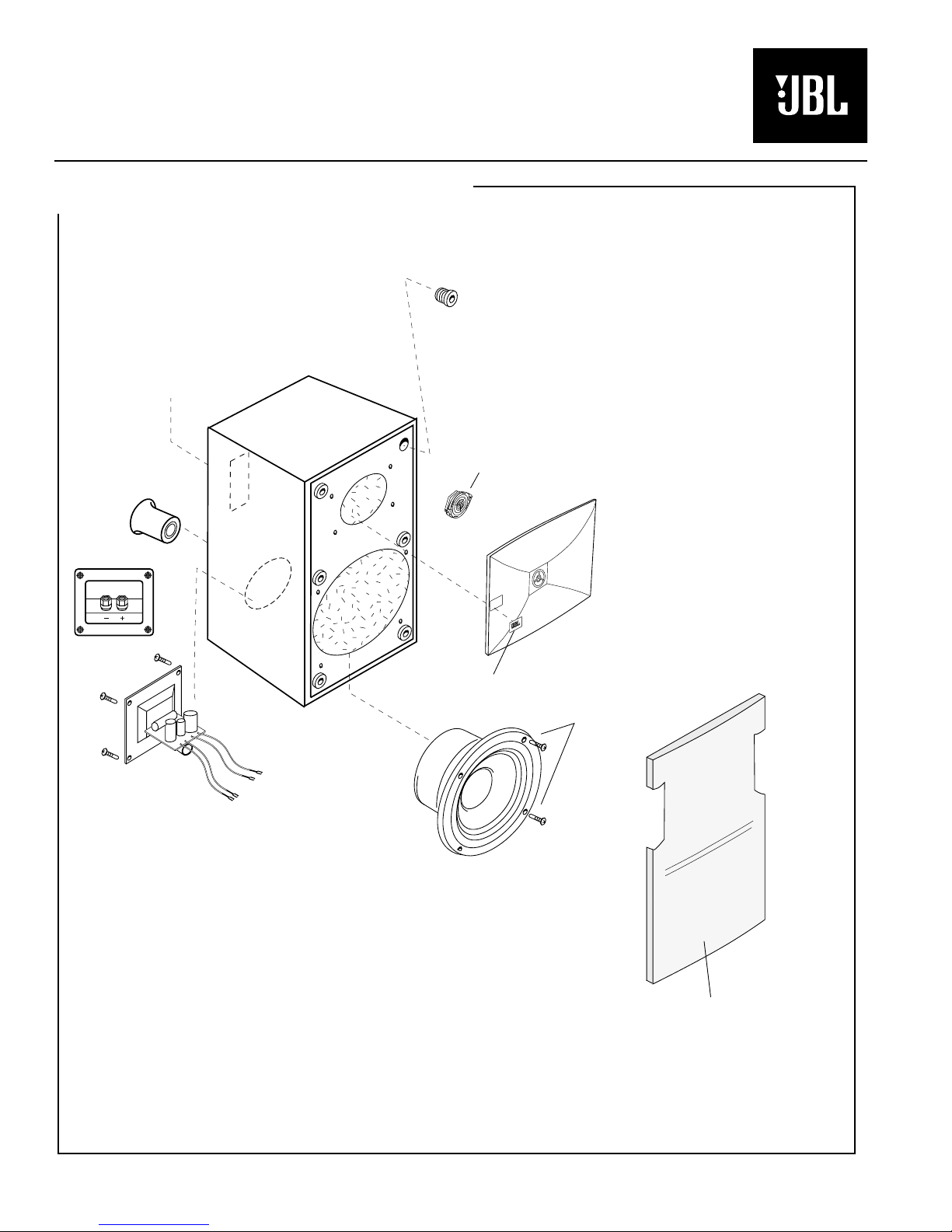

COMPONENT EXPLODED VIEW
HLS 610
HLS 610
3-99
JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
