JBL S-Center Studio Series Manuale utente

Technical Manual

S-Center

Studio Series

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 8 ohms

• Max Amp Power 150 watts

• Frequency Response 80 Hz - 20 kHz (-3dB)

• Sensitivity 91 dB (1 watt @ 1 meter)

• Crossover Frequency 800 Hz, 3200 Hz

SYSTEM COMPONENTS:

• Enclosure w/ network S-CENTER (XY05009)

• Grille X05246

• Low Frequency Transducer (2) 51/4” (133mm) PolyPlas™cone

Shielded (SS-W5.25SS)

DC Resistance 9.4 ohms ±10%

• Mid Frequency Transducer 4” (101mm) PolyPlas™cone

Shielded (SS-M4SS))

DC Resistance 3.9 ohms ±10%

• HIgh Frequency Transducer 1” (25mm) Titanium dome

Shielded (40DT25BC-DT01)

DC Resistance 3.3 ohms ±10%

• Crossover Network See above Enclosure w/ network

AURAL SWEEP TEST SPECIFICATIONS:

• A. System Aural Sweep Test 6.0V Input 80 Hz to 20 kHz

• B. L.F. Aural Sweep Test 6.0V Input 80 Hz to 1 kHz

• C. M.F. Aural Sweep Test 4.0V Input 500 Hz to 4 kHz

• D. H.F. Aural Sweep Test 2.83V Input 3 kHz to 20 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure dimensions: 77/8” x 201/2” x 9” (H x W x D)

200mm x 521mm x 229mm

• Weight 15 lbs. /6.8kg Each

WARRANTY:

• Refer to Warranty Statement packed with each product.

Owner’s Manual

AI0398

Warranty Card

AT0341

Survey Card

AI0193-01

Instruction Sheet for Feet

AI0408

Rubber feet (set of 8)

WI0758-01B

OWNER’S

MANUAL

End Foam

WP0368

Plastic Bag

Outer Carton

WB1973

PACKAGING

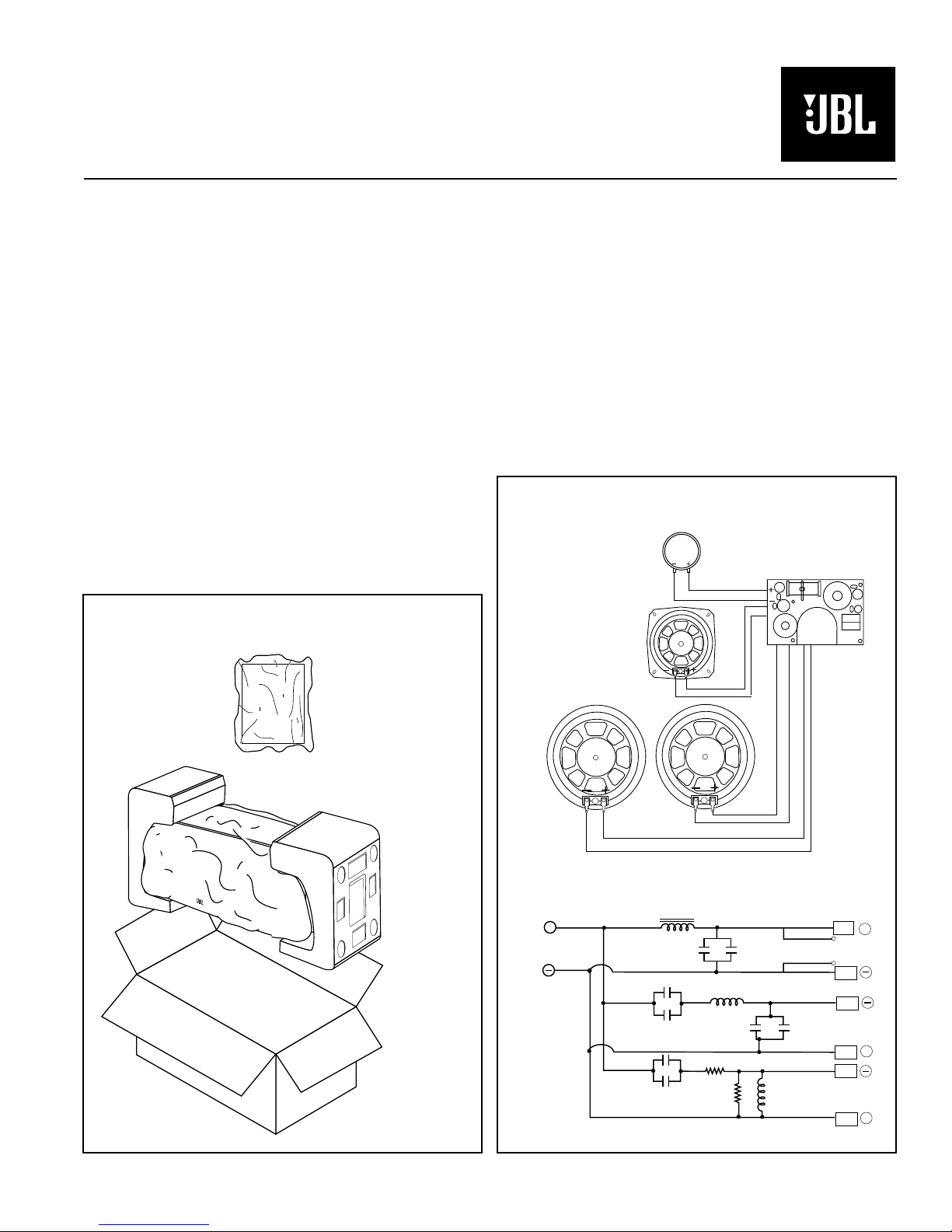

WIRING DIAGRAM

10-99

JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

S-Center Studio Series

Driver

High Frequency

40DT25BC-DT01

Driver

Mid.Frequency

SS-M4SS

Driver

Low Frequency

SS-W5.25SS

BLACK

BLACK BLACK

WHITE

GREEN

YELLOW

Crossover Network

S-Center (XY05009)

+250

205

110

205

110

H.F.

MID.F.

L.F.

INPUT

GREEN

BLACK

WHITE

BLACK

YELLOW

2.0mh

0.5mH

0.2mh

20 ohm

R1, 0.39 ohm, 5W

60µF

100V

C3, 20µF

±5% 100V

0.01µF

100V

0.01µF

100V C5 14µF

100V

C7, 6.2µF

100V

0.01µF

100V

0.01mF

100V

S-Center SCHEMATIC

Binding Post Nut (2)

T879-01

Woofers (2)

SS-W5.25SS

Crossover

Network

XY05009

Woofer Gasket (2)

P04097

Grille Retainer (4)

WI0647

Enclosure

S-Center XY05009

Tweeter

40DT25BC-DT01

Mid/Tweeter

Baffle

X04084

Screw (6)

Zinc #8 x ⁵⁄₈"

Allen HD

A06-T41611

Screw (8)

Zinc #8 x ⁵⁄₈"

Allen HD

A06-T41611

Midrange Gasket

P04064

Mid/Twt Gasket

REV2

WI0526

Midrange

SS-M4SS

Grille

X05246

Woofers (2)

SS-W5.25SS

Screw (8)

Zinc #8 x ⁵⁄₈"

Allen HD

A06-T41611

Screw (4)

#8 x ¹⁄₂ "PPH Black

06-T41202

Service Note:

Crossover network is not serviceable;

the network is part of the enclosure,

part# XY05009

S-Center

Studio Series

S-Center Studio Series

10-99

JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

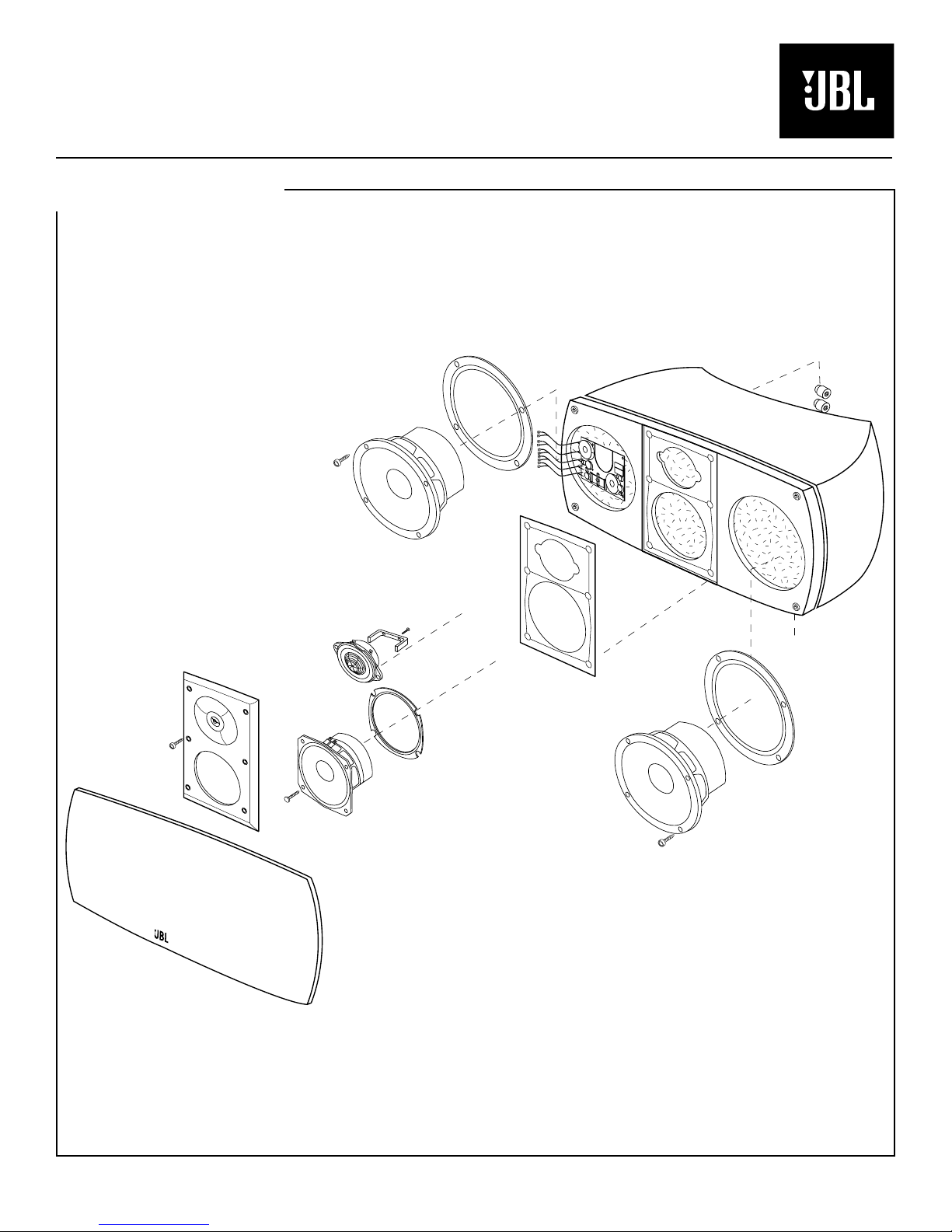

EXPLODED VIEW
